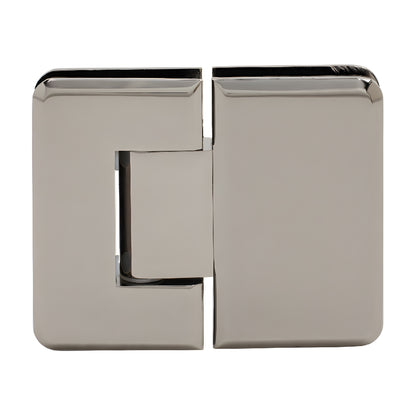

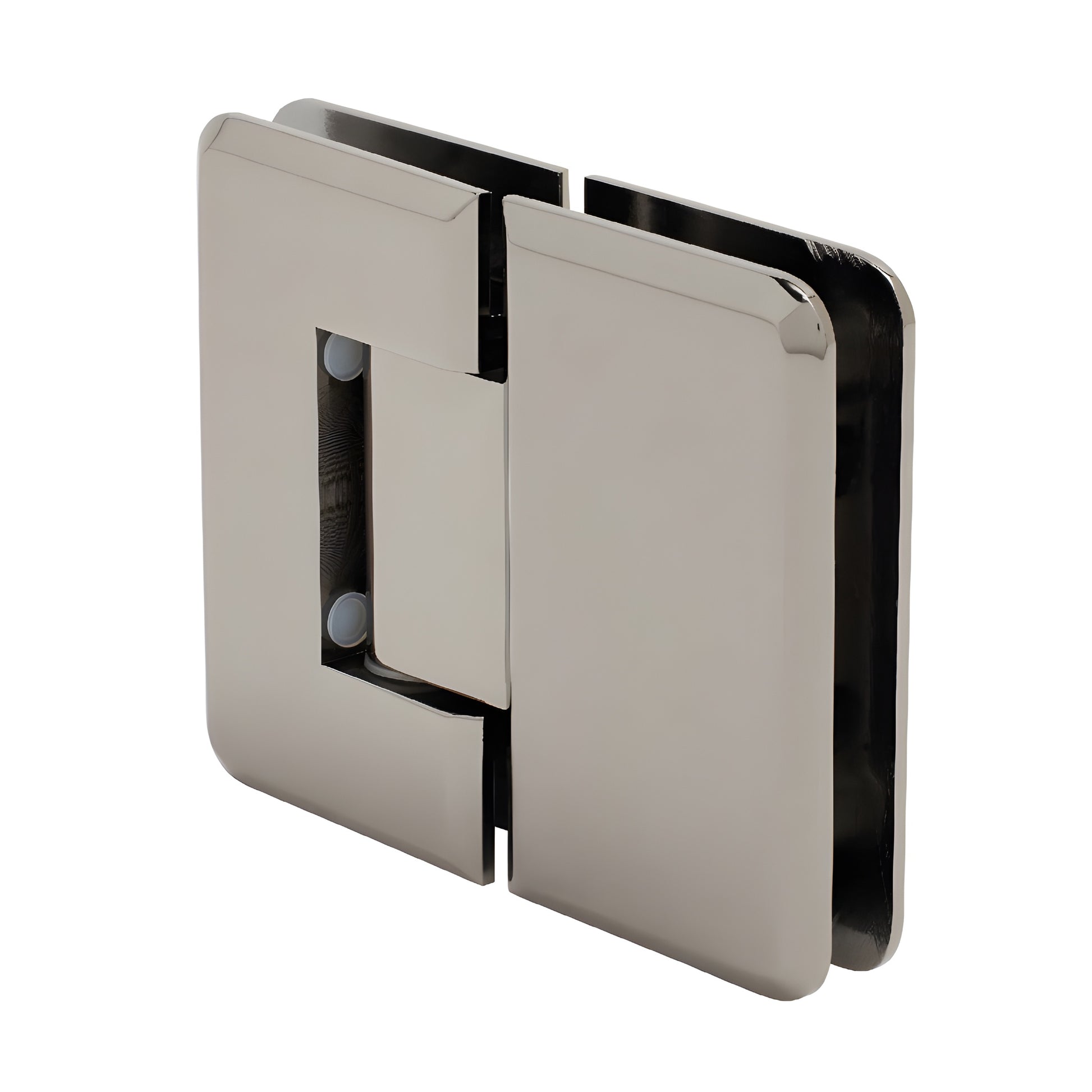

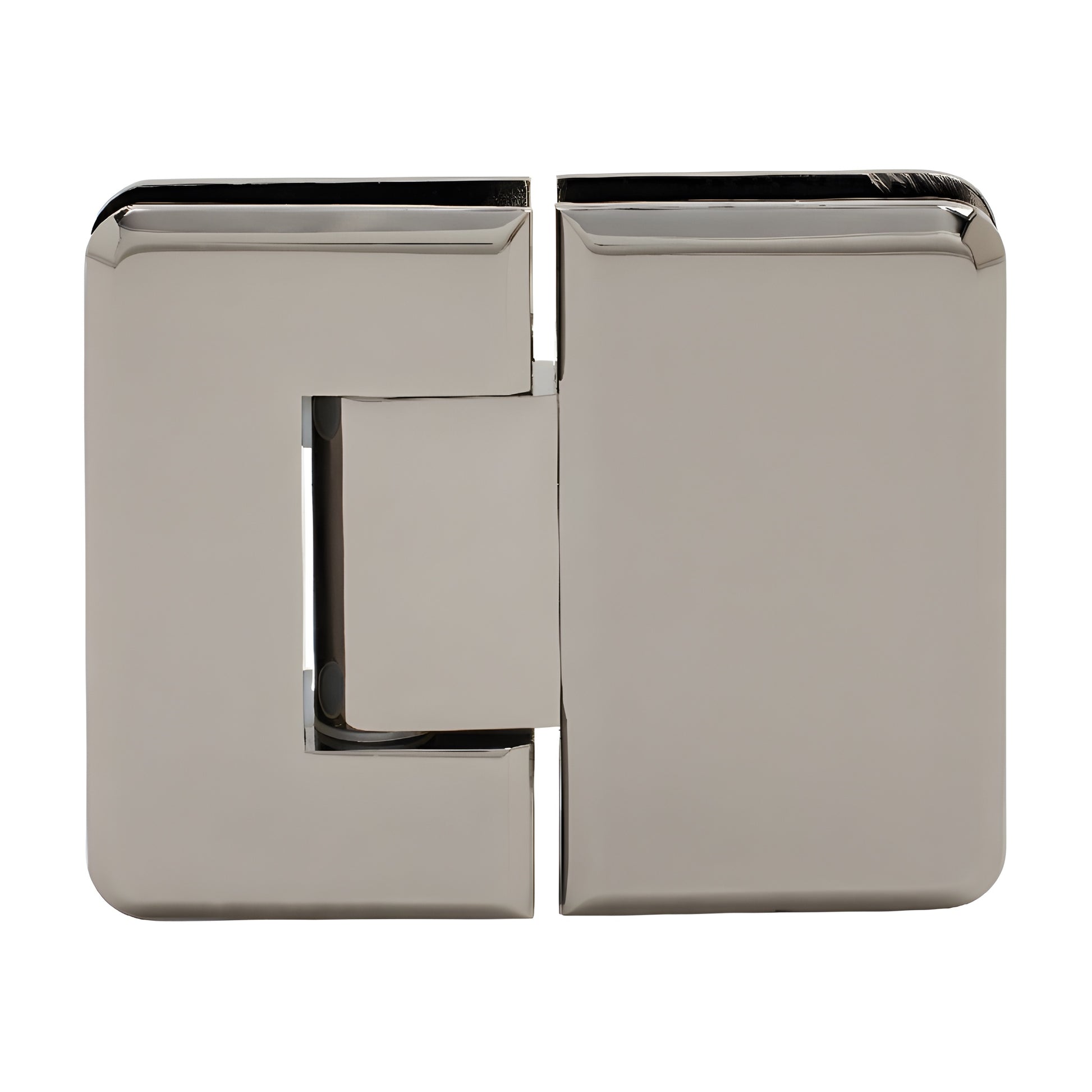

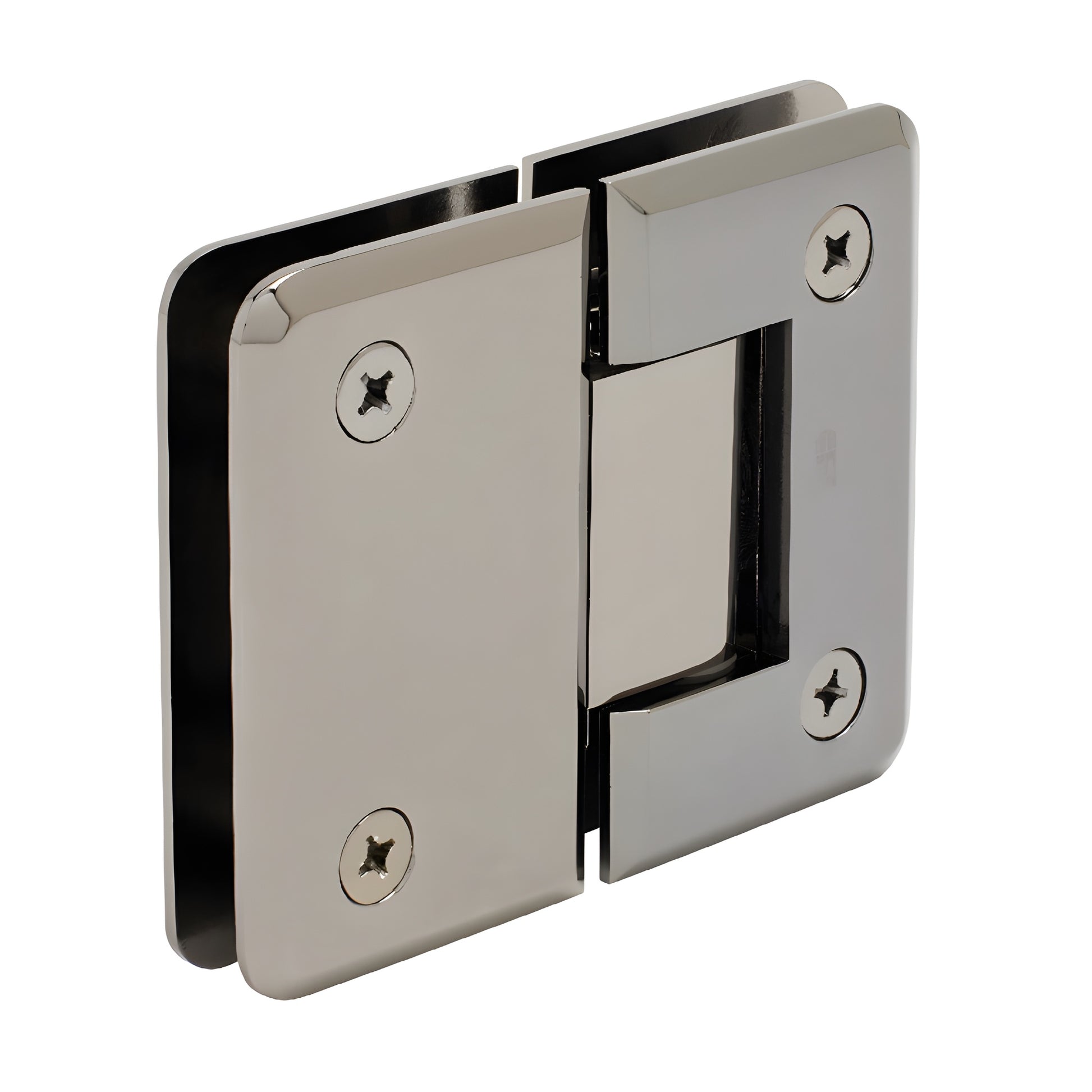

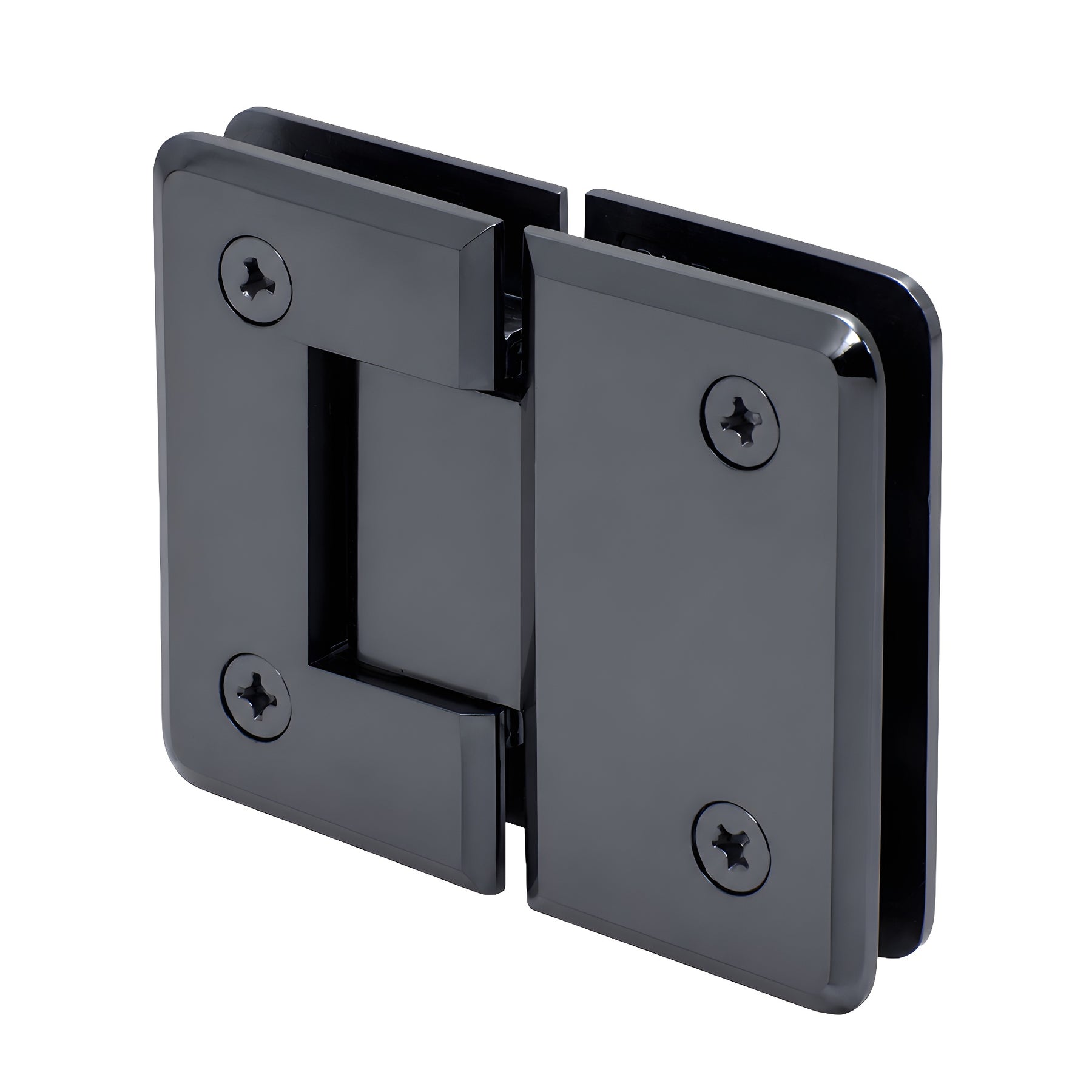

CRL Pinnacle 180° Gun Metal Glass-to-Glass Shower Hinge

• Self-centering with reversible 5° pivot pin
• Available in several durable finishes
• Three-year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered safety glass (5/16"–1/2")

The CRL Pinnacle Hinge is a sleek, radius-corner alternative to our Geneva Series, featuring beveled edges for a refined appearance. Designed for frameless shower doors, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and provide self-centering performance when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these hinges deliver long service life and reliable door closure. The Pinnacle includes the reversible 5° pivot pin used across our Geneva, Cathedral, Roman, Ultimate, and Elite Series; custom pivot pins are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin with one side marked 90° and the opposite side marked 85°. Standard models ship with the 90° side active. Pre-set models come pre-set to 85° for a tighter closure into the shower interior. The pin can be rotated to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify the needed angle up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

CAPACITY:
Using two hinges with 5/16"–1/2" glass (8–12 mm): holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" glass (8–12 mm): holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (factory set at standard closing position) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.
