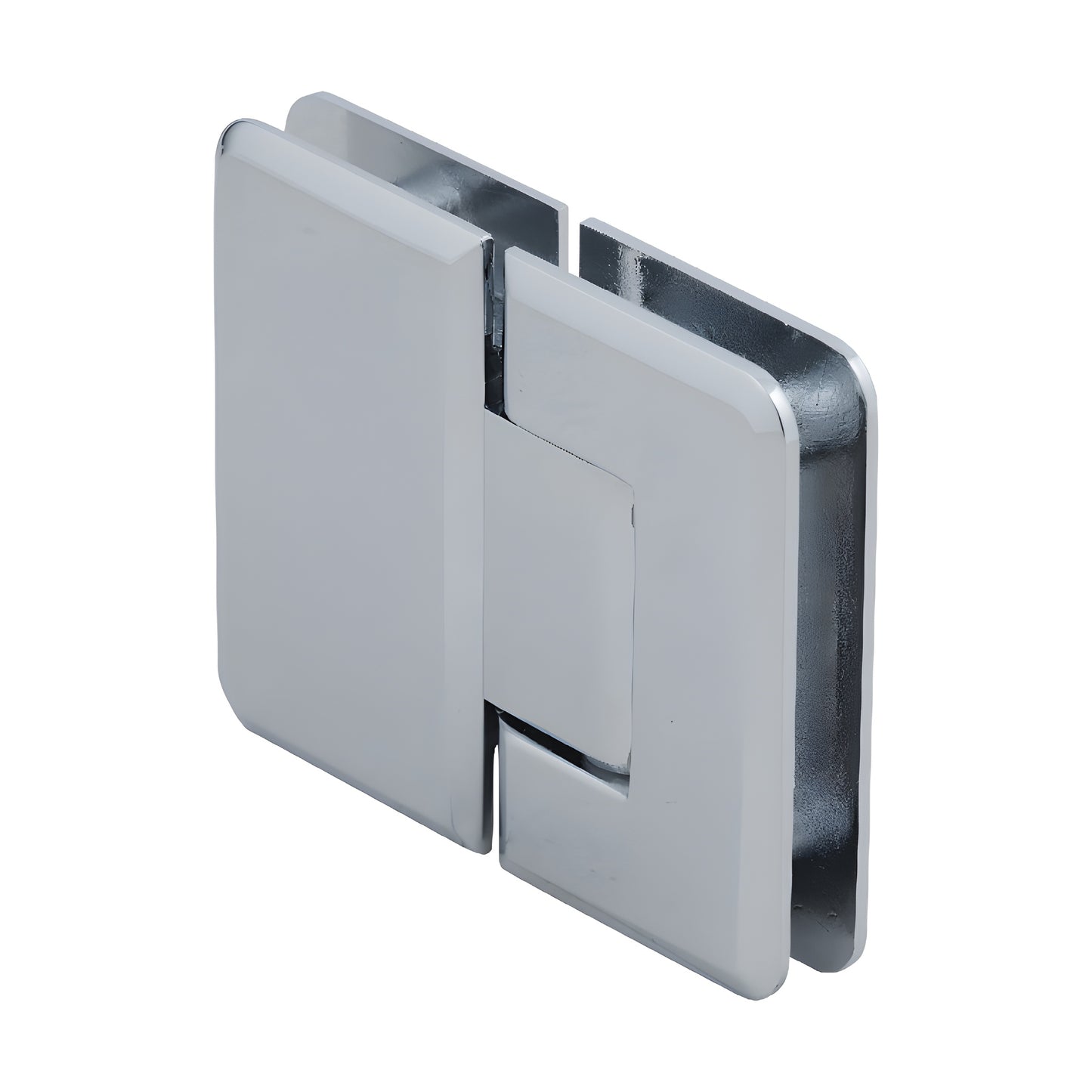

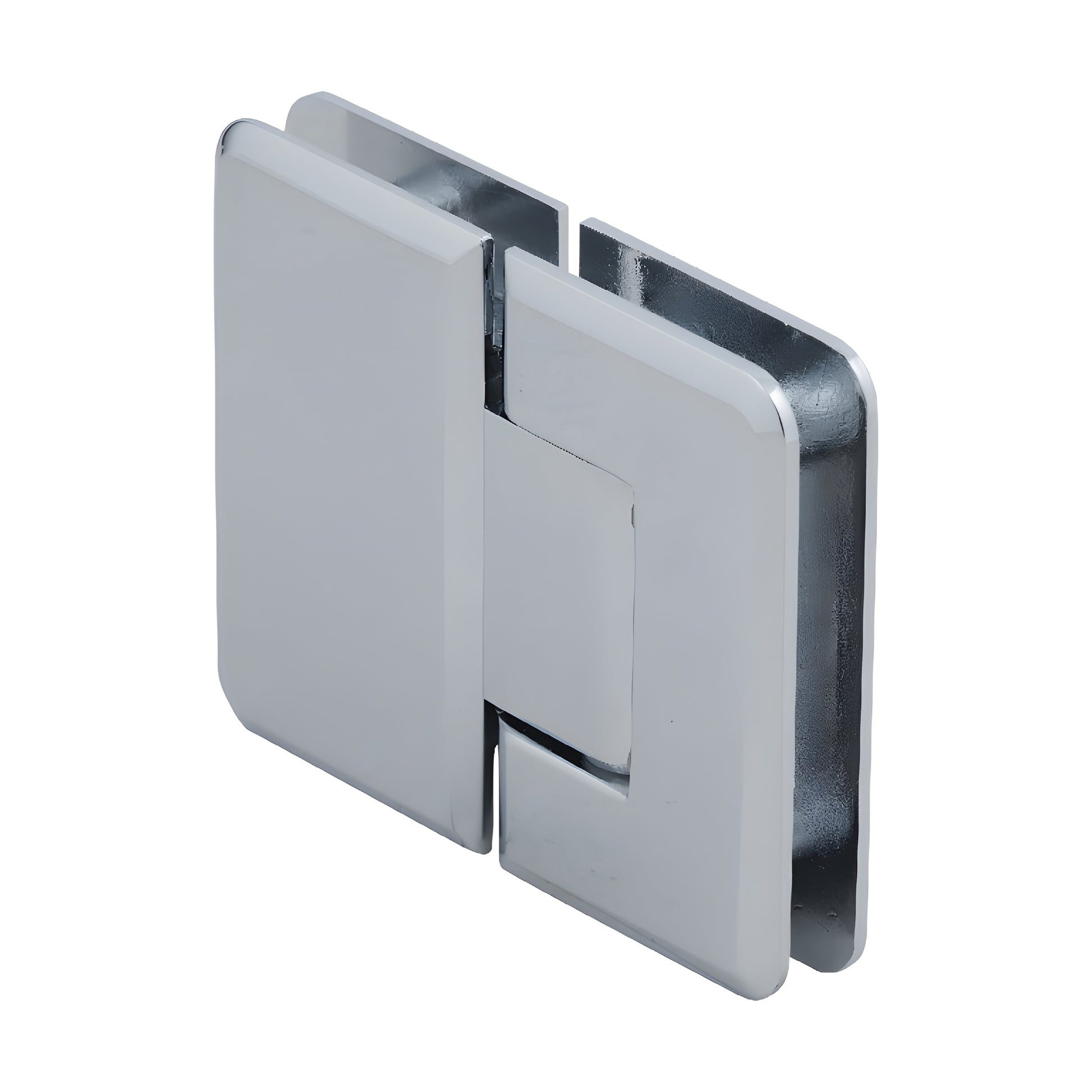

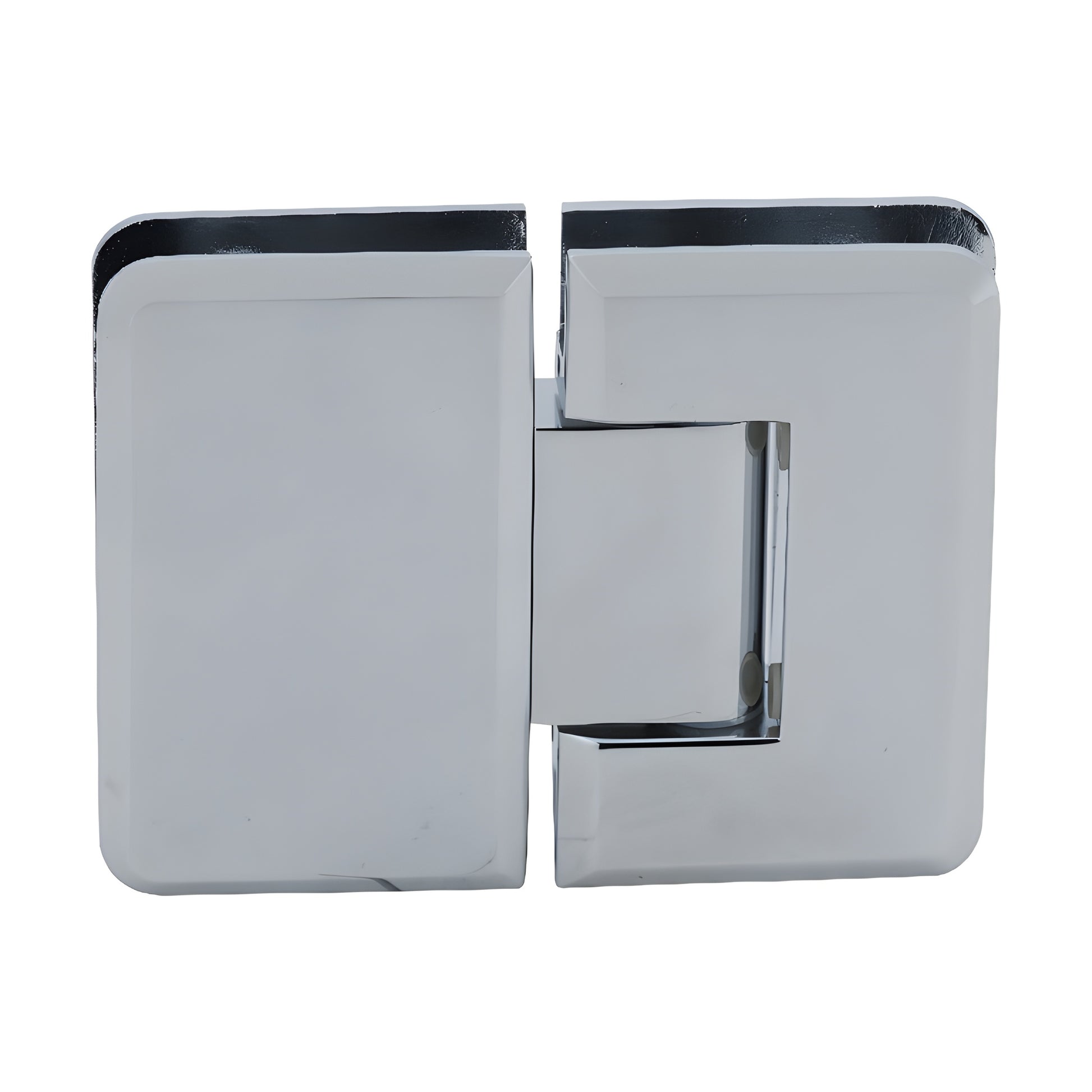

CRL Pinnacle 180° Polished Chrome Glass-to-Glass Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
• Available in Several Beautiful Finishes
• Three Year Warranty
• Use Monolithic Tempered Glass

The CRL Pinnacle Hinge (SKU: P1N180CH) is a premium 180 degree glass-to-glass shower hinge designed for residential and hotel showers. Similar to the Geneva Series but with radius corners and beveled edges, the Pinnacle offers a sleek, modern appearance. Optimized for tempered safety glass, it provides reliable, self-centering closure and long service life.

Key features and benefits:

• Fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass — ideal as a tempered glass shower door hinge
• Solid brass construction with stainless steel plunger tips, pins, and springs for corrosion resistance and durability
• Self-centering closing when within 15° of the closed position — helps ensure consistent door alignment
• Reversible 5° Pivot Pin for a tighter closure into the shower interior (also available pre-set at 85°)
• Custom Pivot Pins available up to 45° for off-angle installations

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with the 85° side active. Rotate the pin (do not flip) to change the active side.

CUSTOM PIVOT PIN: Specify a custom pivot angle (up to 45°) when wall-to-door angles are nonstandard to ensure proper closing and fit.

Load ratings:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

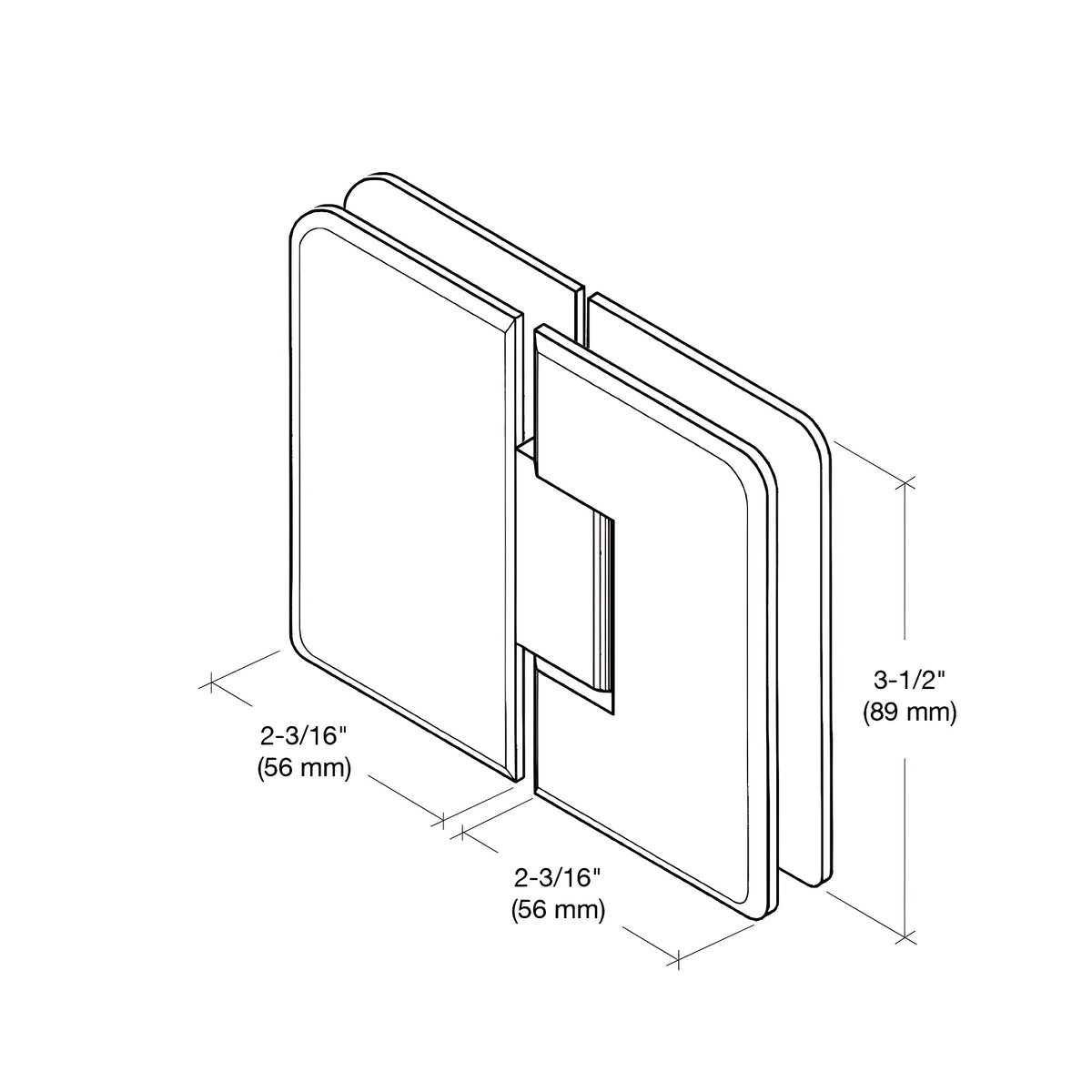

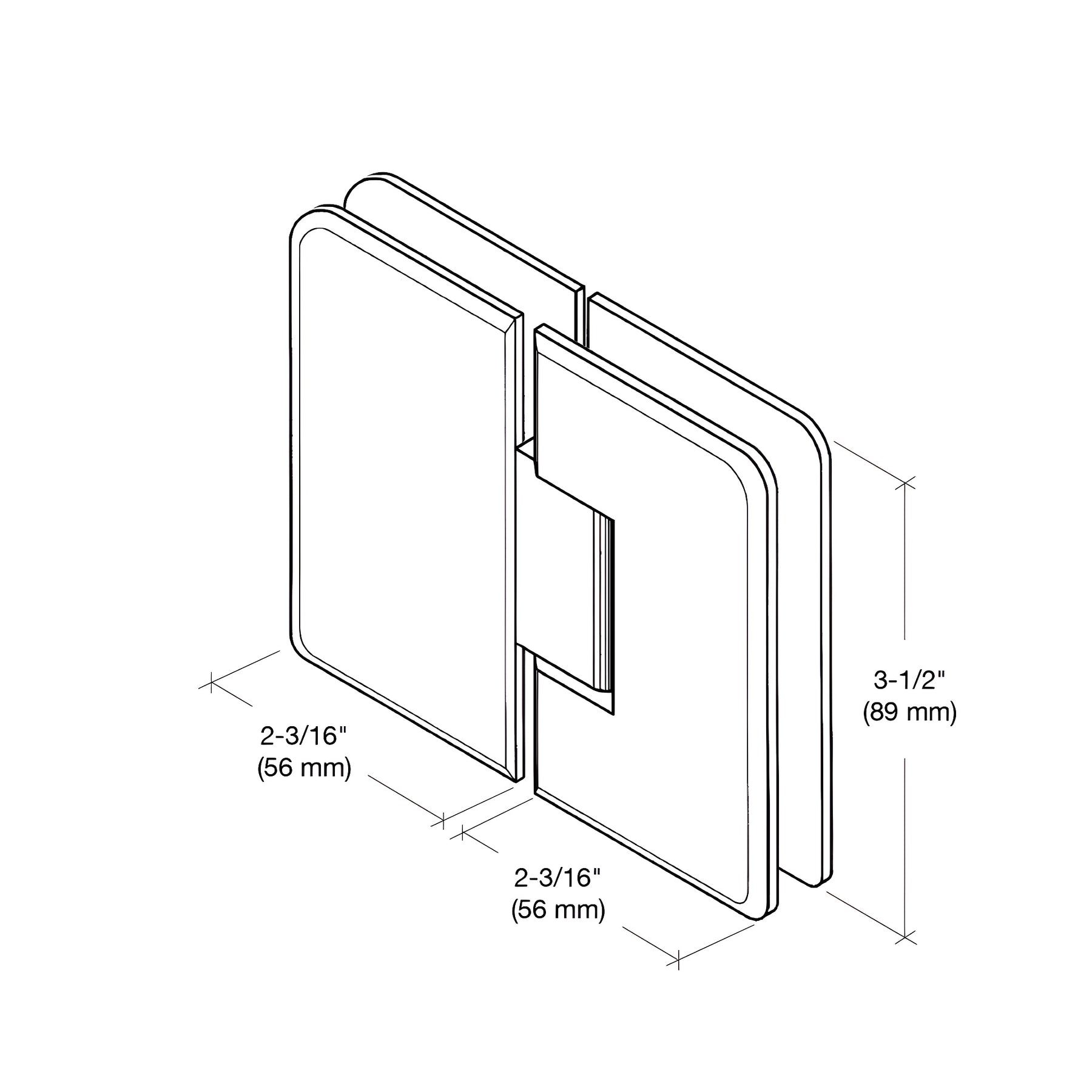

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (factory set at standard closing position) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type:
