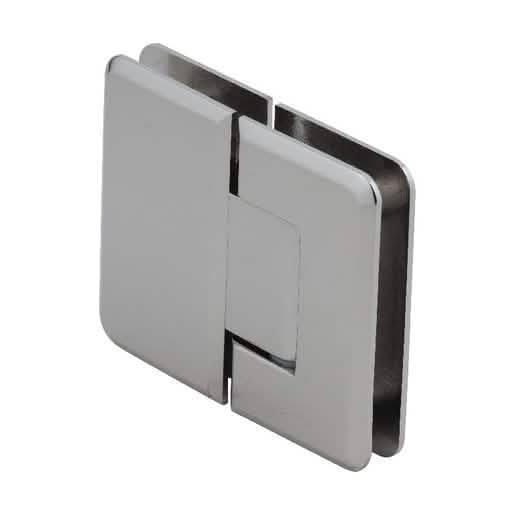

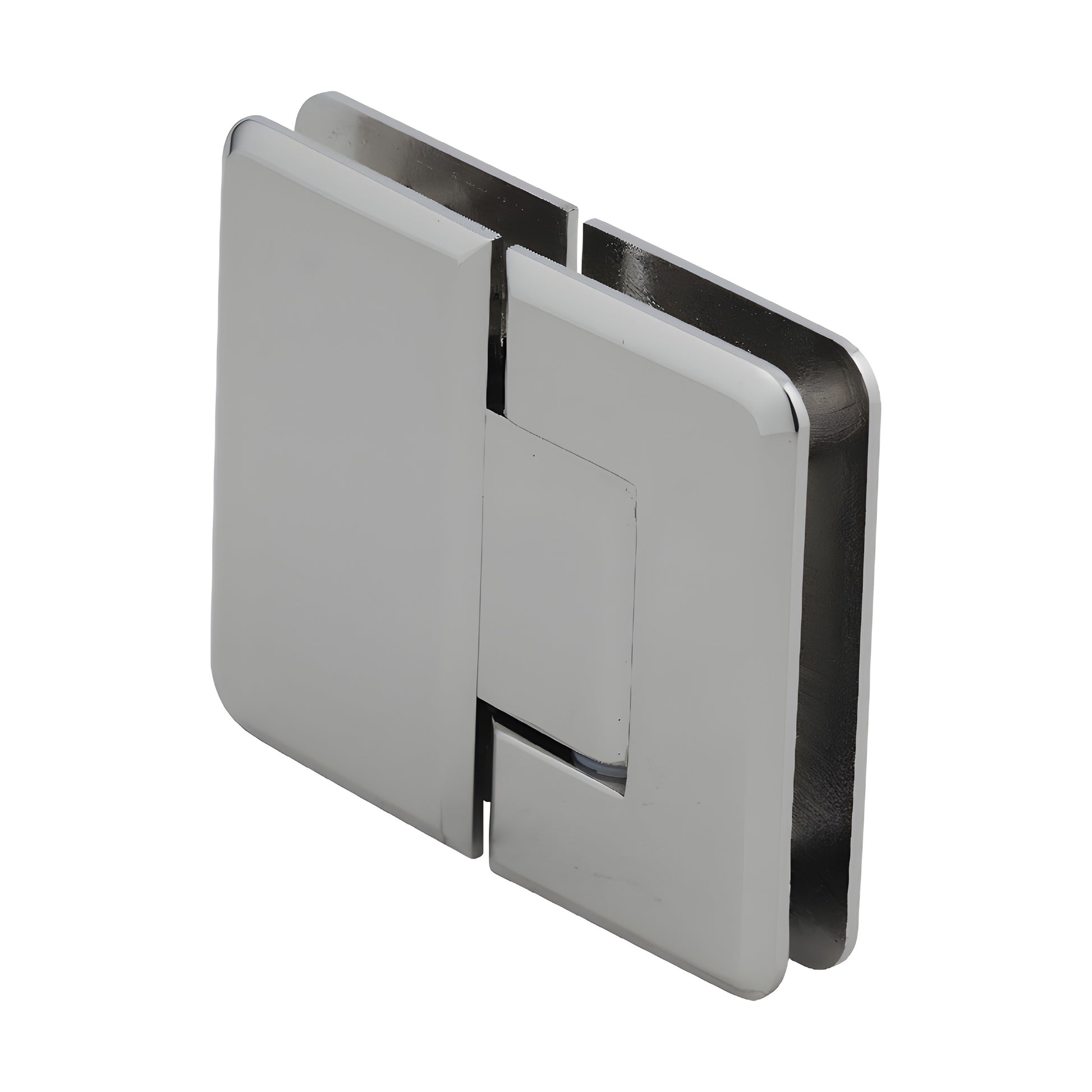

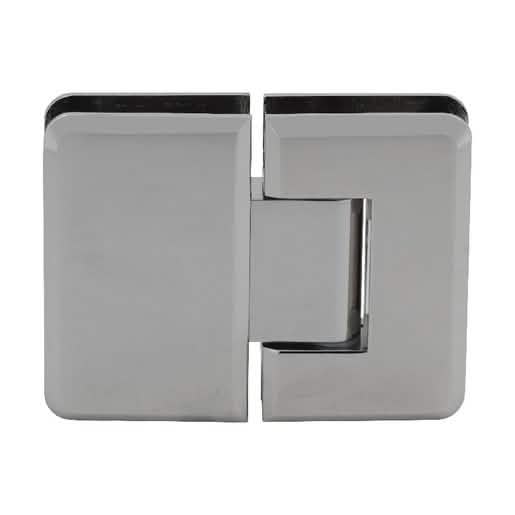

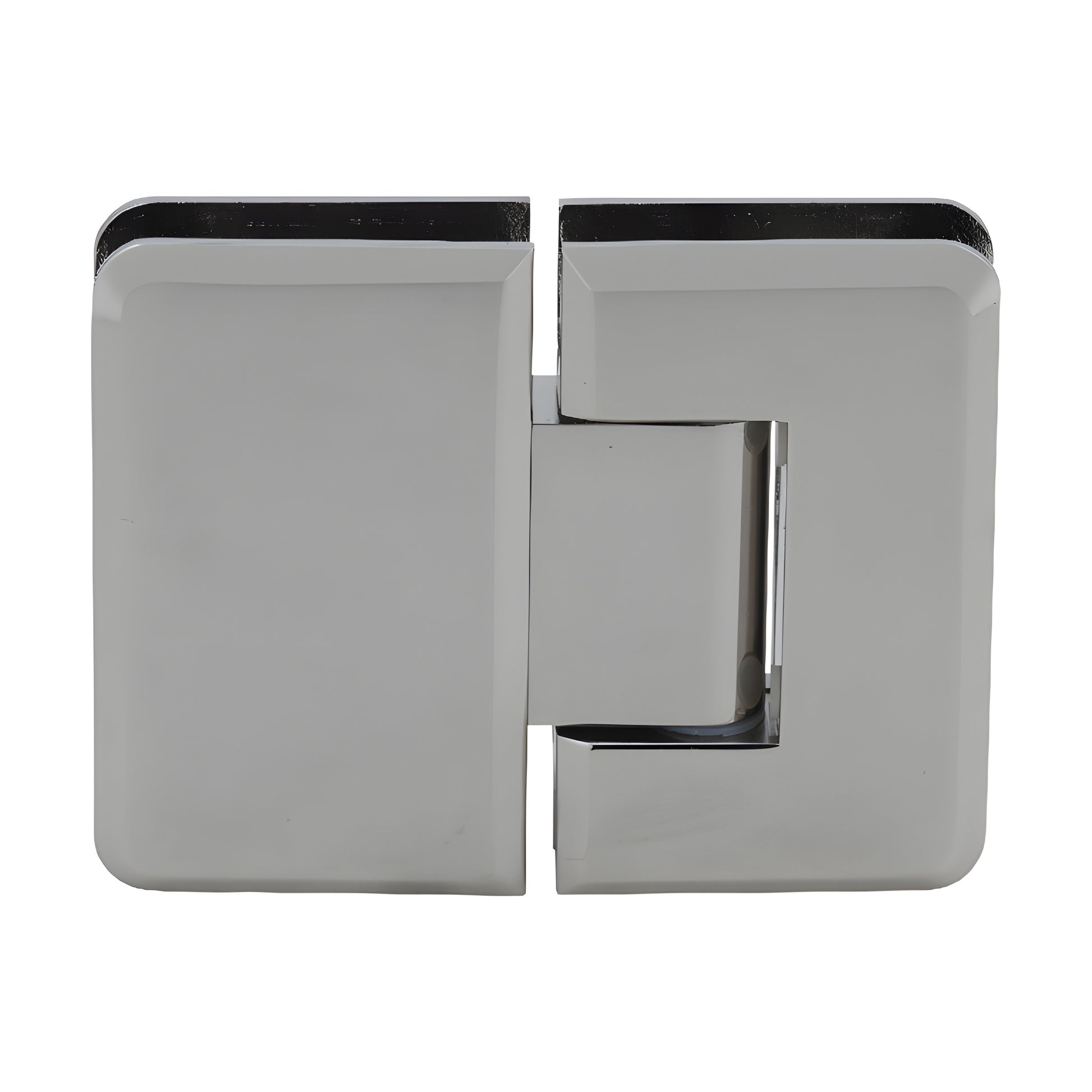

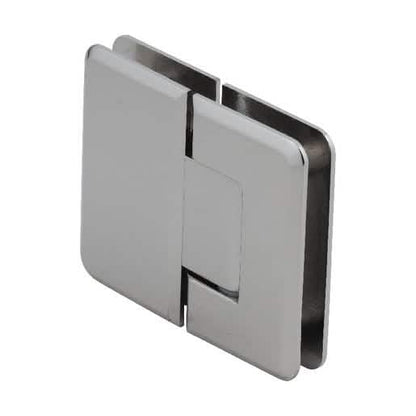

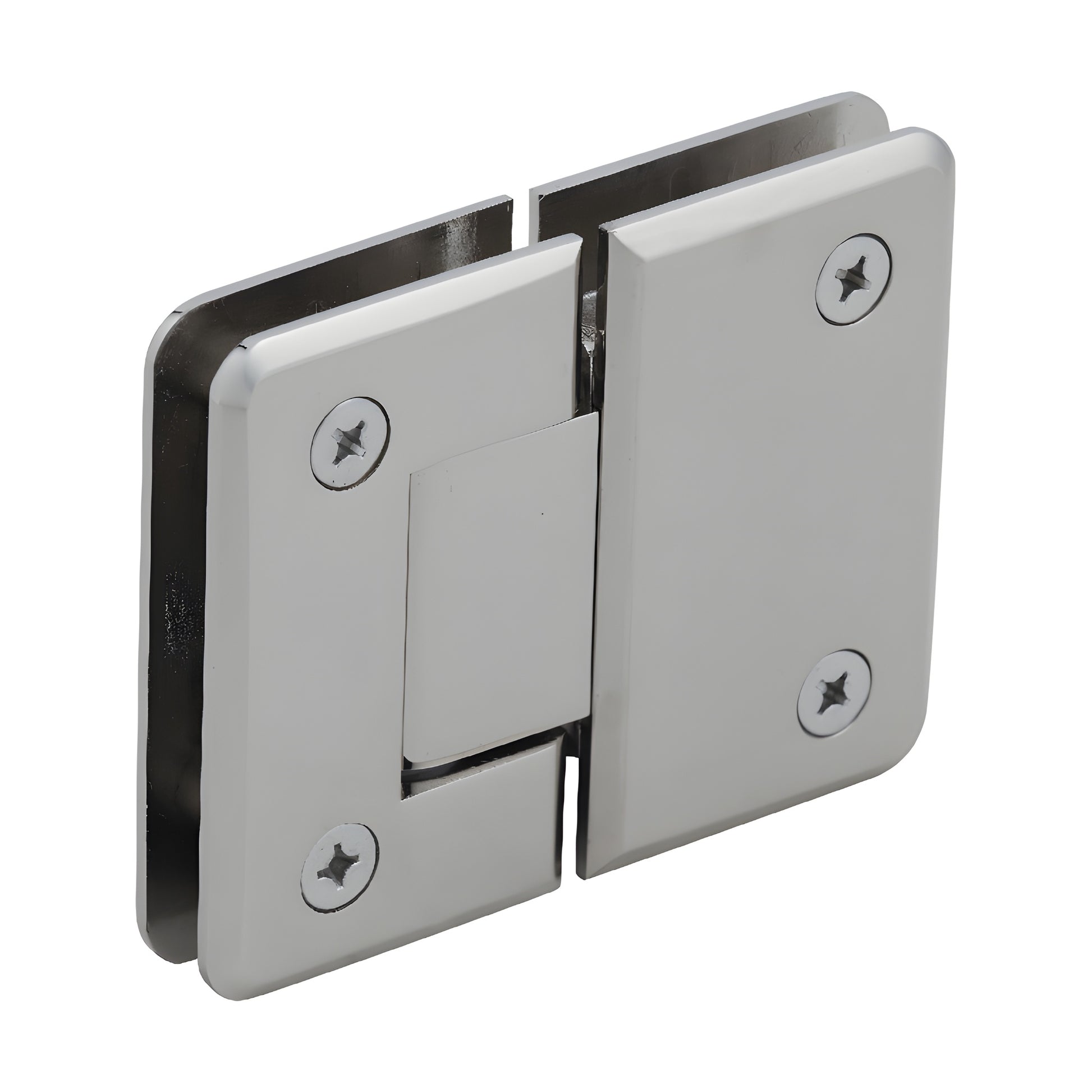

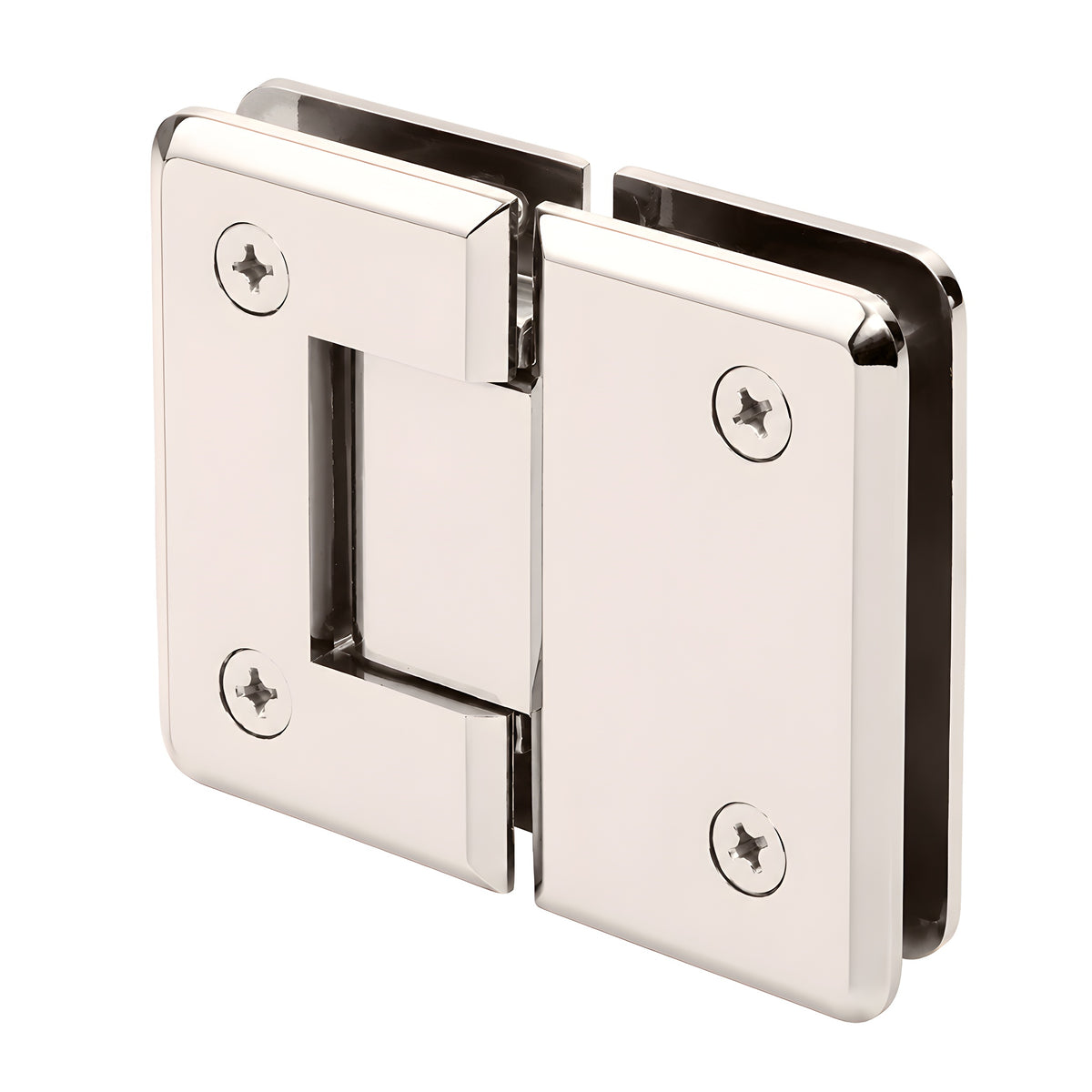

CRL Pinnacle 180° Polished Nickel Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5 degree pivot pin
• Available in several decorative finishes
• Three year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• For use with monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N180PN) is a refined alternative to the Geneva Series hinge, featuring radius corners and beveled edges for a sleek, modern appearance. Designed for shower doors, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these shower door hinges deliver durable, reliable door closure. The Pinnacle includes the reversible 5° pivot pin found in Geneva, Cathedral, Roman, Ultimate, and Elite series; custom pivot pins up to 45° are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with one side marked 90° and the other 85°. Standard models ship with the 90° side active. Pre-set models are factory-set to 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip upside down) to change the activated side.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available to accommodate non-90° wall-to-door conditions where the standard 5° adjustment is insufficient.

LOAD CAPACITY:

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (factory-set at standard closing position) or 5° Pre-Set Model for tighter closure into the shower interior
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass
