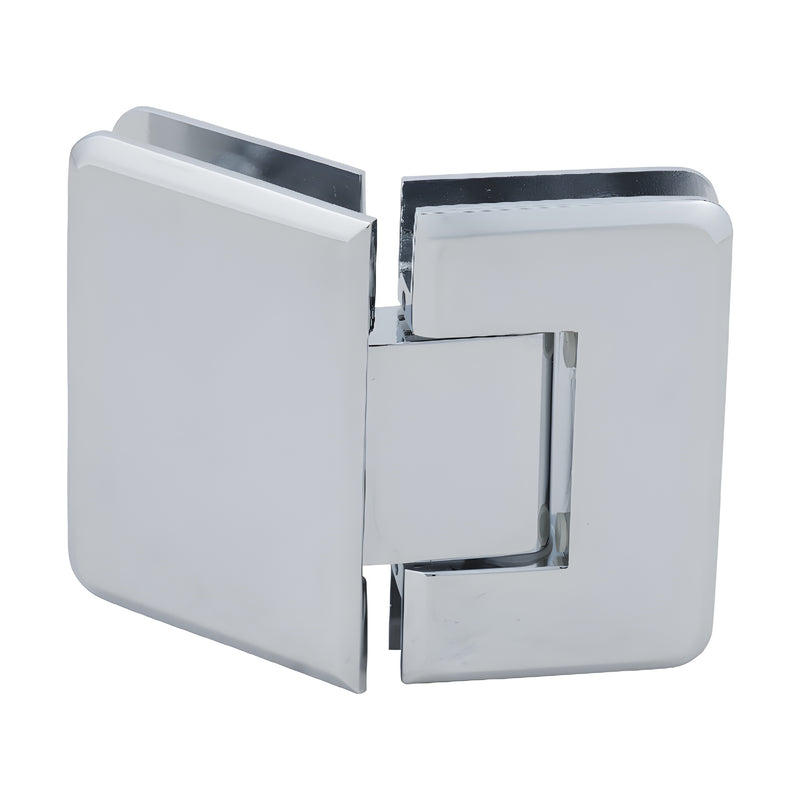

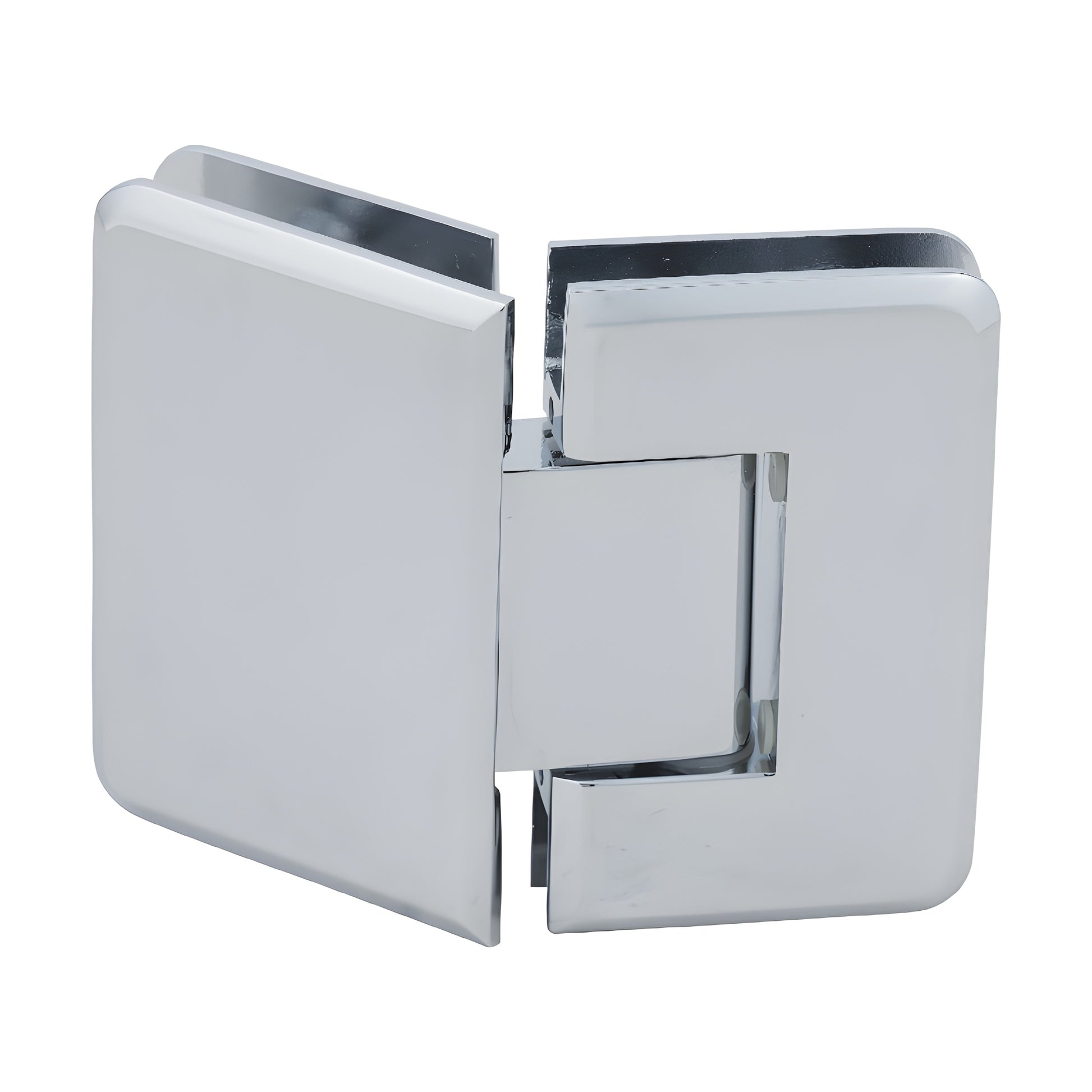

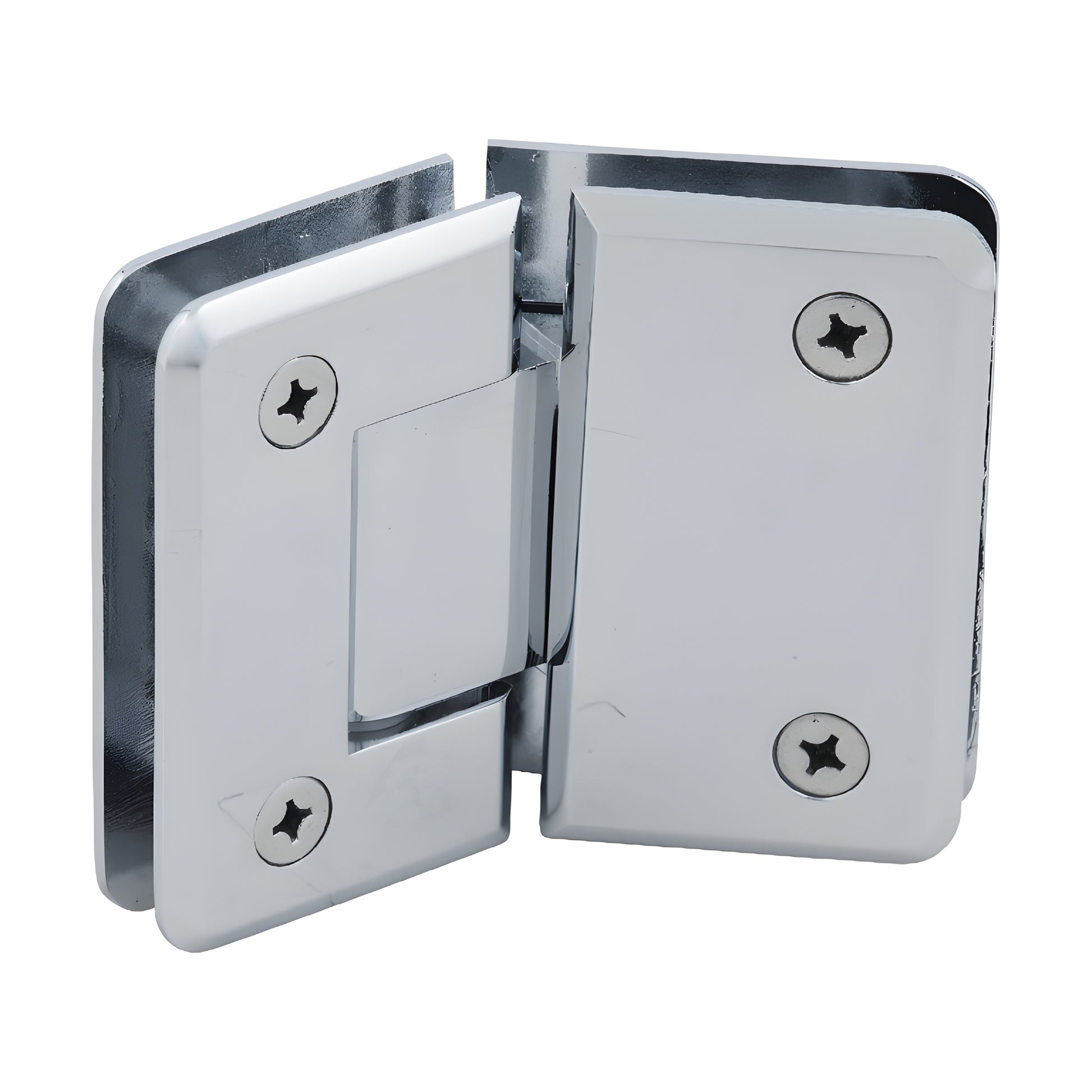

CRL Pinnacle 045 135° Polished Chrome Glass-to-Glass Shower Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 135 Degree Glass-to-Glass
• Use Monolithic Tempered Glass

The CRL Pinnacle Hinge is a radius-corner, beveled-edge alternative to our Geneva Series designed for a sleek, modern glass shower door. Ideal for frameless glass shower installations, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and feature a reversible 5° pivot pin for improved closing action. Constructed of solid brass with stainless steel plunger tips, pins, and springs, these glass shower door hinges deliver reliable, long-lasting performance and consistent self-centering when within 15° of the closed position.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side active for a tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available for off-angle installations (specify up to 45°) when the standard 5° offset does not achieve the desired closing position.

CAPACITY:

Using two hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).

Using three hinges with 5/16"–1/2" (8–12 mm) glass: supports up to 120 lbs (54 kg) and a maximum door width of 32" (813 mm).

SPECIFICATIONS:

SKU: P1N045CH

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Special Feature: Wall mount and 180° glass-to-glass hinge models available as Standard (0°) or 5° Pre-Set for tighter shower closure.

Construction: Solid Brass with stainless steel internal components

Hinge Swings: 90
