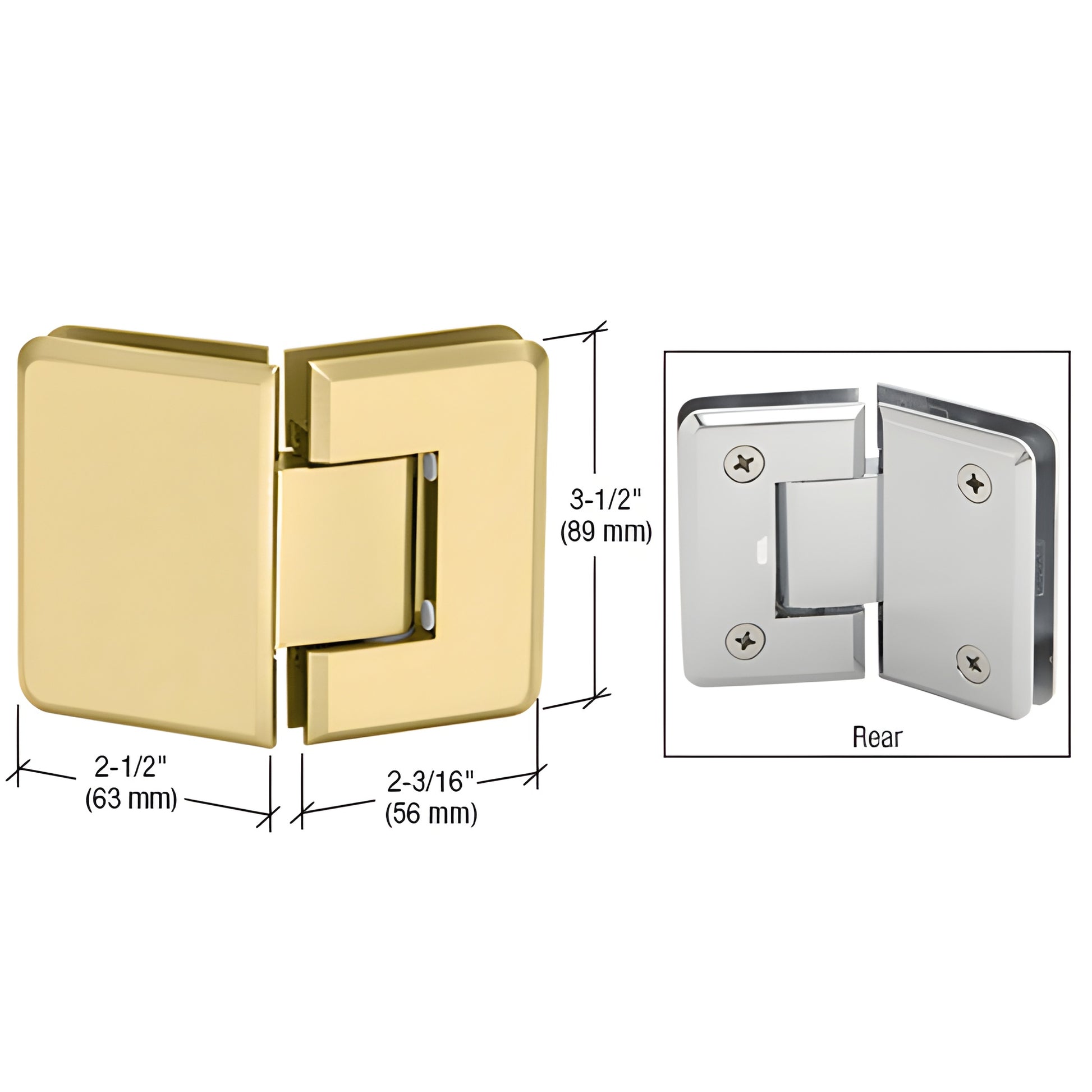

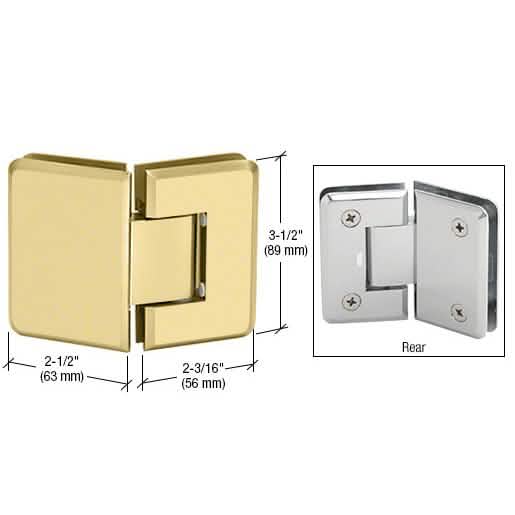

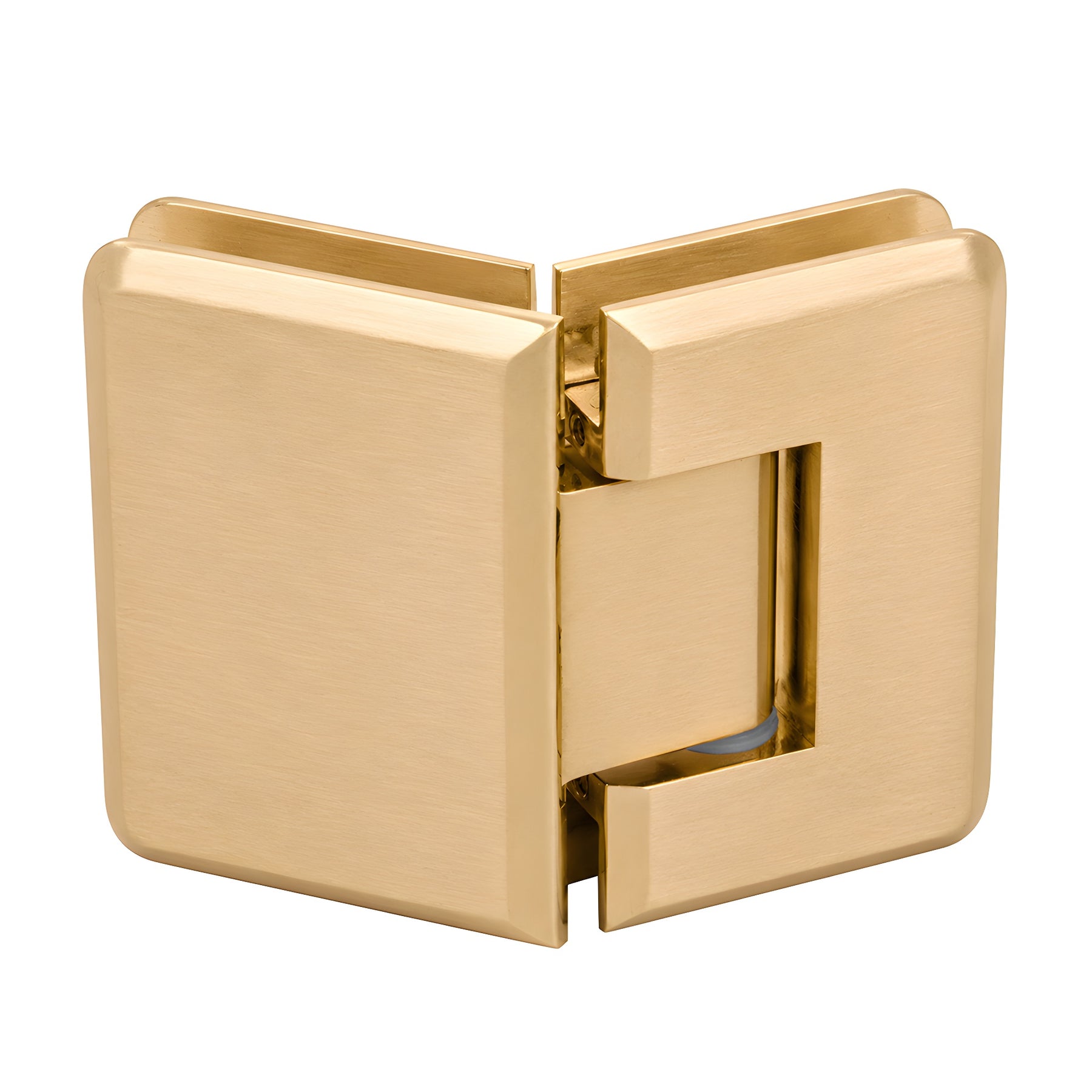

CRL Pinnacle 045 135° Satin Brass Glass-to-Glass Shower Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several decorative finishes
• Three-year warranty
• 135° glass-to-glass hinge configuration
• For monolithic tempered safety glass (8–12 mm)

The CRL Pinnacle Hinge (SKU: P1N045SB) is a solid brass, decorative shower door hinge designed for durable, reliable performance. Compared to the Geneva Series, Pinnacle adds radius corners and beveled edges for a sleeker appearance. Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering when within 15° of the closed position. Stainless steel plunger tips, pins, and springs ensure long service life and consistent door closure. The hinge includes a reversible 5° pivot pin (standard with 90° active); a Custom Pivot Pin is available for off-angle installations up to 45°.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models ship with the pin set at 85° (5° tighter closure into shower interior). Rotate the pin (do not flip) to change the active side.

CUSTOM PIVOT PIN: Custom pivot pins accommodate off-angle installations (up to 45°). Specify the required closing angle if the standard 5° offset does not achieve the desired door position.

LOAD CAPACITY:
Using two hinges with 8–12 mm glass: up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 8–12 mm glass: up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass options. Standard model factory-set at 0° or available as a 5° pre-set model for tighter interior closure.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 8 mm glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
