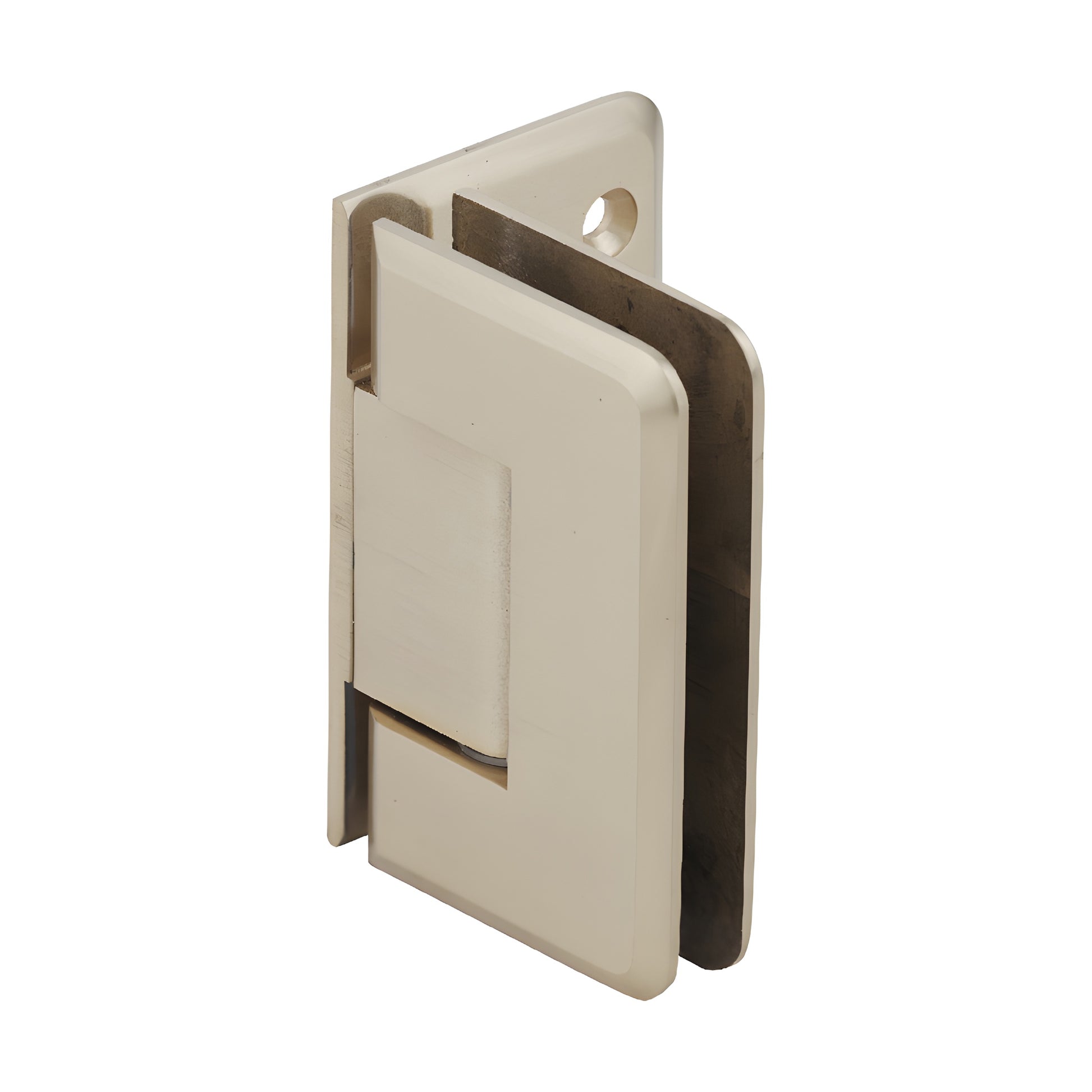

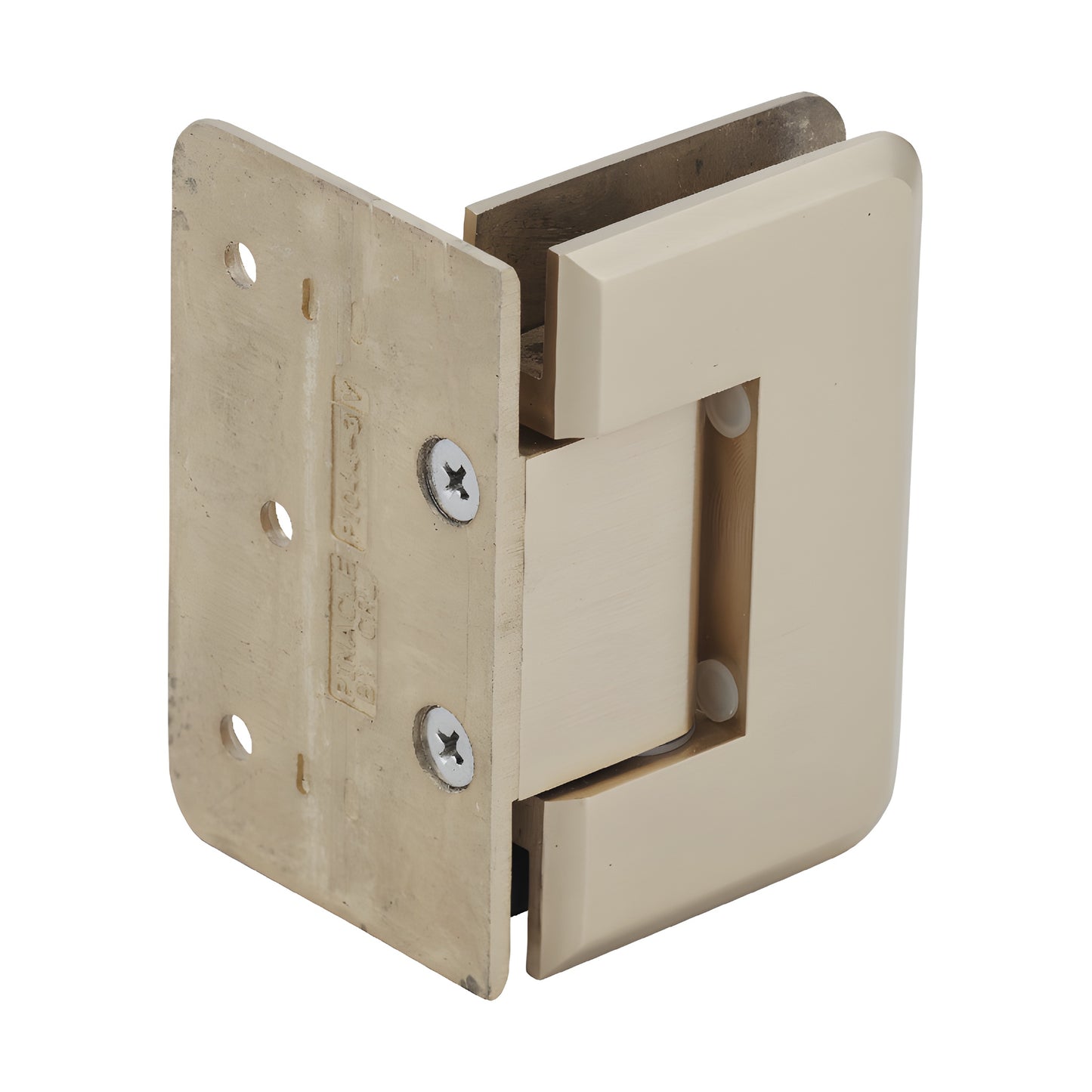

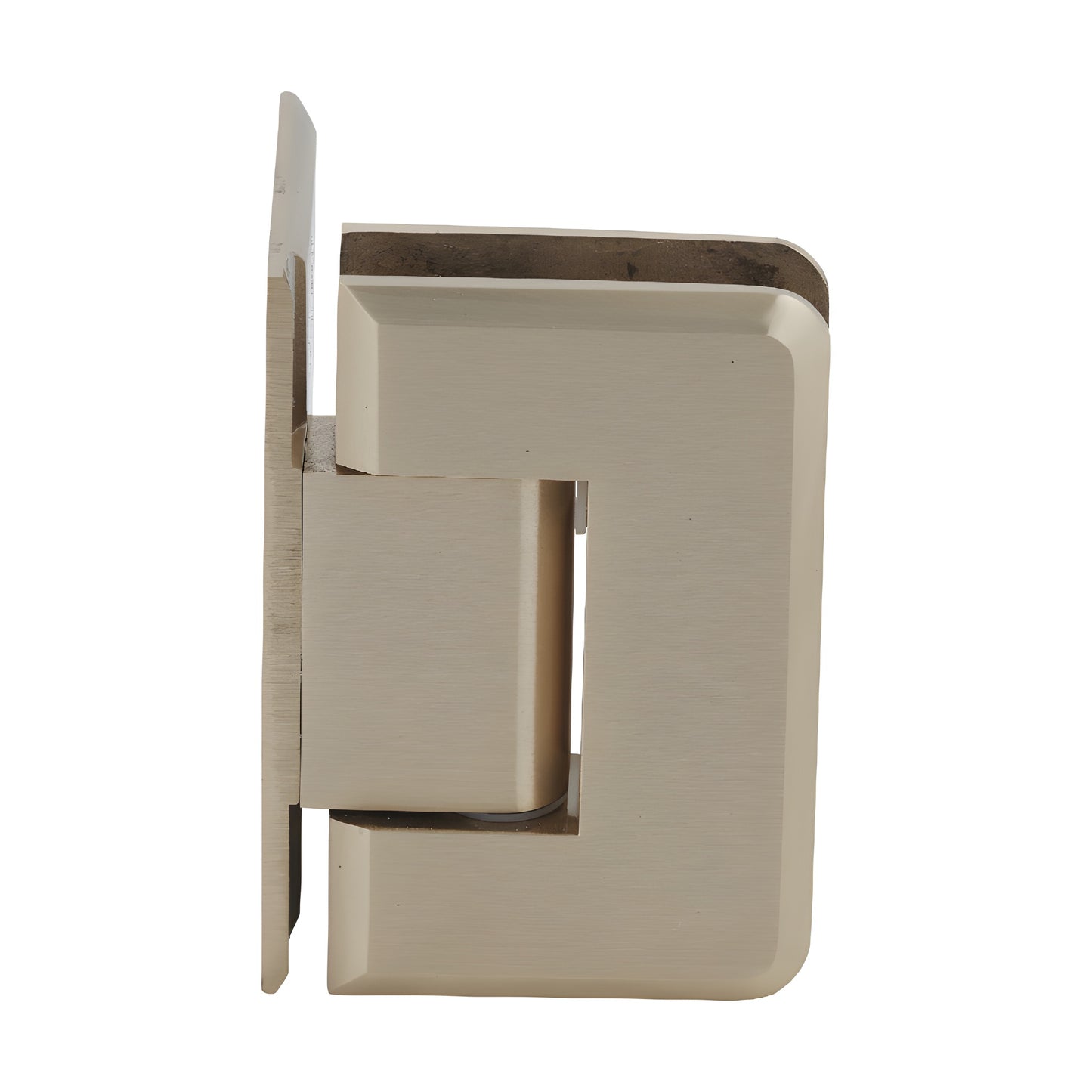

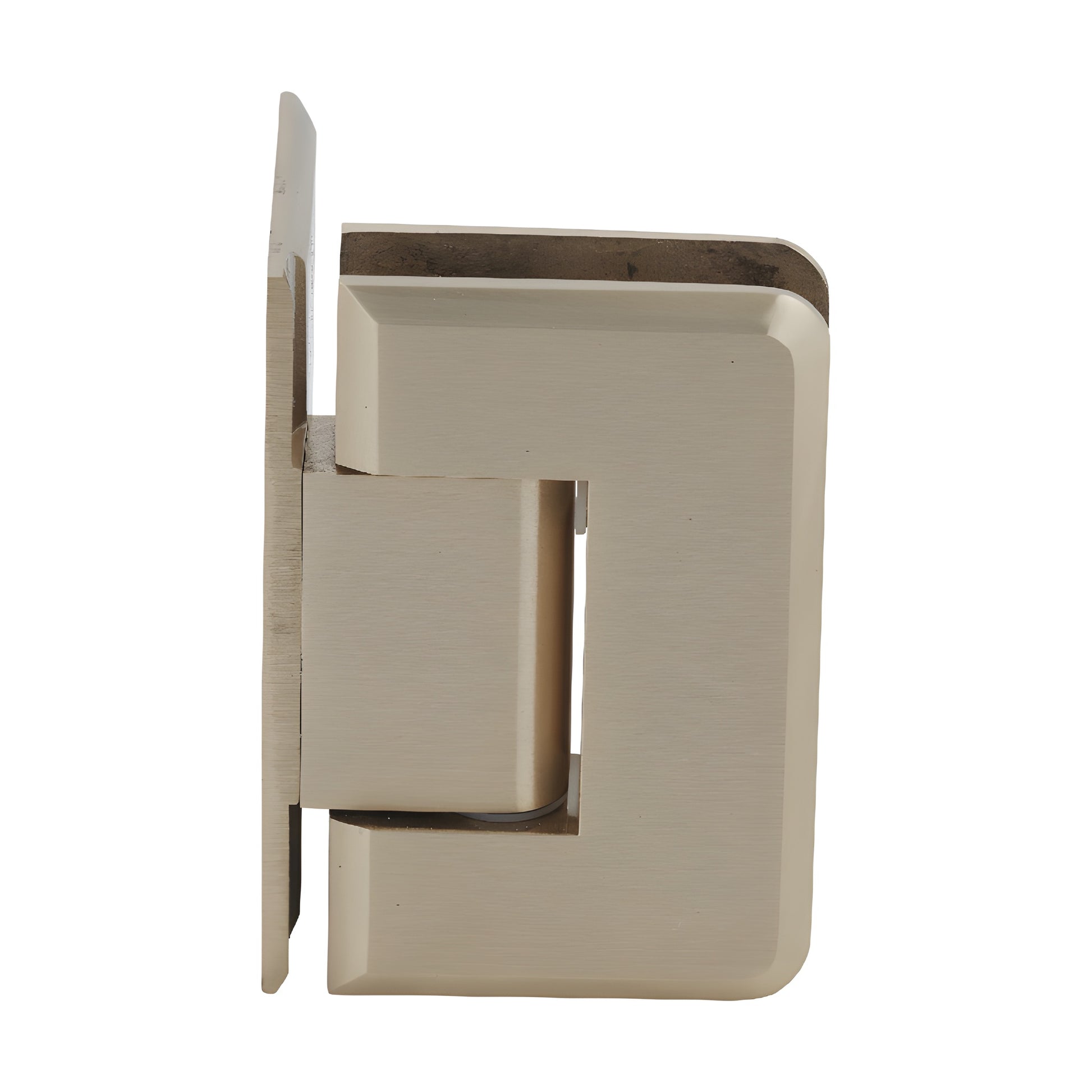

CRL Pinnacle 044 Satin Brass Wall Mount Offset Backplate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty
• Wall-mount offset back plate standard model (factory set for standard closing position)
• For use with monolithic tempered glass

CRL Pinnacle Hinge — a sleek radius-corner, beveled-edge alternative to the Geneva Series. Designed for glass shower doors, the Pinnacle Hinge accommodates 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Includes the same reversible 5° pivot pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series; custom pivot pins are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models are configured at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the activated side.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle, up to 45°) when the standard 5° offset does not achieve the desired closing position.

LOAD CAPACITY:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:

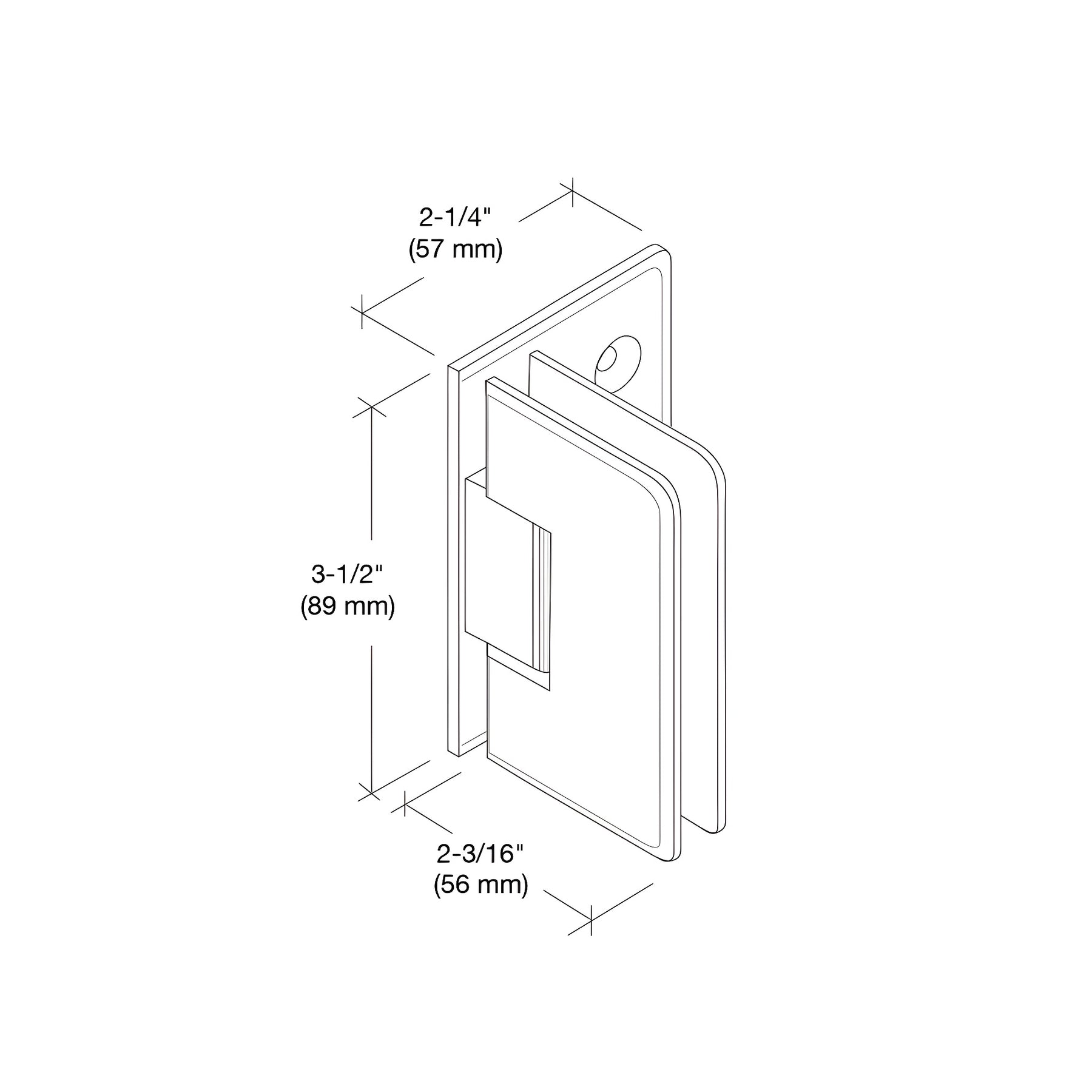

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass options available. Choose Standard Model (factory set at 0°) or 5° Pre-Set Model for tighter closure into shower interior.
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for use with 5/16" (8 mm) glass.

Replacement Hardware
