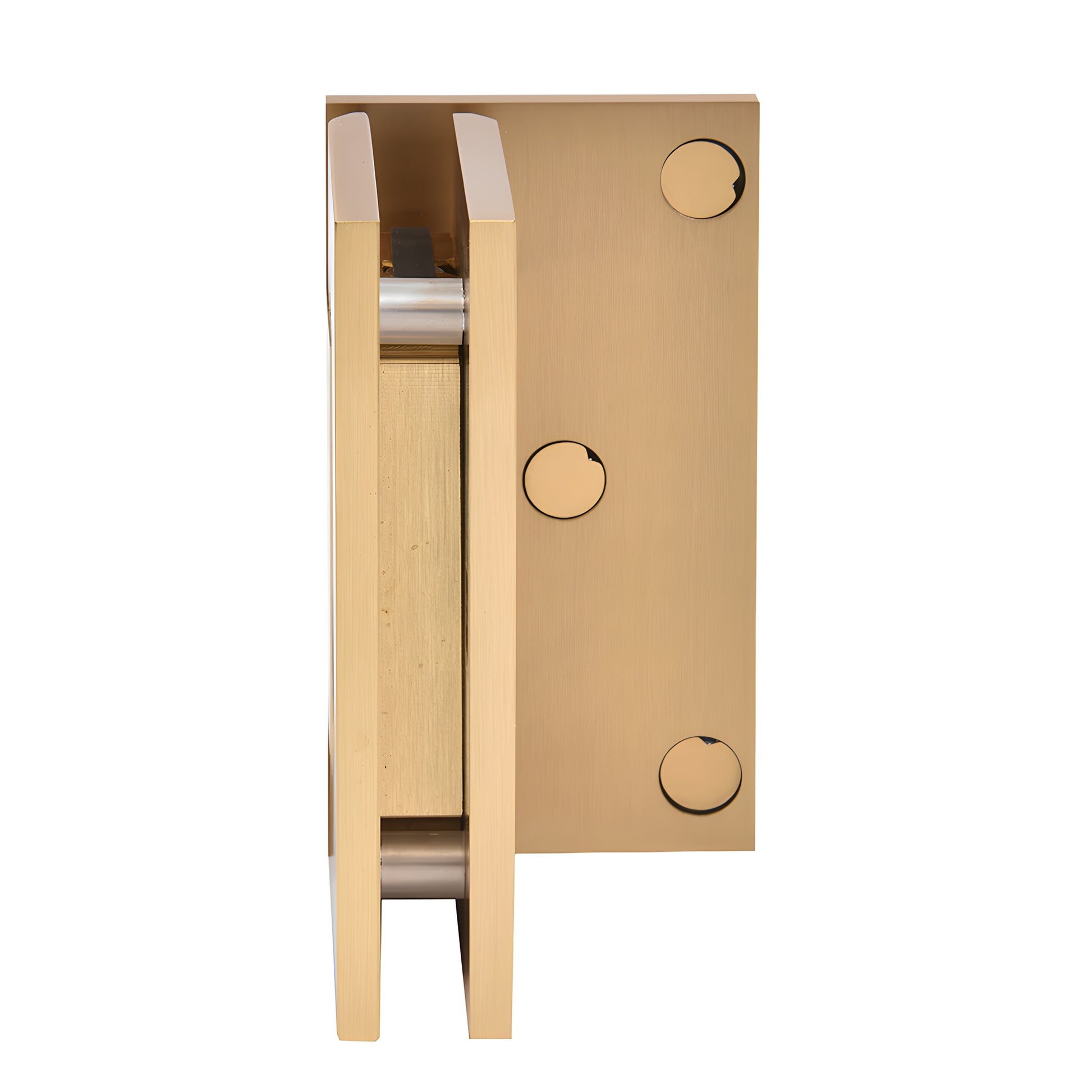

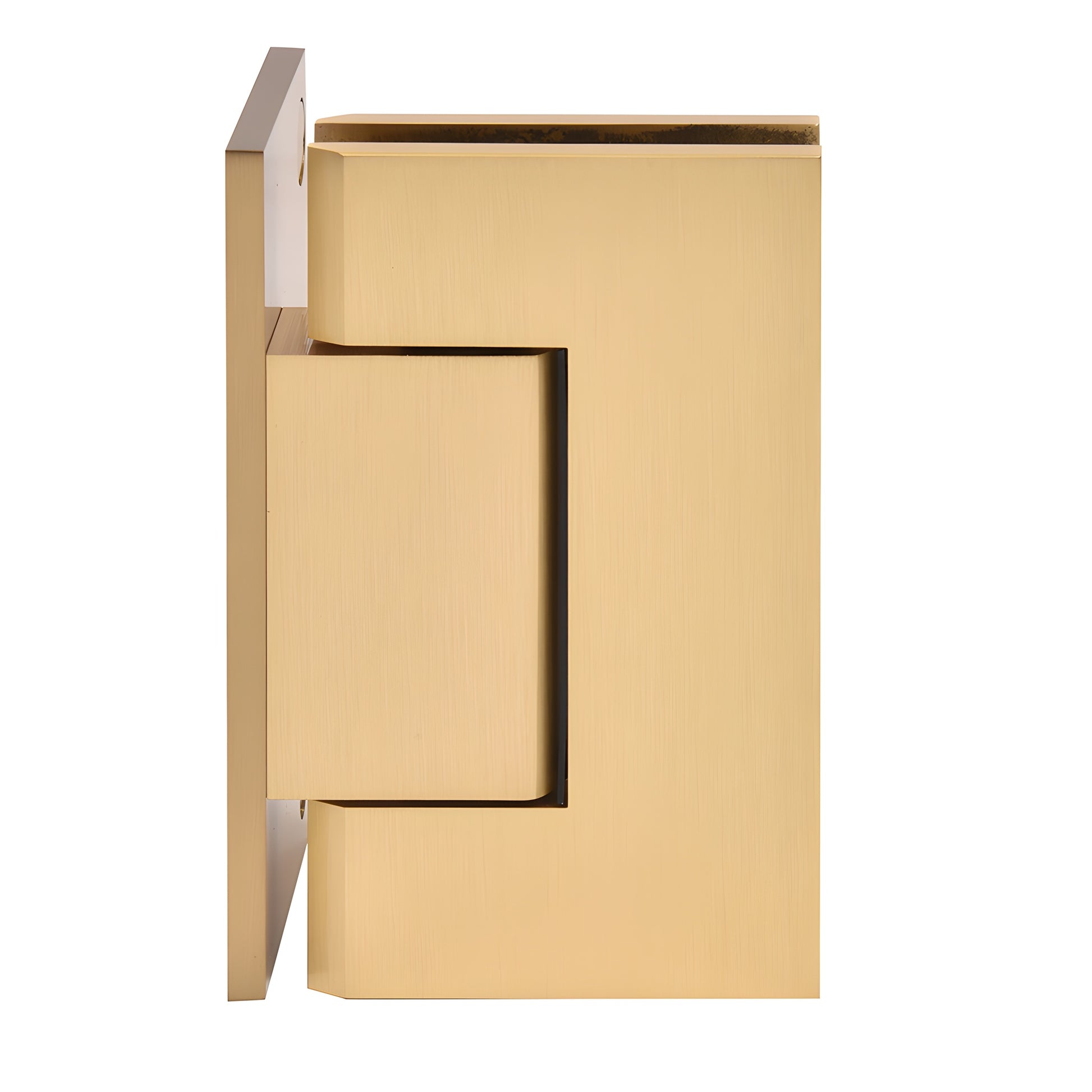

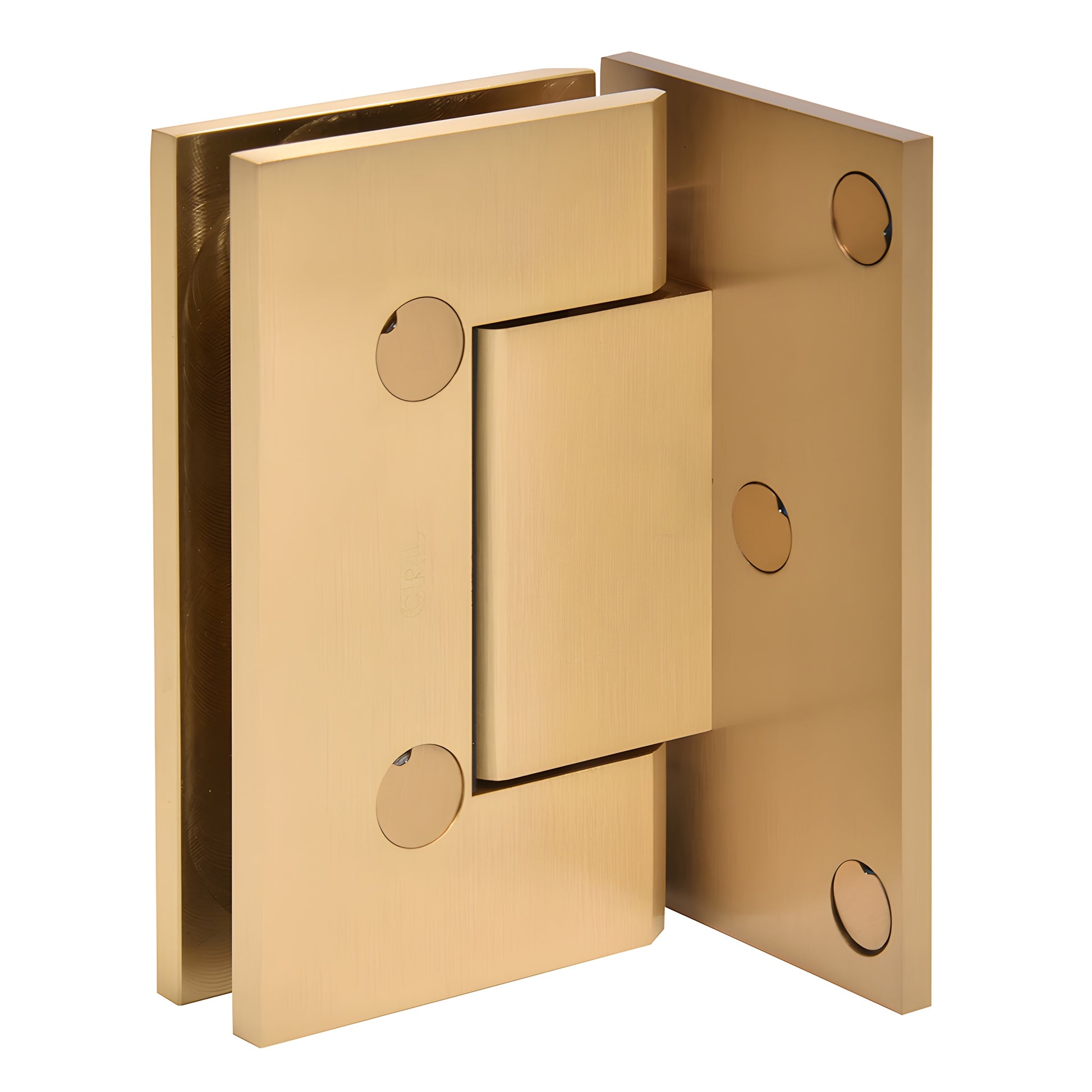

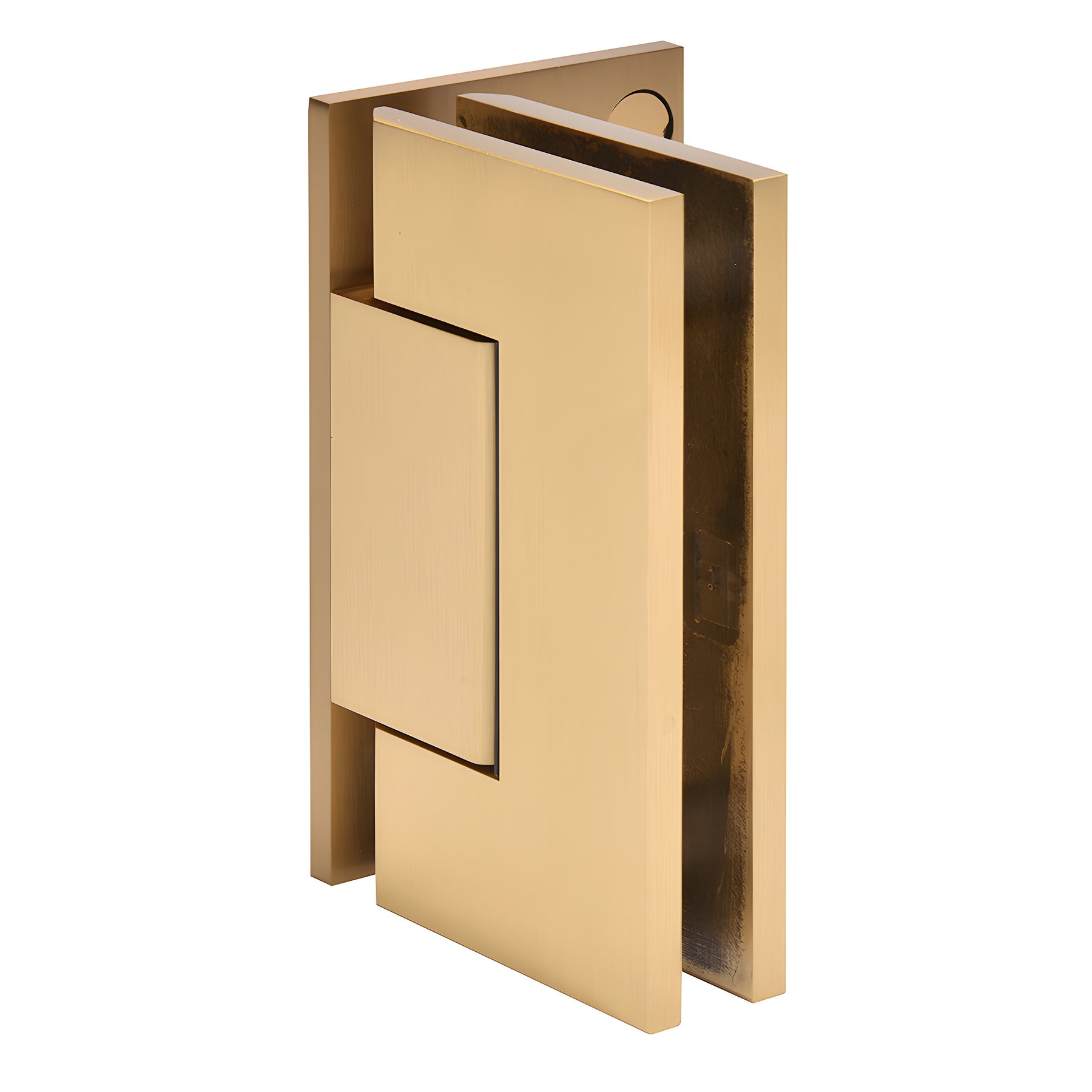

CRL Trento Satin Brass Offset Backplate Door Hinge

• Supports heavier glass shower doors — up to 140 lb (two-hinge), 175 lb (three-hinge)
• Concealed screws for a clean, modern look
• Wall mount offset back plate — standard model

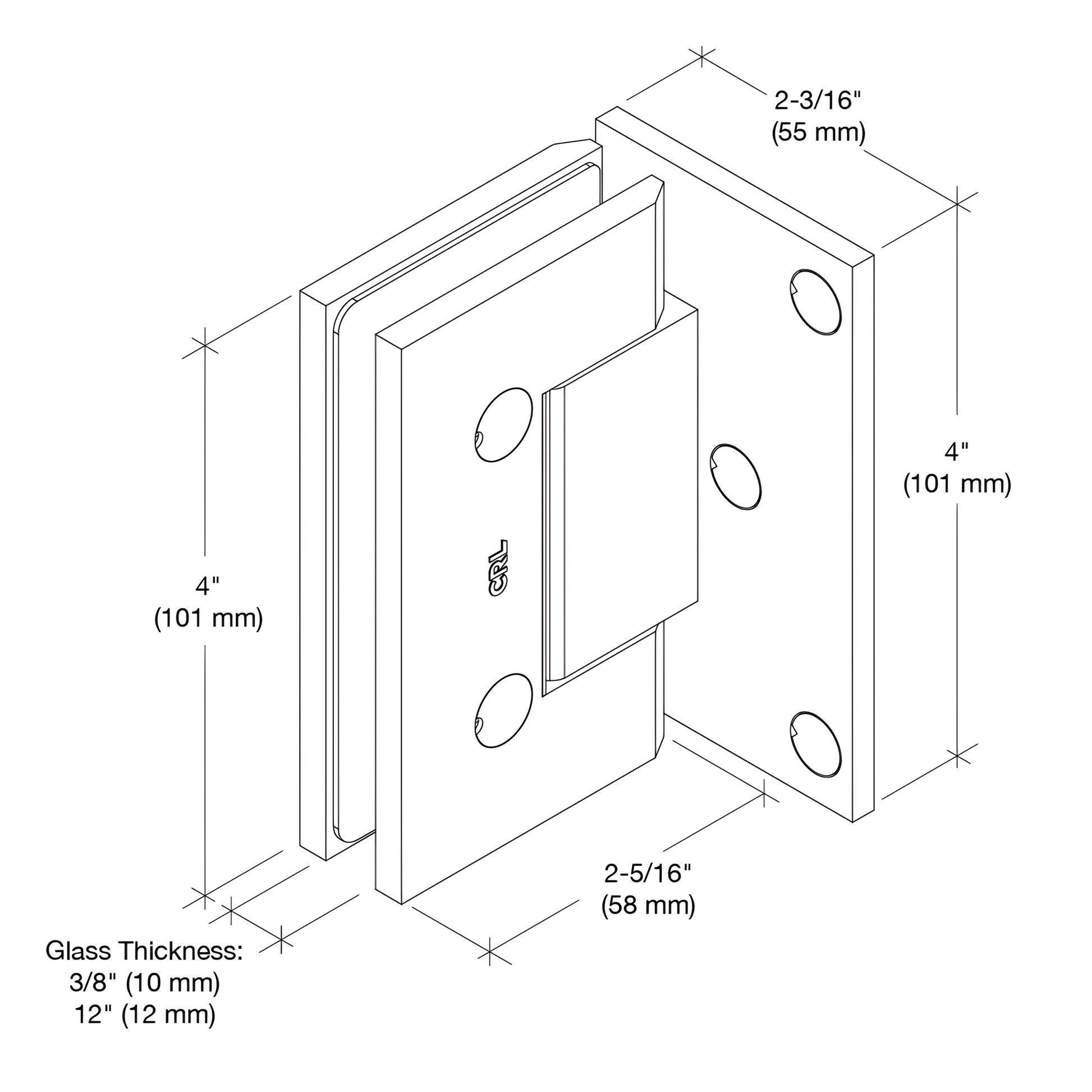

• Single NAF gasket compatible with both 3/8" and 1/2" (10 & 12 mm) monolithic tempered glass
• Designed for monolithic tempered glass; use with framed or frameless shower door installations

The CRL Trento Hinge (SKU: TNT044SB) is a heavy-duty frameless shower door hinge engineered for modern bathrooms and commercial hotel applications. Its slim rectangular body, narrow gap profile, and fully concealed mounting screws deliver a refined aesthetic while supporting high load capacities for thicker monolithic tempered glass.

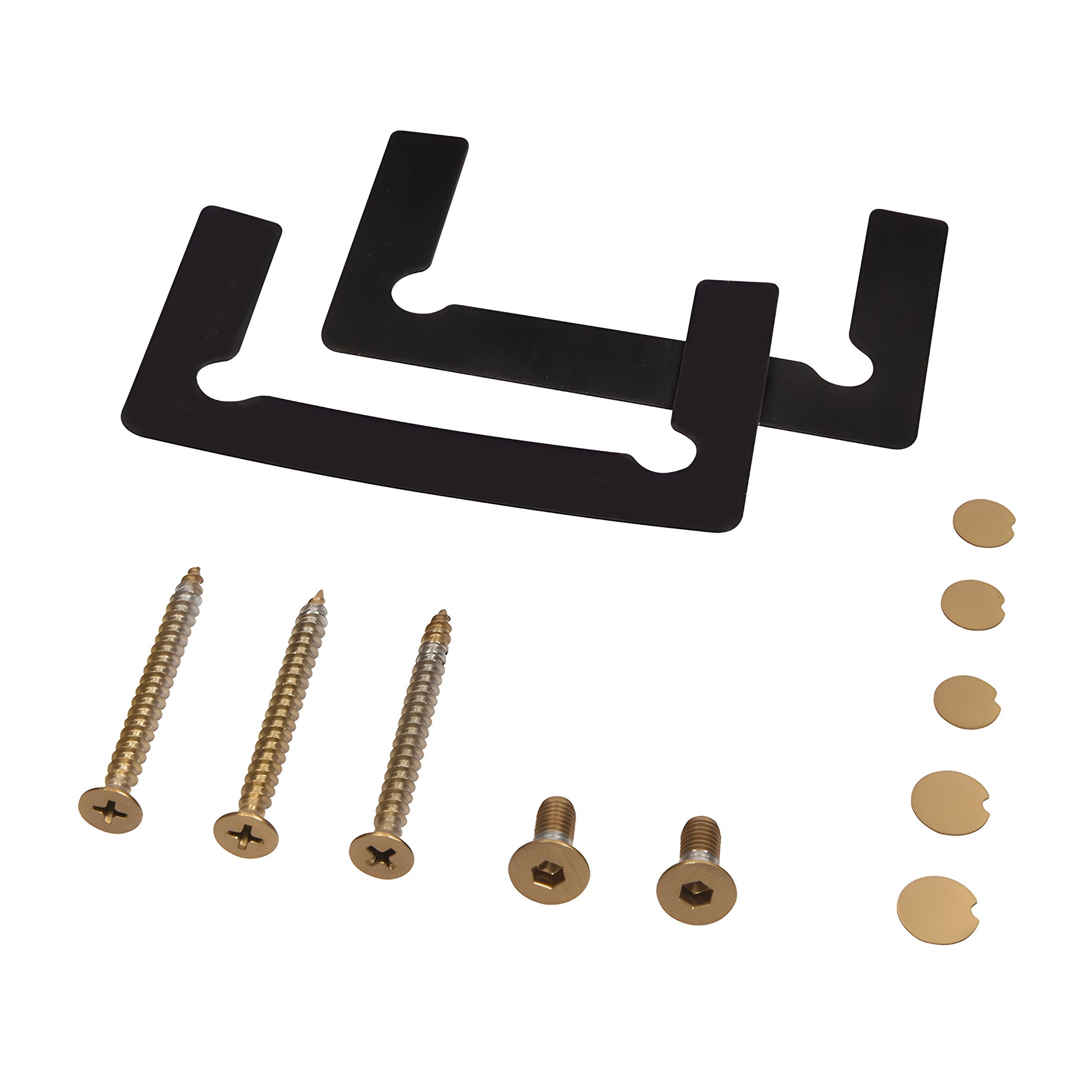

The hinge uses compressible NAF gaskets that adapt to surface variations, ensuring a consistent grip on 3/8" and 1/2" glass. This durable gasket material improves long-term sealing and reduces glass stress in contemporary shower hardware installations.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position by 5 degrees (choose 95° or 85° by rotating the pin). This field adjustment helps align doors, maintain a tight seal, and promote smooth operation without disassembly.

Load ratings & glass size:

• Two-hinge installation: supports doors up to 140 lb (63 kg), max width 40" (1016 mm)
• Three-hinge installation: supports doors up to 175 lb (79 kg), max width 40" (1016 mm)

Product warning & installation notes:

CRL shower door hinges are intended for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—CRL hinge cut-outs may differ from other brands.

Brass Finish Advisory:

Upgrade your frameless shower with the Trento heavy-duty hinge for secure, stylish performance — order TNT044SB today.
