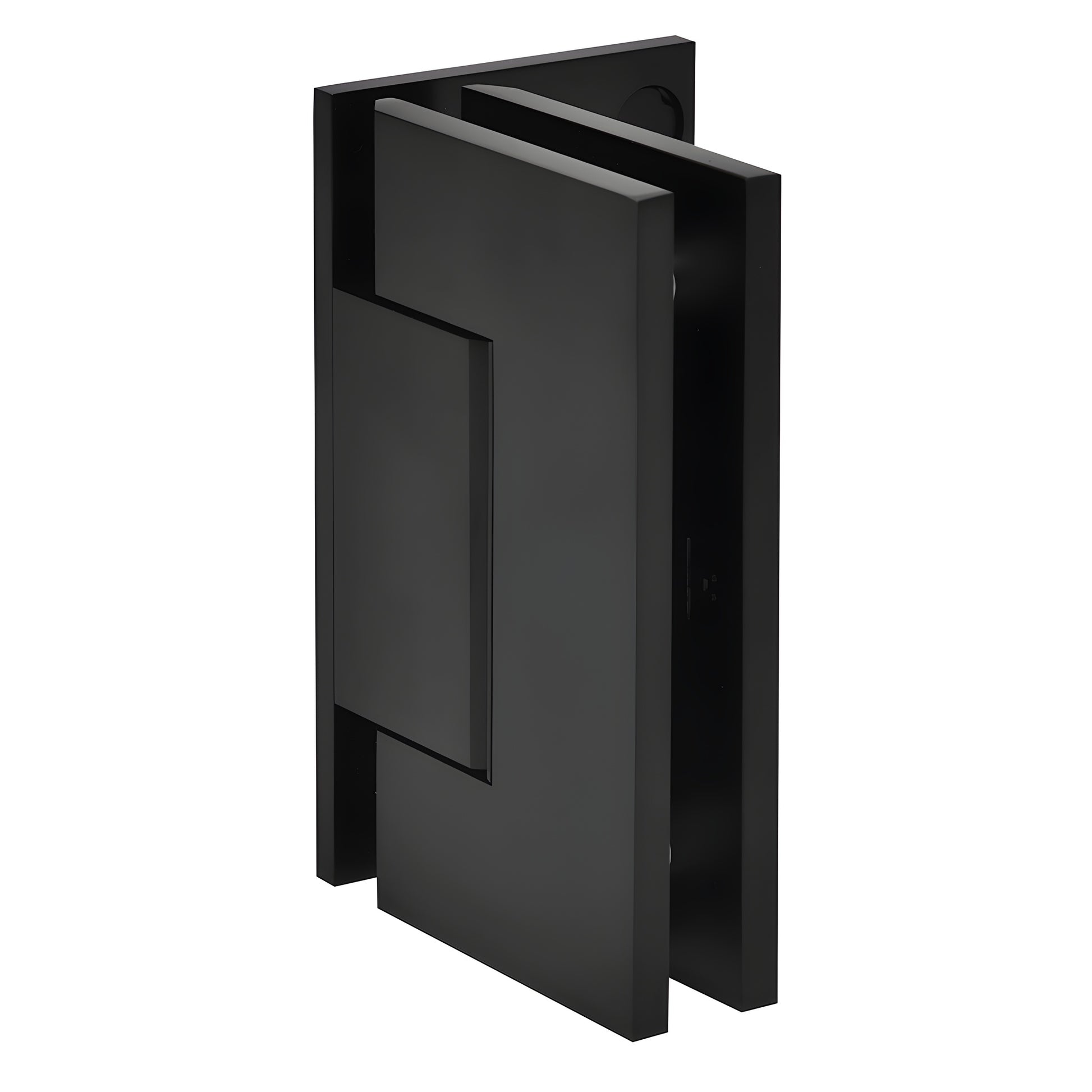

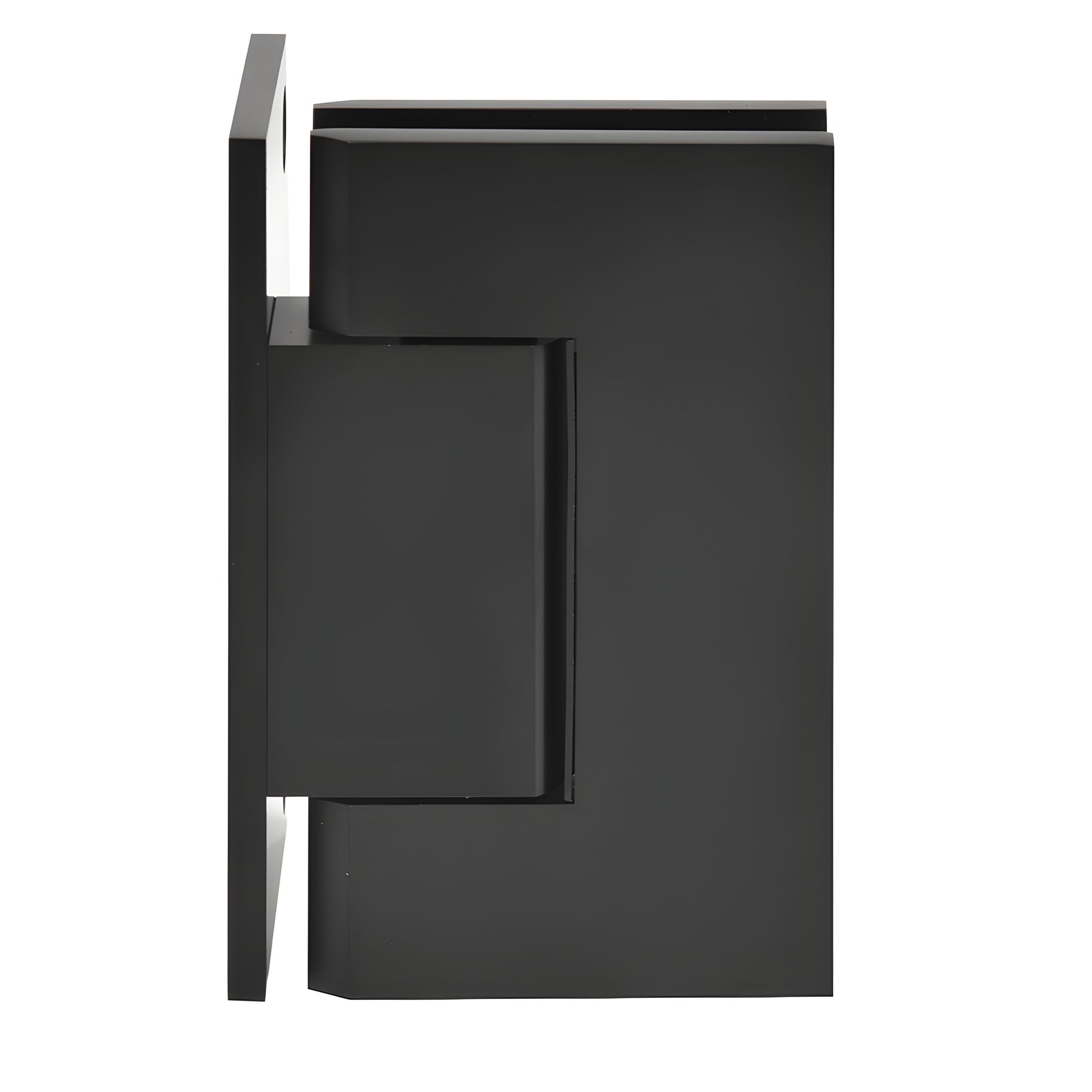

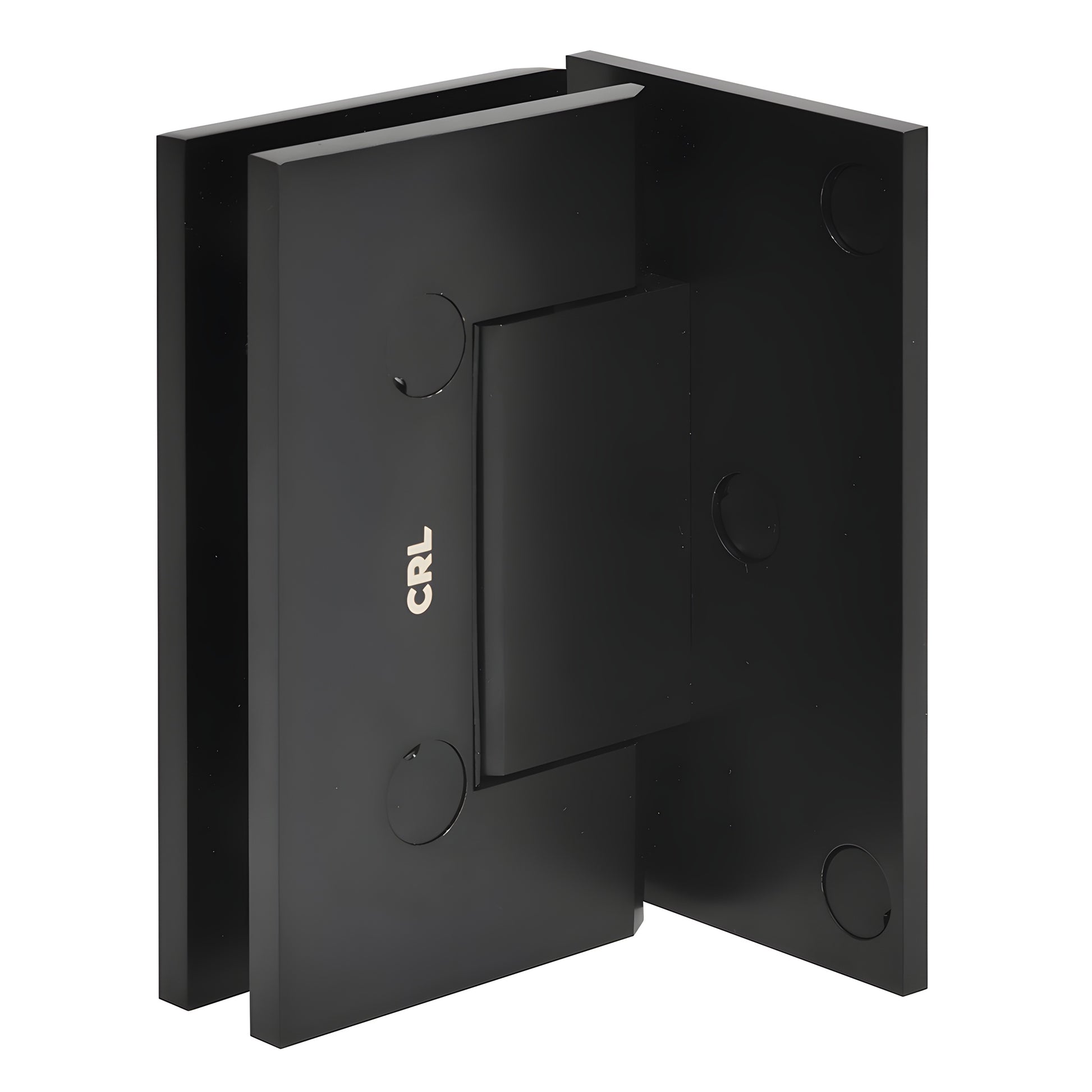

CRL Trento Matte Black Offset Back Plate Glass Door Hinge

• Supports heavier frameless glass shower doors (up to 175 lbs with three hinges)
• Fully concealed mounting screws for a clean, modern look
• Wall-mount offset back plate — standard model

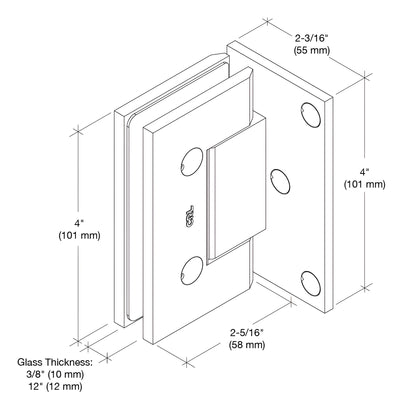

• Single NAF gasket compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass
• Recommended for monolithic tempered glass shower doors

The CRL Trento Hinge (SKU: TNT044MBL) is a heavy-duty hinge engineered for frameless shower doors and tempered glass panels. Its sleek rectangular body and narrow gap deliver a refined appearance while the concealed screws maintain a minimalist aesthetic—ideal for modern bathrooms and hotel installations.

The Trento uses compressible NAF gaskets that adapt to surface variations and securely grip 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass. This hinge is optimized for durability and consistent performance in residential and hospitality shower applications.

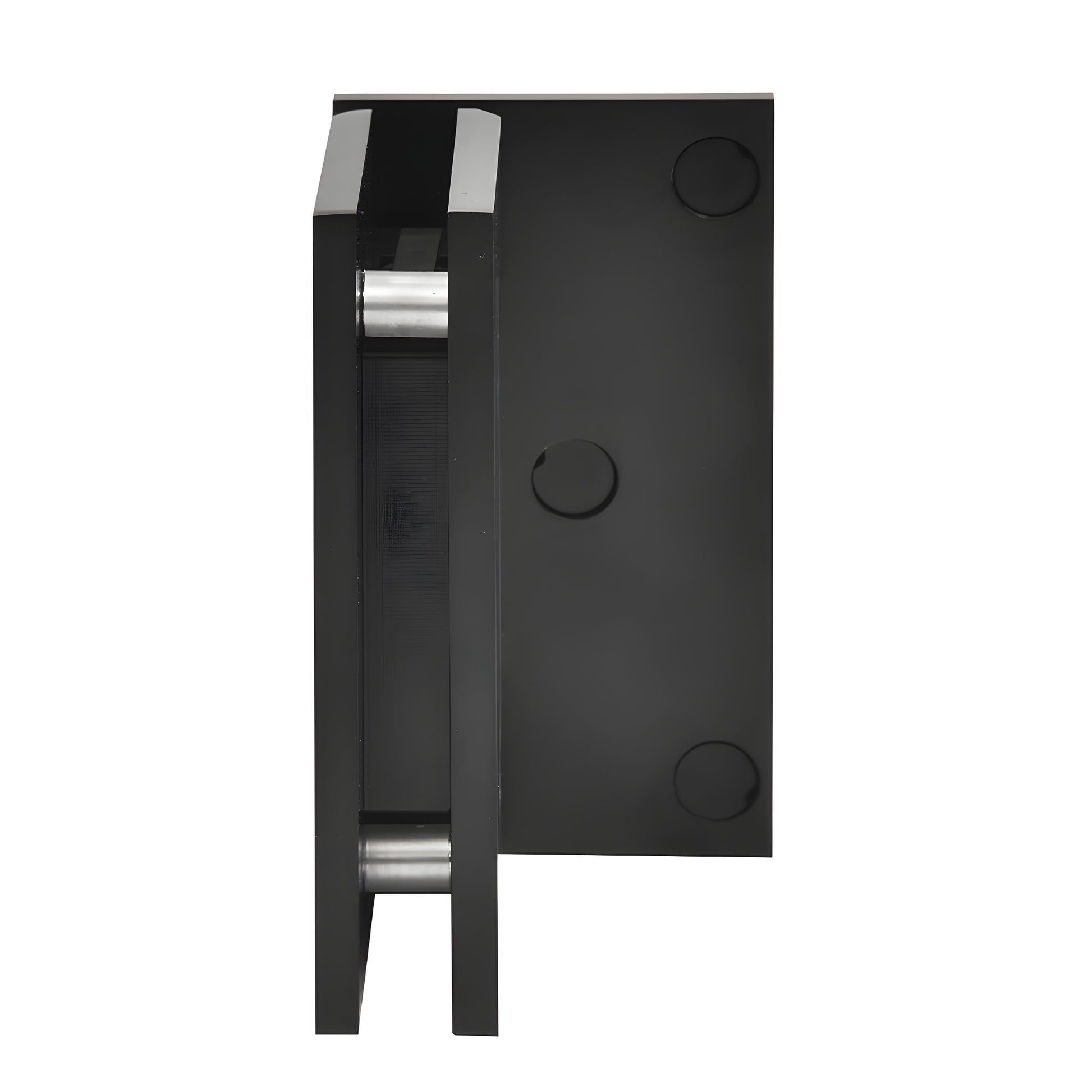

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position. Rotate (do not flip) the pin to shift the self-centering angle by 5°—choose 95° or 85°—to improve door alignment, sealing, and smooth operation.

Load capacity:

• Using two hinges with 3/8" or 1/2" glass: supports panels up to 140 lbs (63 kg), maximum width 40" (1016 mm).
• Using three hinges with 3/8" or 1/2" glass: supports panels up to 175 lbs (79 kg), maximum width 40" (1016 mm).

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Trento heavy-duty frameless shower hinge (TNT044MBL) for concealed-screw styling and adjustable pivot control—buy now to upgrade your tempered glass shower door hardware.
