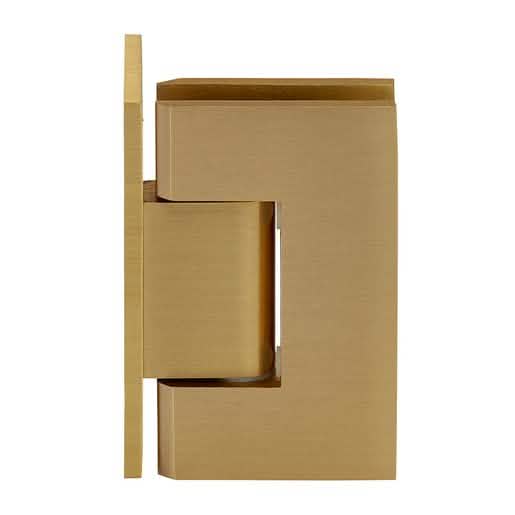

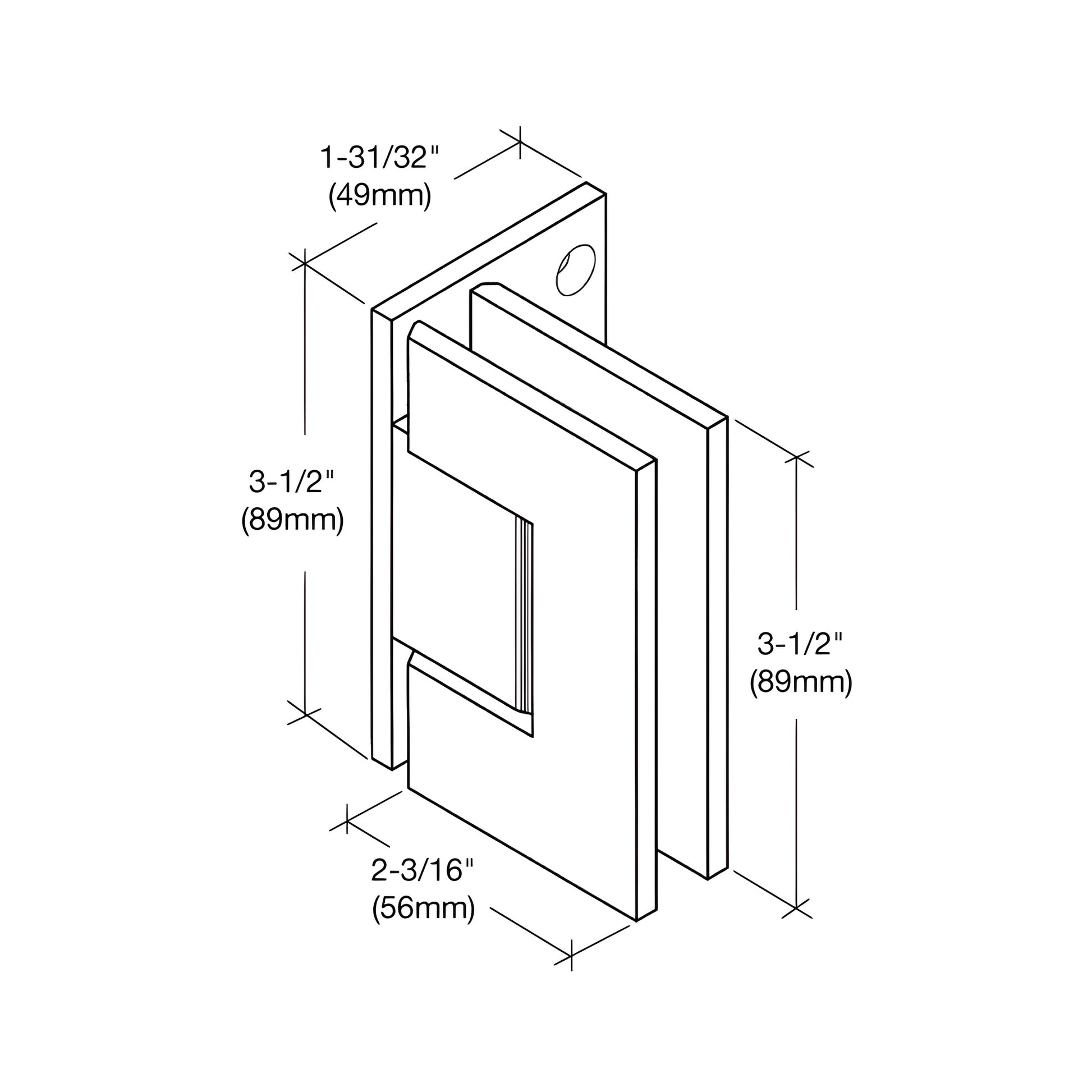

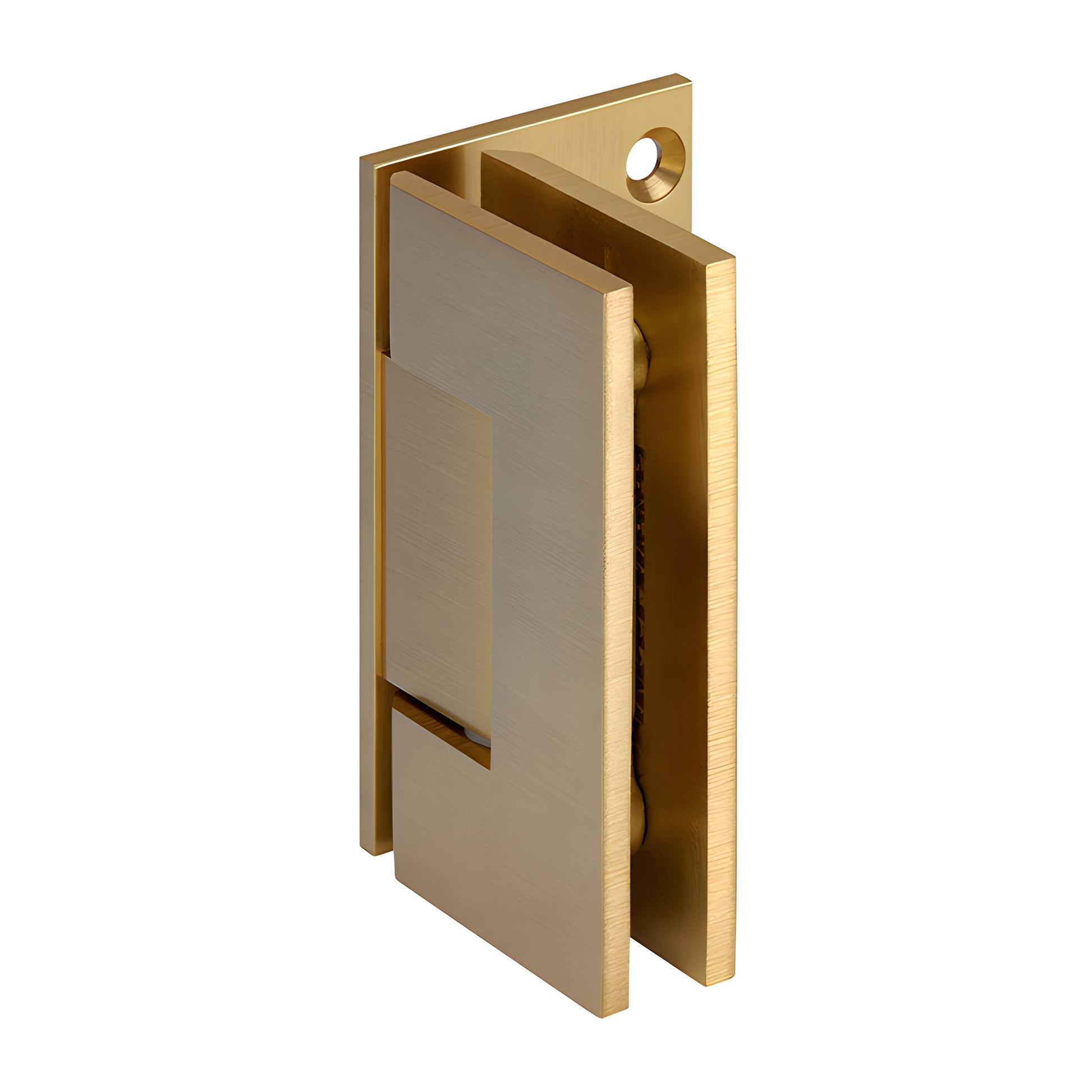

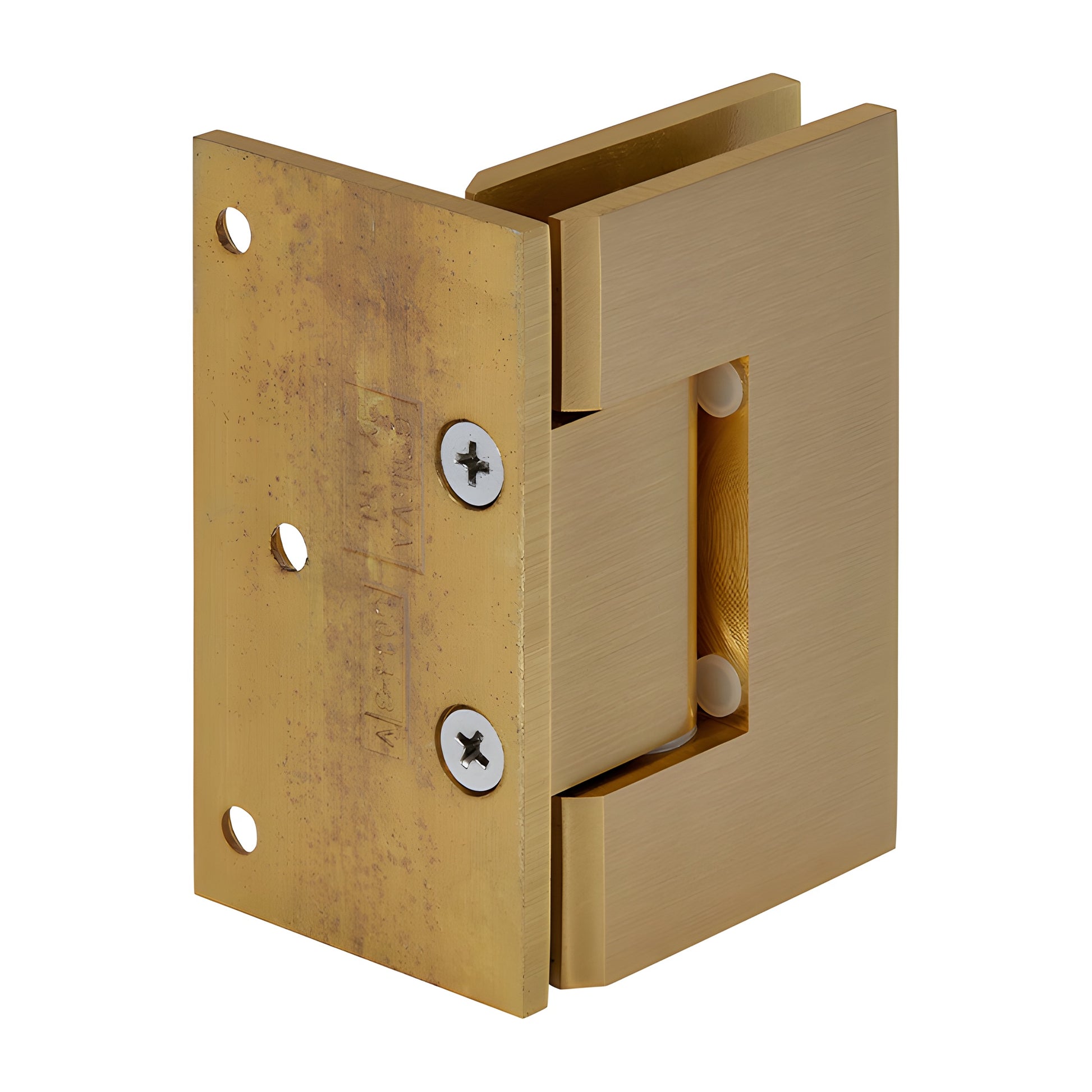

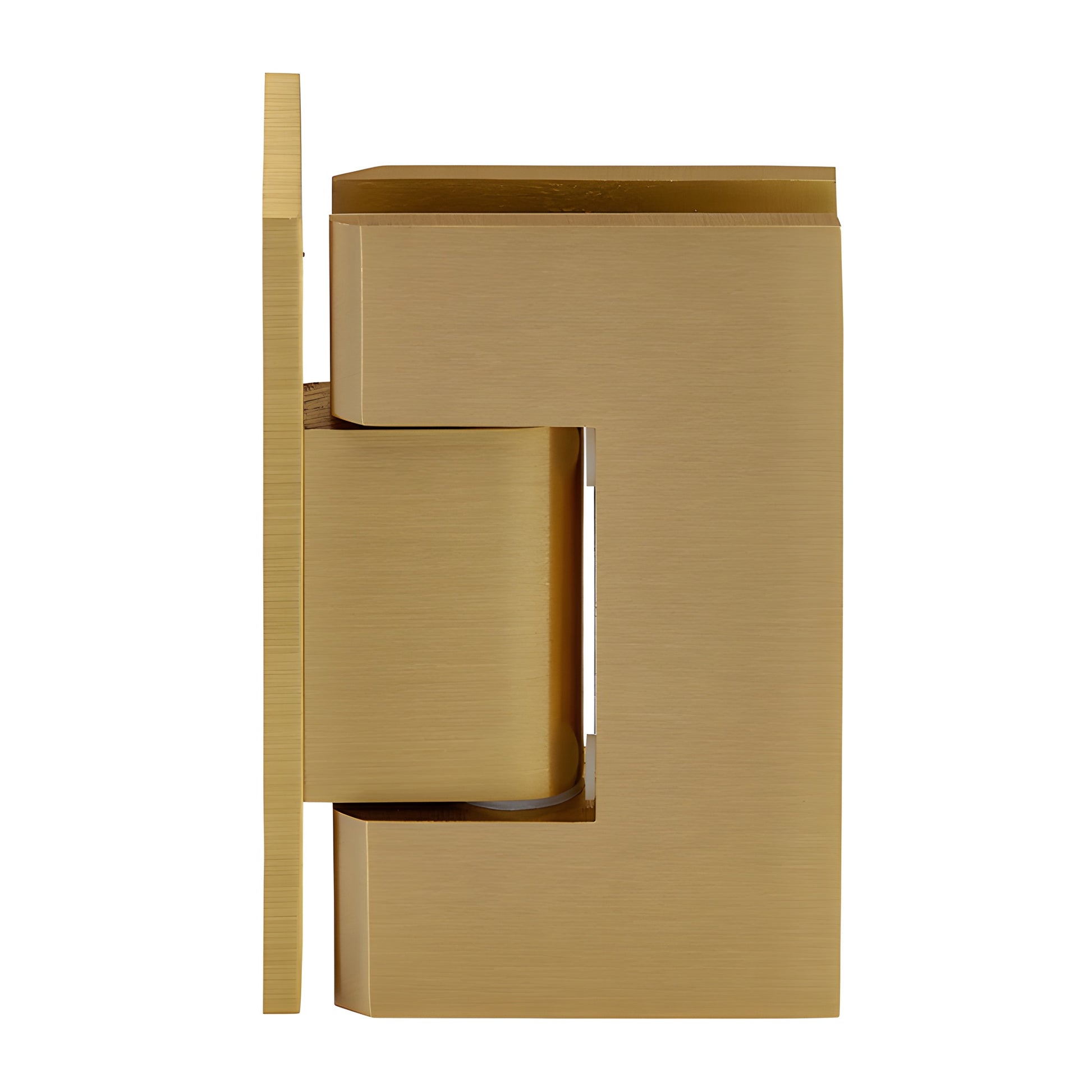

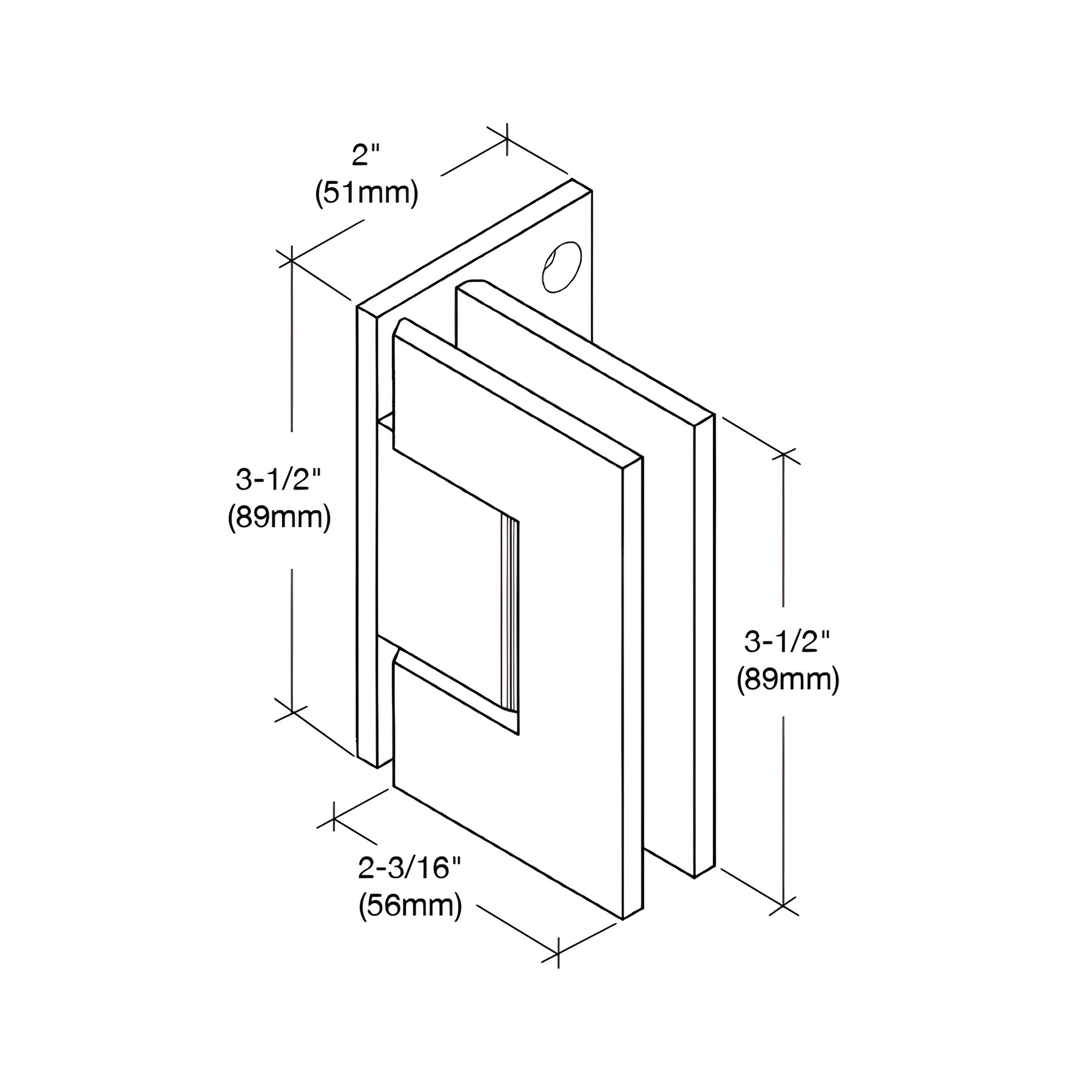

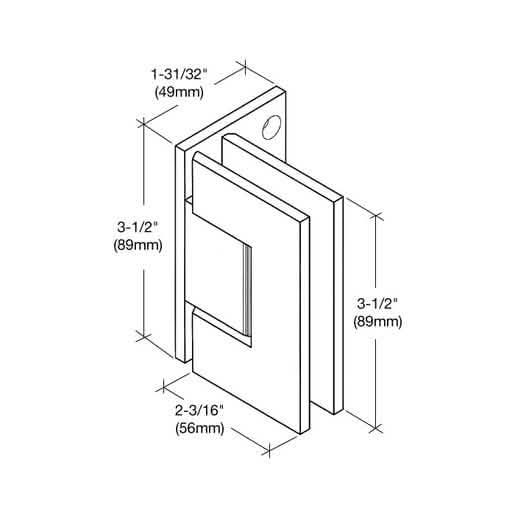

CRL Geneva 044 Satin Brass Offset Wall-Mount Backplate Hinge

• Self-Centering with Reversible 5° Pivot Pin
• Available in several durable finishes
• Three-year warranty
• Wall-mount offset back plate (factory set for standard closing position)
• For monolithic tempered safety glass

The CRL Geneva Series professional hinges (SKU: GEN044SB) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are available in six styles—three Wall-Mount and three Glass-to-Glass—for design flexibility in glass shower door installations. Geneva Hinges are solid brass with stainless-steel pins and springs, feature a reversible 5° pivot pin for self-centering operation, and offer custom pivot pins for off-angle applications.

Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models are factory-set to 85° for a 5° tighter closure into the shower interior. The pivot pin can be rotated to change the active angle.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available to accommodate off-angle installations up to 45°. Specifying a custom pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Using two hinges with 5/16"–1/2" (8–12 mm) glass, each hinge set supports up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (0° factory closing position) or 5° Pre-Set Model for tighter shower closure
Construction: Solid brass with stainless-steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
