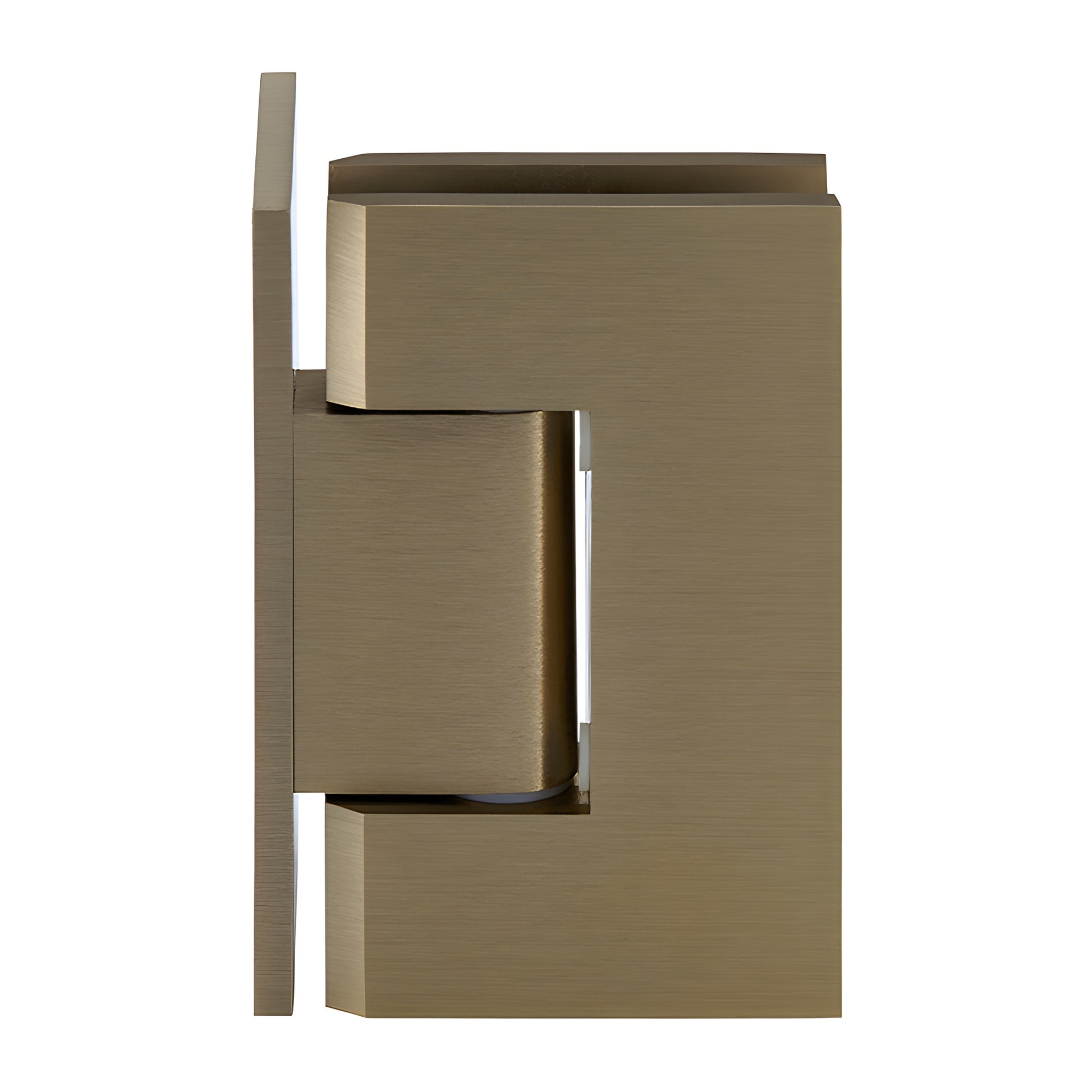

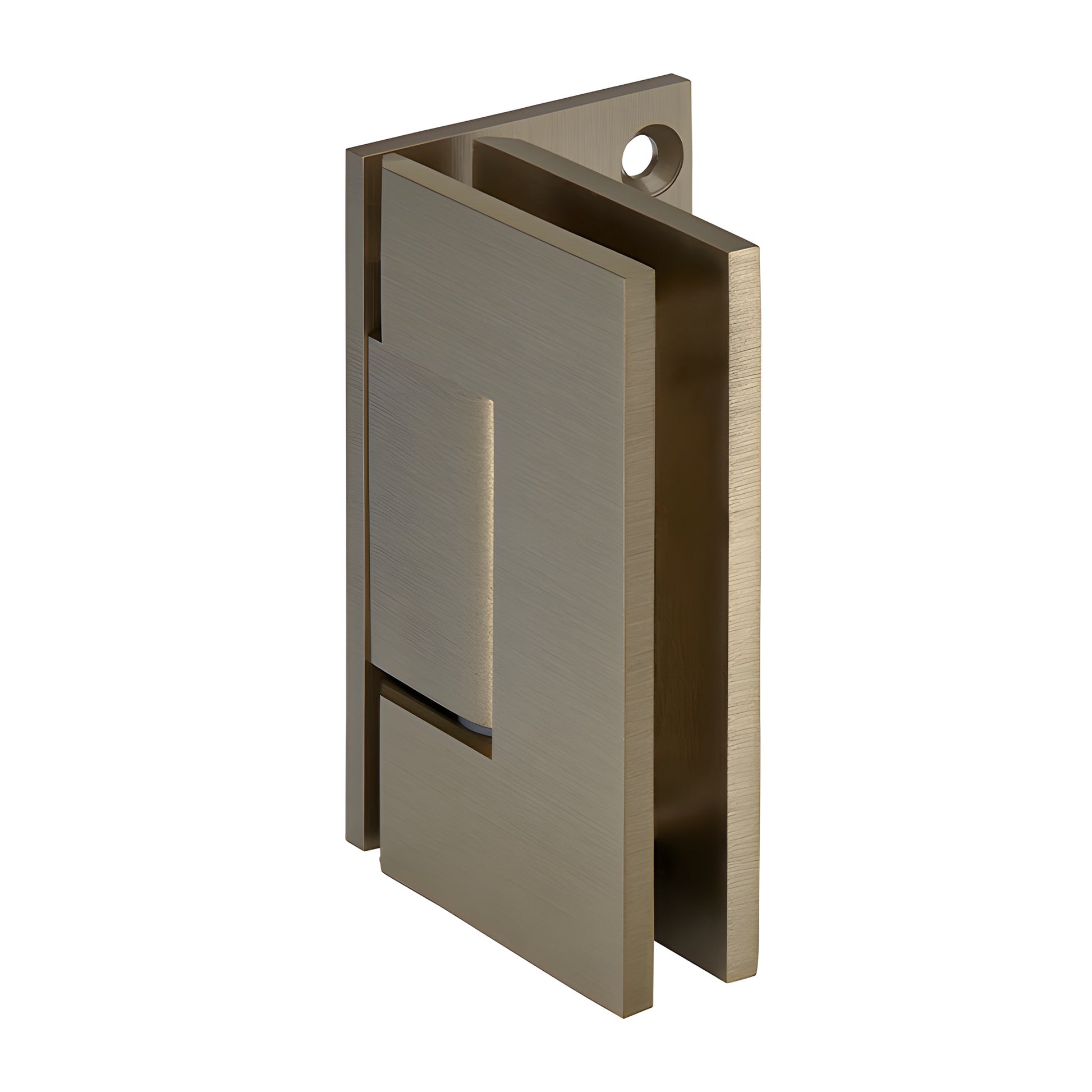

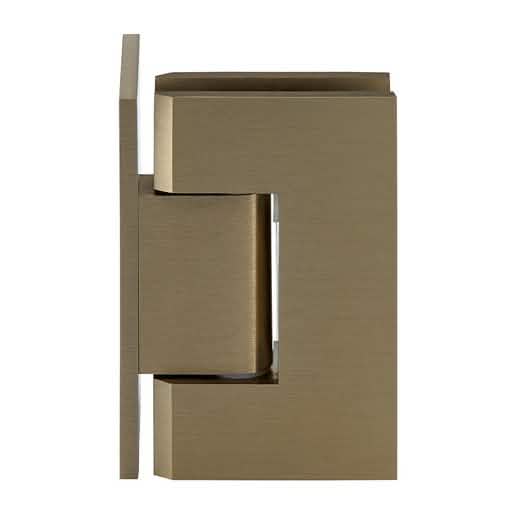

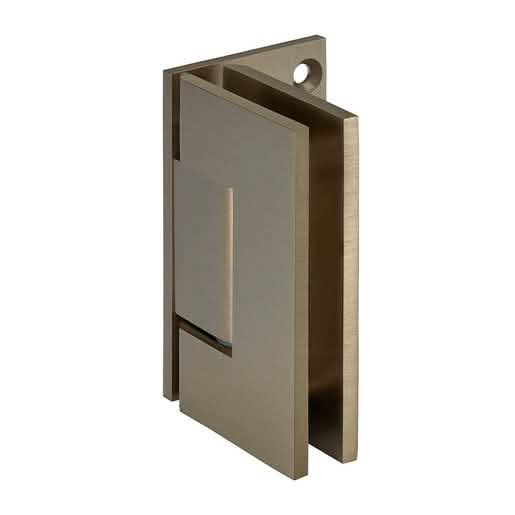

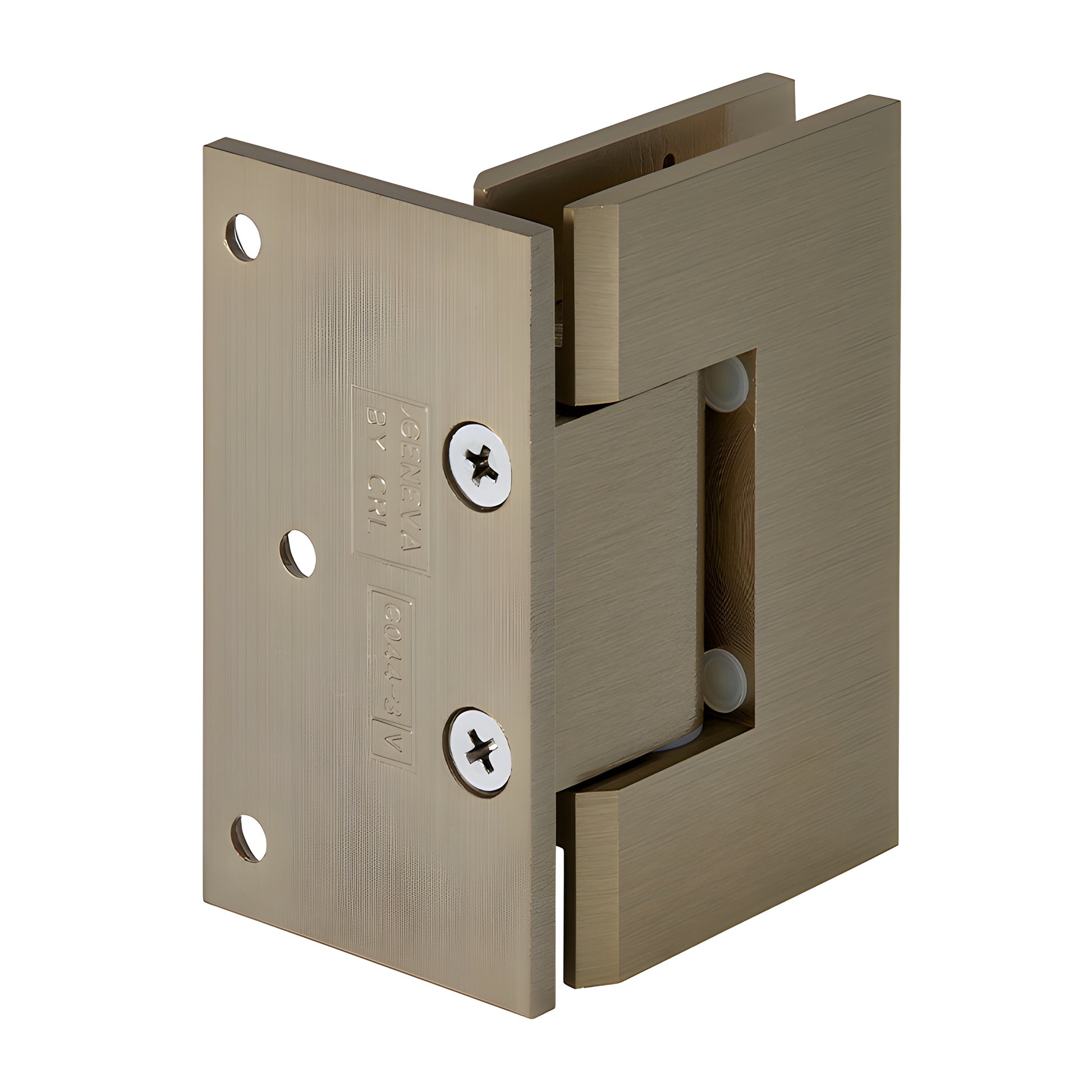

CRL Geneva 044 Brushed Bronze Wall-Mount Offset Hinge for Shower Door

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple premium finishes
• Three-year warranty

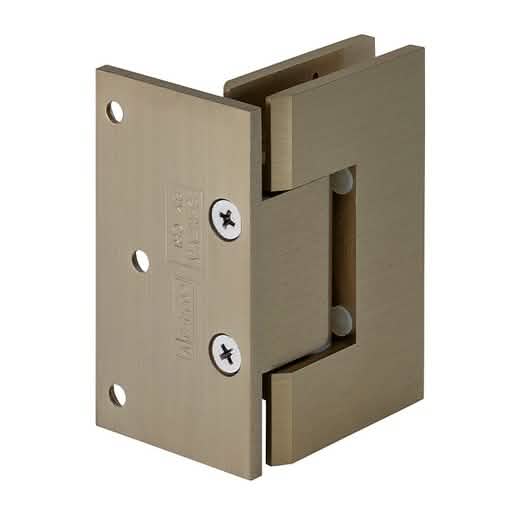

• Wall-mount offset back plate (factory set for standard closing position)
• For use with monolithic tempered safety glass

The CRL Geneva Series professional shower door hinge (SKU: GEN044BBRZ) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and is made of solid brass with stainless steel pins and springs. Six styles (three Wall Mount and three Glass-to-Glass) provide design flexibility. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations.

Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active; Pre-Set models are shipped with the 85° side activated for tighter closure into the shower interior. The pin can be rotated to change the closing angle (do not flip upside down).

Custom Pivot Pin (Cat. No. GENP1N): Available to accommodate off-angle installations up to 45°. If the reversible 5° pin does not achieve the desired door position, specify the required angle when ordering. Note: using a custom pin may affect glass sizes and enclosure aesthetics — contact Technical Sales Shower Door Department for guidance.

Load capacity:

• Two hinges (8–12 mm glass): holds up to 80 lbs. (36 kg), max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lbs. (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° closing position) or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack sold separately for 8 mm glass.

Custom finishes available on request — contact Technical Sales Shower Door Division for pricing and lead time.

Product Warning:
These hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge;
