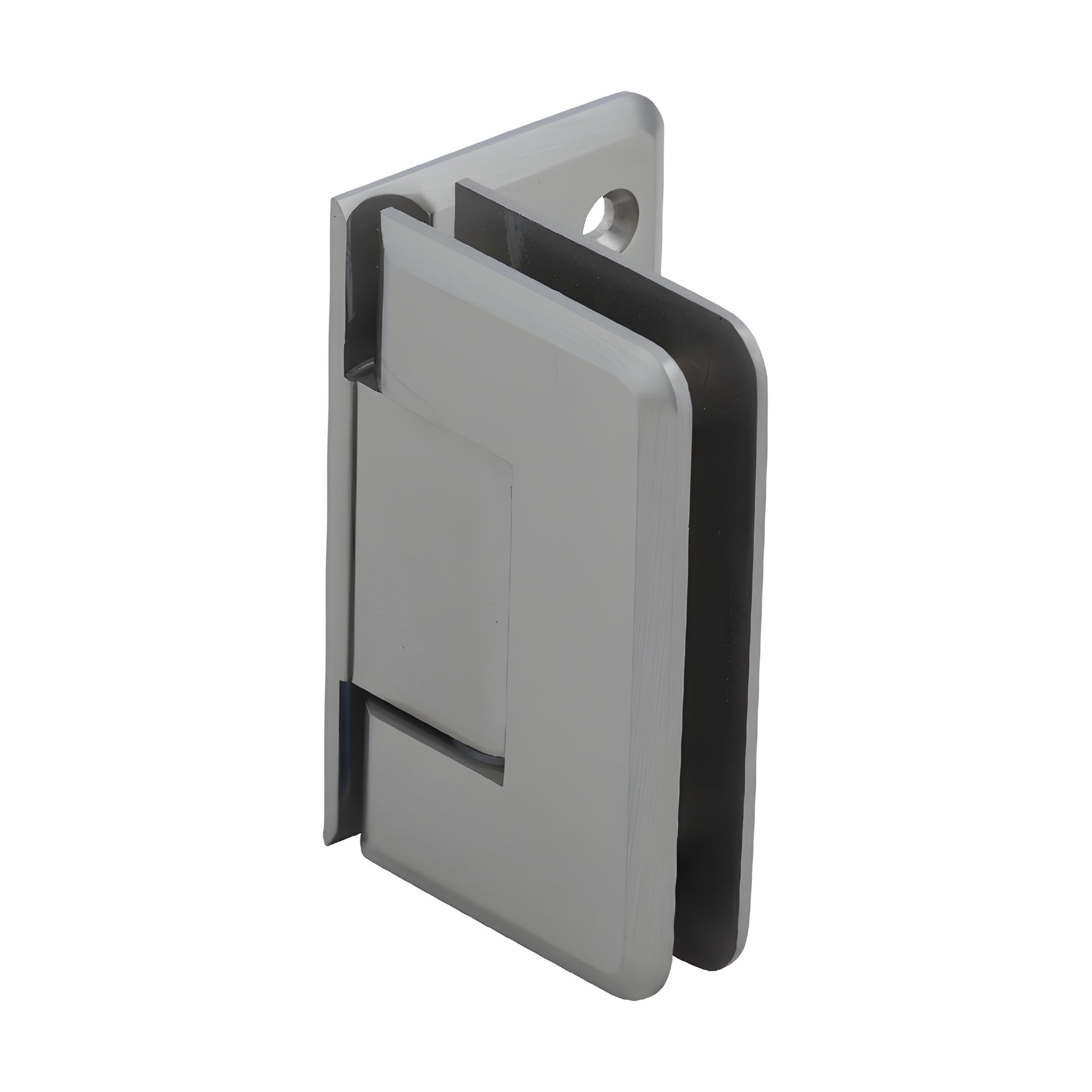

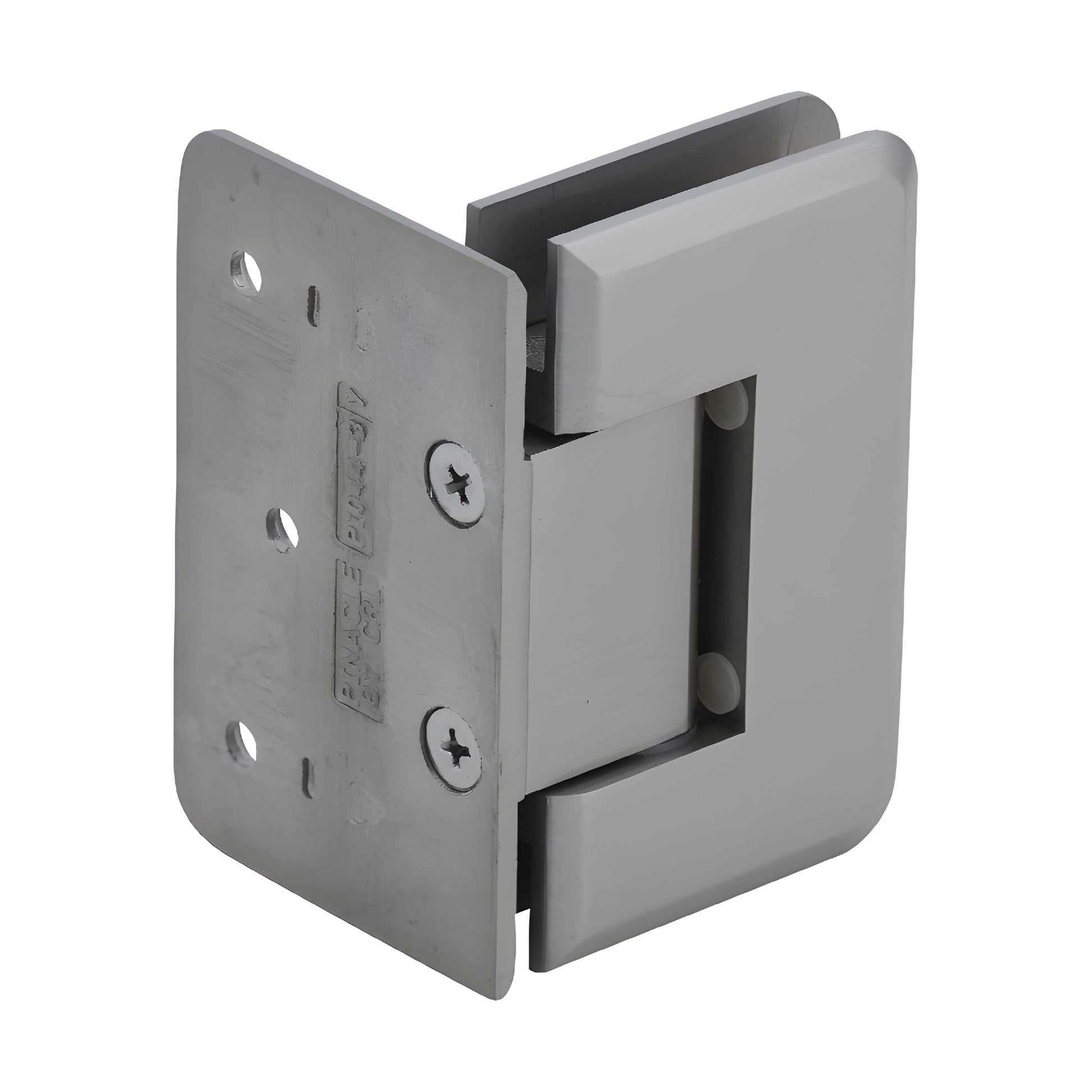

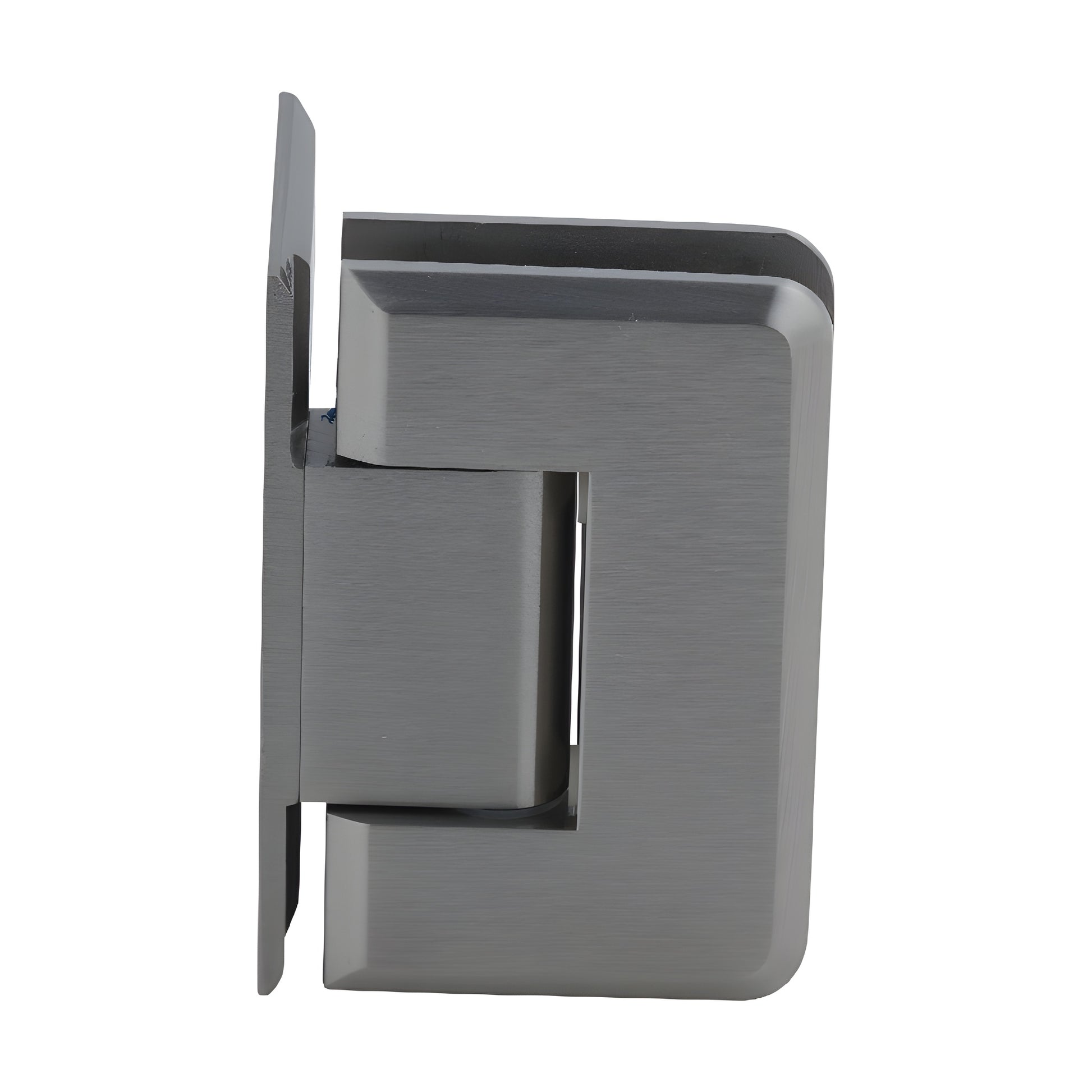

CRL Pinnacle 044 Brushed Nickel Offset Wall-Mount Shower Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three-year warranty

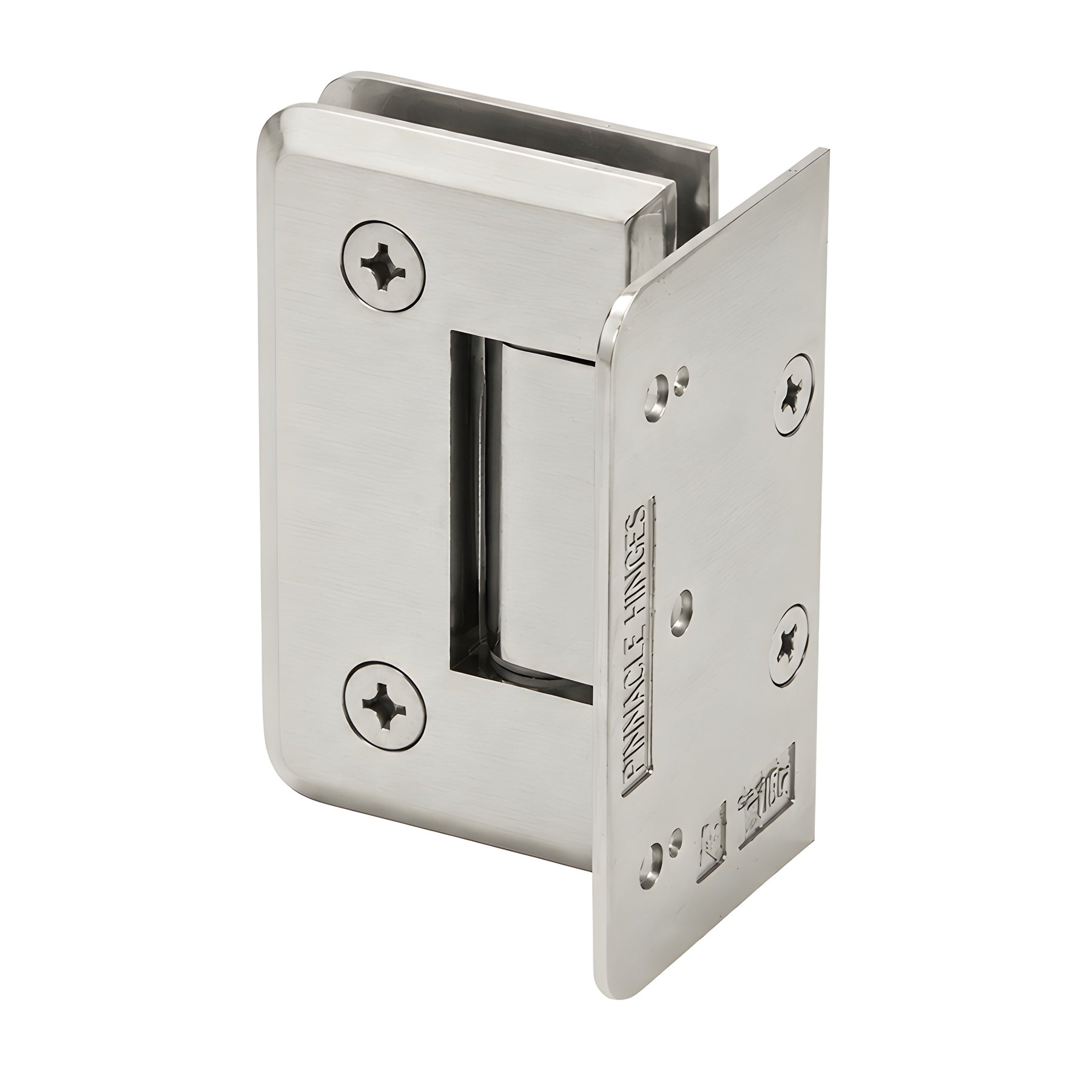

• Wall-mount offset back plate standard model (factory set for standard closing position)
• Designed for monolithic tempered safety glass

CRL Pinnacle Hinge — a sleek radius-corner, beveled-edge alternative to the Geneva Series. Built from solid brass with stainless-steel plunger tips, pins, and springs for long service life and reliable shower door closure. Ideal for frameless shower doors using 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Self-centering within 15° of the closed position. Features the reversible 5° pivot pin found in Geneva, Cathedral, Roman, Ultimate, and Elite Series hinges. Custom pivot pins available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin: one side marked 90° (standard), the other 85° (5° tighter closure). Pin is rotated (not flipped) to change active angle. Pre-set models ship with the 85° position activated for a tighter inward close.

CUSTOM PIVOT PIN: Specify a custom pivot pin up to 45° to accommodate off-angle walls or non-90° installations when the standard 5° does not achieve the desired closing position.

Load Capacity

Using two hinges (5/16"–1/2" glass): holds up to 80 lb (36 kg), max door width 28" (711 mm).

Using three hinges (5/16"–1/2" glass): holds up to 120 lb (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (factory 0°) or 5° Pre-Set for tighter interior closure

Construction: Solid brass with stainless-steel internal components

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
