CRL Pinnacle 074 Polished Chrome Shower Door Short Backplate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Short Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

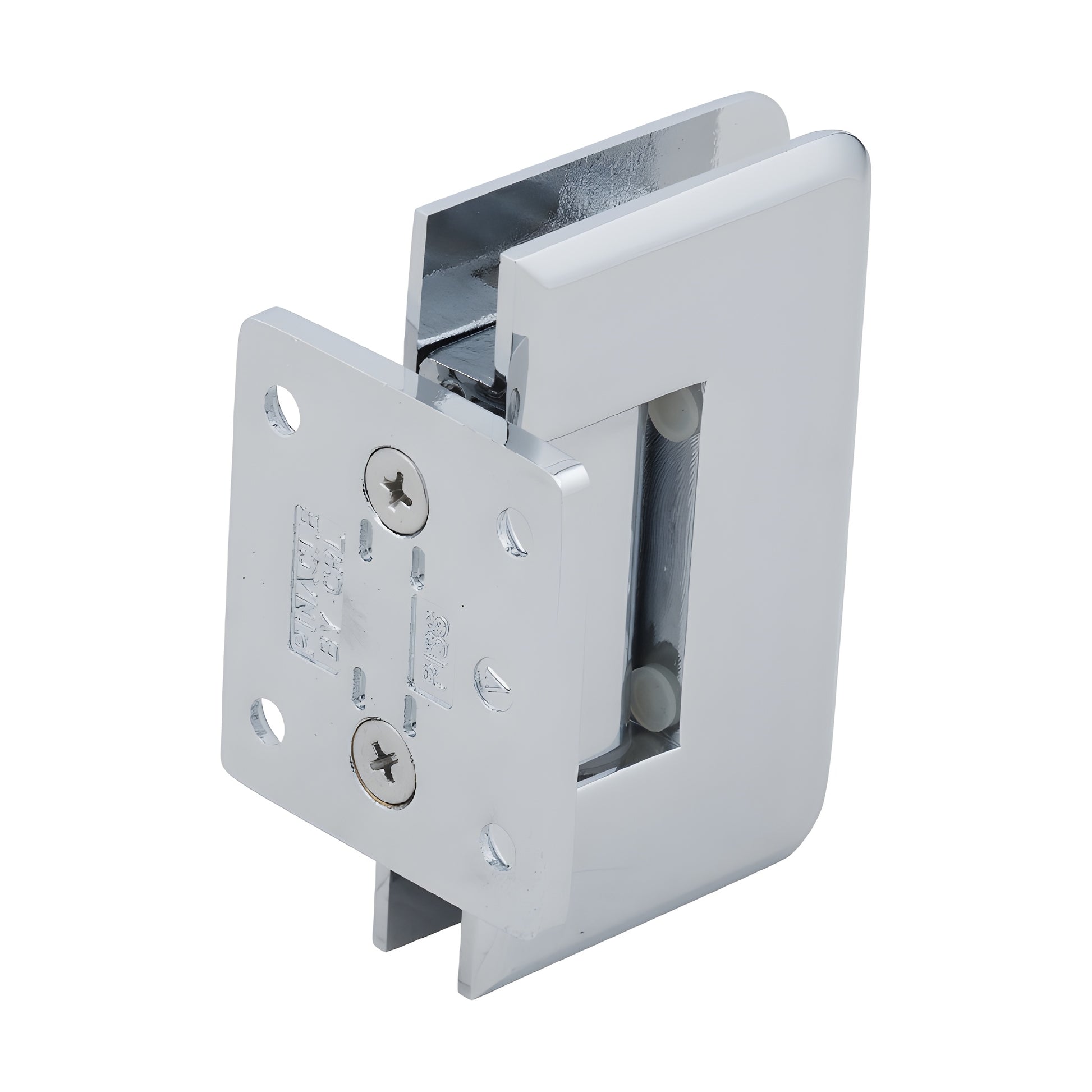

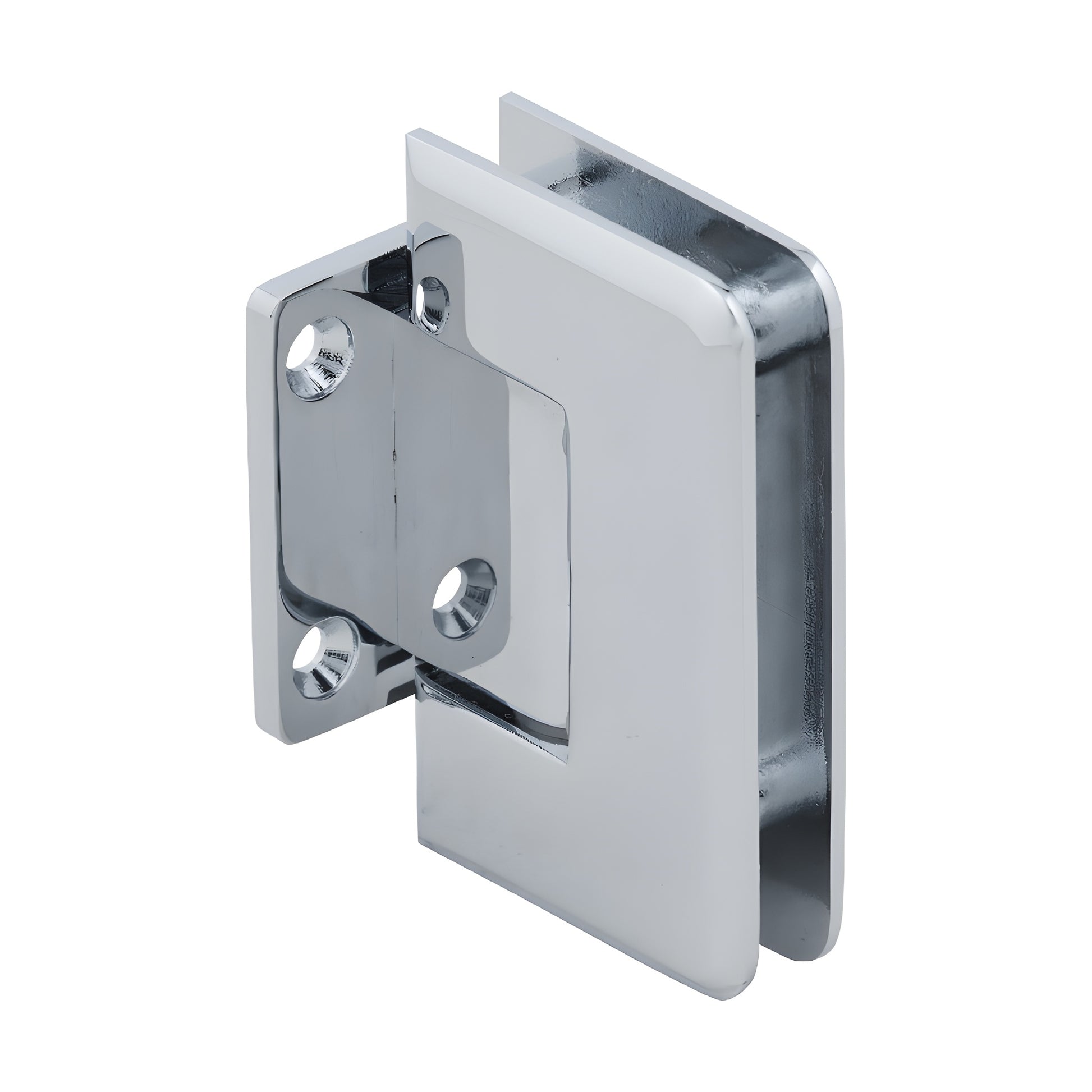

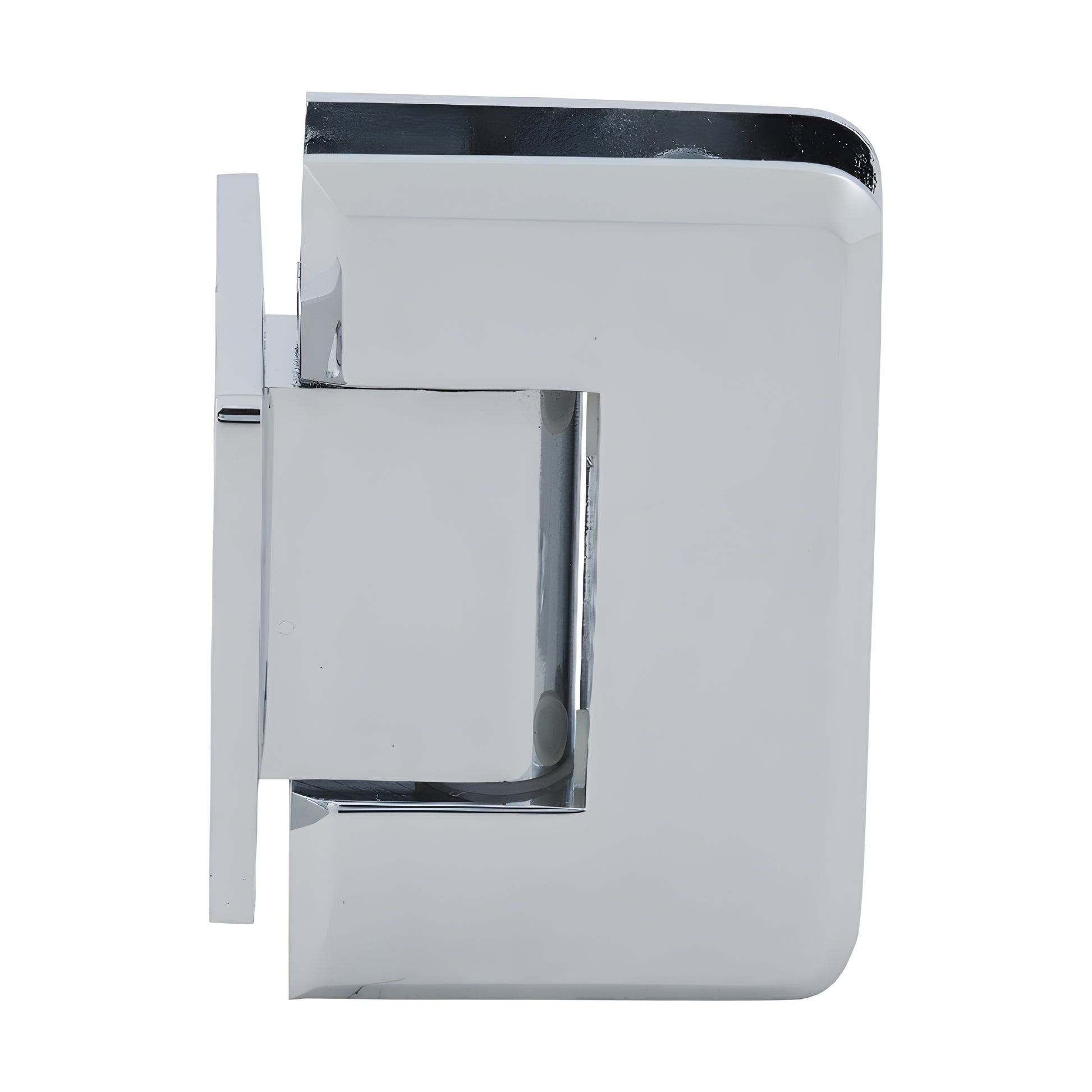

The CRL Pinnacle Hinge (SKU: P1N074CH) is a radius-corner, beveled-edge alternative to the Geneva Series designed for a sleek shower door appearance. It accommodates 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is self-centering when within 15° of the closed position. Constructed of solid brass with stainless steel plunger tips, pins, and springs, Pinnacle offers durable, reliable door closure for residential and hotel shower doors. It features the same Reversible 5° Pivot Pin found in our Geneva, Cathedral, Roman, Ultimate, and Elite Series hinges, and a Custom Pivot Pin (up to 45°) is available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side active for a tighter 5° closure into the shower interior. The pin can be rotated (not flipped) to change the active side.

CUSTOM PIVOT PIN: Specify a Custom Pivot Pin for off-angle walls or non-90° conditions (custom angles available up to 45°) when the standard 5° pivot does not achieve the desired closure.

Load Ratings:
Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs. (36 kg); maximum door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs. (54 kg); maximum door width 32" (813 mm).

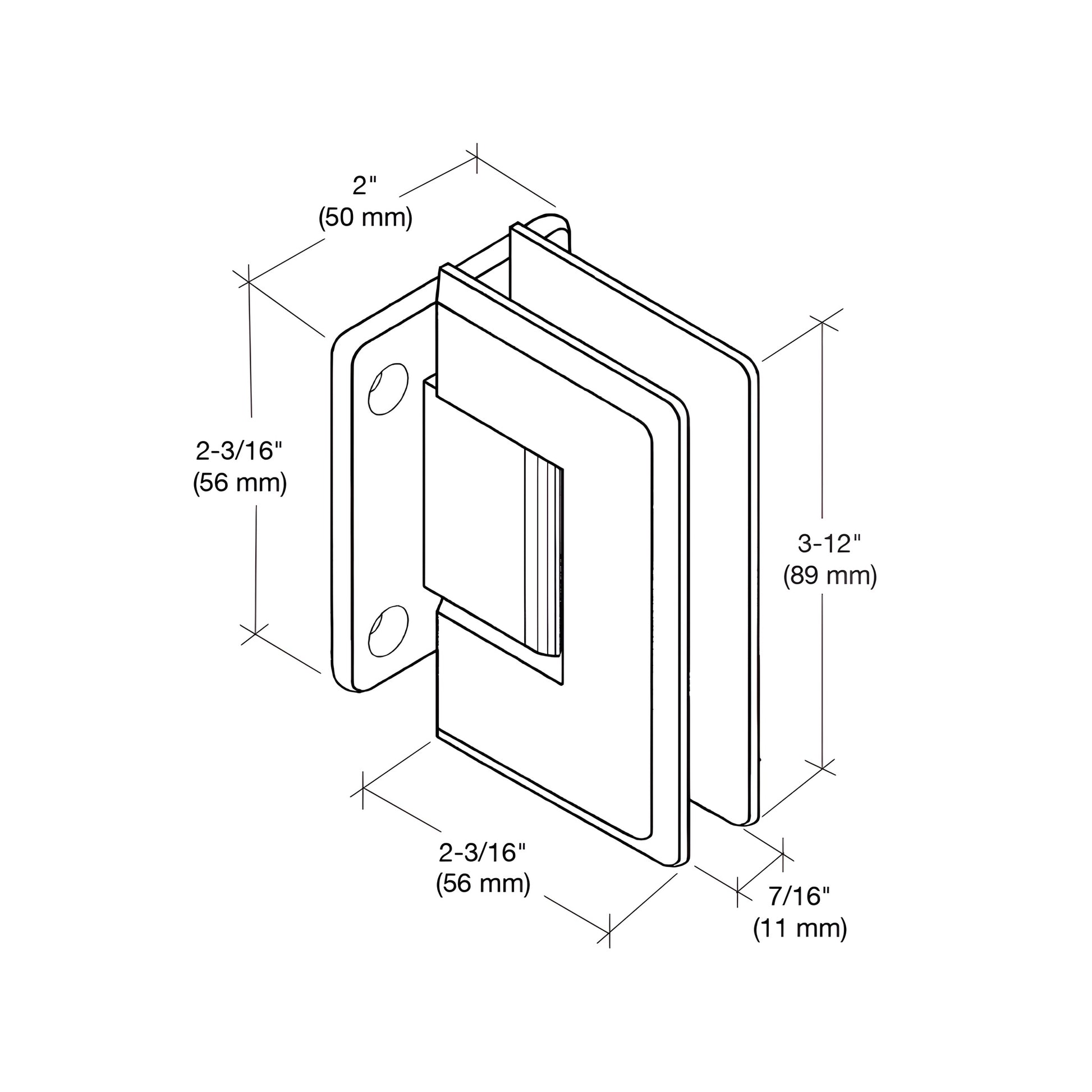

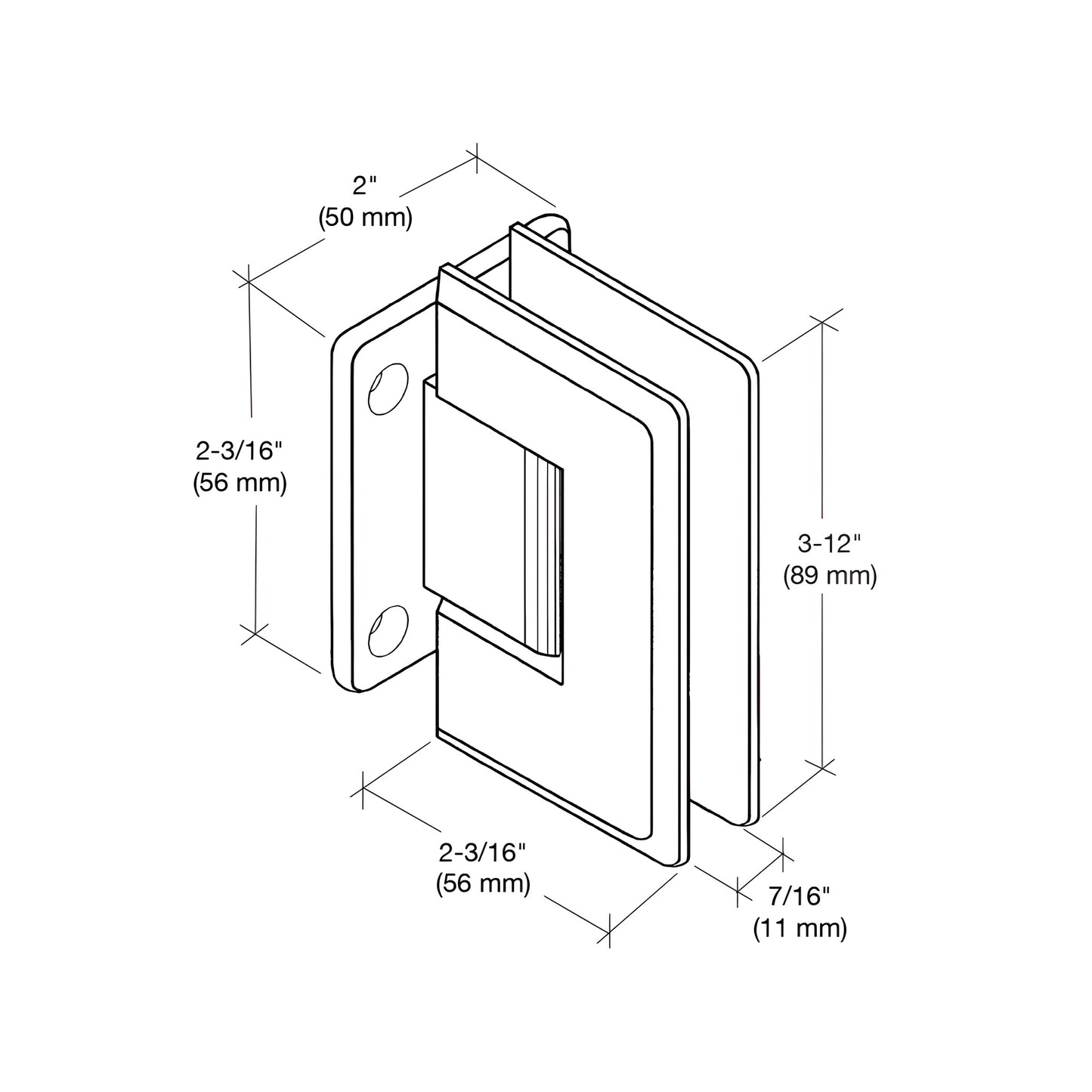

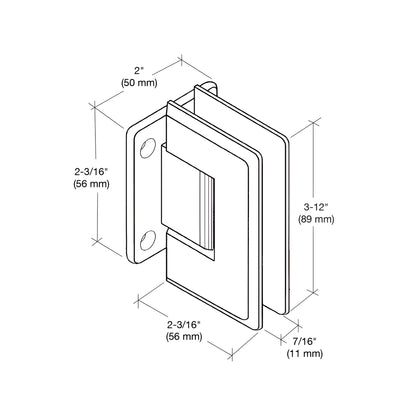

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180° Glass-to-Glass Hinge available as Standard (factory set at 0°) or 5° Pre-Set Model for tighter interior closure.
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required
