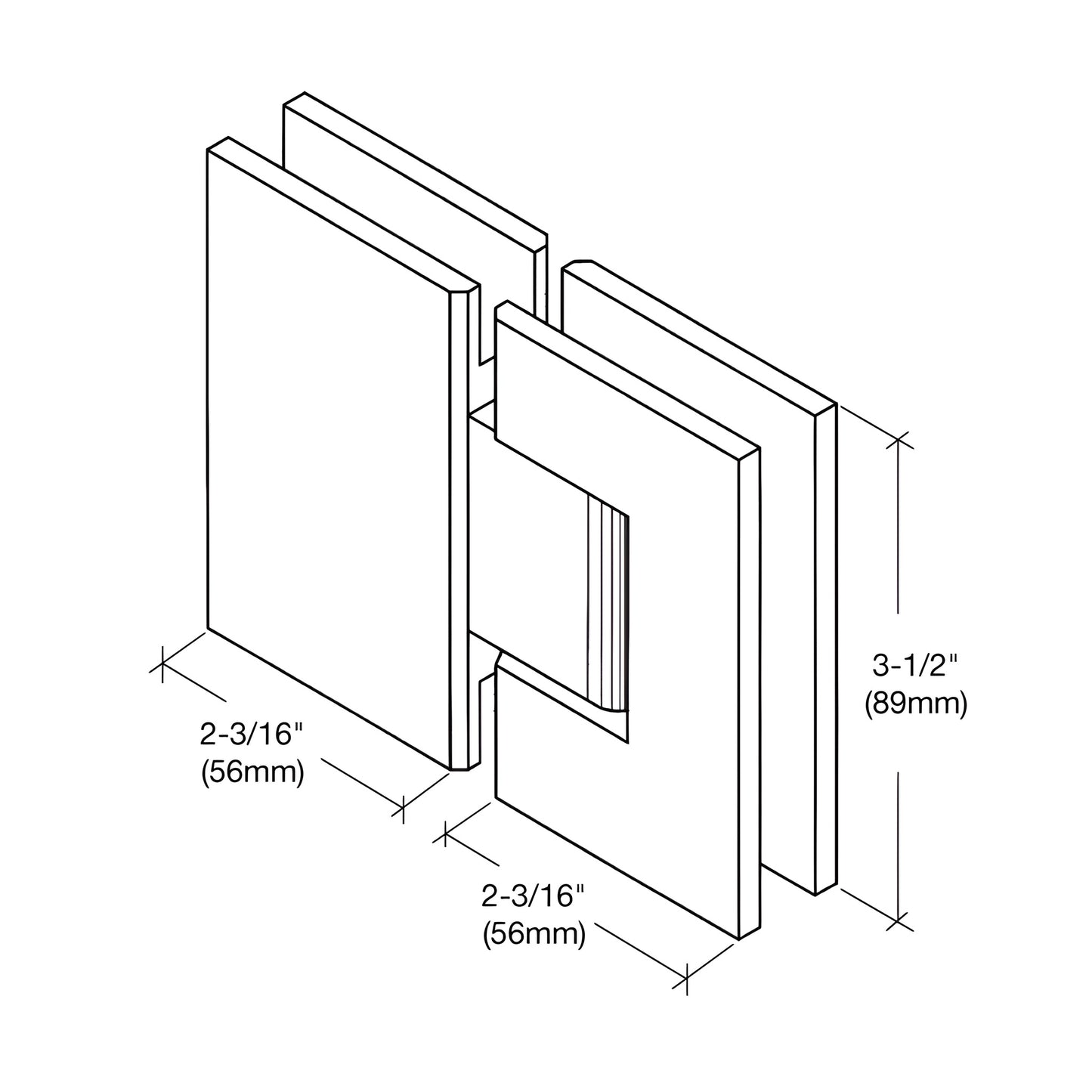

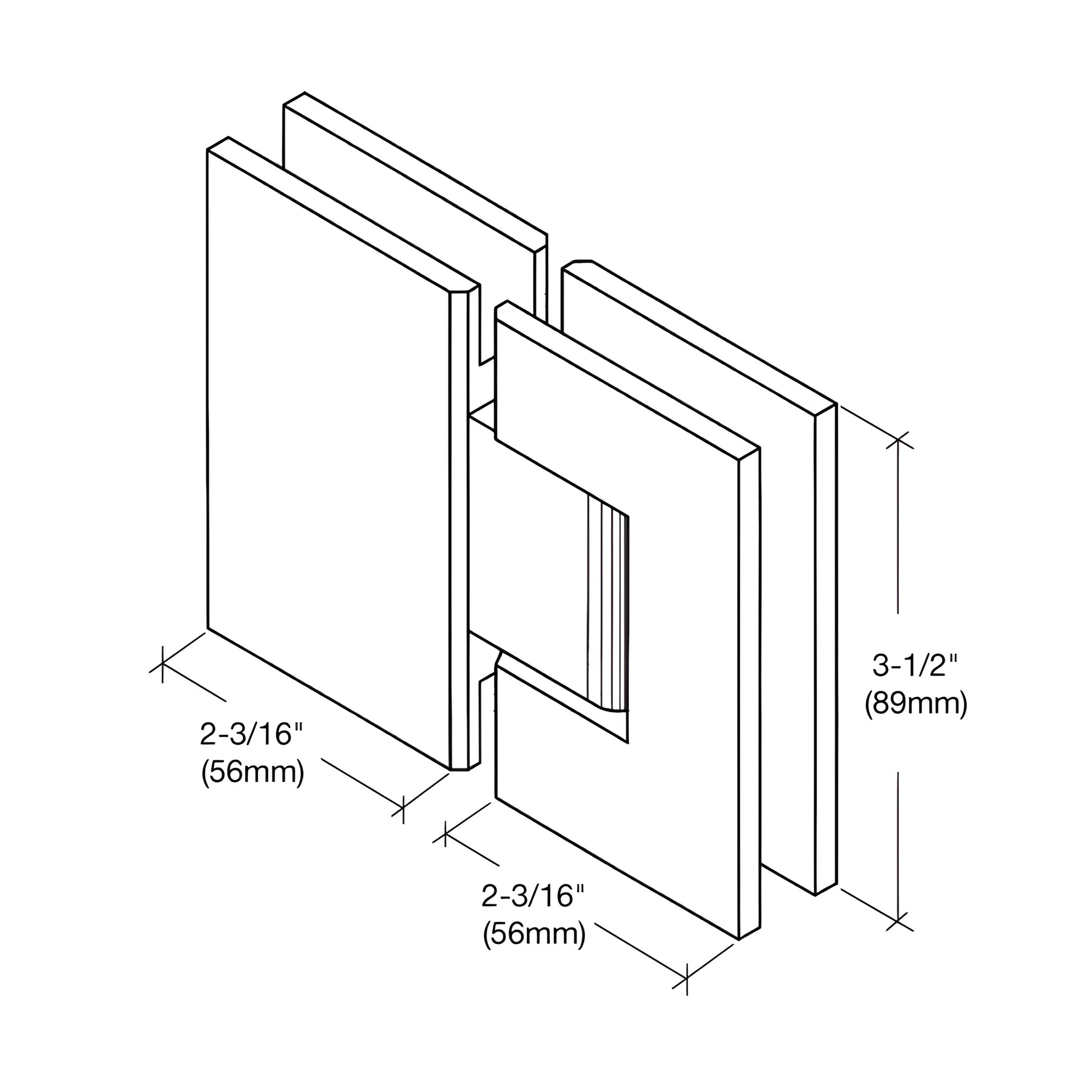

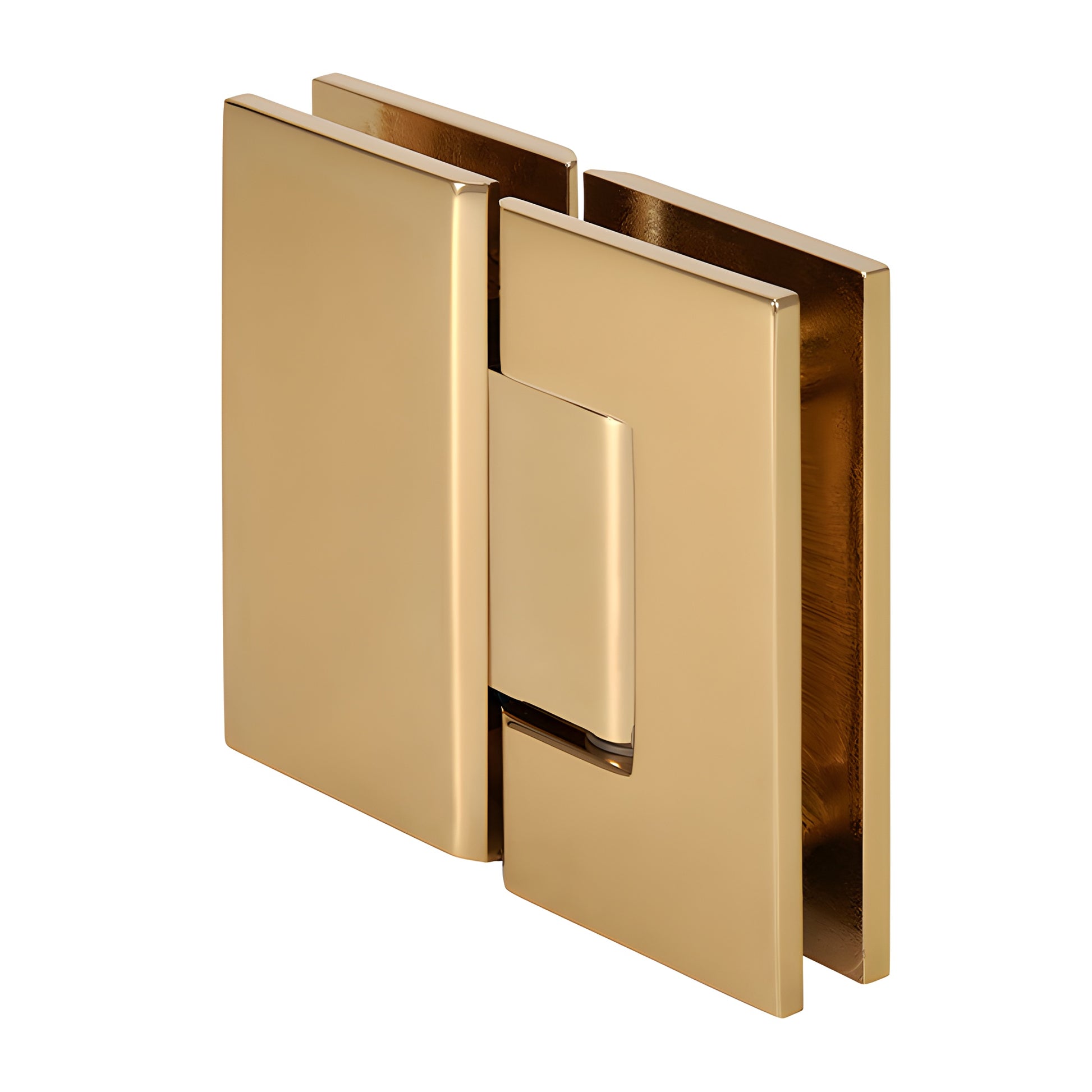

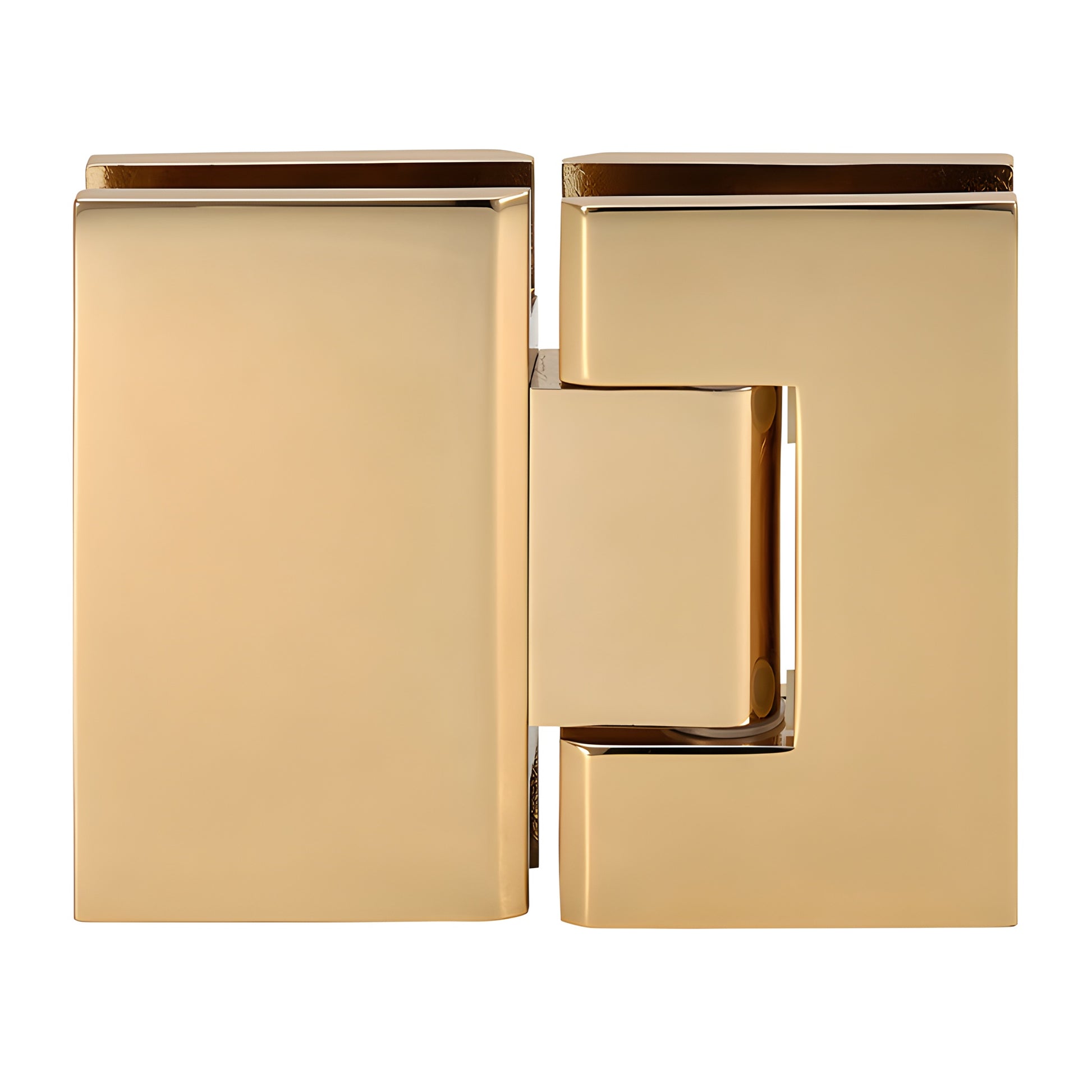

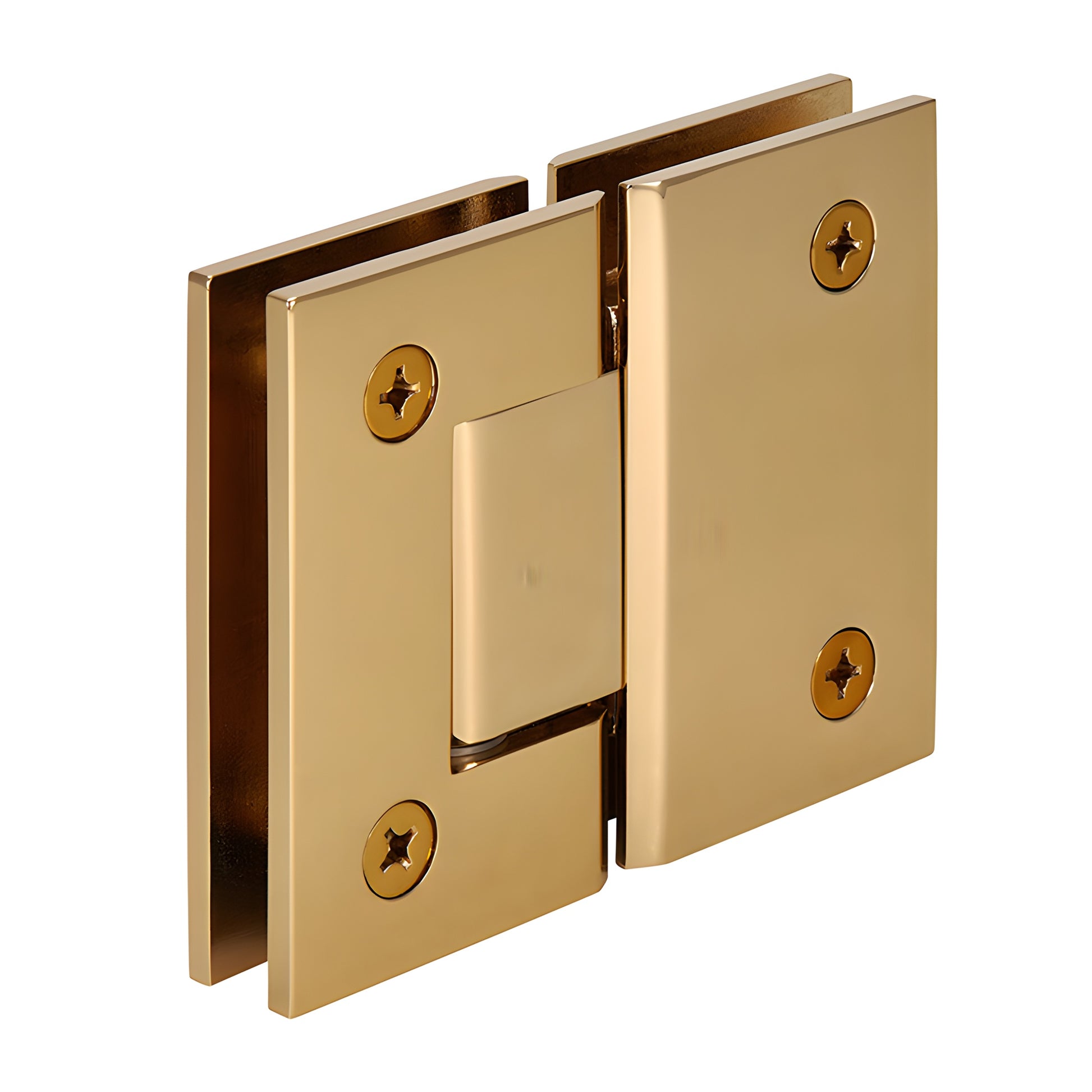

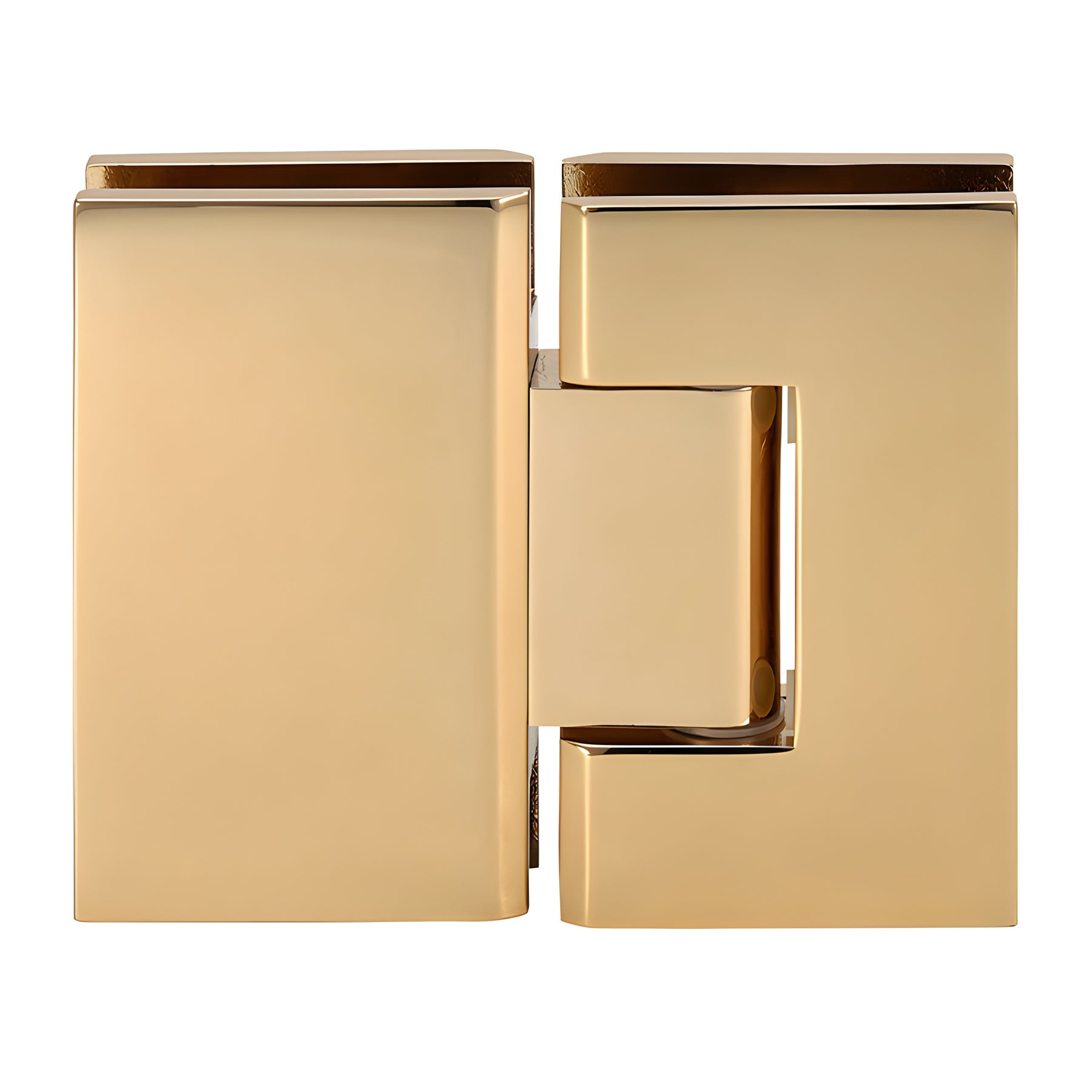

CRL Geneva 180 Gold-Plated 180° Glass-to-Glass Frameless Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple decorative finishes
• Three-year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Designed for monolithic tempered glass

The CRL Geneva Series professional hinge (SKU: GEN180GP) is a heavy-duty glass shower door hinge engineered for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six available styles — three wall-mount and three glass-to-glass — provide design flexibility for frameless shower doors, bath enclosures, and custom glass partitions. Built from solid brass with stainless-steel pins and springs for corrosion resistance and lasting performance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; offset models are pre-set to 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch settings for self-centering performance.

Capacity:

• Two hinges (8–12 mm glass): supports up to 80 lb (36 kg), maximum door width 28" (711 mm).
• Three hinges (8–12 mm glass): supports up to 120 lb (54 kg), maximum door width 32" (813 mm).

Custom Pivot Pin (Cat. No. GENP1N): Available for off-angle installations up to 45°. Specify required angle; contact CRL Technical Sales Shower Door Department for guidance. Note: custom pins may affect glass sizing and enclosure aesthetics.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard 0° closing position or 5° pre-set model for tighter closure
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Requirements Include: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request — contact Technical Sales Shower Door Division for lead times and pricing.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may differ from other brands.
