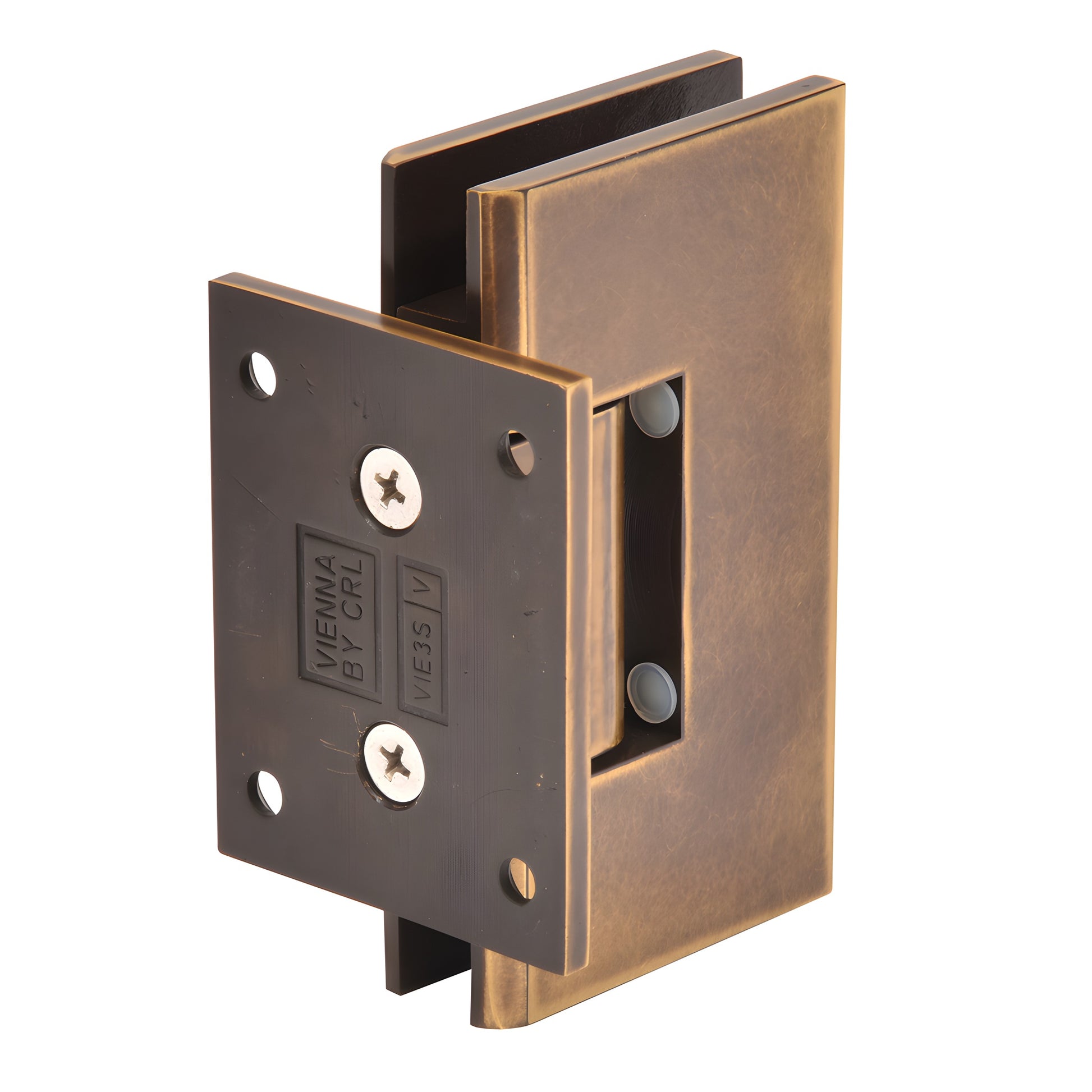

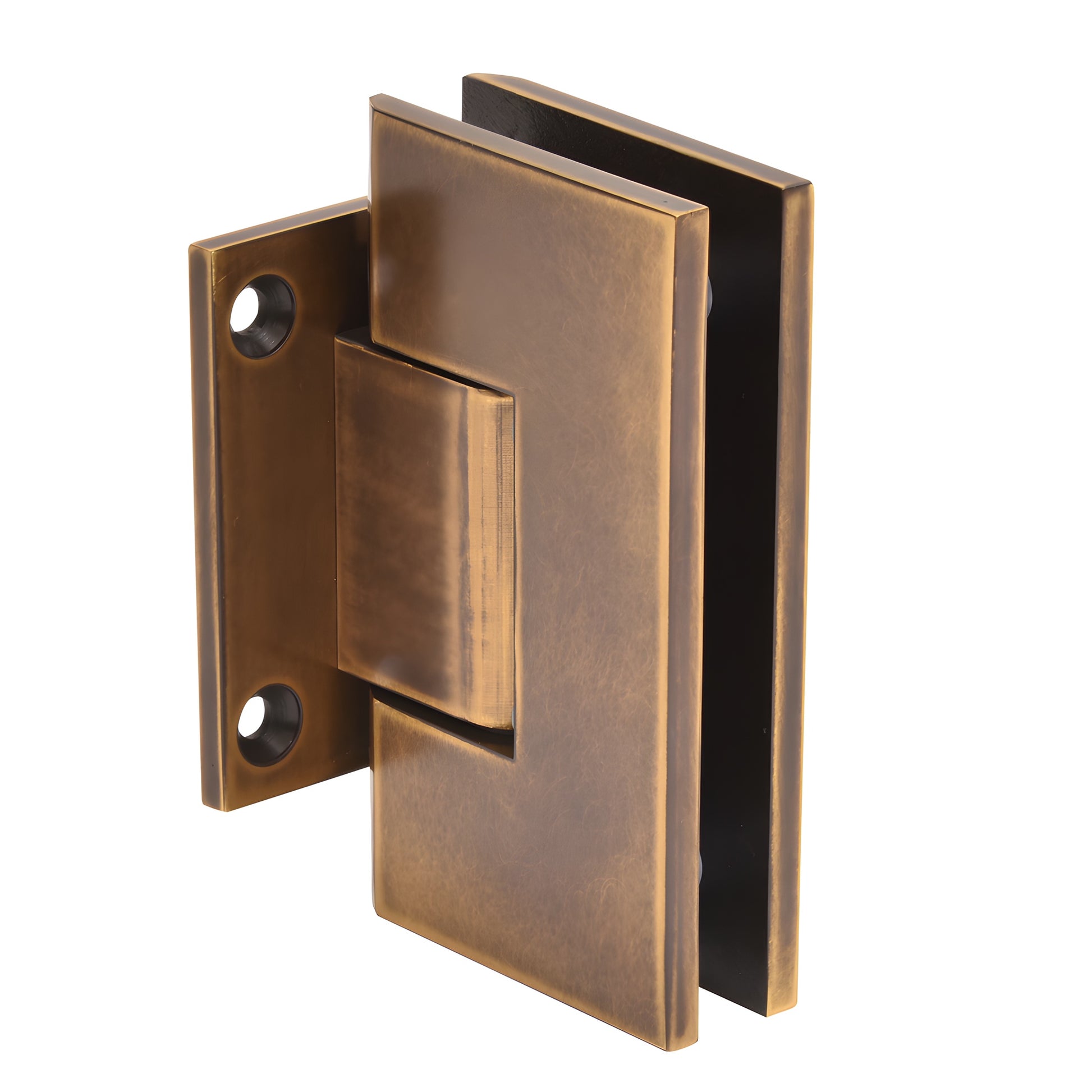

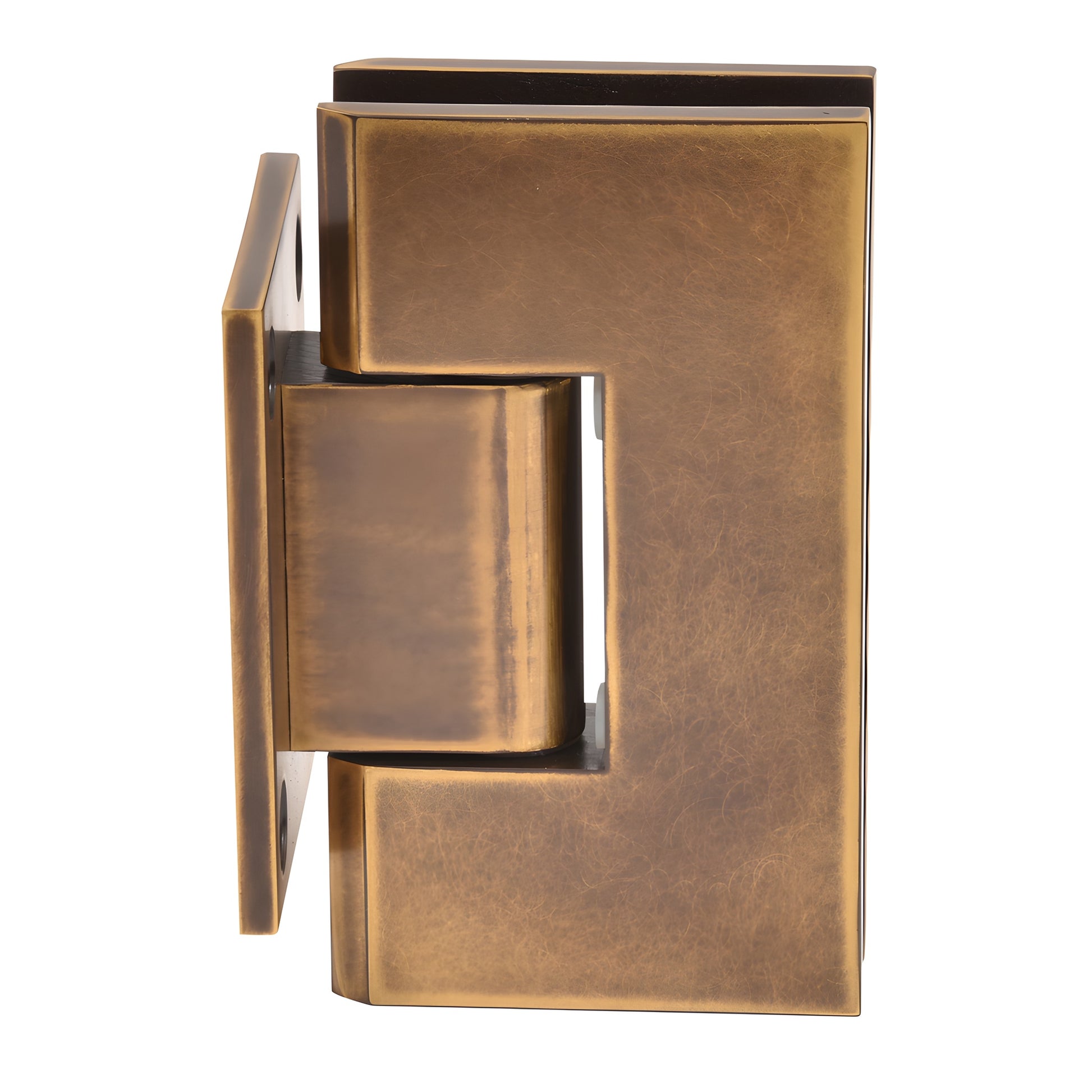

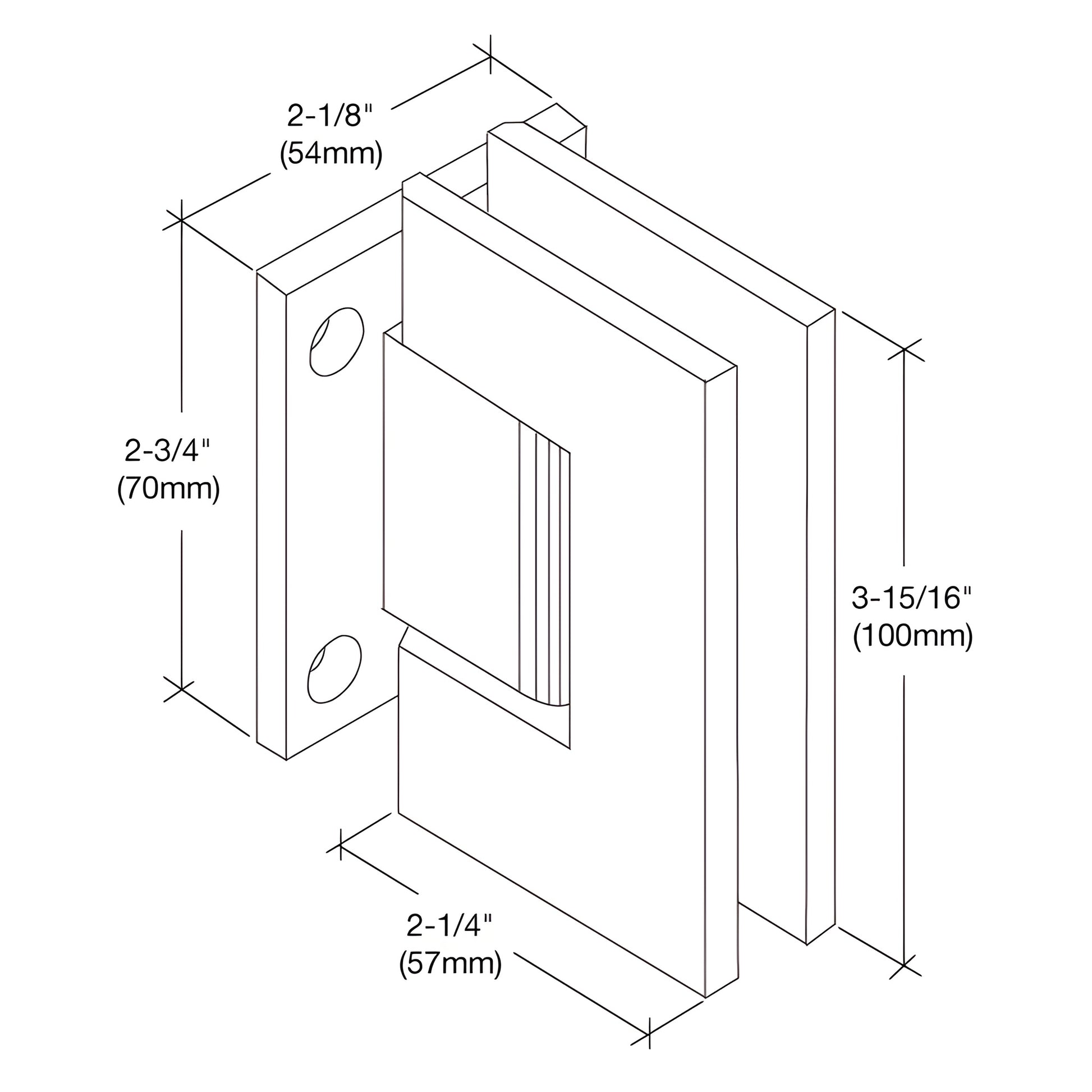

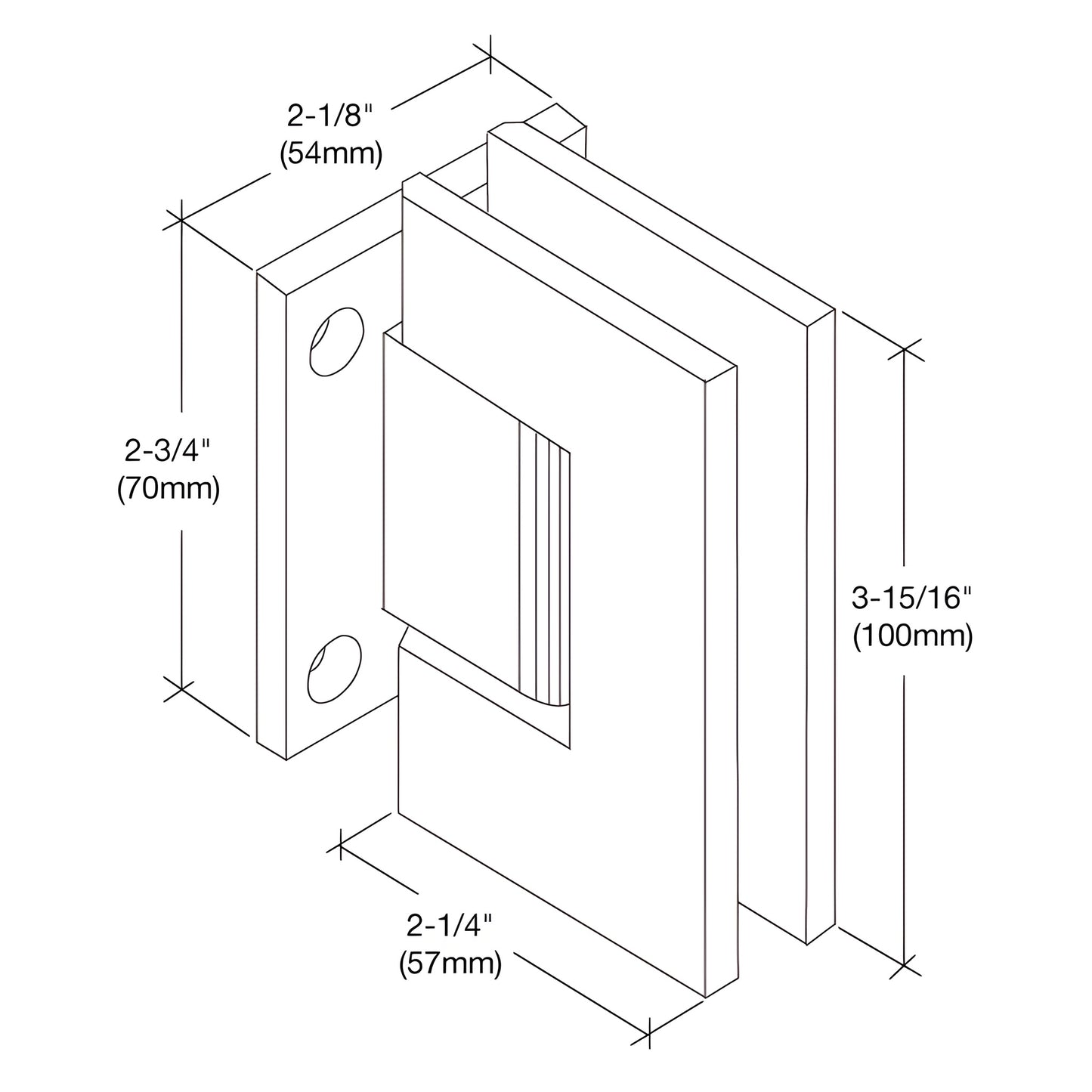

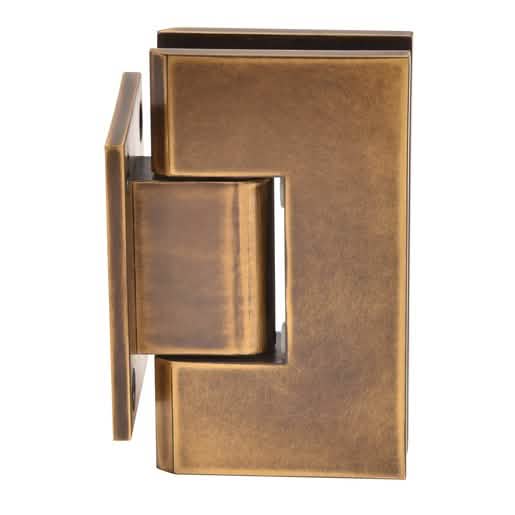

CRL Vienna 074 Brass Wall-Mount Shower Door Hinge Short Backplate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Wall mount short back plate for secure installation
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E074VBR) are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors when traditional hinges are not strong enough. Two internal steel pins provide mounting template options: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive rectangular cut-outs.

Standard Reversible Pivot Pin: Each Vienna Hinge contains a reversible pivot pin with one side marked 90° and the opposite side marked 85°. Standard models ship with 90° activated; Pre-Set models ship with 85° activated for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the angle.

Custom Pivot Pin: Custom pivot pins are available up to 45° to accommodate off-angle walls or installations where the standard 5° does not achieve the desired closing position. Contact CRL Technical Sales to specify custom angles.

Load Capacity & Door Width:

• Two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm)
• Two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm)
• Three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm)
• Three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm)

Specifications:

• Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: Solid brass
• Hinge Swings: 90° in and 90° out
• Closing Type: Self-centering when within 15° of closed position
• Cut-Out Required: Cut-out required except V1E092 (which requires cut-out for door and two holes for fixed panel)
• Includes: Gaskets, screws, and glass fabrication dimensions
• Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot pins are available on
