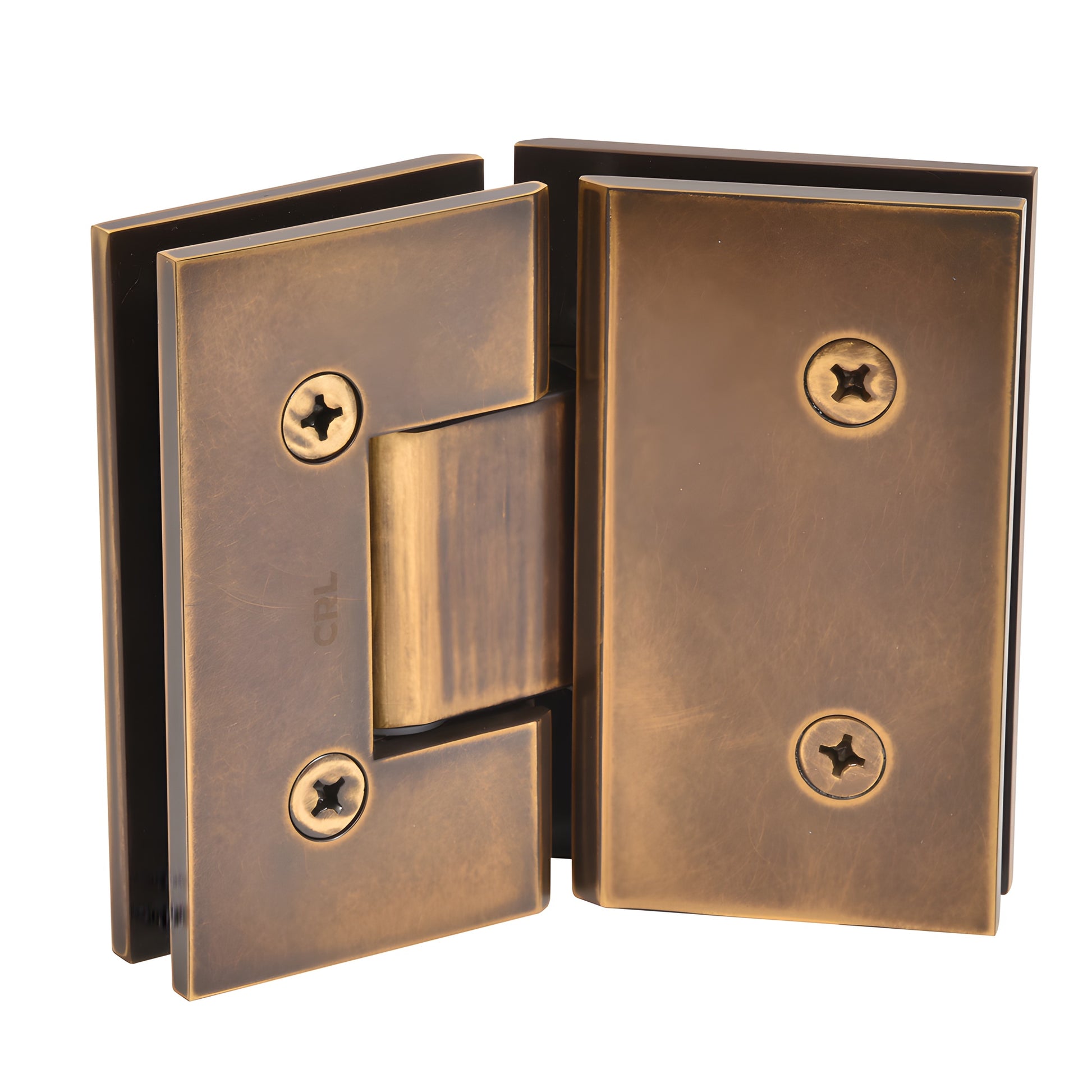

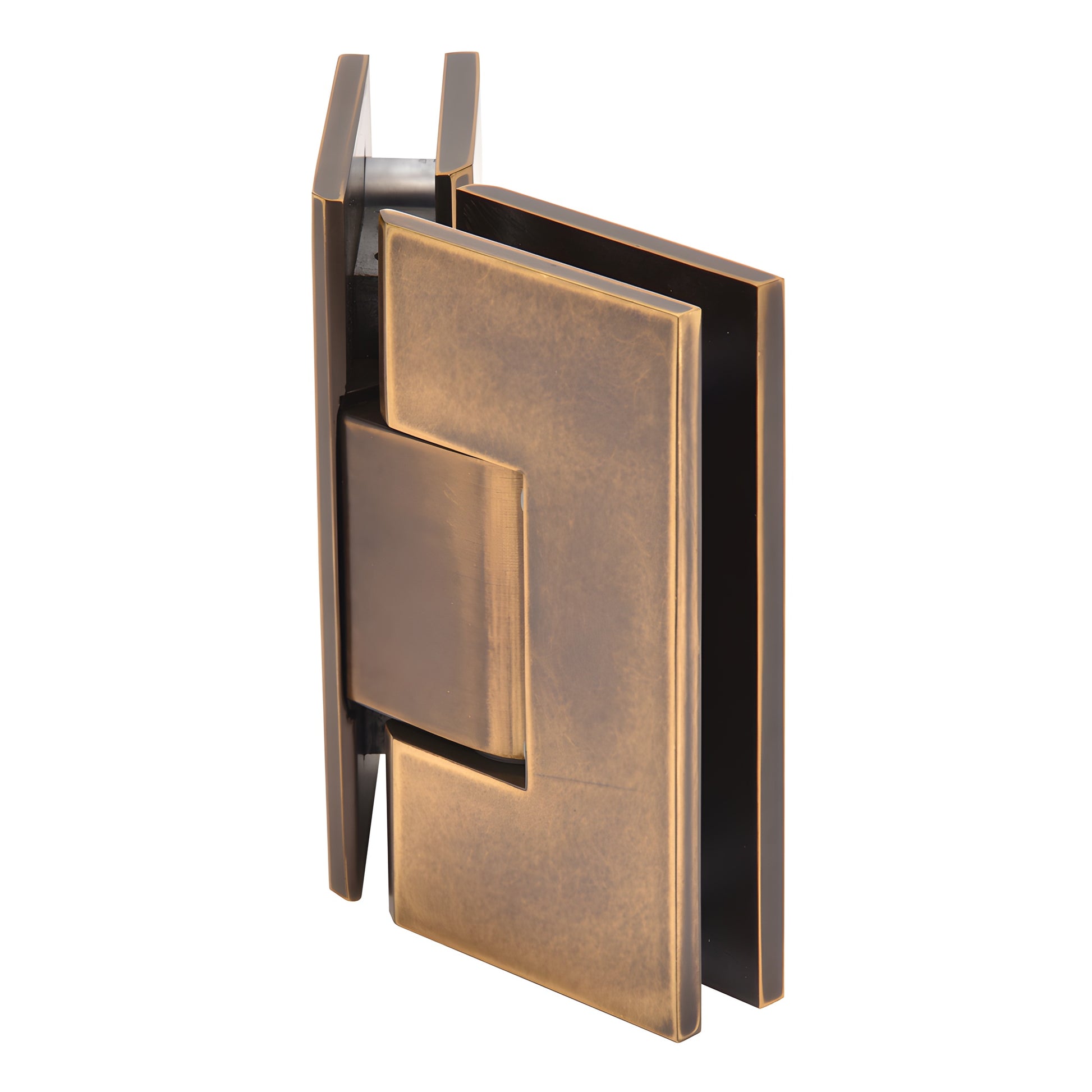

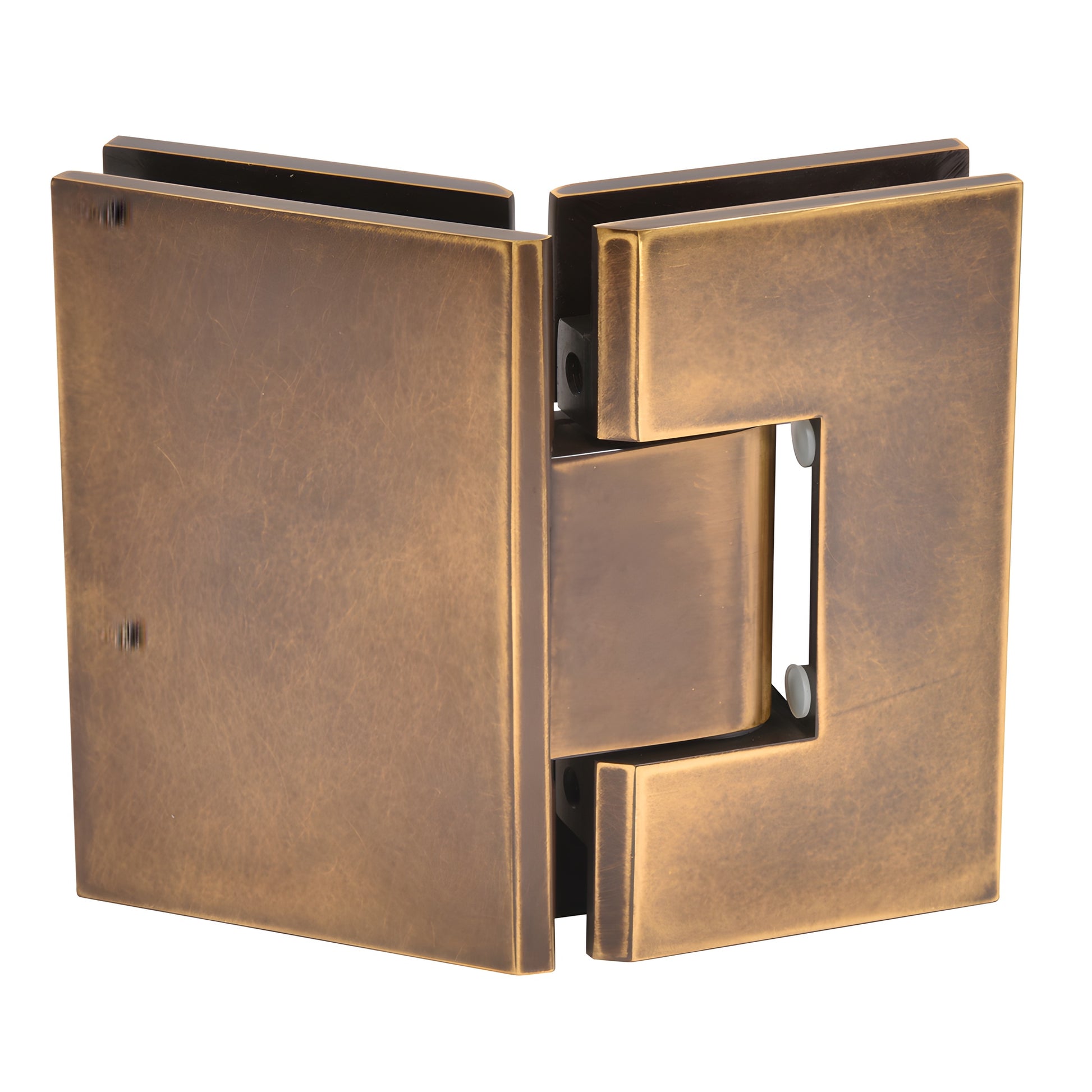

CRL Vienna 045 135° Vintage Brass Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 135° glass-to-glass hinge for frameless shower doors
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045VBR) are engineered for wider, heavier frameless shower doors that standard hinges cannot support. Two internal steel pins offer mounting flexibility: leave both pins in place to use with CRL "mouse-ears" cut-outs for safety, or remove the pins to increase adjustability and fit CRL rectangular square-corner cut-outs (may also fit some competitive rectangular cut-outs). These solid-brass, heavy-duty shower door hinges are ideal when you need durable brass hinges for heavy glass doors.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° pin does not achieve the desired closing position.

LOAD CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg) with maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092, which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales, Shower Door Department for finish options and lead times.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For
