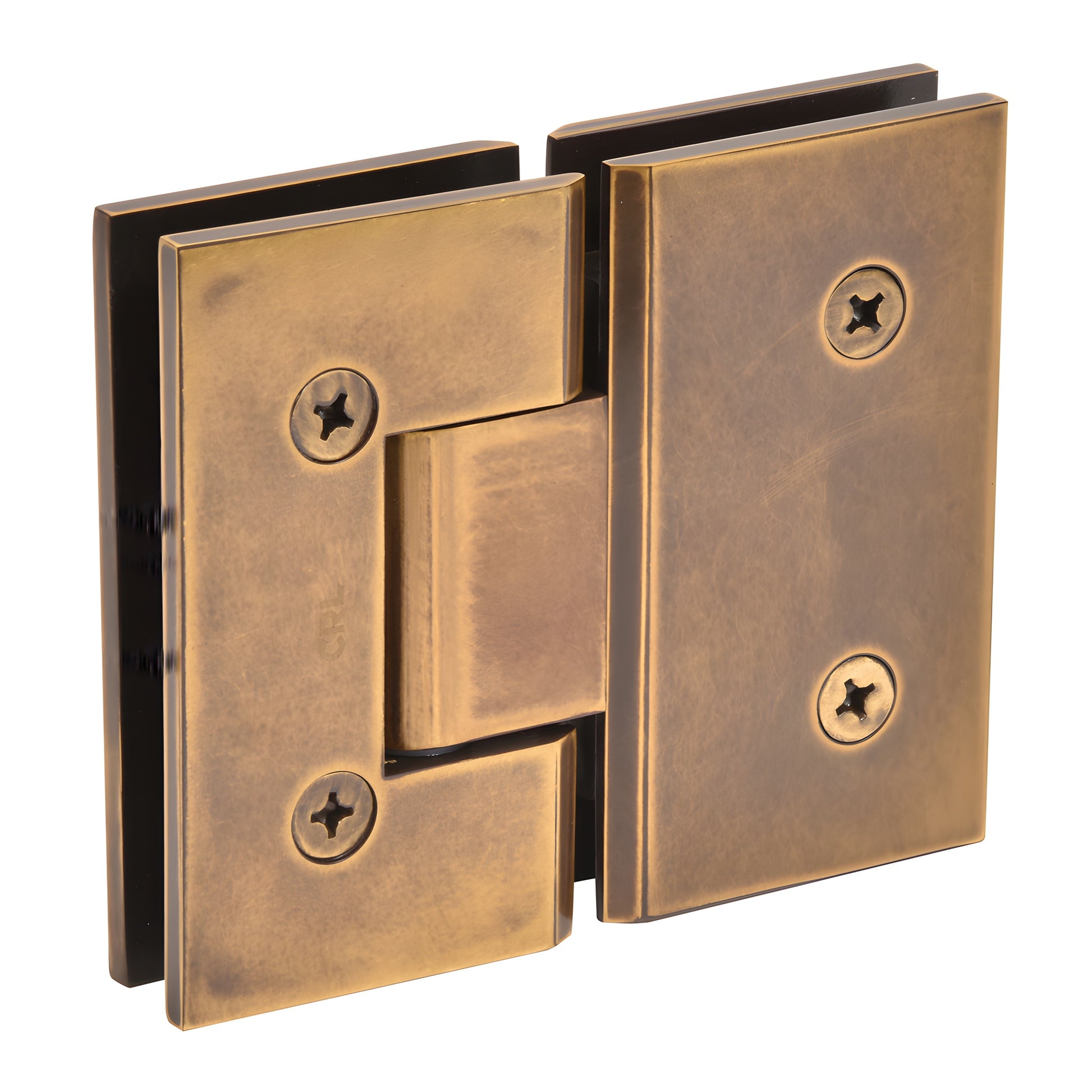

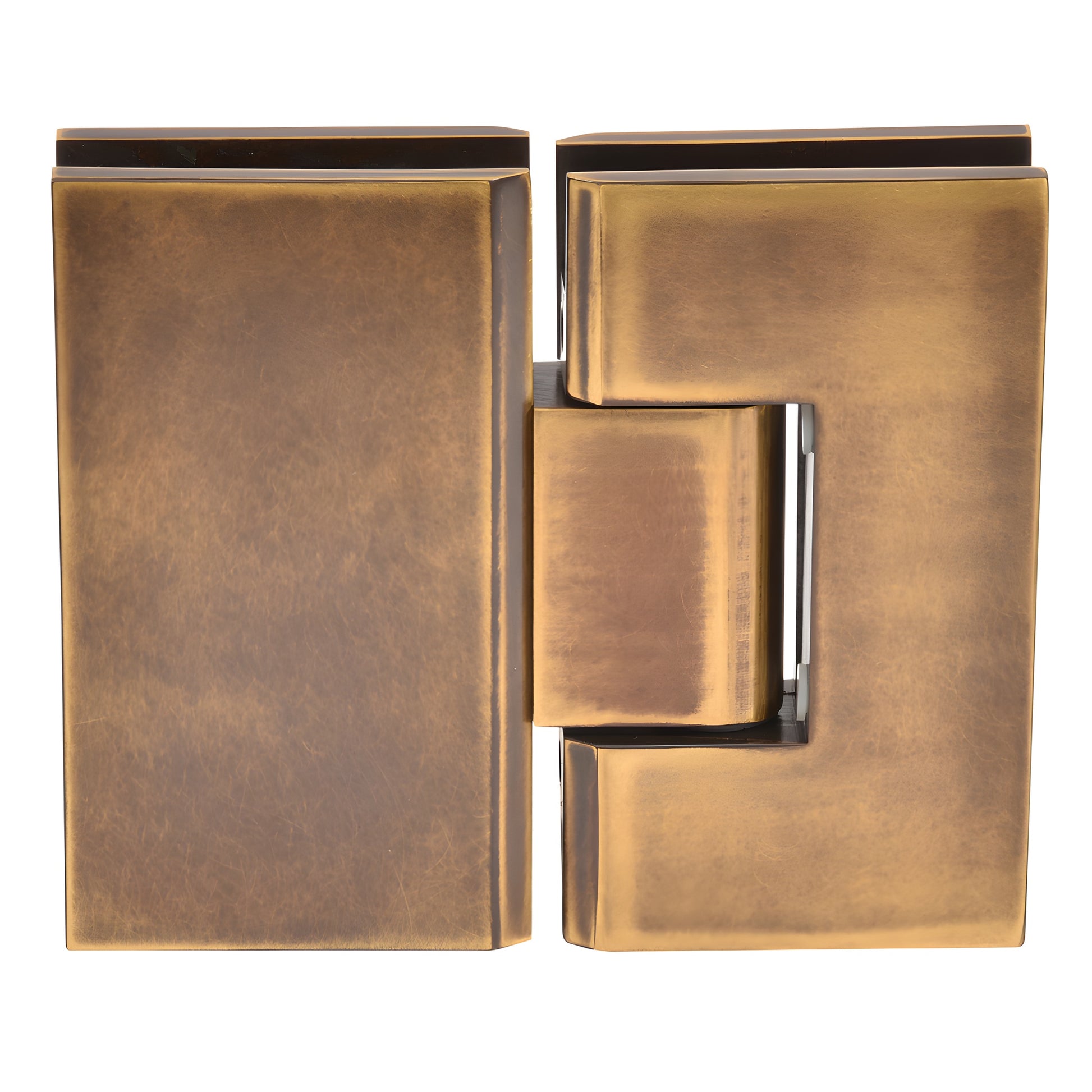

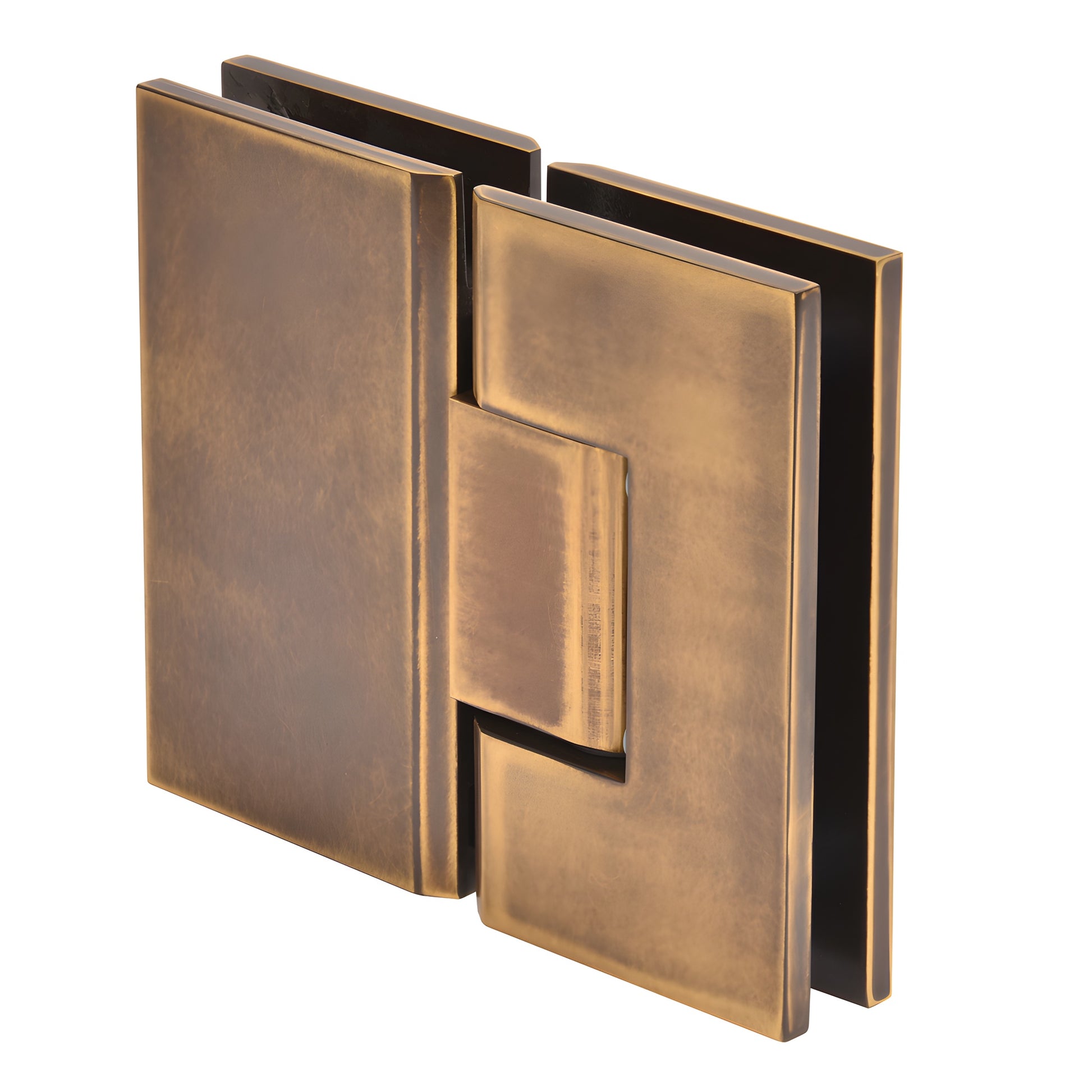

CRL Vienna 180° Vintage Brass Frameless Shower Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• 180 Degree Glass-to-Glass standard model (factory set for standard closing position)
• Available in several beautiful finishes; custom finishes on request
• 3 Year Warranty
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E180VBR) provide a heavy-duty glass-to-glass pivot solution for wider, heavier shower doors when traditional hinges lack the strength. Engineered with two internal steel pins, the Vienna Hinge supports two installation styles: leave the pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and fitment with CRL rectangular, square-corner cut-outs — and in some cases competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models are shipped on 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to select the alternate setting.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (for walls that do not meet the door at 90°). Specify a custom angle up to 45° if the standard 5° offset does not achieve the desired closure.

Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass, each hinge set supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges increases capacity up to 140 lbs (63 kg) for the same maximum door width.

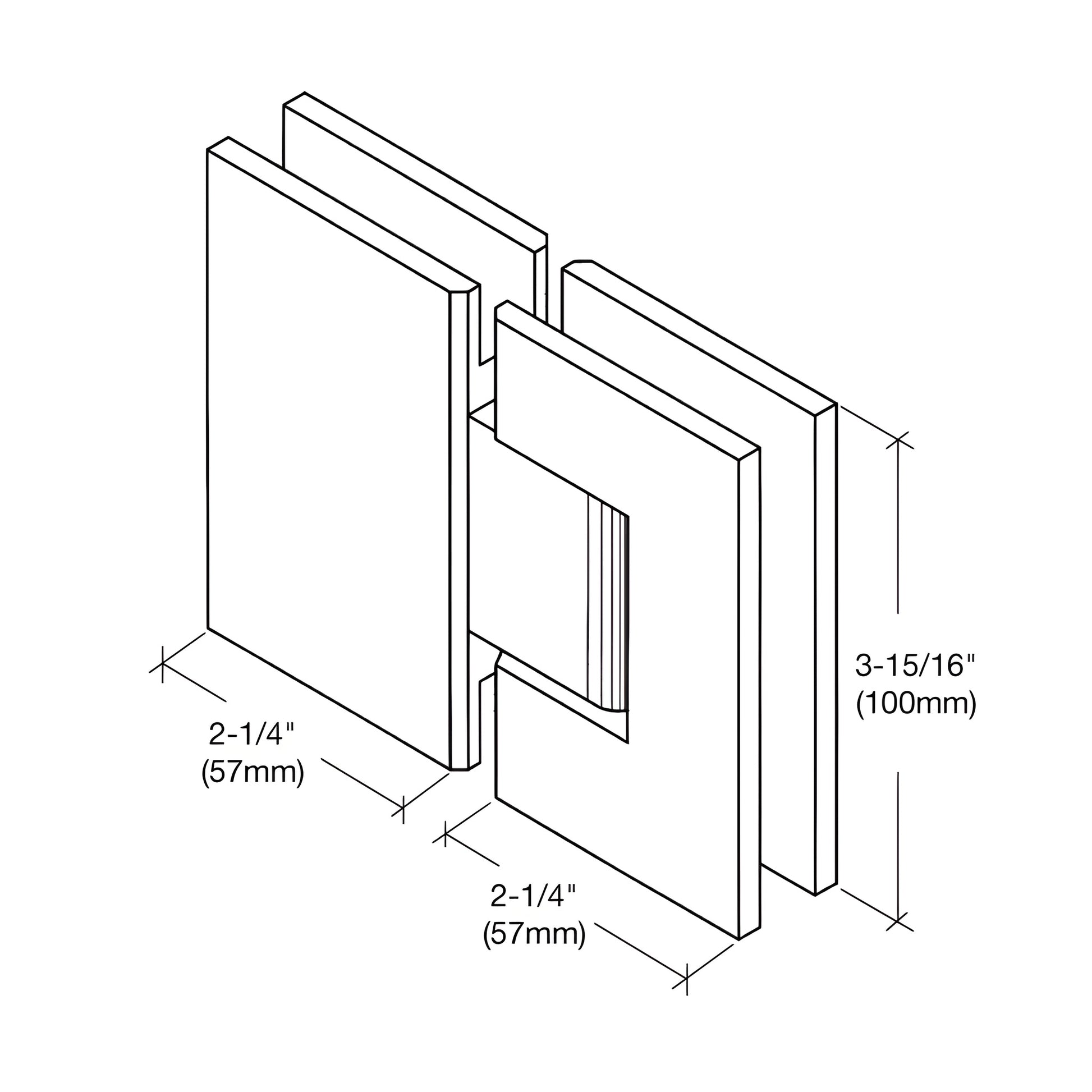

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (180° total)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department for finish options or custom pivot pins.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge
