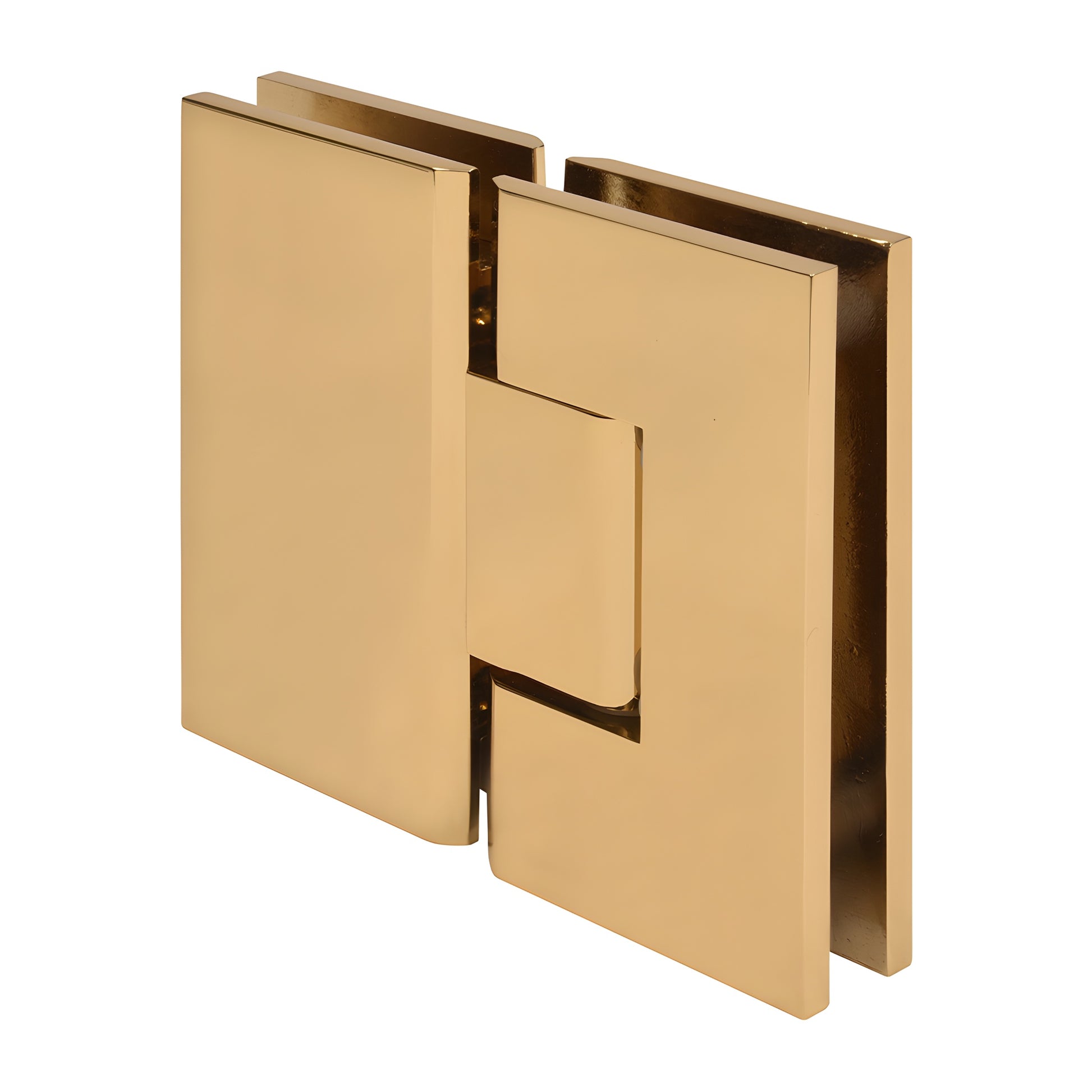

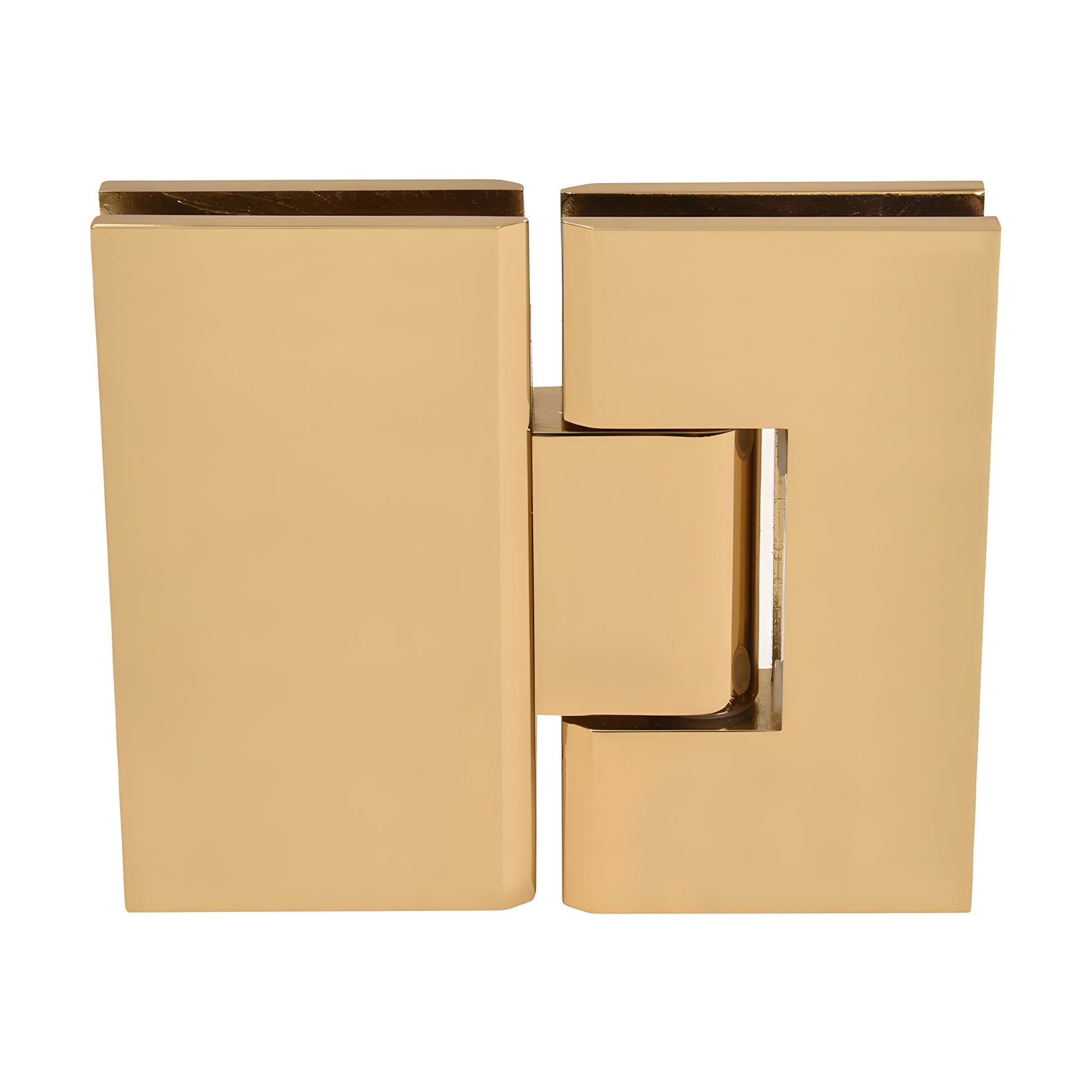

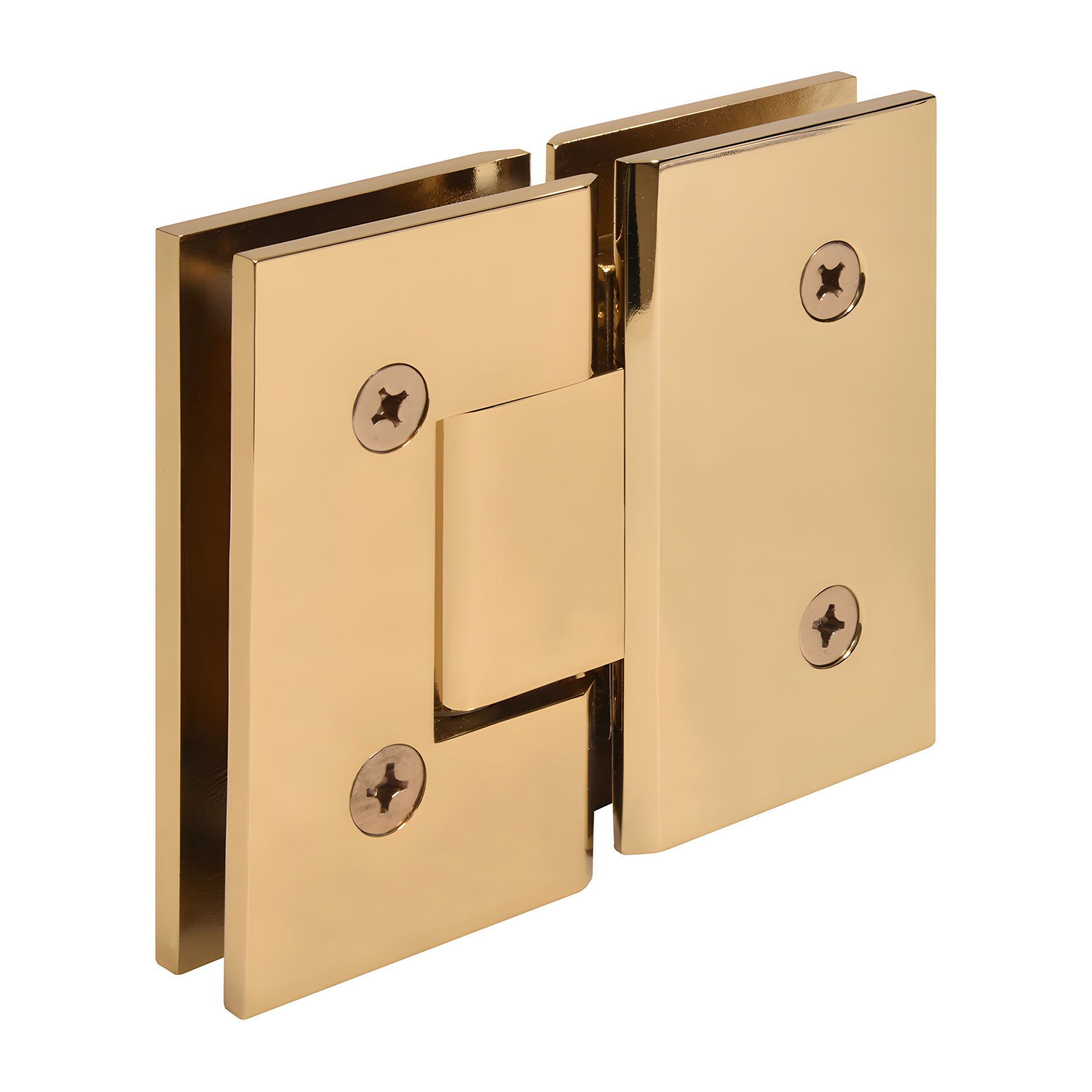

CRL Vienna 180° French Gold Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• 180° glass-to-glass hinge — factory set for standard closing position
• Available in several attractive finishes; custom finishes available on request
• 3‑year warranty
• SKU: V1E180FG

CRL Vienna Hinges are engineered for wider, heavier shower doors where standard hinges are insufficient. Solid brass construction and two internal steel pins provide mounting template flexibility: leave pins in for compatibility with CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with CRL or competitive rectangular, square‑corner cut-outs. Use monolithic tempered safety glass only.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin with 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship at 85° for a 5° tighter closure into the shower. Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PINS: Available for off-angle installations (specify up to 45°) when the standard adjustment does not achieve the desired closing position.

Load Capacity

• Two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lb (50 kg); maximum door width 36" (914 mm)
• Three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lb (63 kg); maximum door width 36" (914 mm)

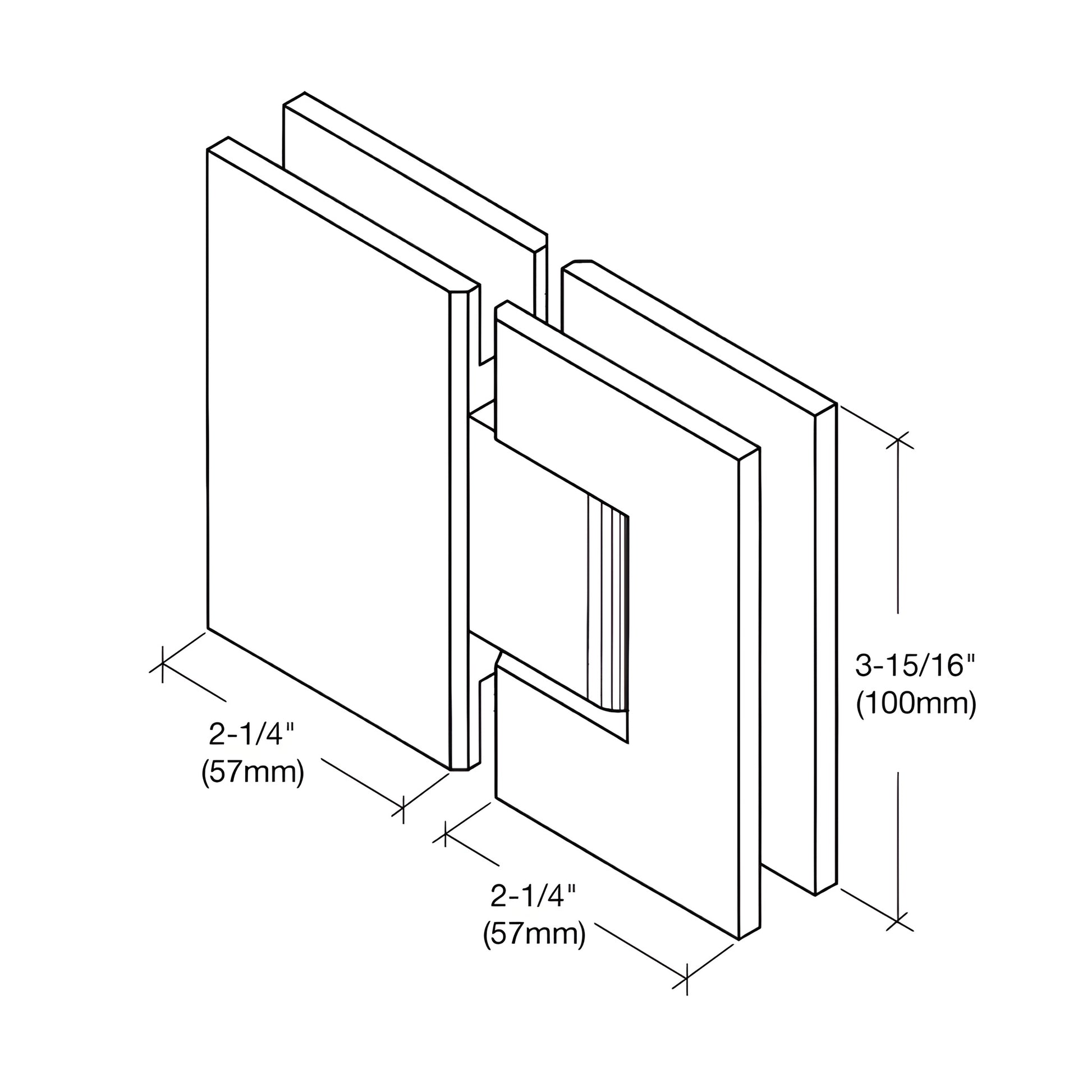

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions

For custom finishes or technical questions, contact CRL Technical Sales — Shower Door Department.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For alternate uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions may differ from other brands.
