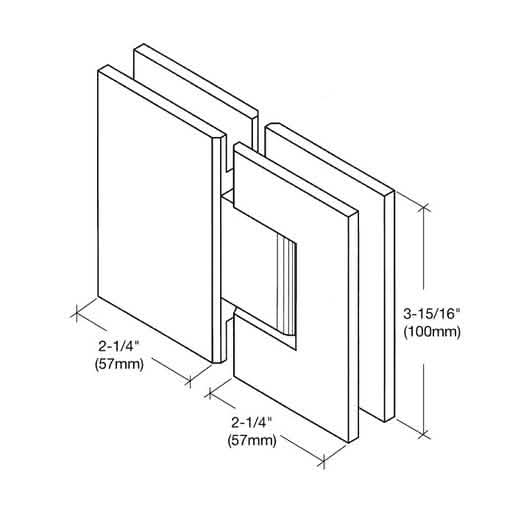

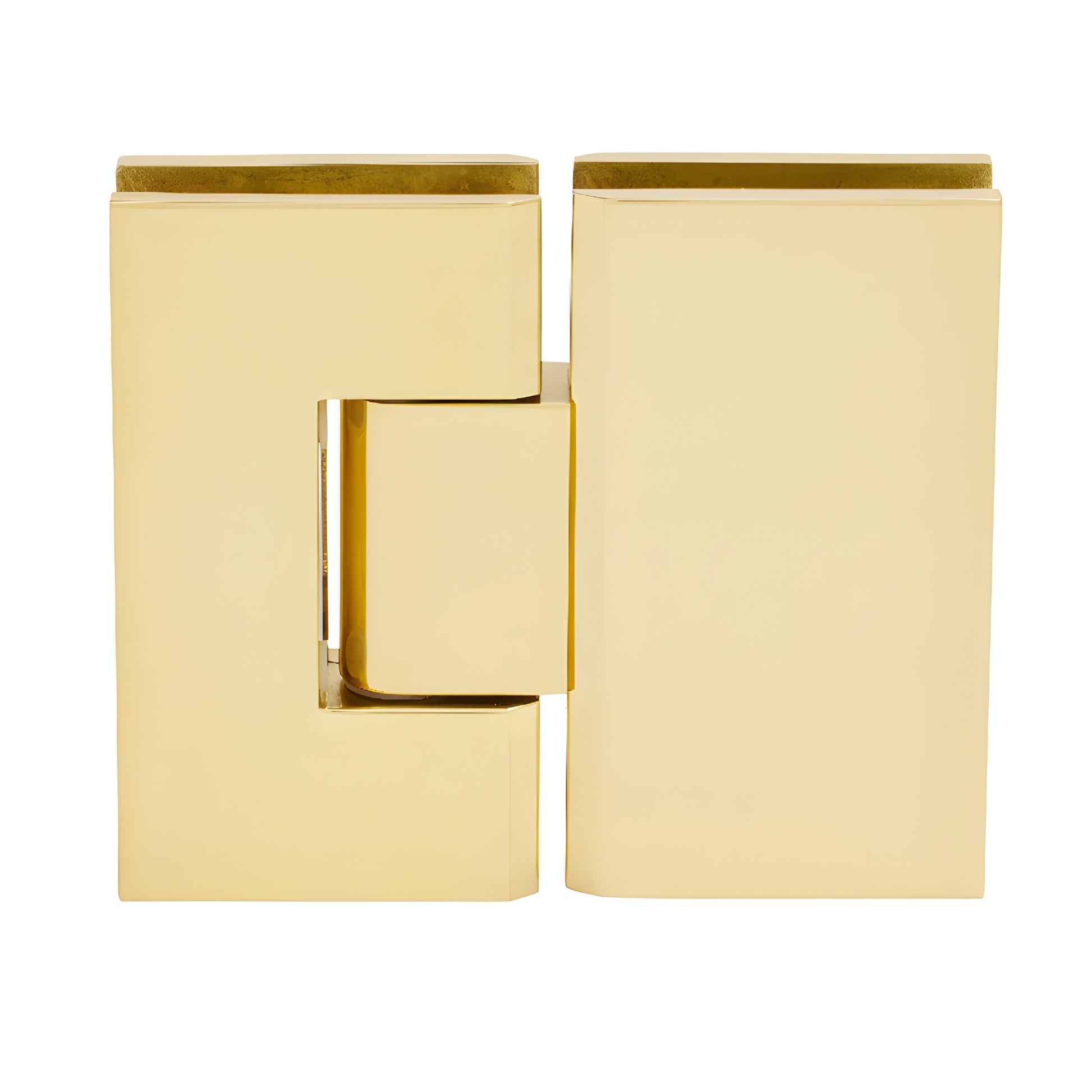

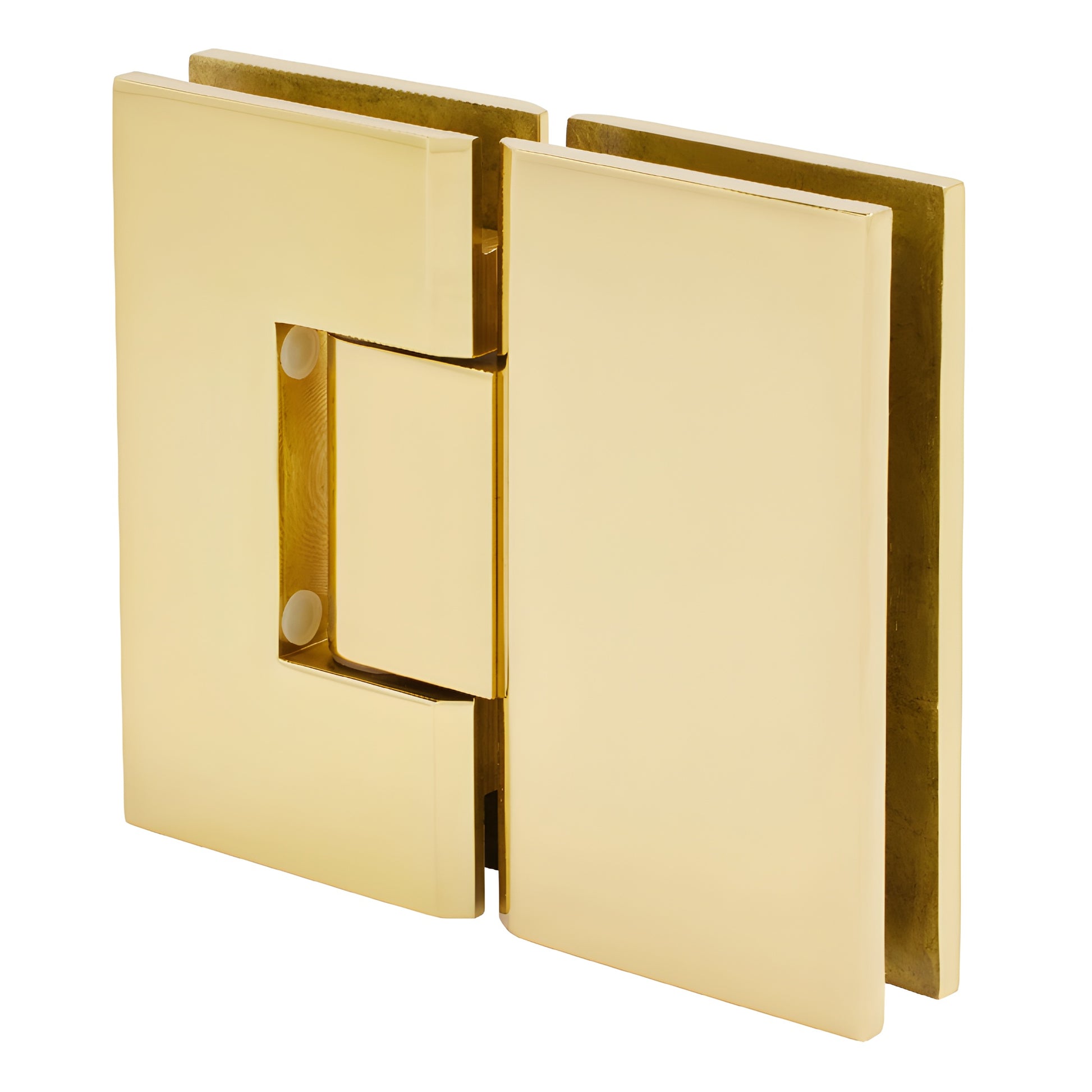

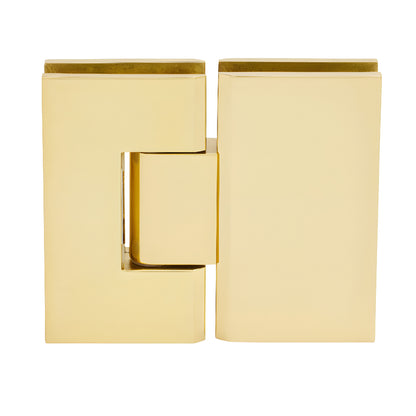

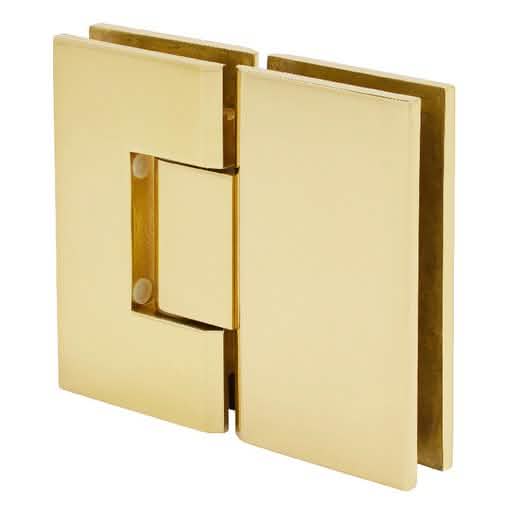

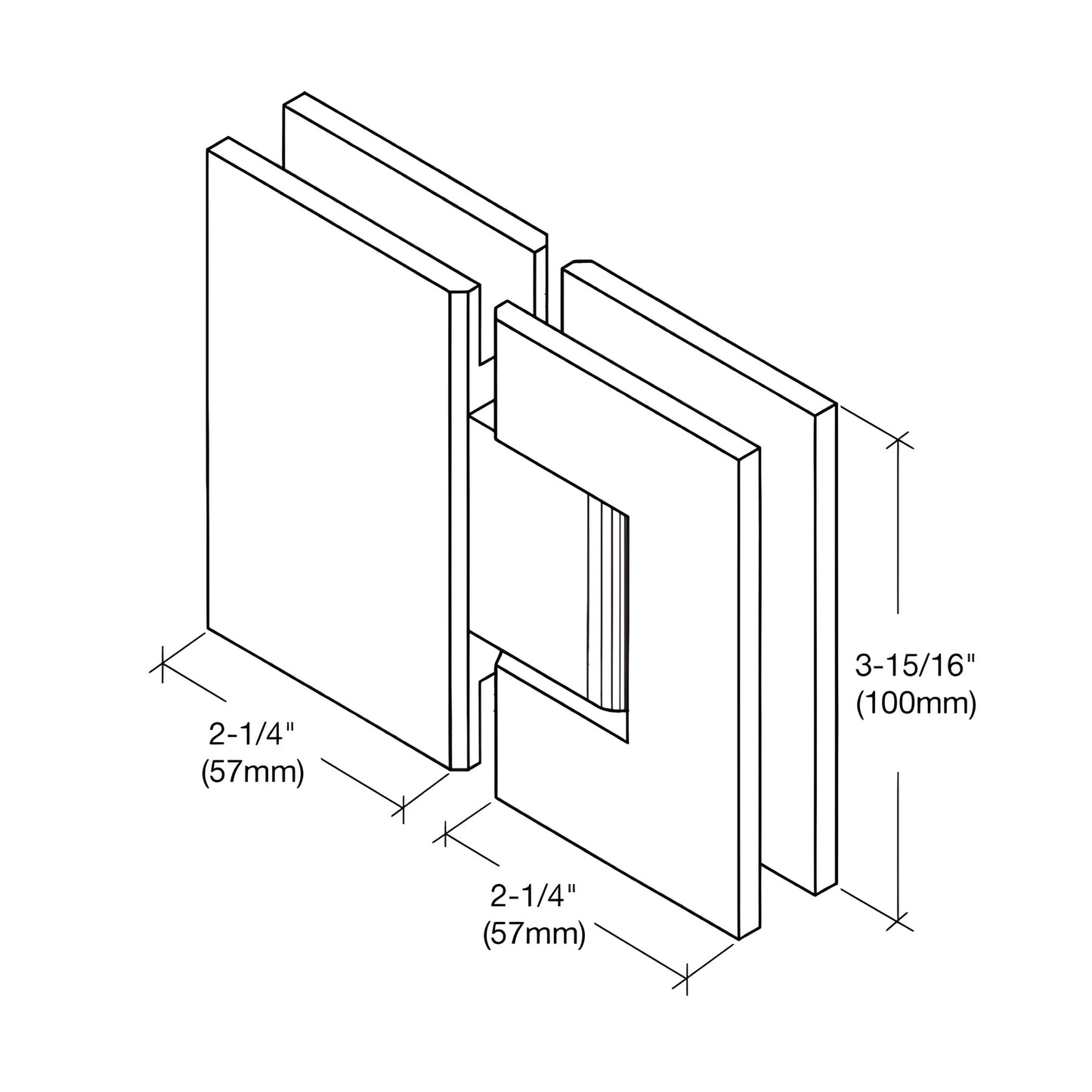

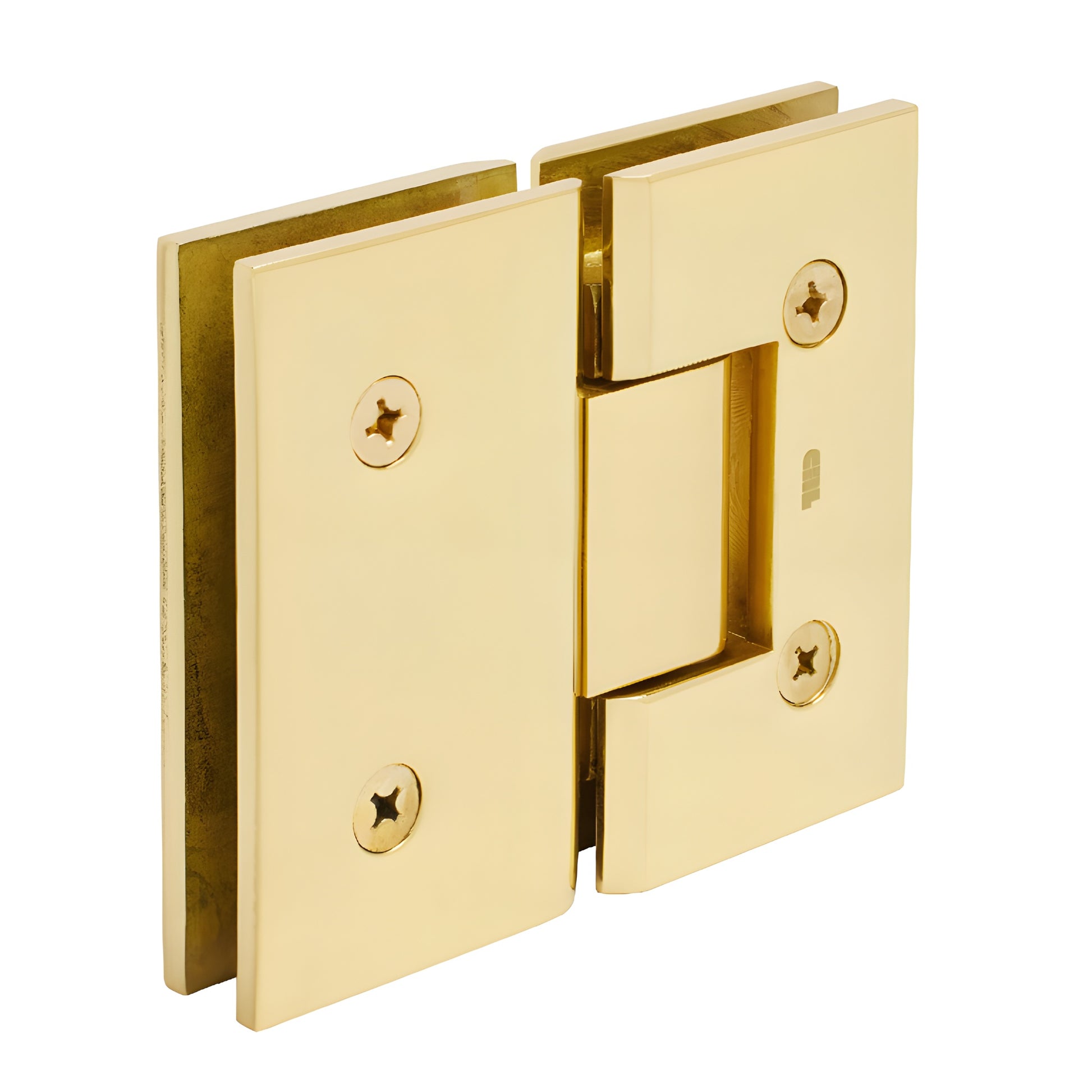

CRL Vienna 180° Unlacquered Brass Frameless Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

SKU: V1E180ULBR

CRL Vienna Hinges provide a heavy-duty shower door hinge solution for wider, heavier frameless glass doors when traditional hinges are not strong enough. Two strategically placed internal steel pins allow template flexibility: leave pins installed for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and fit with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with a 90° side (standard) and an 85° side (pre-set models). Rotate the pin (not flip) to switch between 90° and the 85° tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify angle up to 45°) when walls or framing do not meet the door at 90°.

Load Capacity:

• Using two hinges with 3/8"–1/2" glass: holds up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" glass: holds up to 140 lbs (63 kg); maximum door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales, Shower Door Department. These hinges are especially suited for frameless glass shower doors, heavy-duty shower door applications, and custom angled installations where reliable pivot functionality and durable solid brass construction are required.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may
