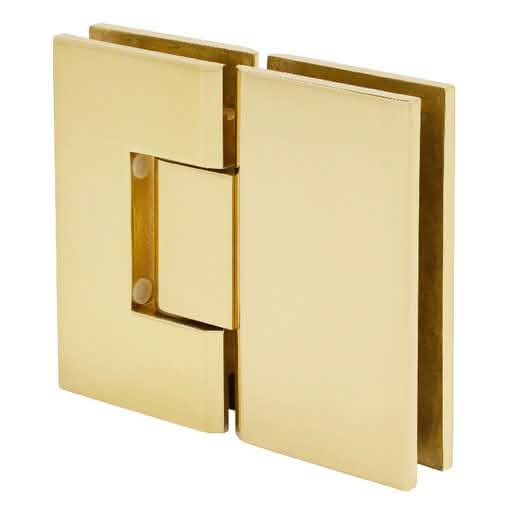

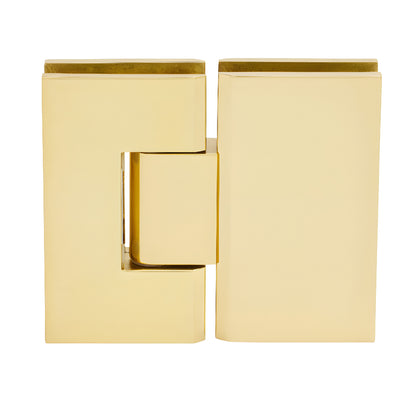

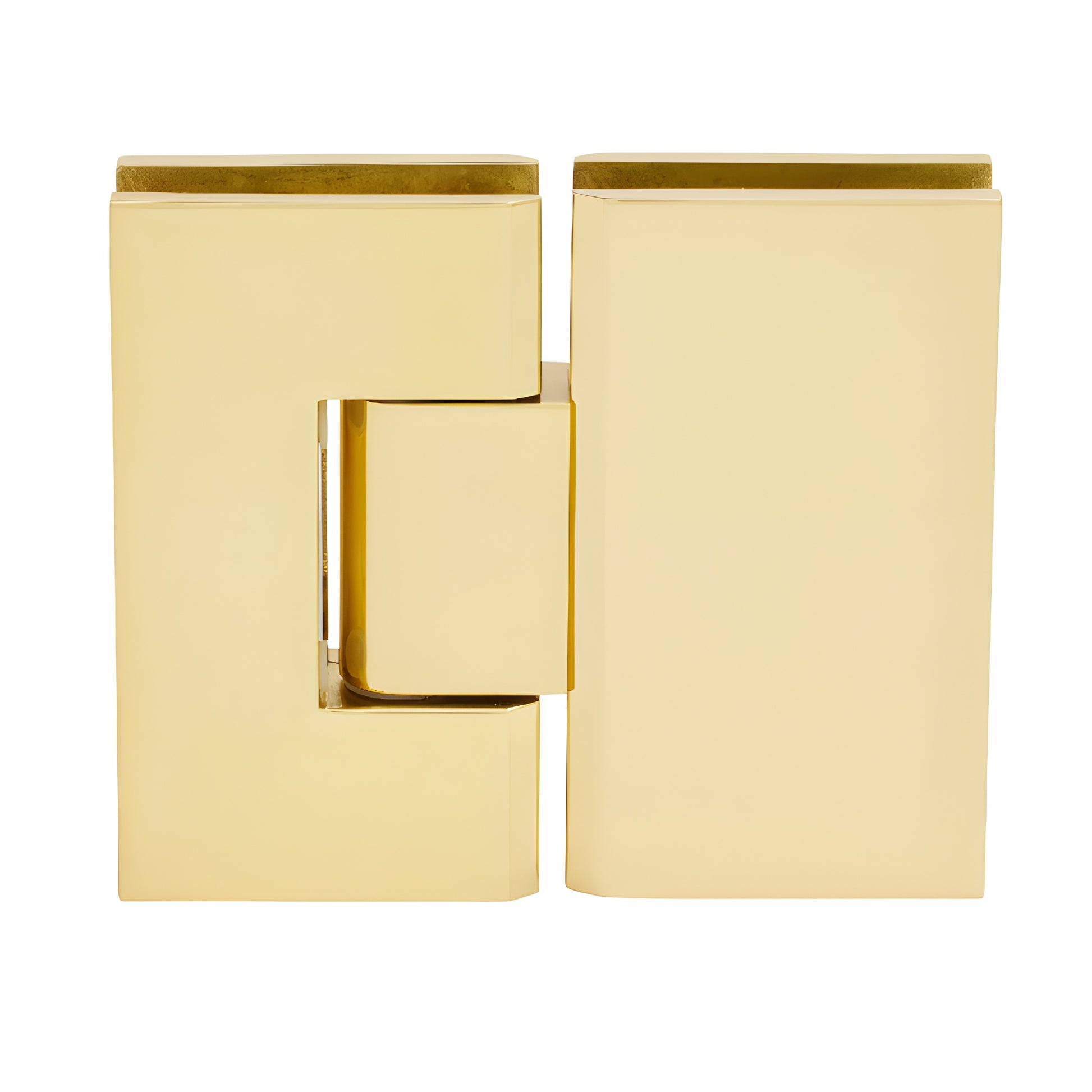

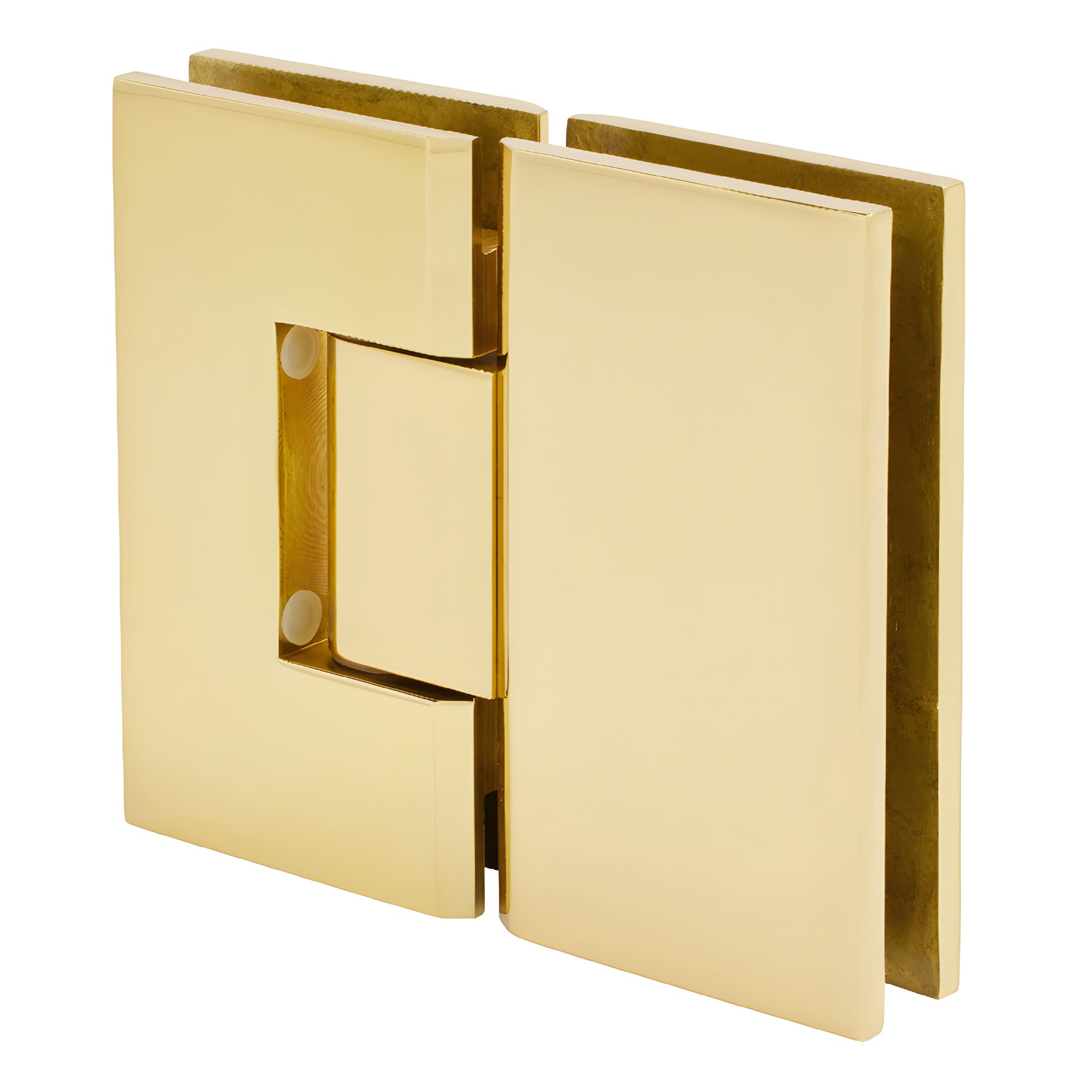

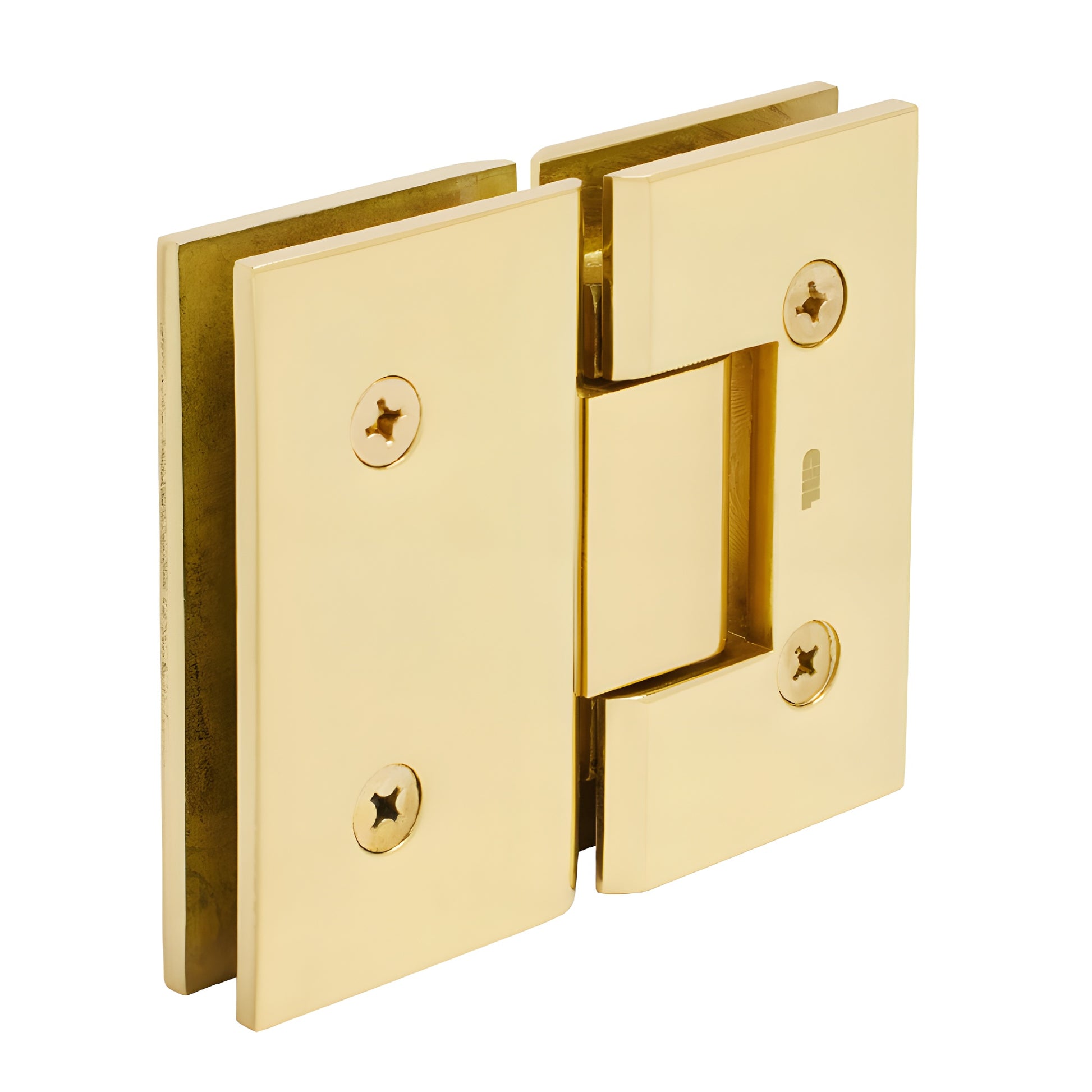

CRL Brass Vienna 180 Series Glass-to-Glass Hinge
CRL Brass Vienna 180 Series Glass-to-Glass Hinge
Regular price
$126.94 CAD
Regular price
Sale price
$126.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E180BR
Shipping Weight: 3.36 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.36 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Design | Style Squared |
| Edge | Profile Square |
| Enclosure | Type Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Polished Brass |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |

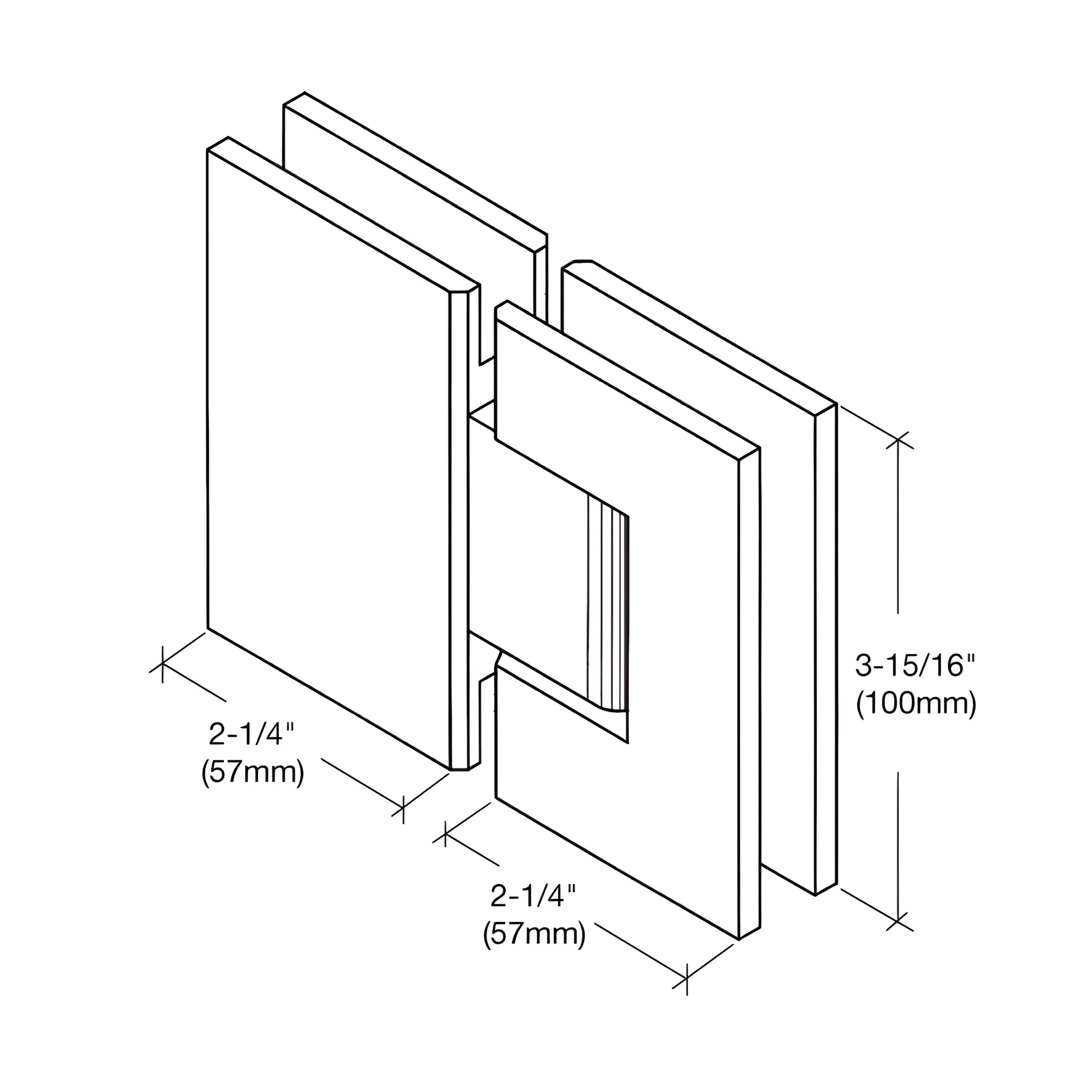

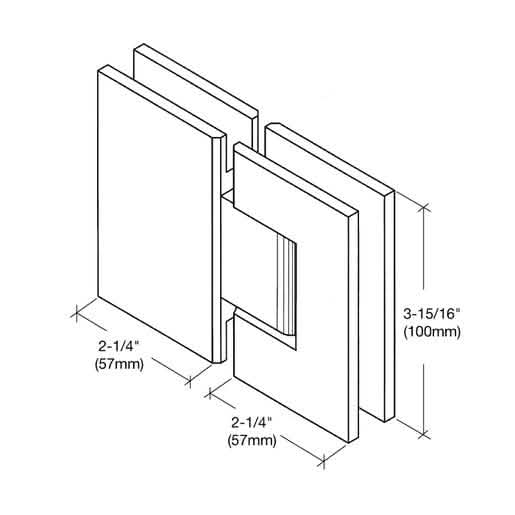

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Opening Style Swing | (side) |
| Positive | Close No |
| Self-Centering Yes | Vienna |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Overview
CRL Vienna Hinges are the ideal choice for supporting wider, heavier glass doors, accommodating glass thicknesses from 3/8" to 1/2" (10 to 12 mm).
Available in various stunning finishes, these hinges come with a 3-year warranty and feature a 180-degree glass-to-glass standard model.
The unique design includes strategically placed steel pins that provide versatile mounting options, ensuring compatibility with both CRL "mouse-ears" and rectangular cut-outs.
The hinges are constructed from solid brass and offer a reversible pivot pin, allowing for a 90-degree swing in both directions, with custom pivot pins available for off-angle installations.
For optimal performance, use two or three hinges to support up to 140 lbs., with a maximum door width of 36".
Custom finishes and detailed specifications, including gaskets and screws, are available on request.
For more information on installation and maintenance, contact CRL Technical Sales.
Available in various stunning finishes, these hinges come with a 3-year warranty and feature a 180-degree glass-to-glass standard model.
The unique design includes strategically placed steel pins that provide versatile mounting options, ensuring compatibility with both CRL "mouse-ears" and rectangular cut-outs.
The hinges are constructed from solid brass and offer a reversible pivot pin, allowing for a 90-degree swing in both directions, with custom pivot pins available for off-angle installations.
For optimal performance, use two or three hinges to support up to 140 lbs., with a maximum door width of 36".
Custom finishes and detailed specifications, including gaskets and screws, are available on request.
For more information on installation and maintenance, contact CRL Technical Sales.
