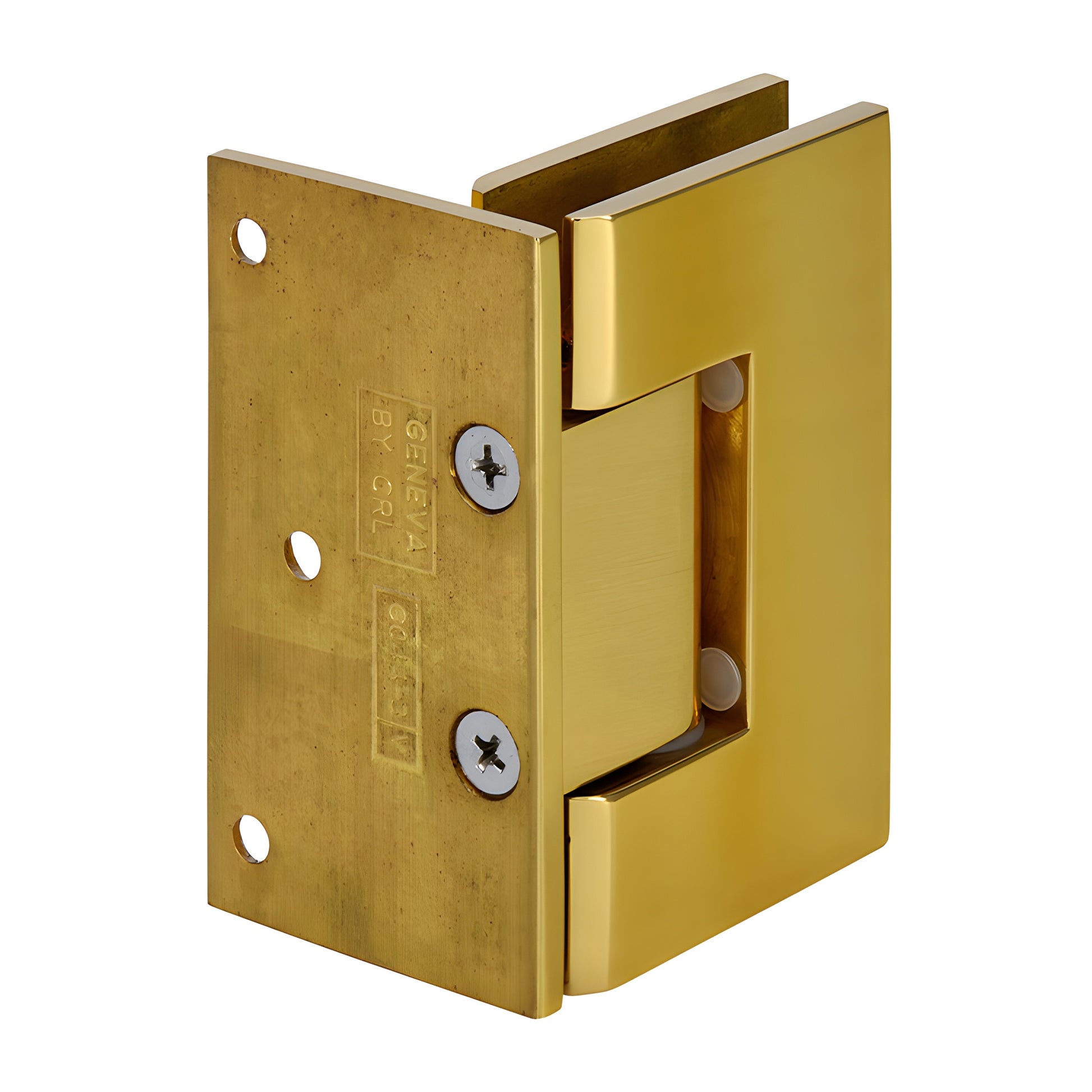

• Polished brass Vienna shower door hinge, solid brass offset wall-mount for 3/8-1/2 glass (SKU V1E044BR)

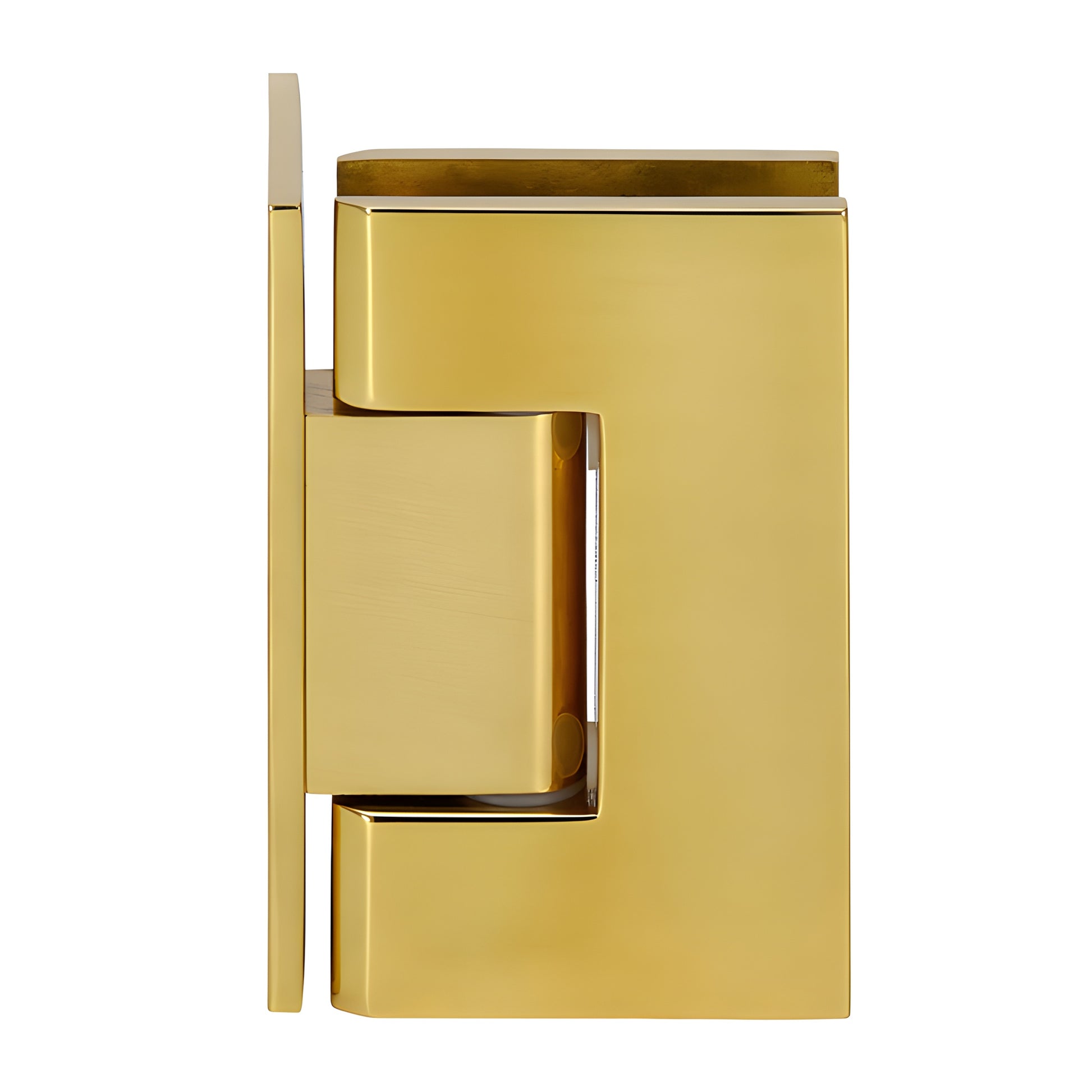

  • Polished brass Vienna shower door hinge, solid brass offset wall-mount for 3/8-1/2 glass (SKU V1E044BR)

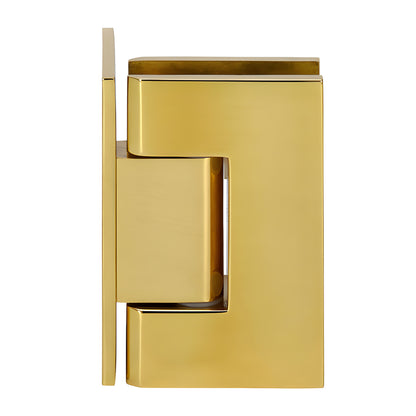

  • Polished brass Vienna shower door hinge, solid brass offset wall-mount for 3/8-1/2 glass (SKU V1E044BR)

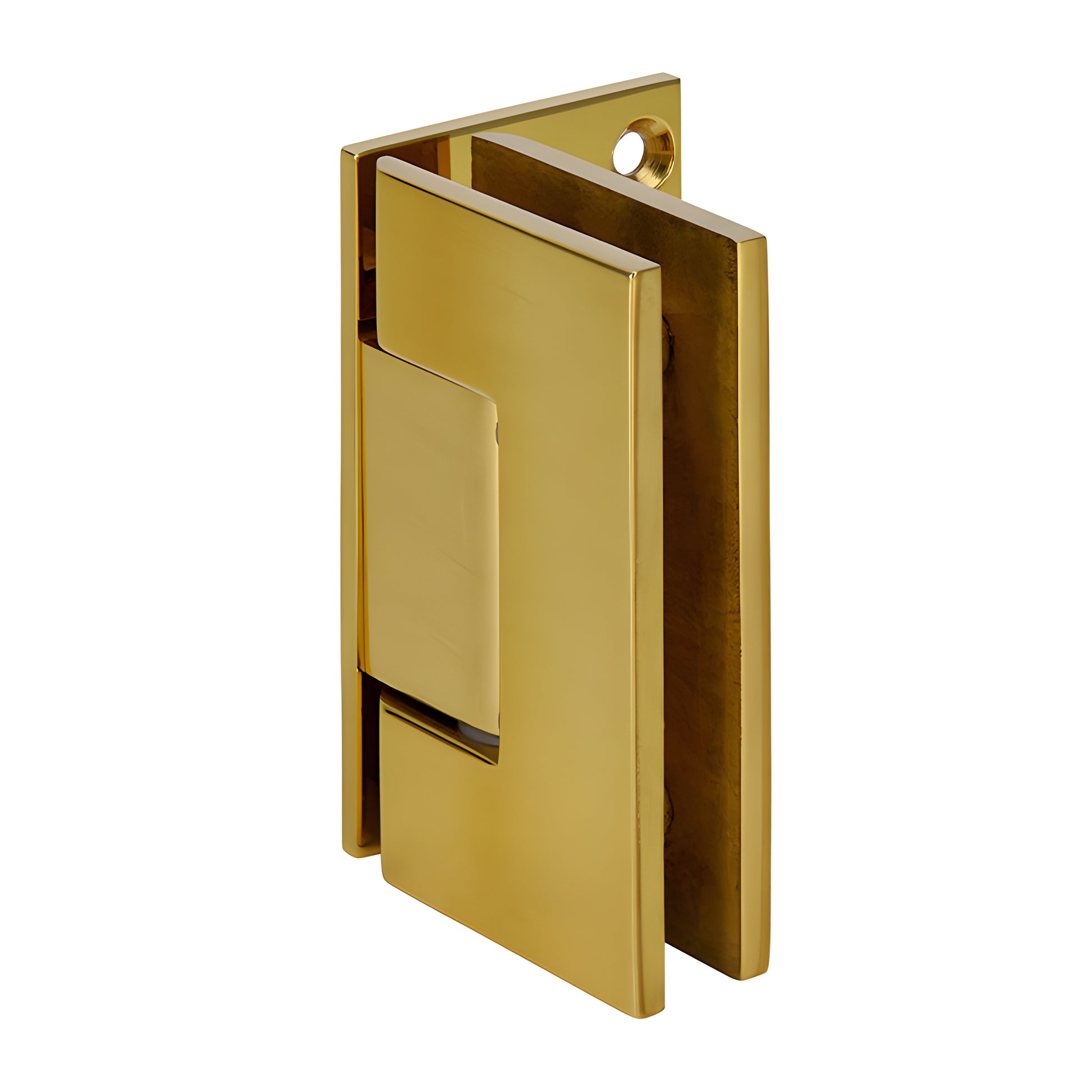

  • Polished brass Vienna shower door hinge, solid brass offset wall-mount for 3/8-1/2 glass (SKU V1E044BR)
1 4

CRL

CRL Vienna 044 Polished Brass Wall-Mount Offset Door Hinge

CRL Vienna 044 Polished Brass Wall-Mount Offset Door Hinge

$87.19 CAD
$87.19 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E044BR
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

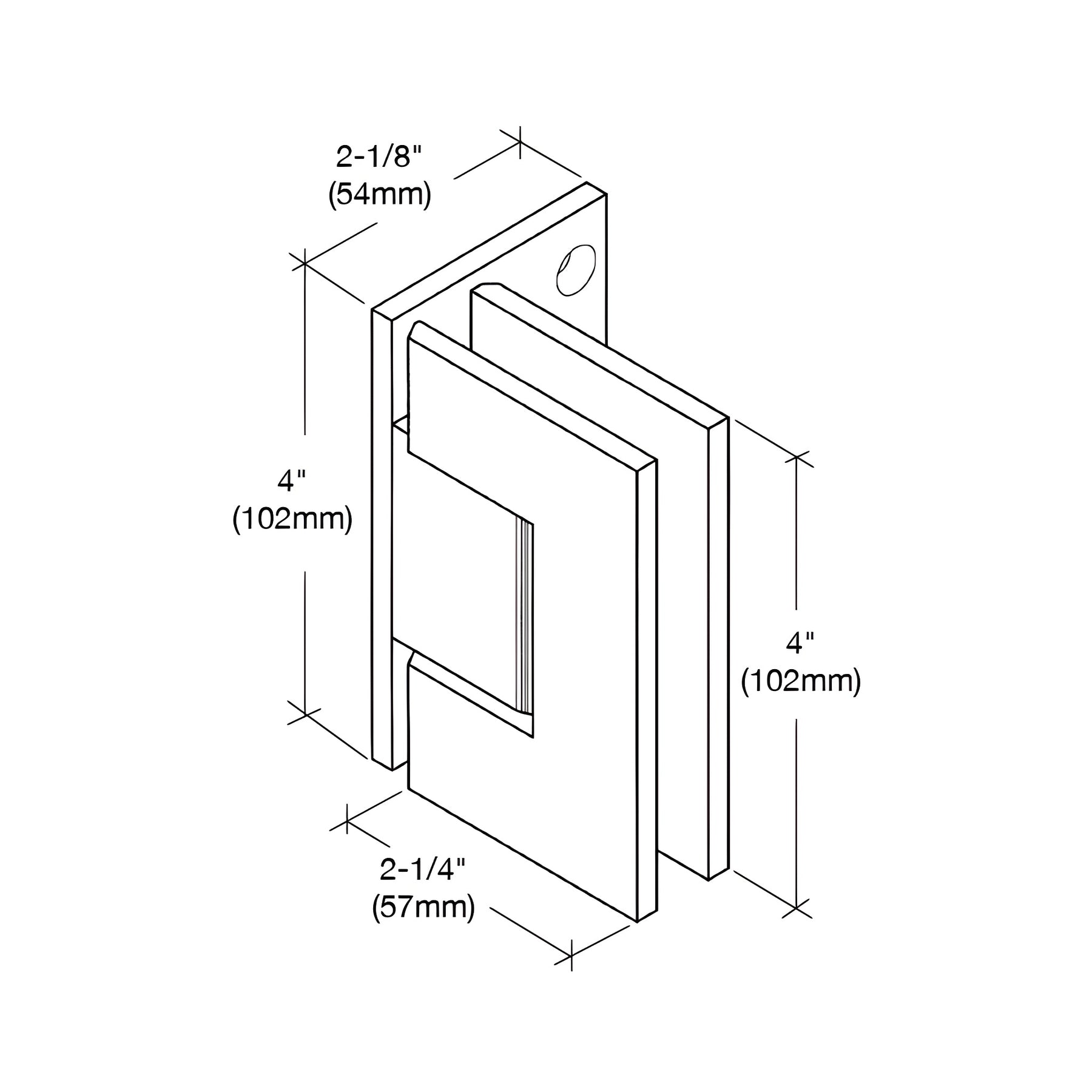

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)

Overview

  • Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
  • Available in several beautiful finishes
  • 3 Year Warranty
  • Wall mount offset back plate (standard model)
  • Designed for monolithic tempered glass shower doors

CRL Vienna Hinges (SKU: V1E044BR) are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors when standard hinges are insufficient. Solid brass construction and internal dual steel pins allow two template options: leave pins in place for CRL "mouse-ears" cut-outs for added safety, or remove pins for increased adjustability to fit CRL rectangular, square-corner cut-outs (and in some cases competitive rectangular cut-outs). These features make the Vienna Hinge a reliable solid brass shower hinge and a top choice for frameless shower door installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° and 85° markings. Standard models ship with the 90° side active; Pre-Set models are set to 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle wall conditions (specify up to 45°) to help achieve proper closure when standard adjustment is insufficient.

LOAD CAPACITY & DOOR WIDTHS:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (heavy-duty shower door hinge)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes:

Specifications

Templates
V1E044 Template
