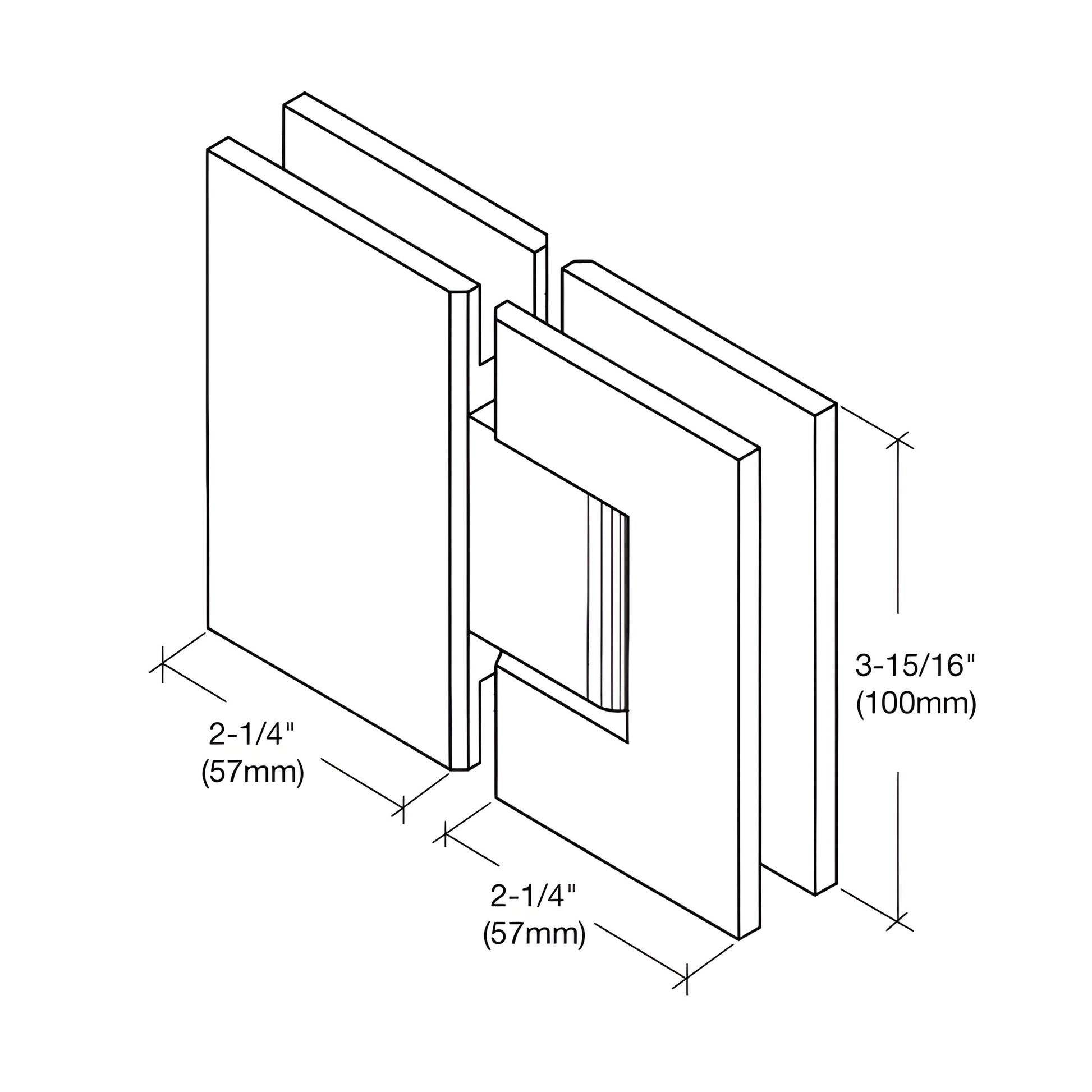

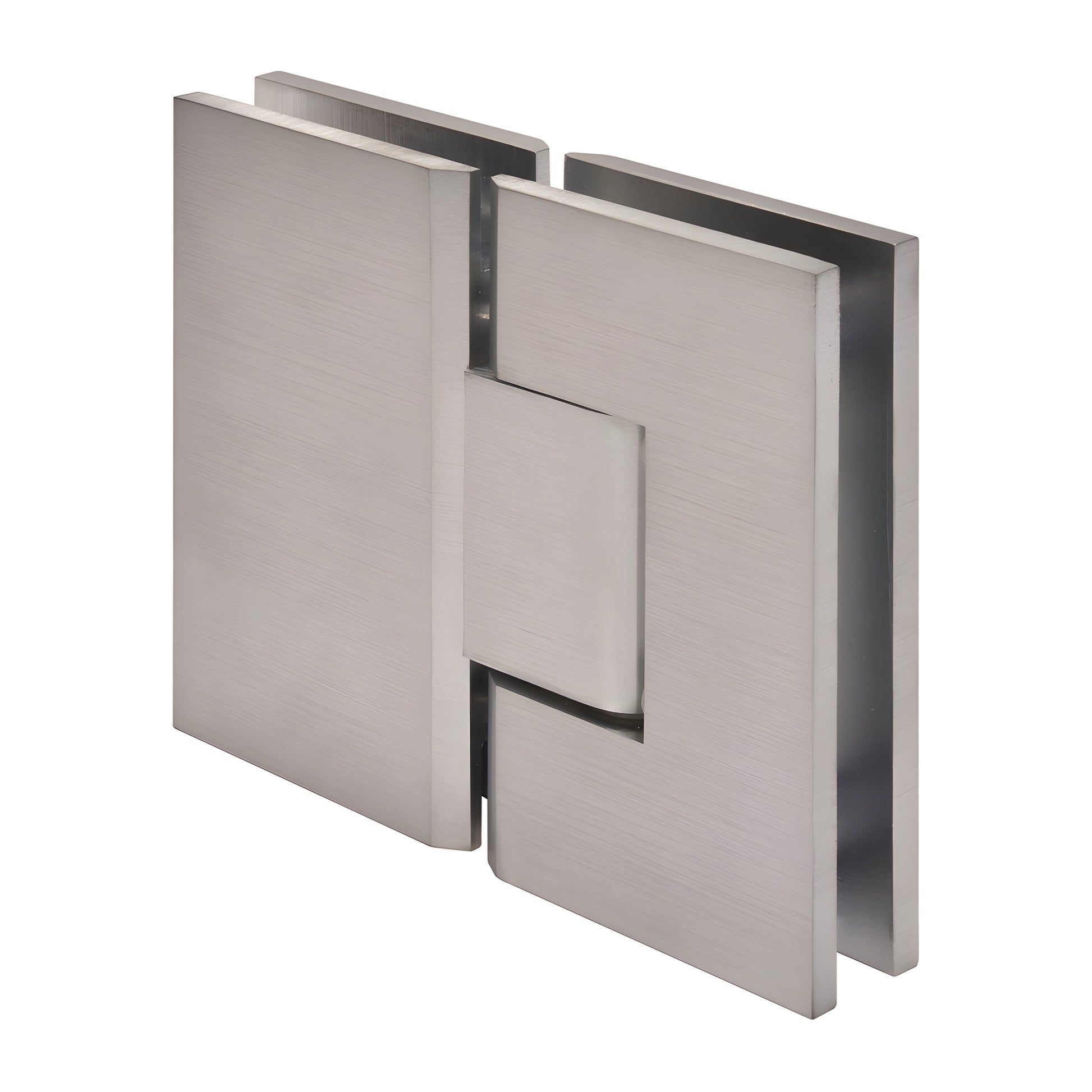

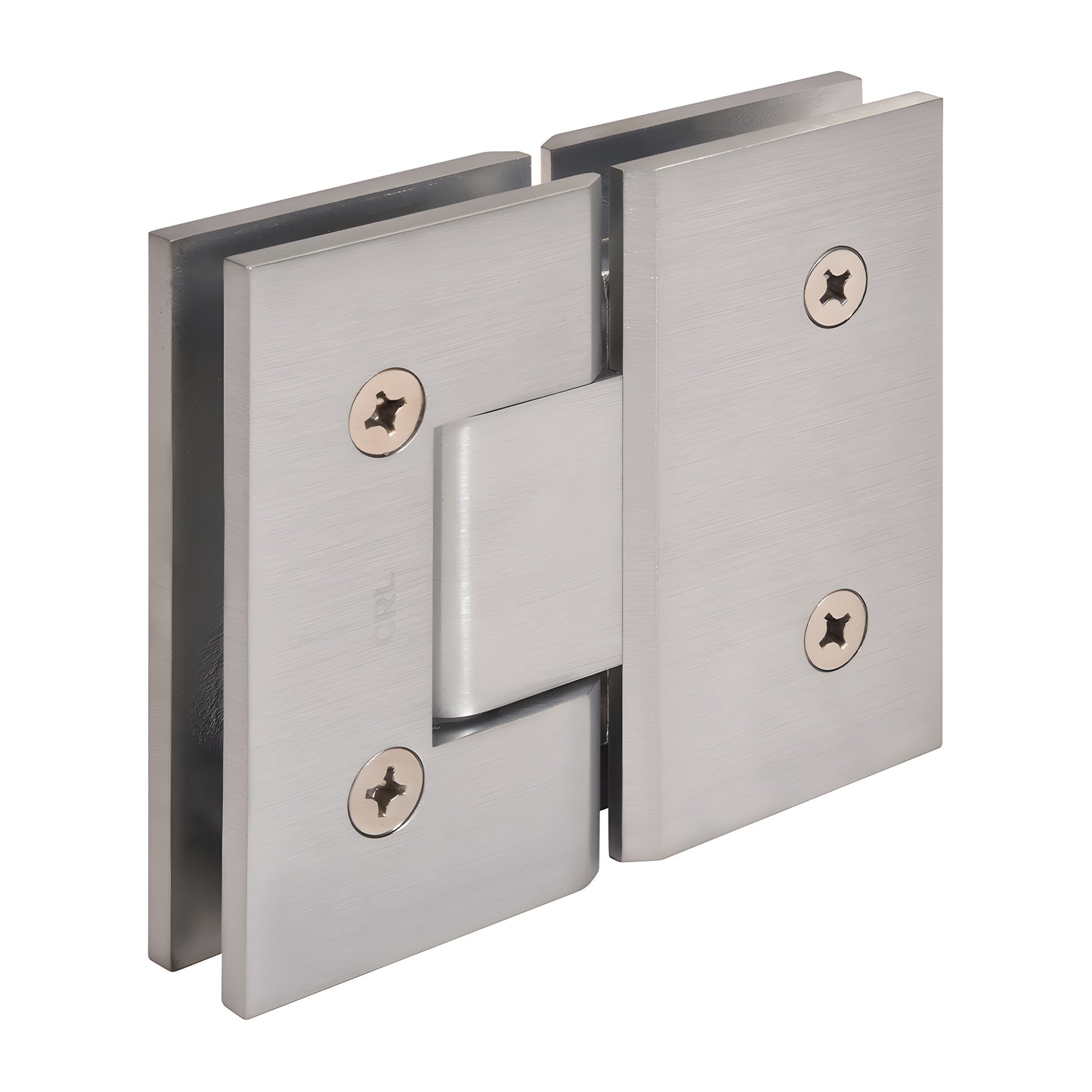

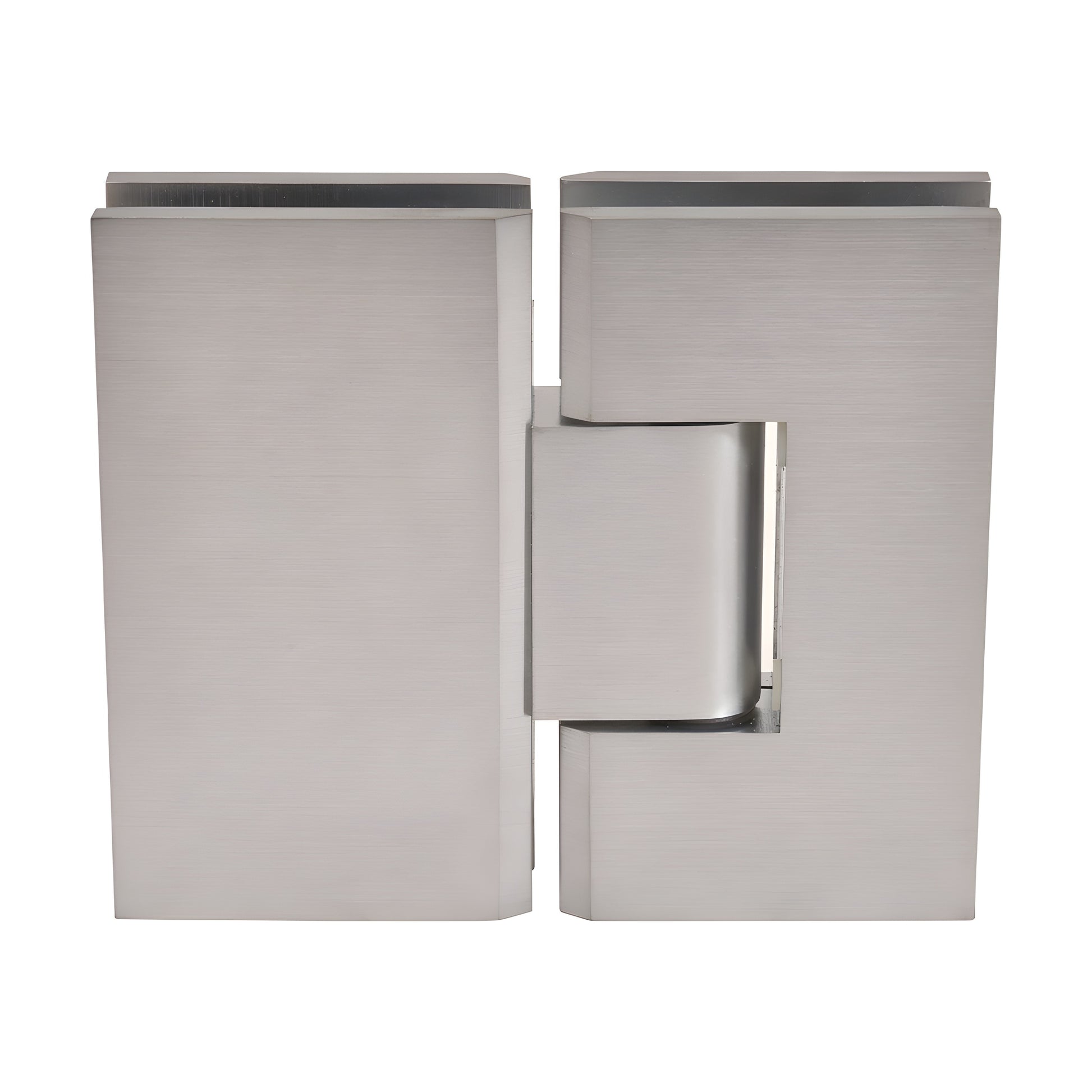

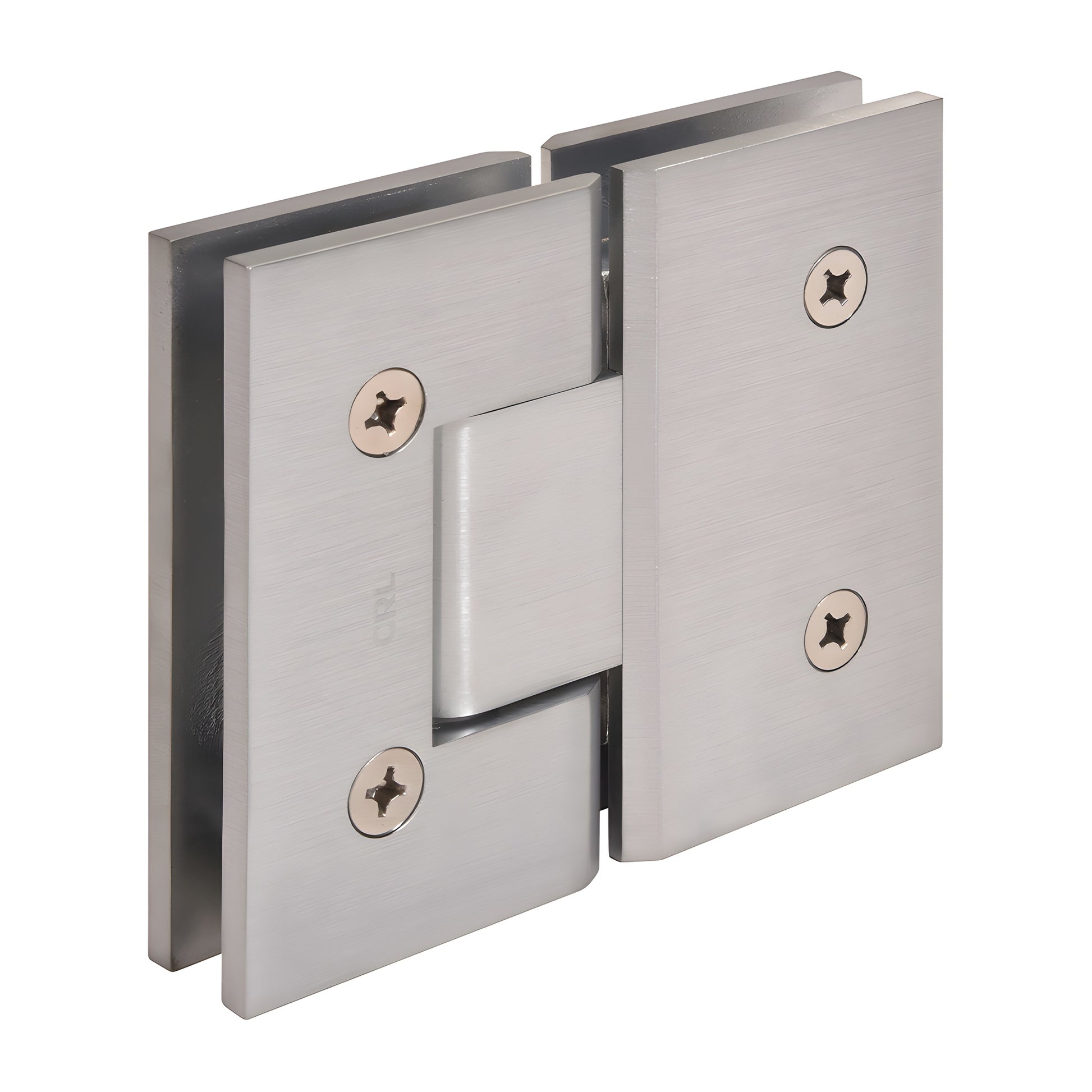

CRL Vienna 180° Brushed Chrome Frameless Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes
• 3 year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges are engineered for wider, heavier shower doors where standard hinges fail. The Vienna hinge features two internal steel pins that provide mounting template options: leave the pins in place to use CRL "mouse‑ears" cut-outs for added glass safety, or remove the pins for increased adjustability with CRL rectangular (square‑corner) cut-outs and, in some cases, competitive rectangular cut-outs.

Standard Reversible Pivot Pin: Each Vienna hinge includes a reversible pivot pin with one side marked 90° (standard) and the other 85° (tighter, 5° closer toward the shower interior). Rotate the pin (do not flip) to change the preset angle. Pre‑set models ship with the 85° setting.

Custom Pivot Pin: Custom pivot pins are available for off‑angle installations (specify required angle up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

Load Capacity: Using two hinges with 3/8"–1/2" glass, holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges, holds up to 140 lbs (63 kg) with the same maximum door width.

Specifications:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (180° total)
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Required: Cut‑out required (except V1E092 which requires cut‑out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for finish options or custom pivot pins.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut‑out dimensions may not match other brands.
