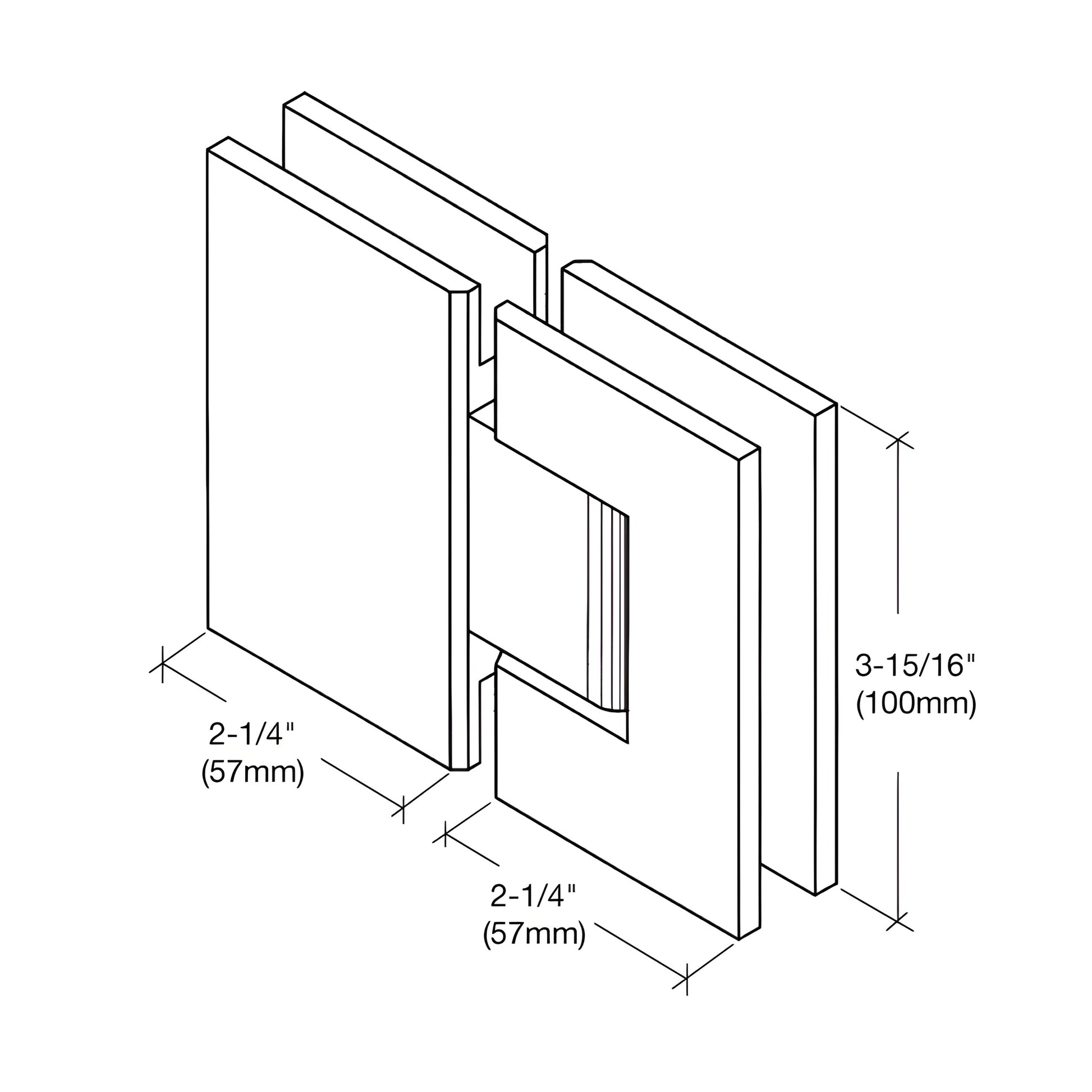

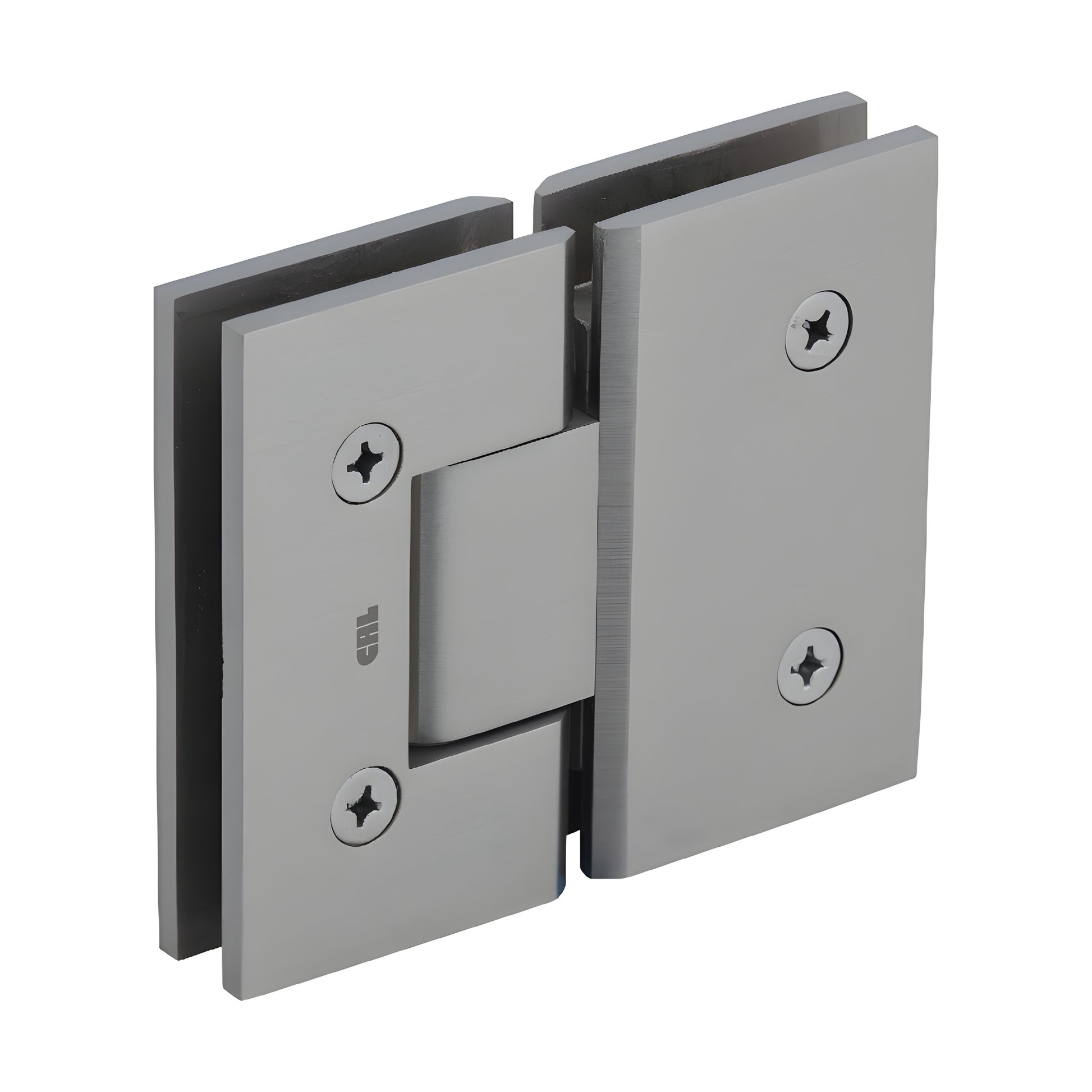

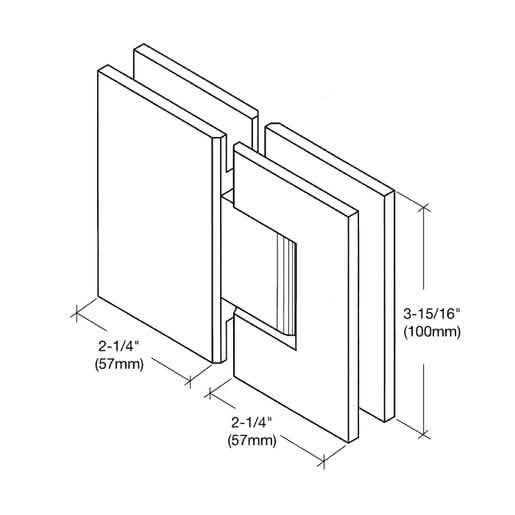

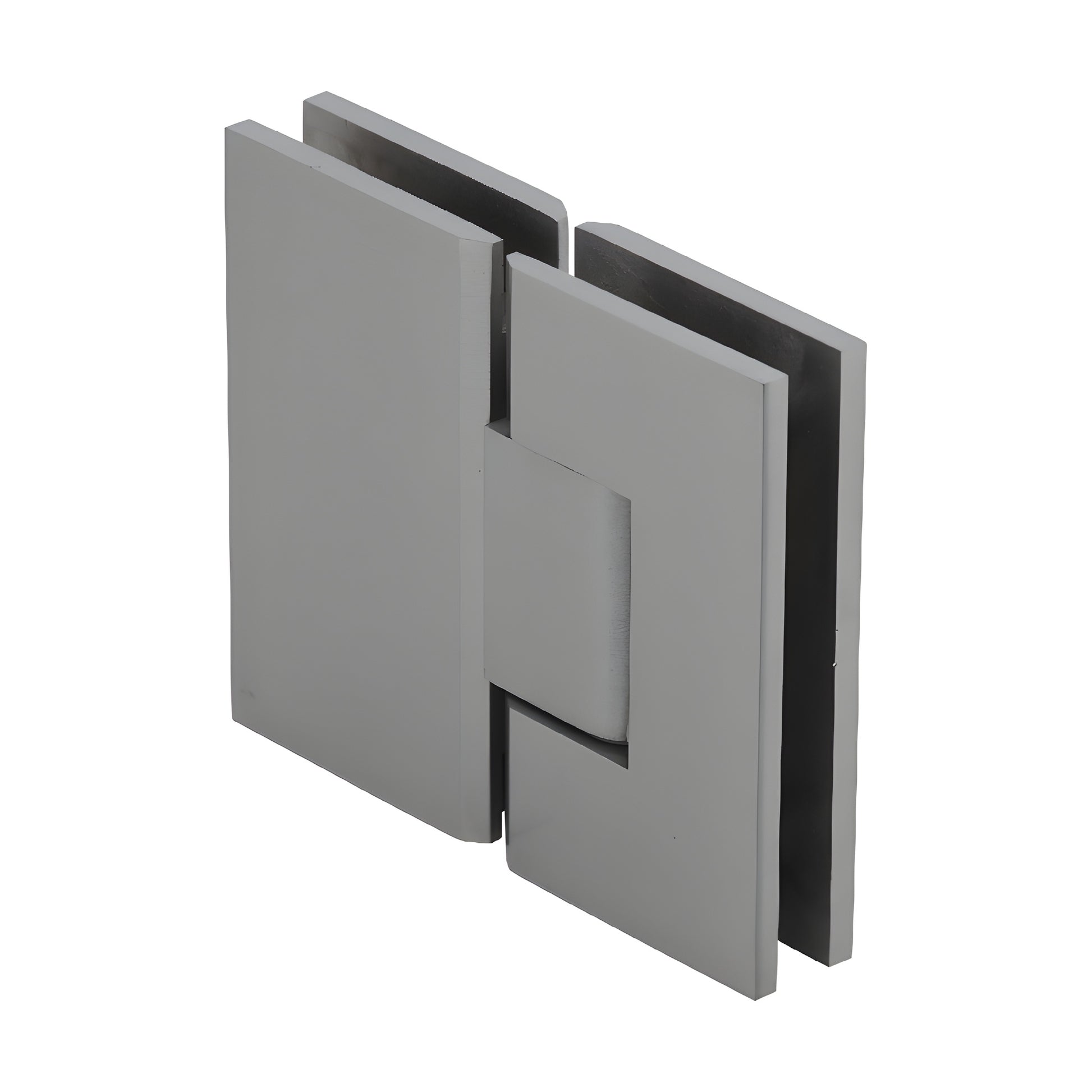

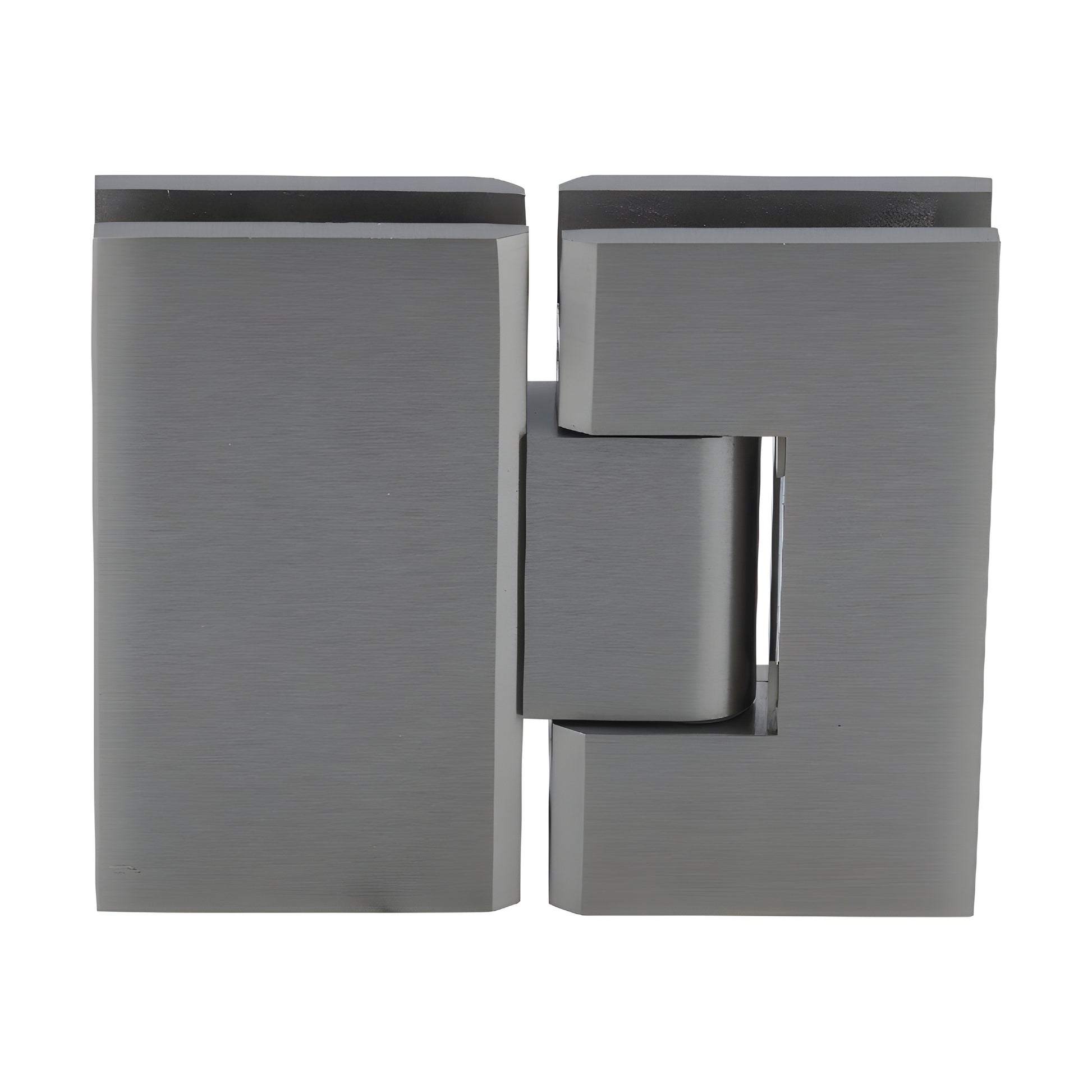

CRL Vienna 180 Glass-to-Glass Frameless Shower Hinge Brushed Nickel

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes on request
• 3‑year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Designed for monolithic tempered glass; includes gaskets, screws, and glass fabrication dimensions

CRL Vienna Hinges (SKU: V1E180BN) are heavy-duty, solid-brass frameless shower door hinges engineered for wider, heavier doors where standard hinges fail. The Vienna design uses two internal steel pins to support different CRL glass cut-outs: leave the pins in for "mouse‑ears" cut-outs or remove them to fit CRL rectangular (square‑corner) cut-outs and, in some cases, competitive rectangular cut-outs. These features make the Vienna ideal as a frameless shower door hinge or a brass Vienna hinge for custom shower enclosures.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with 90° and 85° settings. Standard models ship with the 90° side activated; pre-set models use 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Optional custom pivot pins can be specified for off-angle installations (up to 45°) when walls or returns are not a standard 90°.

LOAD CAPACITY:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and lasting finish retention
Hinge Swings: 90° in and 90° out (180° glass-to-glass operation)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See cut-out template (except V1E092 which requires cut-out for door and two holes for fixed panel)

Custom finishes and custom pivot angles available — contact CRL Technical Sales Shower Door Department for details.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions may not match other brands.
