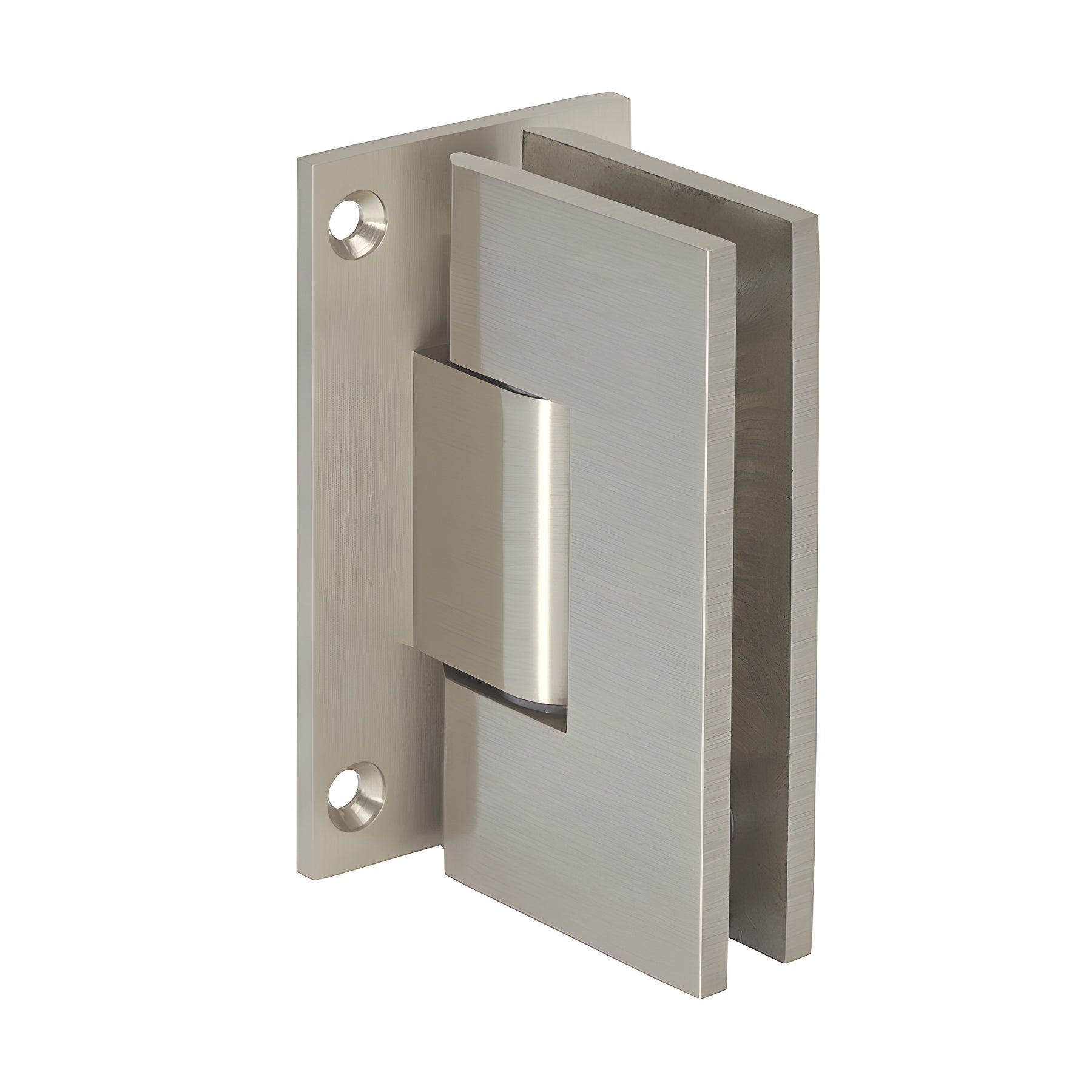

CRL Brushed Nickel Vienna 037 Series Wall Mount Full Back Plate Hinge

CRL Brushed Nickel Vienna 037 Series Wall Mount Full Back Plate Hinge

$89.15 CAD
$89.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E037BN
Shipping Weight: 2.06 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

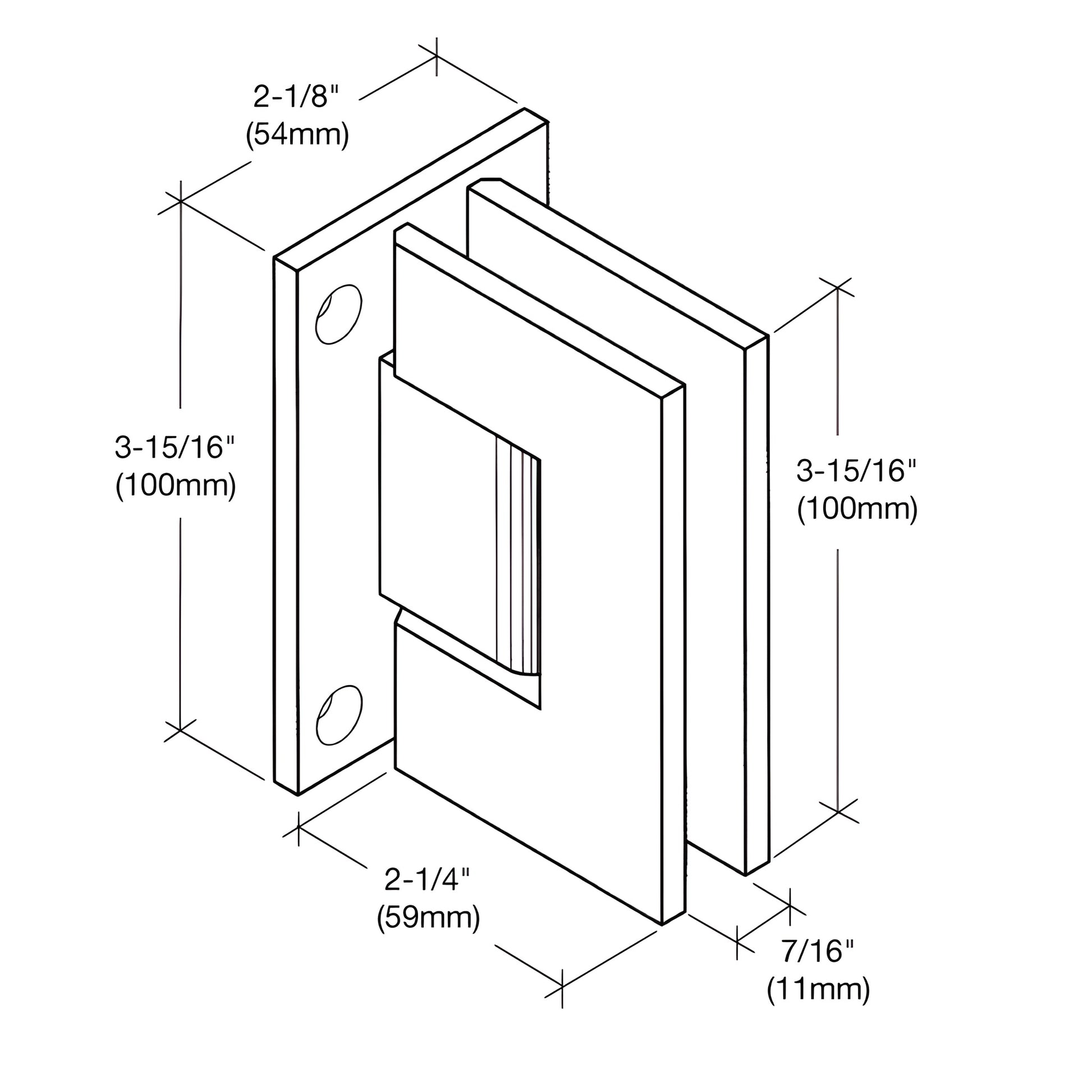

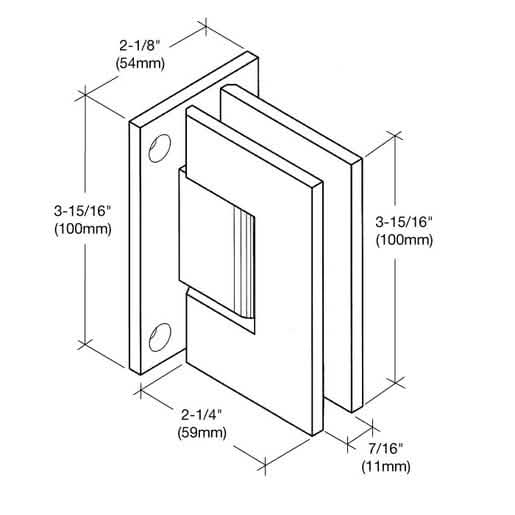

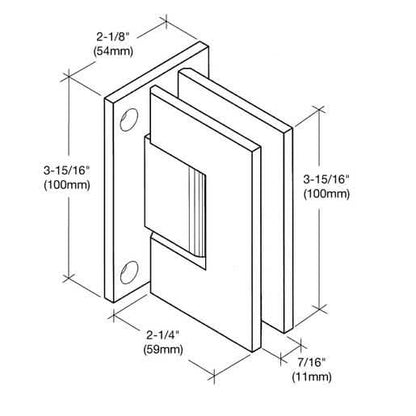

Product Information

Description

5 Degree Pre-Set NoNo
BackPlate Full
DesignStyle Squared
EnclosureType Corner, Niche, Bathtub, Tailor Made Solutions
Finish/ColorBrushed Nickel
Glazing Thickness3/8 in. to 1/2 in. (10 mm to 12 mm)
Height 3-15/16 in.(100 mm)
MaterialBrass
Maximum Clamping Screw Torque 60 lbf.in(677.9 cN.m)
Maximum Door Weight - 2 Hinges 110 lbs.(49.9 kg)
Maximum Door Weight - 3 Hinges 140 lbs.(63.5 kg)
Maximum Door Width 36 in.(914 mm)
MountingType Wall Mount
Opening Style Swing(side)
PositiveClose No
Self-Centering YesVienna
Width 2-1/4 in.(57 mm)

Overview

The CRL Vienna Hinges are expertly designed to support wider and heavier doors, accommodating 3/8" to 1/2" (10 to 12 mm) tempered glass.
These self-centering hinges, available in a range of beautiful finishes, feature a reversible 5-degree pivot pin for increased versatility and are backed by a 3-year warranty.
With the option to use monolithic tempered glass and custom pivot pins for off-angle installations, these durable solid brass hinges can hold up to 140 lbs with three hinges and support a maximum door width of 36 inches.
Ideal for residential or hotel shower use, Vienna Hinges ensure secure and adjustable door mounting, with customizable finishes available upon request.
For precise installation, always use the provided template and contact CRL Technical Sales for any non-standard applications.
