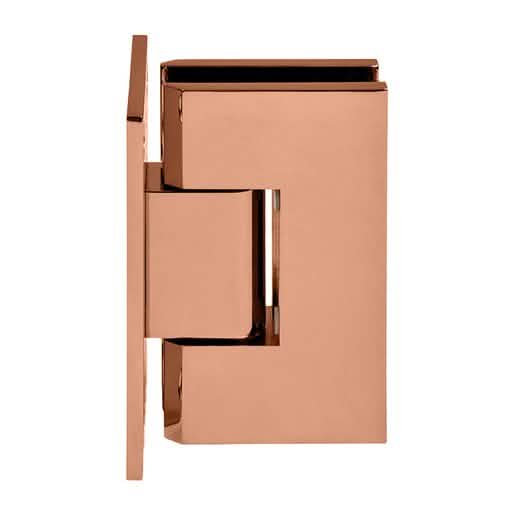

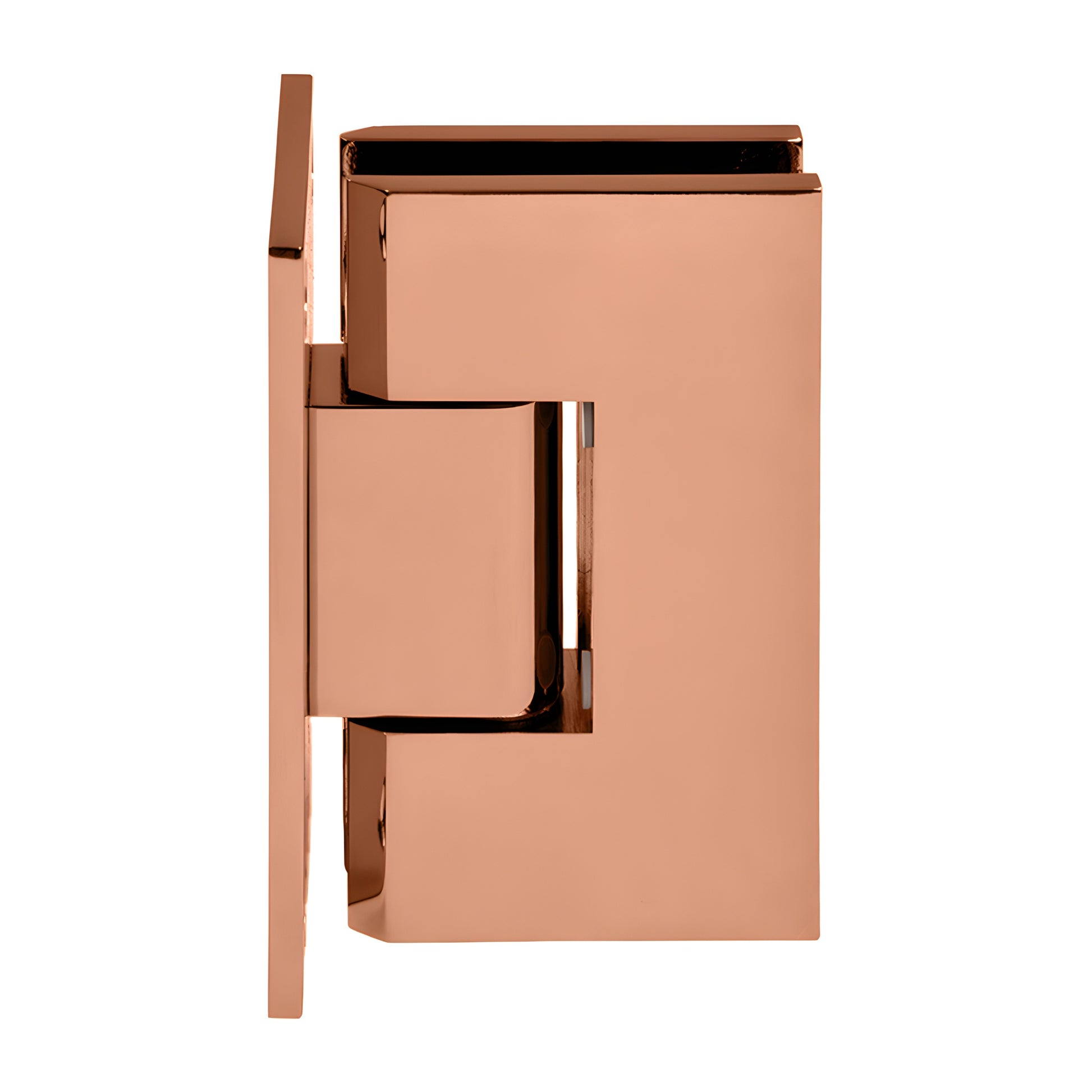

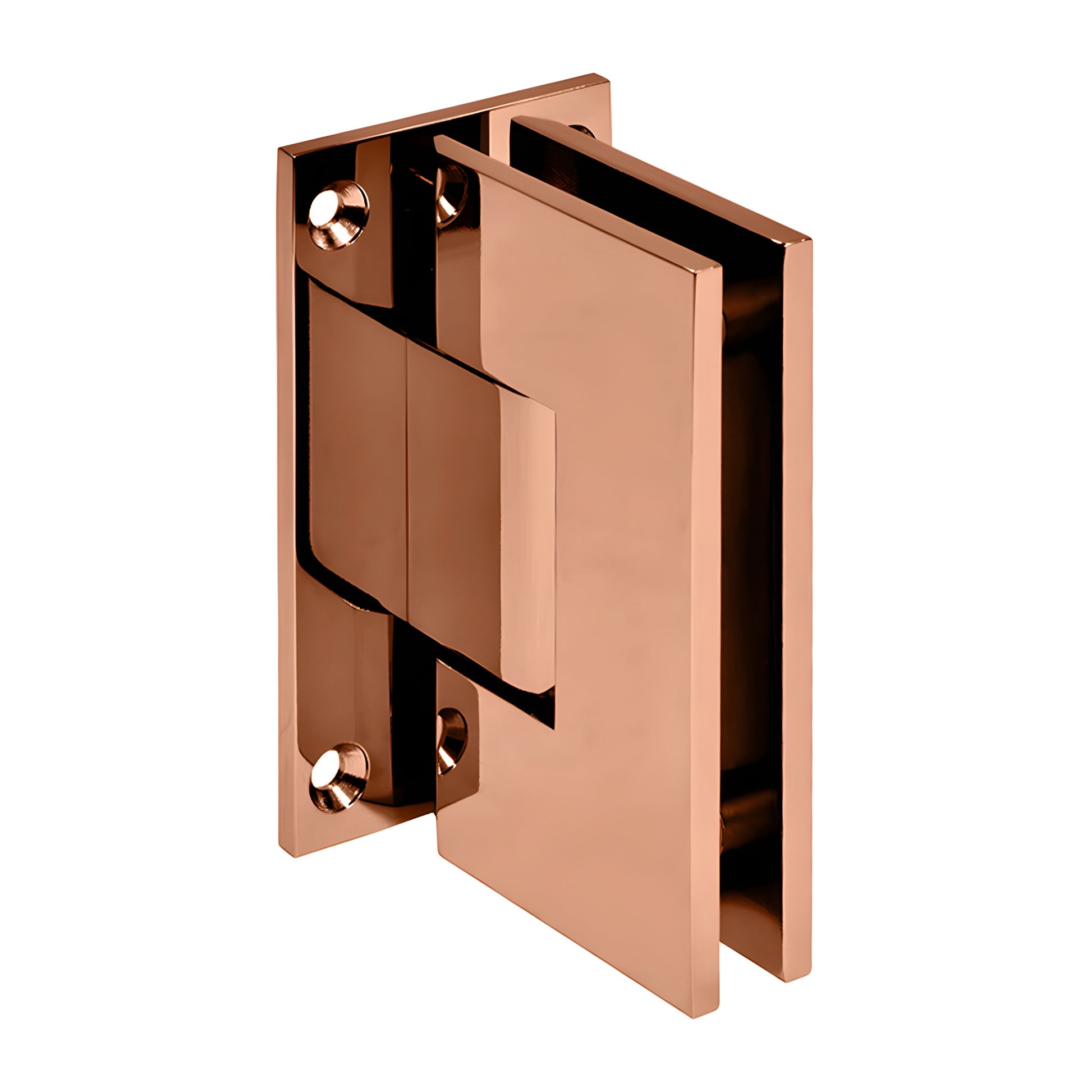

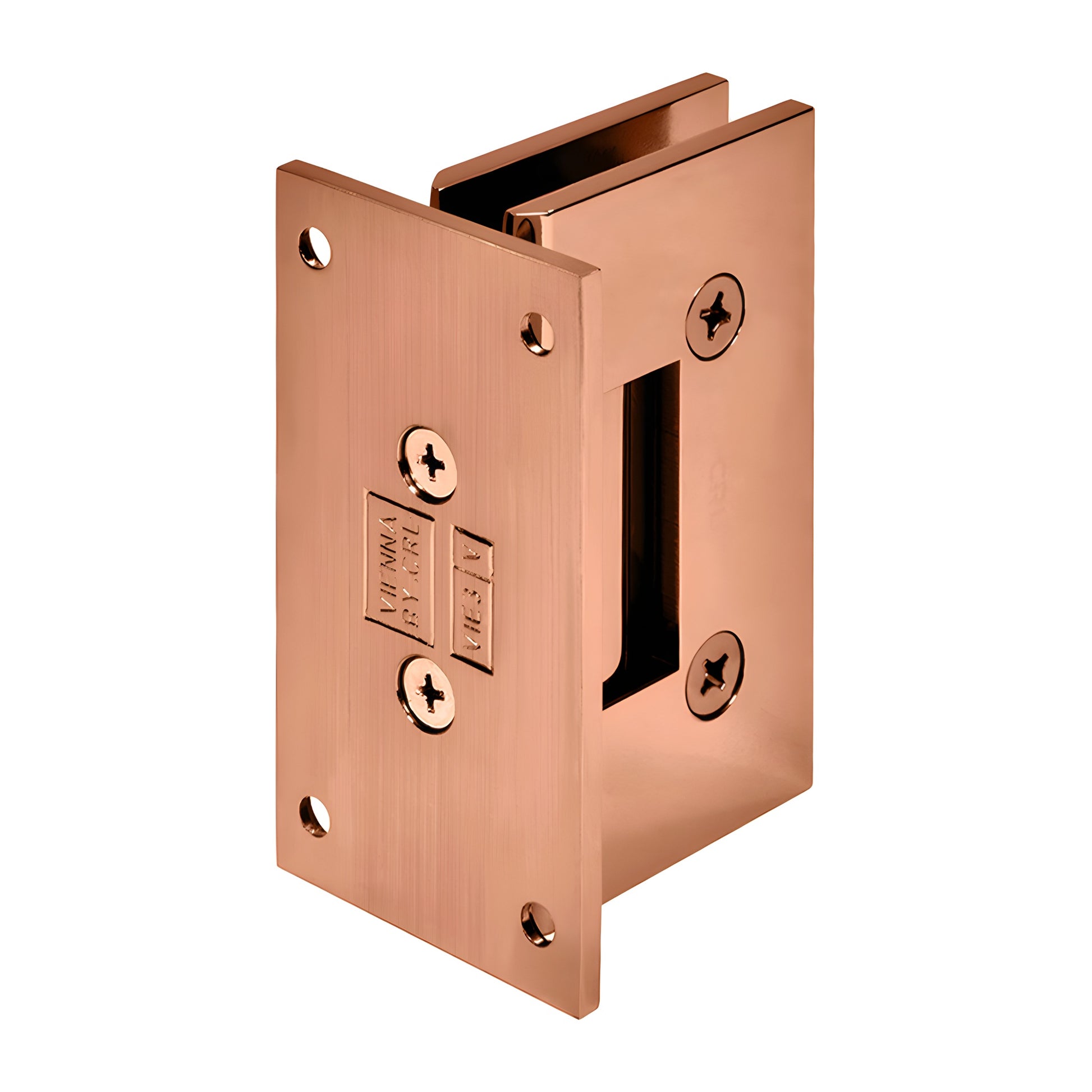

CRL Vienna 037 Rose Gold Wall-Mount Full Back Plate Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes; custom finishes on request
• 3 year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Vienna Hinges are engineered for wider, heavier shower doors where standard hinges fail. The Vienna design uses two internal steel pins to support alternate cut-out templates: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and fit to CRL rectangular, square-cornered cut-outs (may also fit some competitive rectangular cut-outs). These solid-brass shower door hinges are ideal for residential and hotel showers and provide a durable, premium solution for tempered glass doors.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with the 85° side activated for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to switch angles.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment is insufficient.

Load Ratings: Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lb (50 kg), maximum door width 36" (914 mm). Using three hinges: supports up to 140 lb (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Construction: Solid brass

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel

Includes: Gaskets, screws, and glass fabrication dimensions

Maximum Clamping Screw Torque: 60 lbf·
