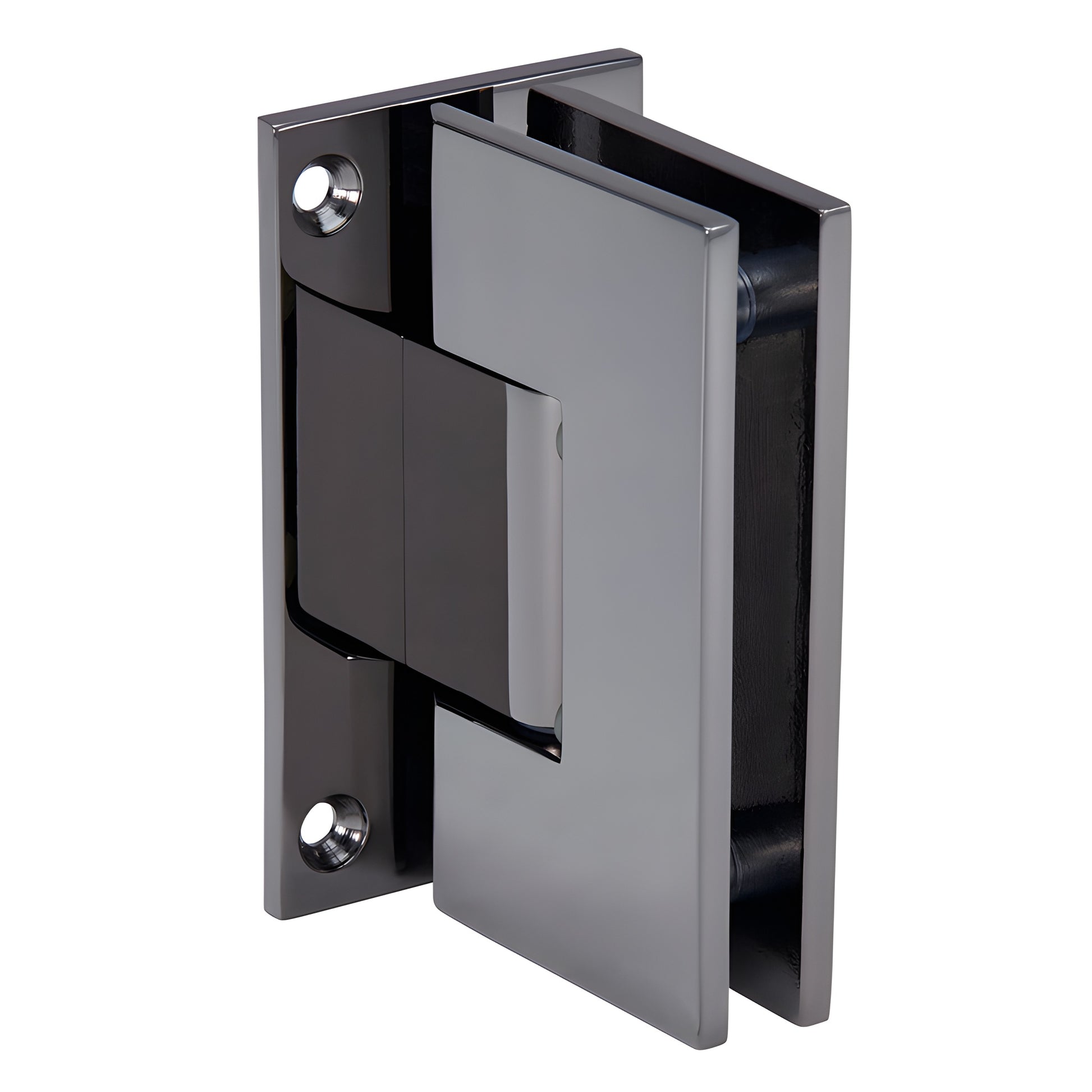

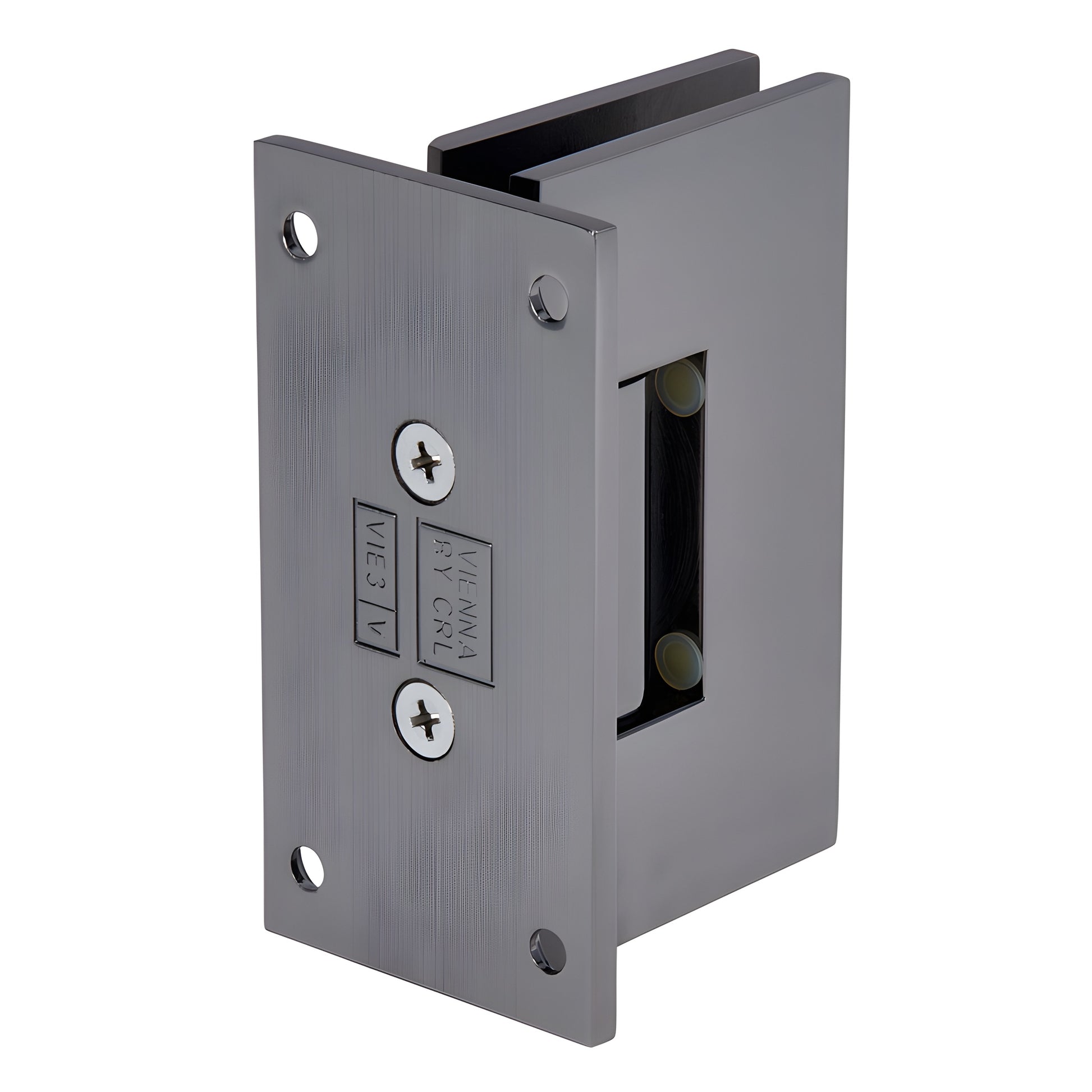

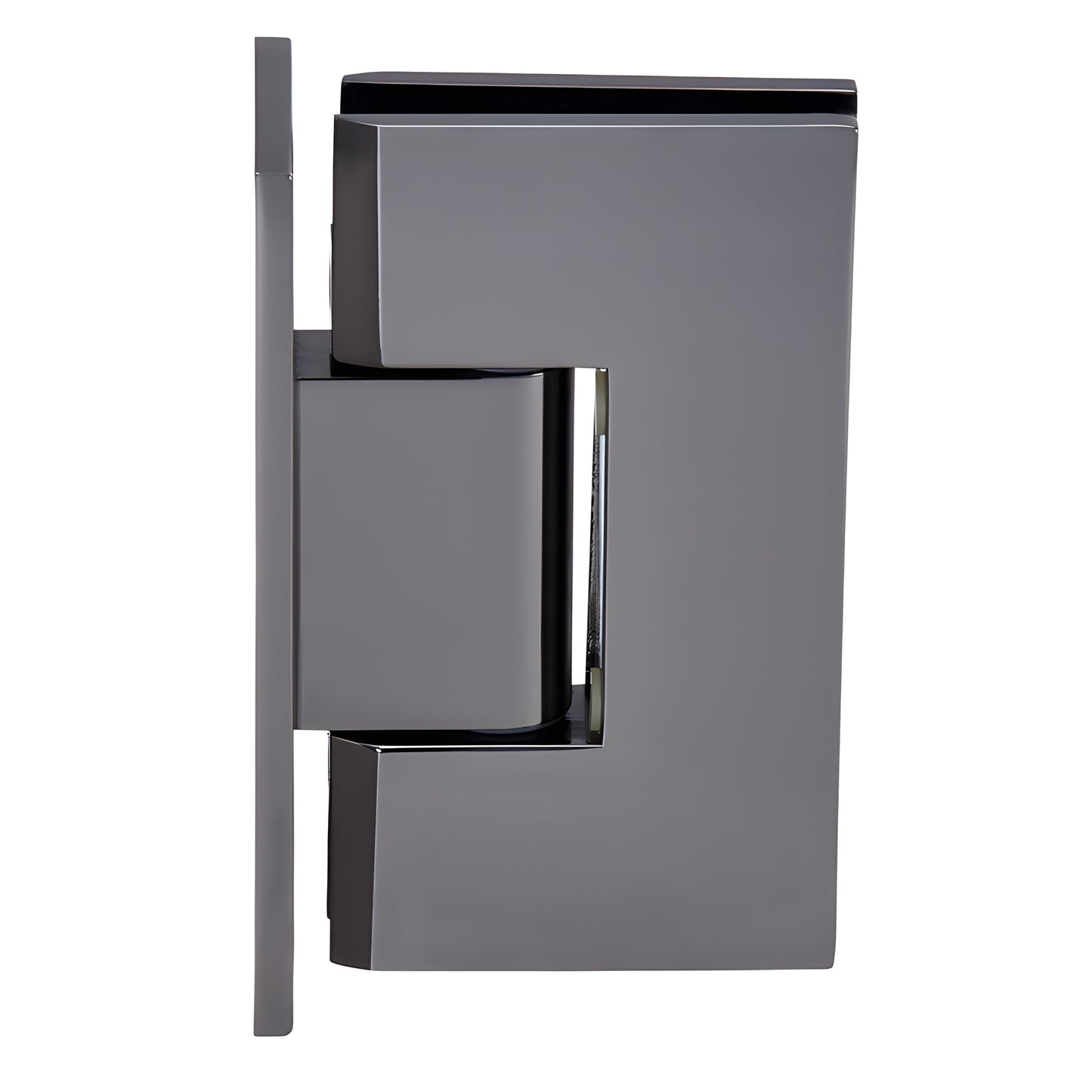

CRL Vienna 037 Gun Metal Wall-Mount Shower Door Hinge Full Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering hinge with reversible 5° pivot pin for tighter closing
• Available in several durable decorative finishes; custom finishes on request
• 3 year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Designed for use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037GM) are engineered for wider, heavier shower doors where traditional hinges fall short. The hinge uses two internal steel pins to support two cut-out templates: leave the pins in for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs — and in some cases competitive rectangular cut-outs.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models are shipped with the 85° side active for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to change the angle.

Custom Pivot Pins: Available for off-angle installations (specify up to 45°) when the standard 5° adjustment is insufficient.

Performance: Using two hinges with 3/8"–1/2" glass the system supports up to 110 lb (50 kg) with a maximum door width of 36" (914 mm). Using three hinges increases capacity to 140 lb (63 kg) with the same maximum width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of the closed position
Cut-Out Required: Standard models require the CRL cut-out (except V1E092 which requires a cut-out for the door plus two holes for the fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

For custom finishes, pivot angles, or installation advice contact CRL Technical Sales – Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications obtain approval from CRL Shower Door Technical Sales. Use only the template supplied with this hinge; CRL cut-out dimensions may differ from other brands.
