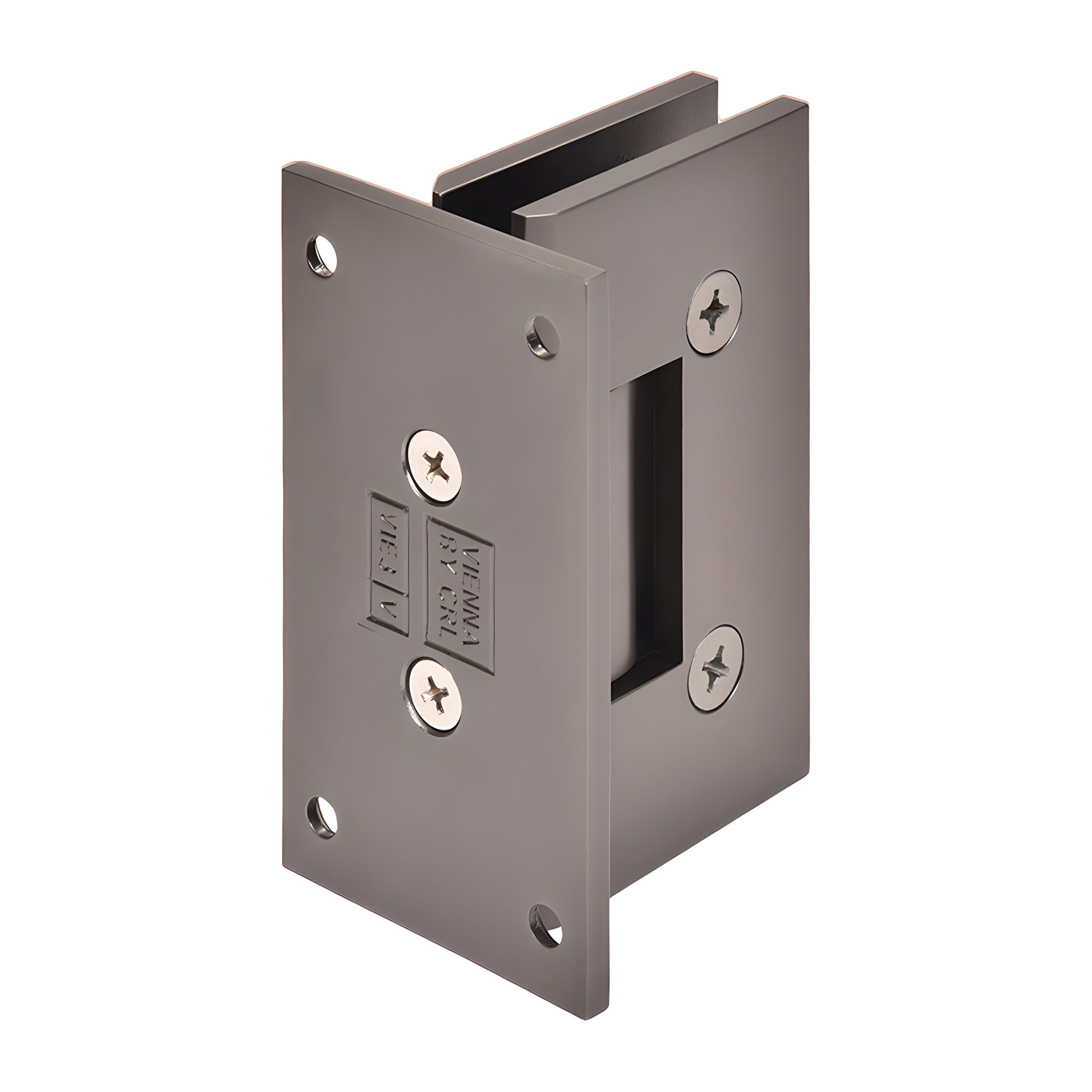

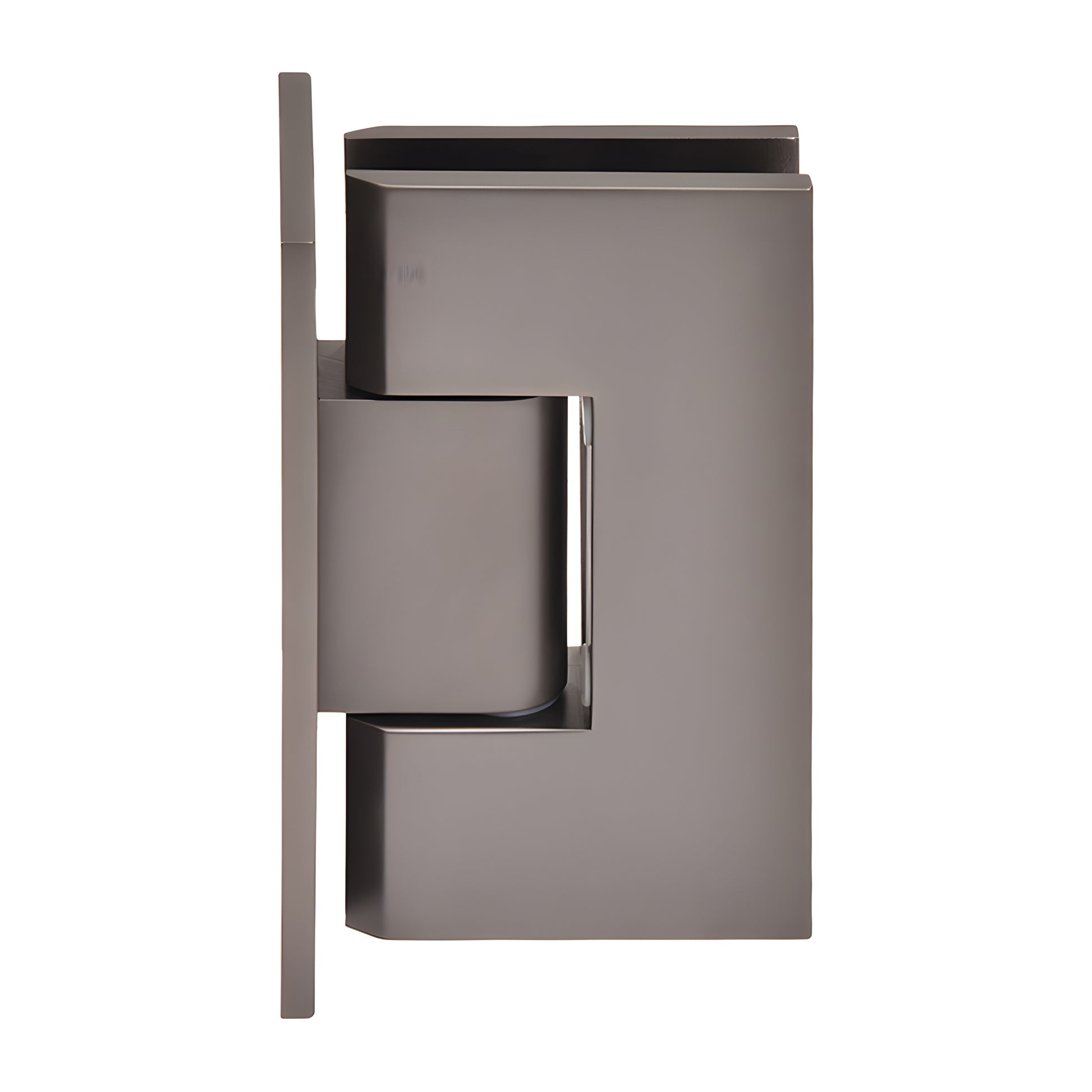

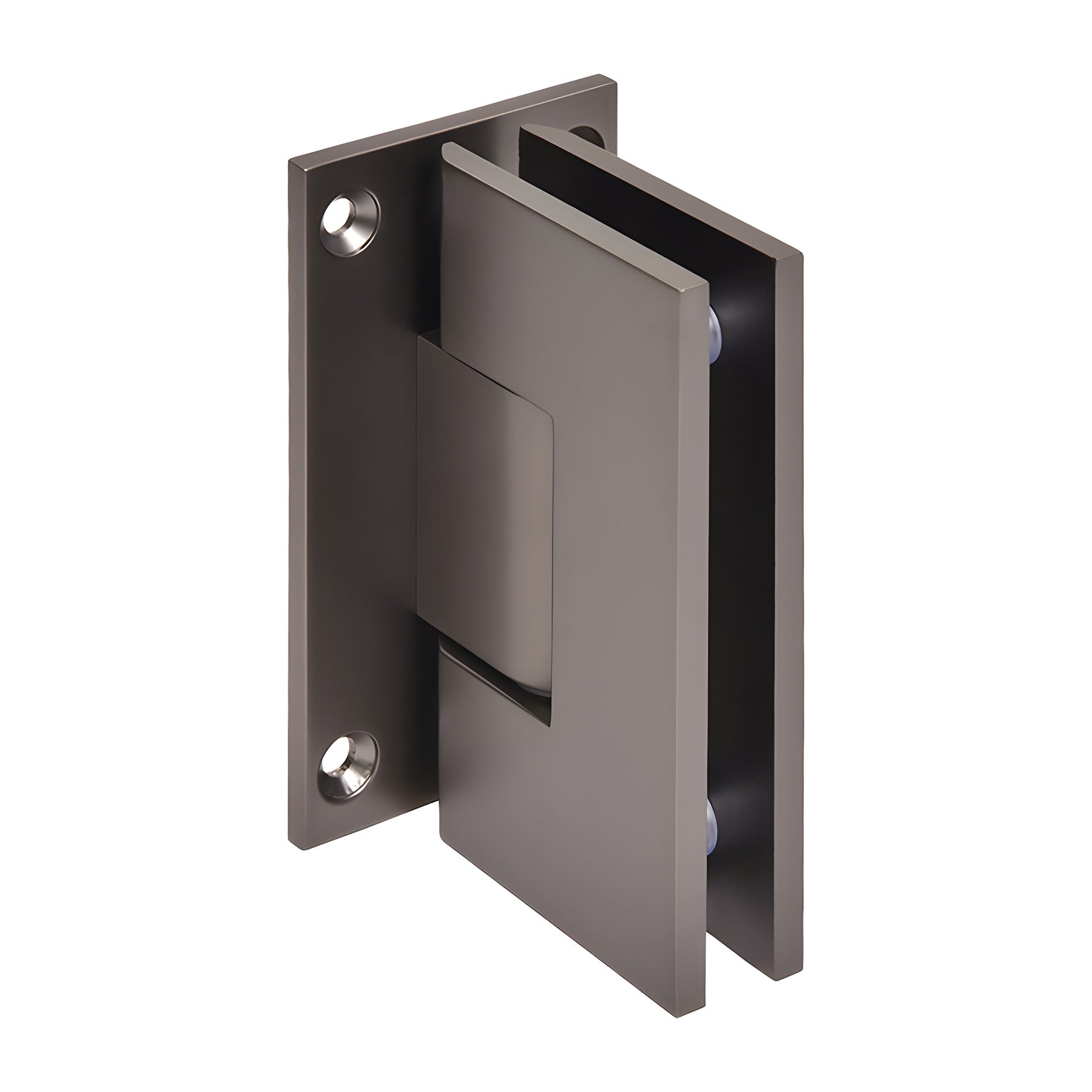

CRL Vienna 037 Shower Door Hinge Full Back Plate Matte Gunmetal

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes (custom finishes on request)
• 3 year warranty
• Wall mount full back plate standard model (factory set for standard closing position)
• Use with monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E037MGM) provide a heavy-duty shower door hinge solution for wider, heavier doors that standard hinges cannot support. Two strategically placed internal steel pins offer mounting template flexibility: leave the pins in for CRL “mouse-ears” cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired door closing position.

LOAD CAPACITY:

Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg), max door width 36" (914 mm).

Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot angles available — contact CRL Technical Sales, Shower Door Department for details.
