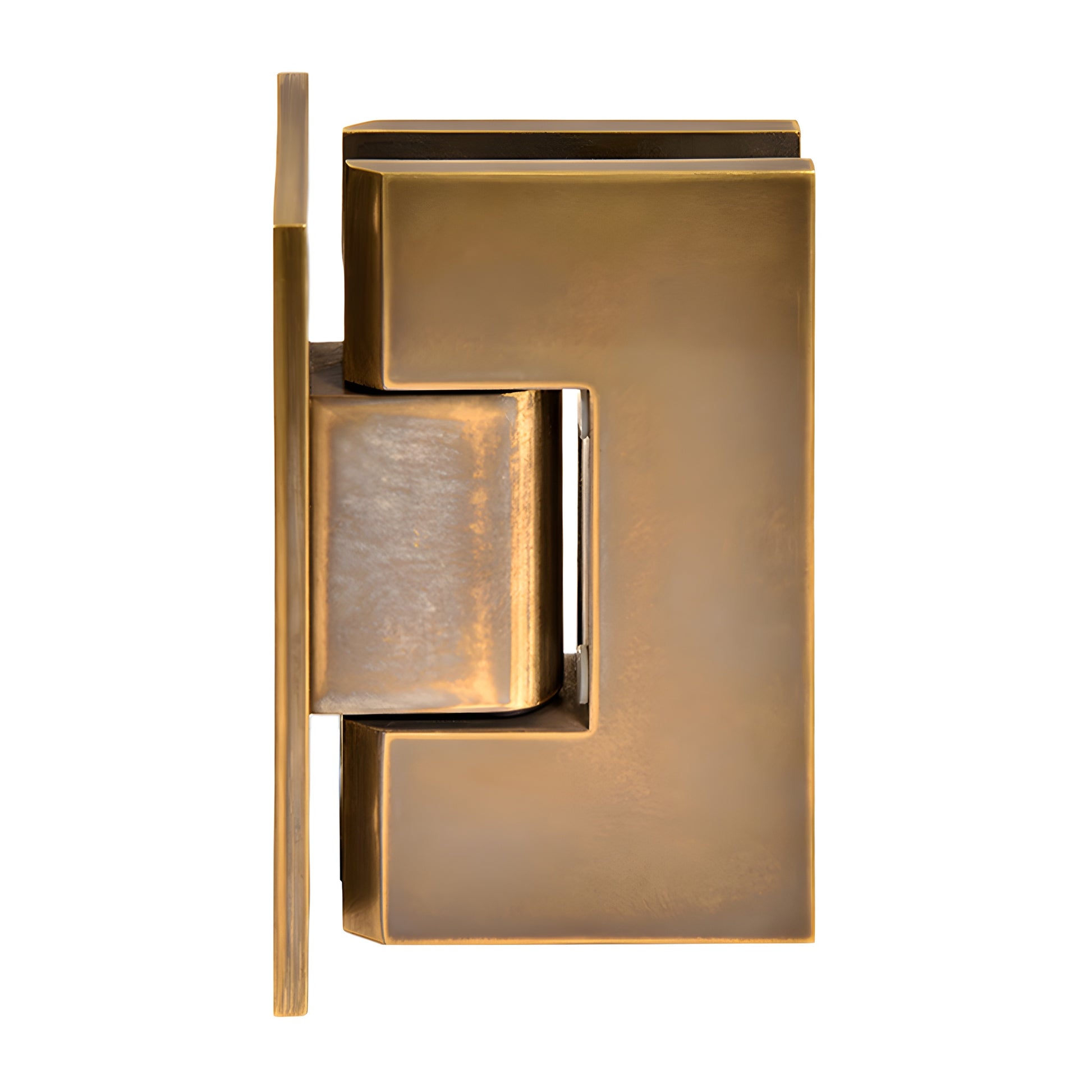

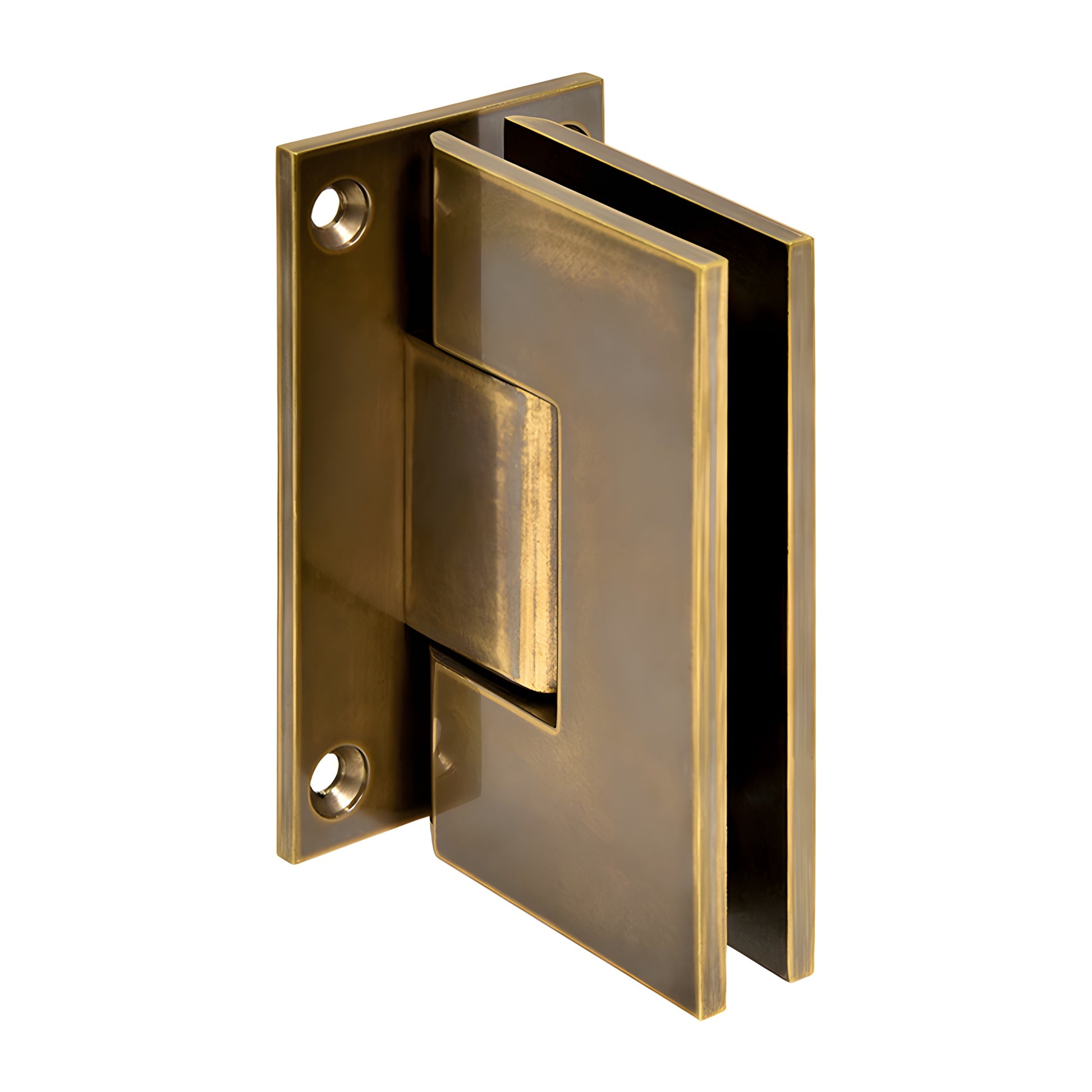

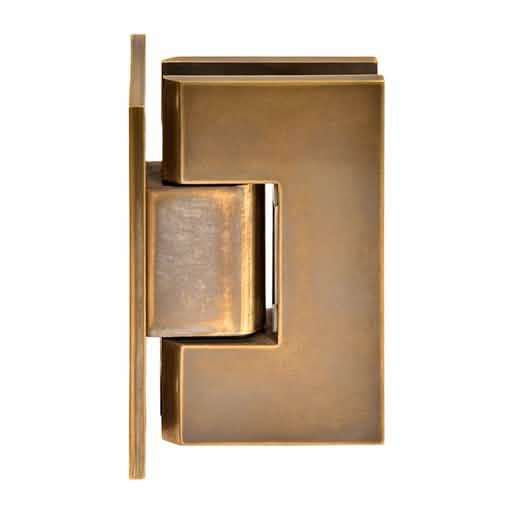

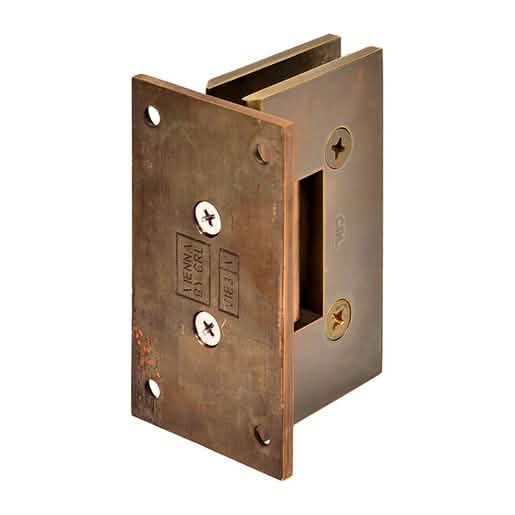

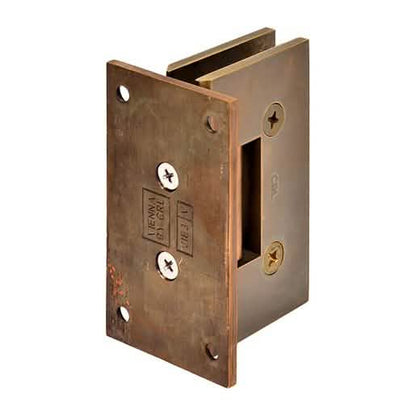

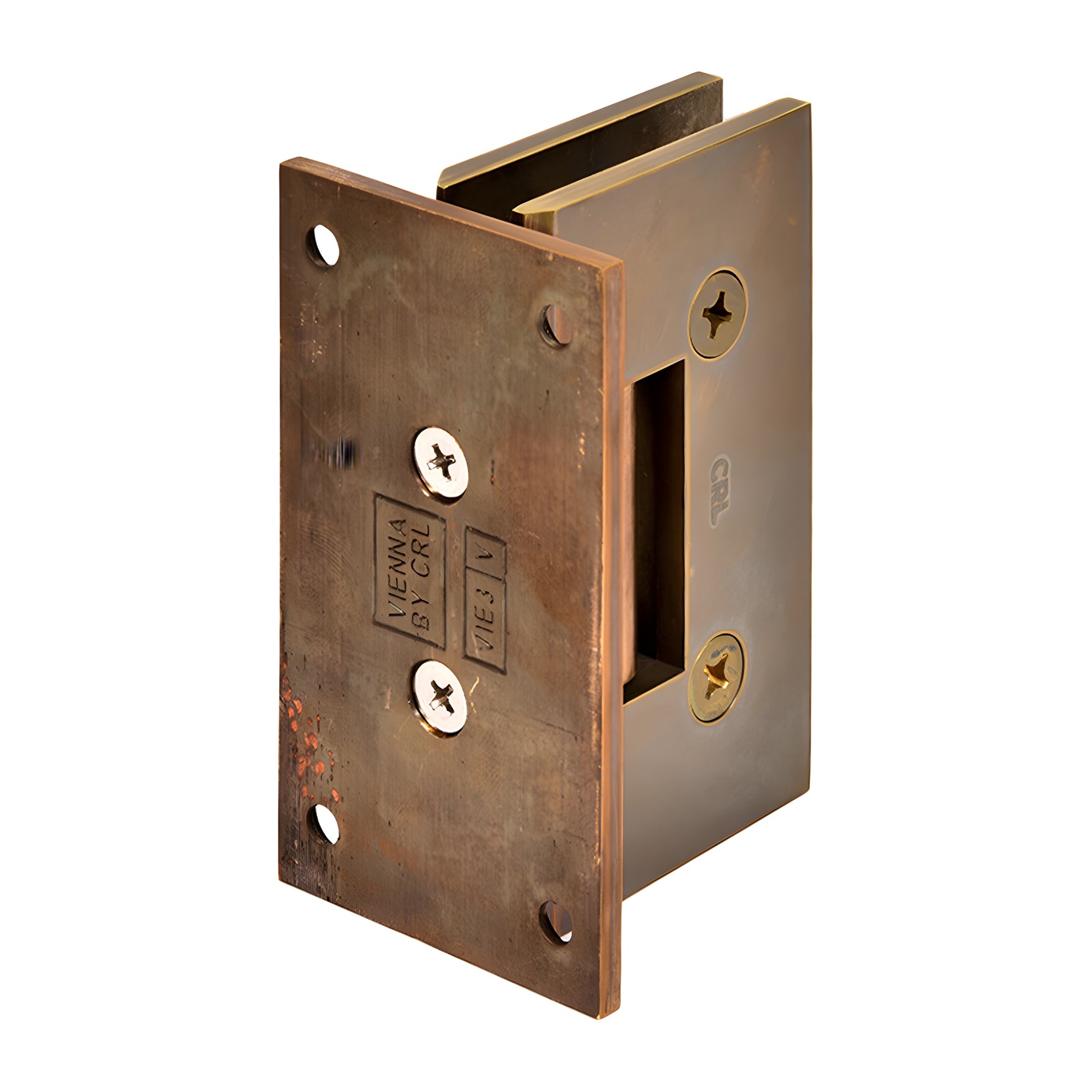

CRL Vintage Brass Vienna 037 Series Wall Mount Full Back Plate Hinge
CRL Vintage Brass Vienna 037 Series Wall Mount Full Back Plate Hinge
Regular price
$235.43 CAD
Regular price
Sale price
$235.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E037VBR
Shipping Weight: 2.08 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.08 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |
| Back | Plate Full |
| Finish/Color | Vintage Brass |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |

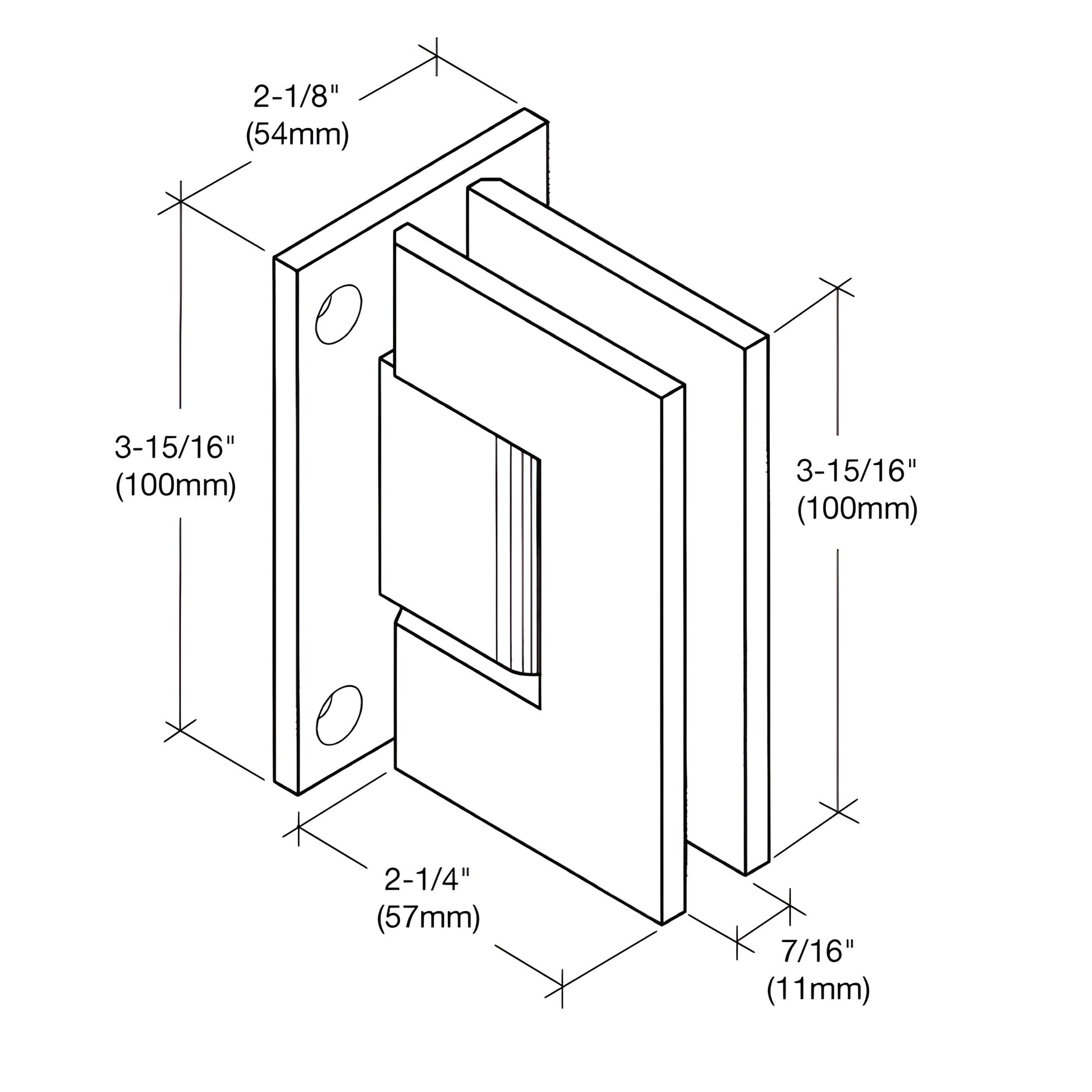

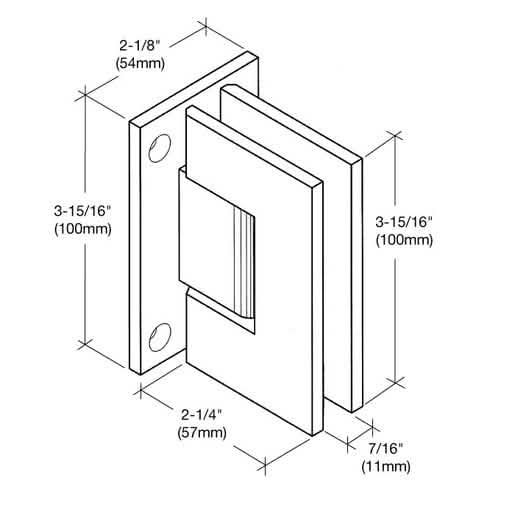

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Wall Mount |
| Positive | Close No |
| Self-Centering Yes | Vienna |
| Width 2-1/4 in. | (57 mm) |
Overview
Discover the robust CRL Vienna Hinges, perfect for supporting wider, heavier doors where traditional hinges fall short.
Engineered to accommodate 3/8" to 1/2" tempered safety glass, these hinges feature a self-centering mechanism and reversible 5-degree pivot pin, offering flexibility and precision for various installations.
Available in multiple stunning finishes, these wall mount full back plate standard models come with a three-year warranty.
For custom needs, CRL also provides custom pivot pins and finishes to suit unique installations.
Always ensure you use the included template for accurate cut-outs, as CRL specifications may differ from other brands.
Engineered to accommodate 3/8" to 1/2" tempered safety glass, these hinges feature a self-centering mechanism and reversible 5-degree pivot pin, offering flexibility and precision for various installations.
Available in multiple stunning finishes, these wall mount full back plate standard models come with a three-year warranty.
For custom needs, CRL also provides custom pivot pins and finishes to suit unique installations.
Always ensure you use the included template for accurate cut-outs, as CRL specifications may differ from other brands.
