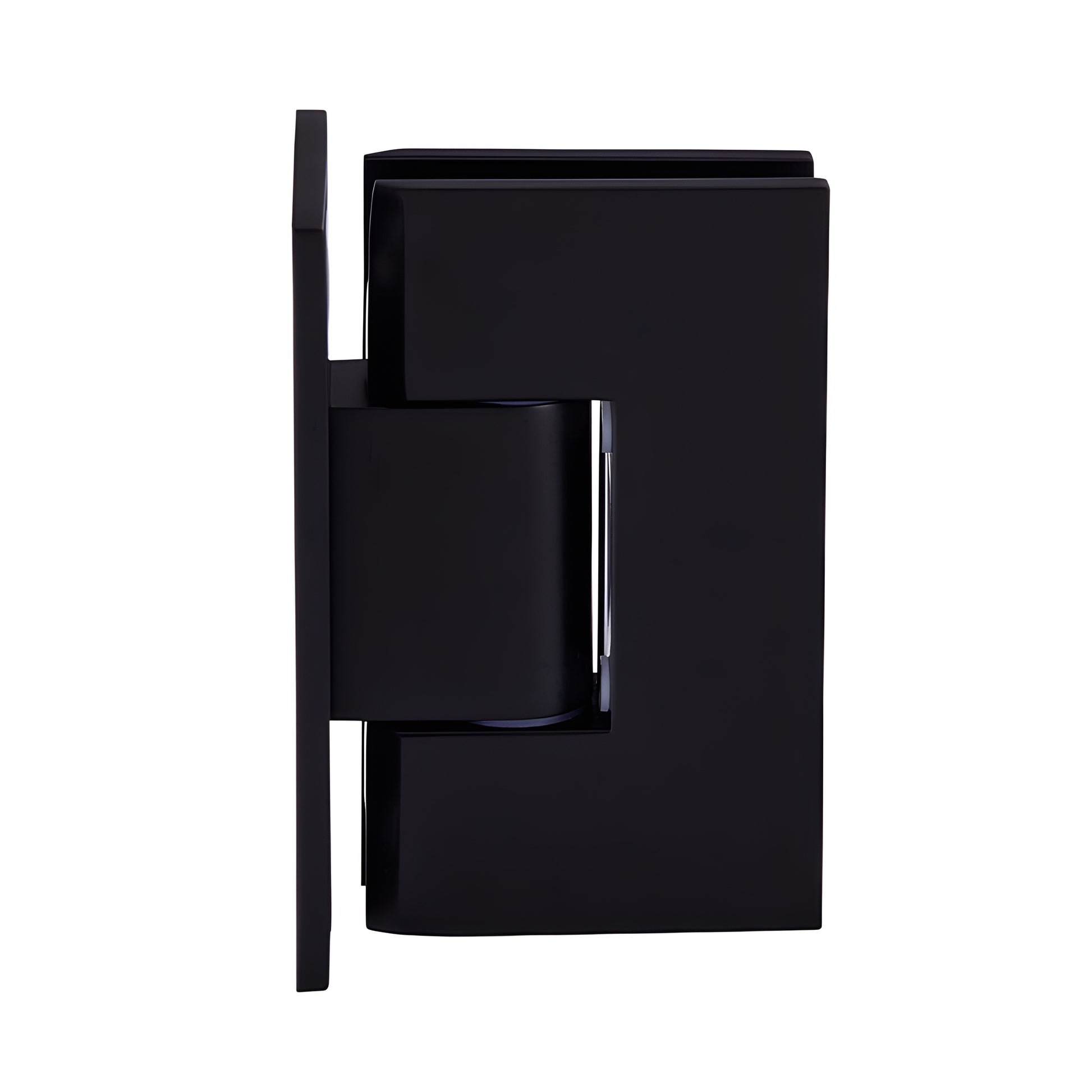

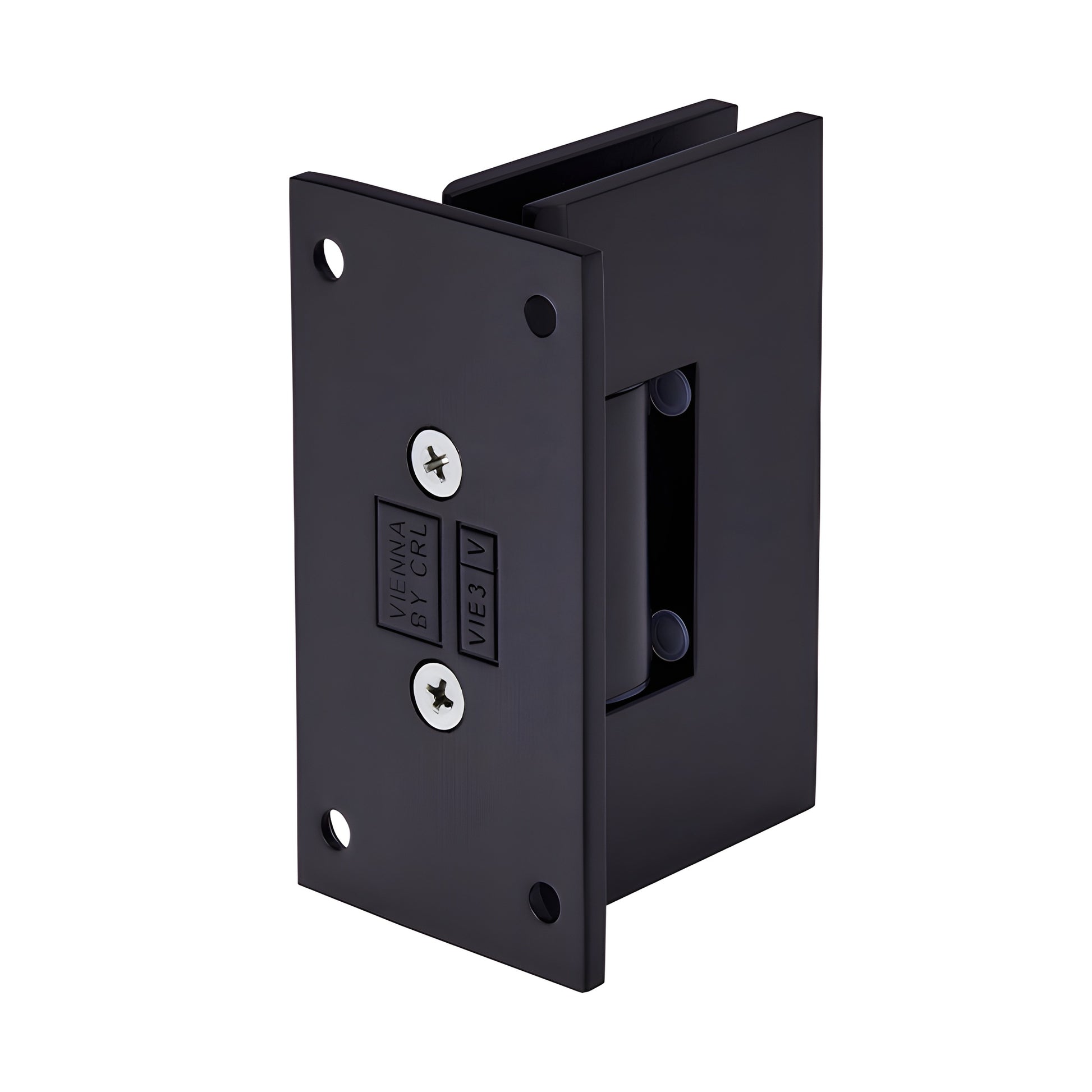

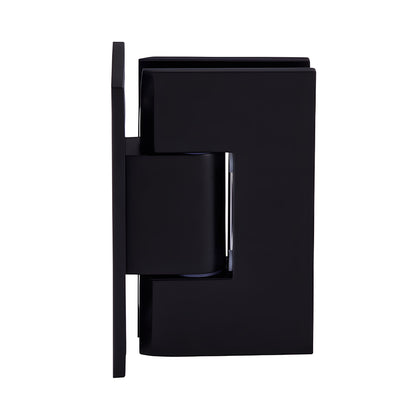

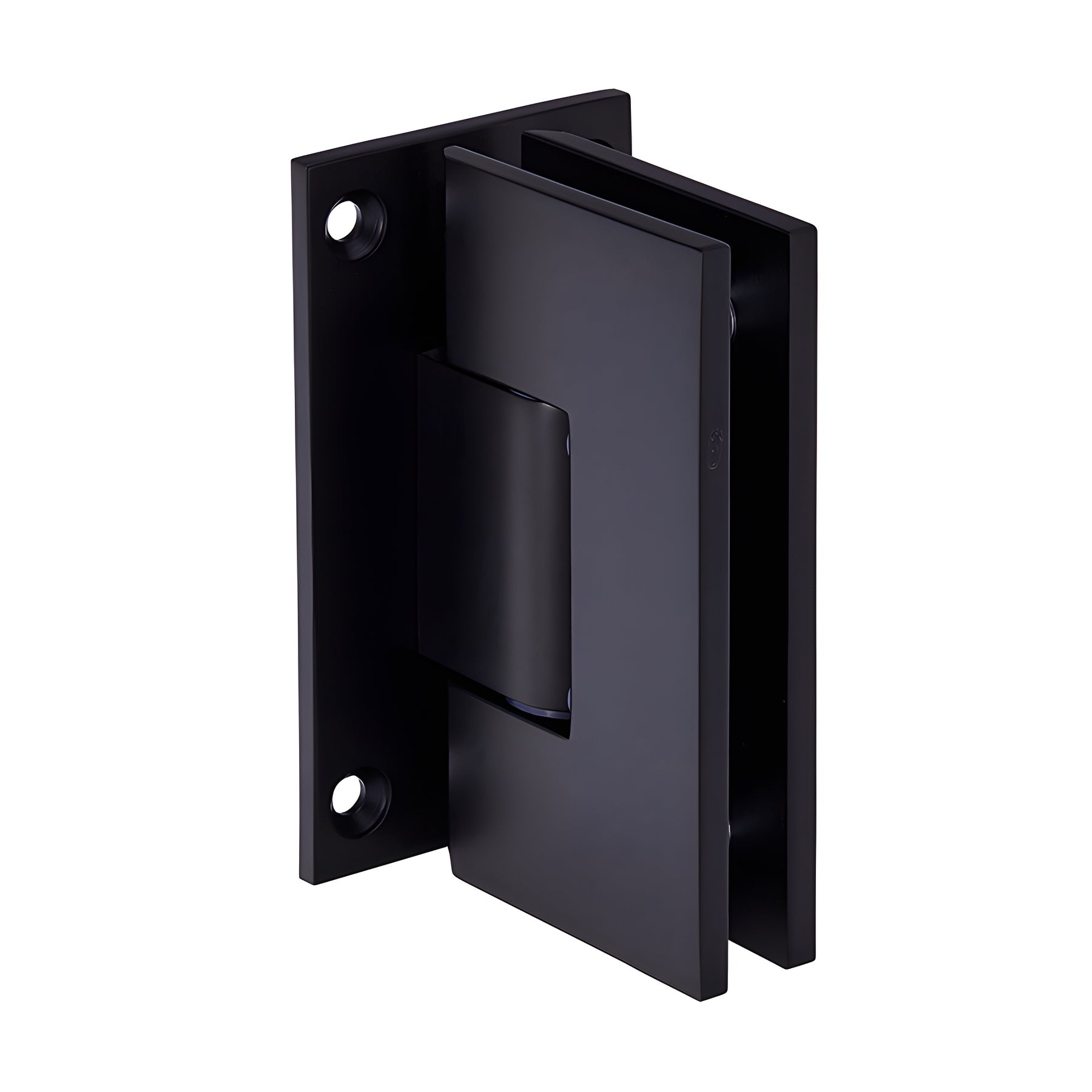

CRL Vienna 037 Oil Rubbed Bronze Wall Mount Full Backplate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering with reversible 5° pivot pin (standard or pre-set 85°)
• Available in several decorative and corrosion-resistant finishes (custom finishes on request)
• 3 year warranty
• Wall-mount full back plate — standard model factory set for standard closing position
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E0370RB) are engineered for wider, heavier glass shower doors when traditional hinges are insufficient. Two internal steel pins offer mounting flexibility: leave both pins in place for CRL "mouse-ears" style cut-outs, or remove them for increased adjustability with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin with two settings: 90° (standard) and 85° (5° tighter closure into the shower interior). Standard models ship with the 90° side activated. Rotate the pin (do not flip) to activate the alternate side.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify angle up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

Capacity:
- Using two hinges with 3/8"–1/2" glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm).
- Using three hinges with 3/8"–1/2" glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except V1E092 (V1E092 requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request — contact CRL Technical Sales, Shower Door Department for options and lead times.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge — CRL cut-out dimensions may not match other
