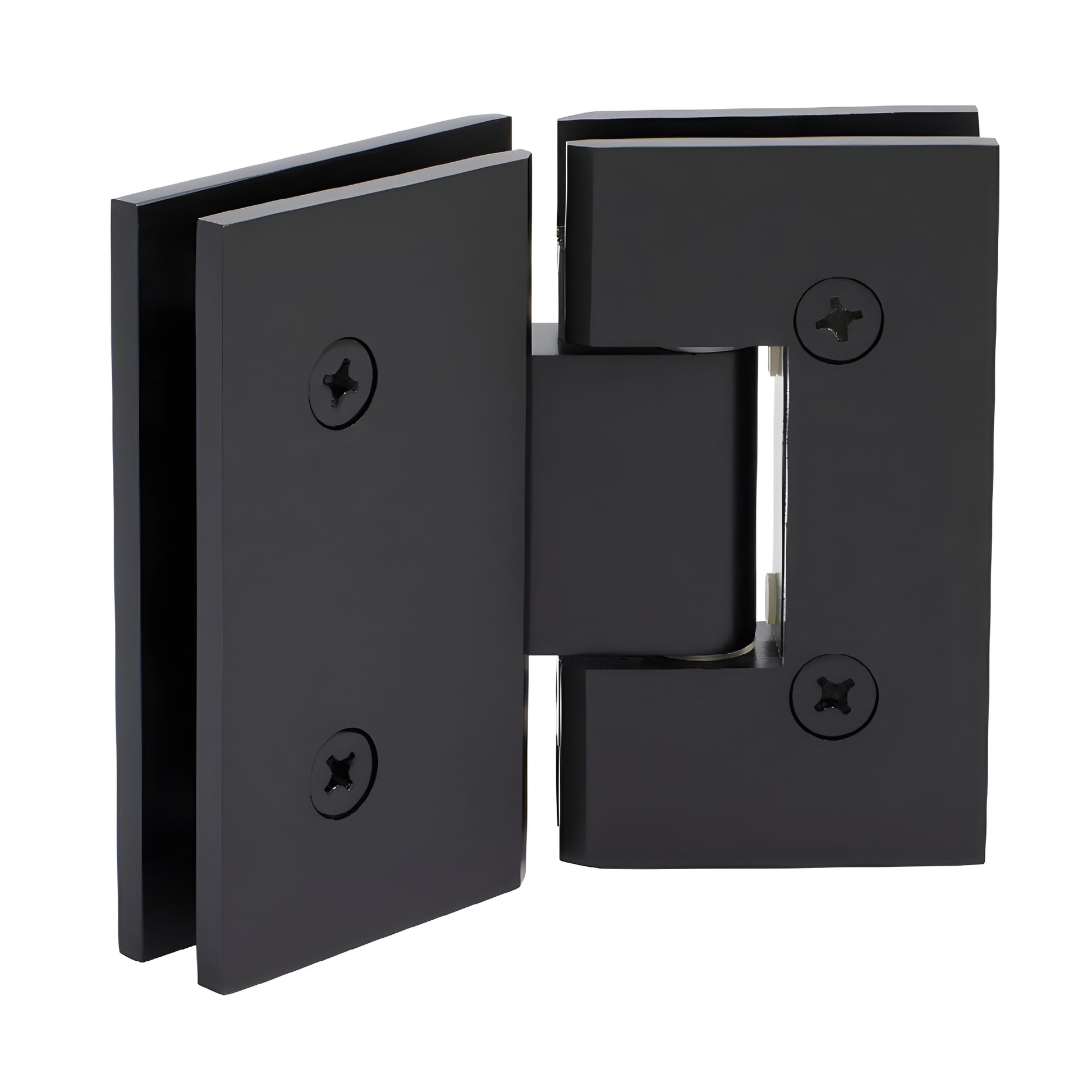

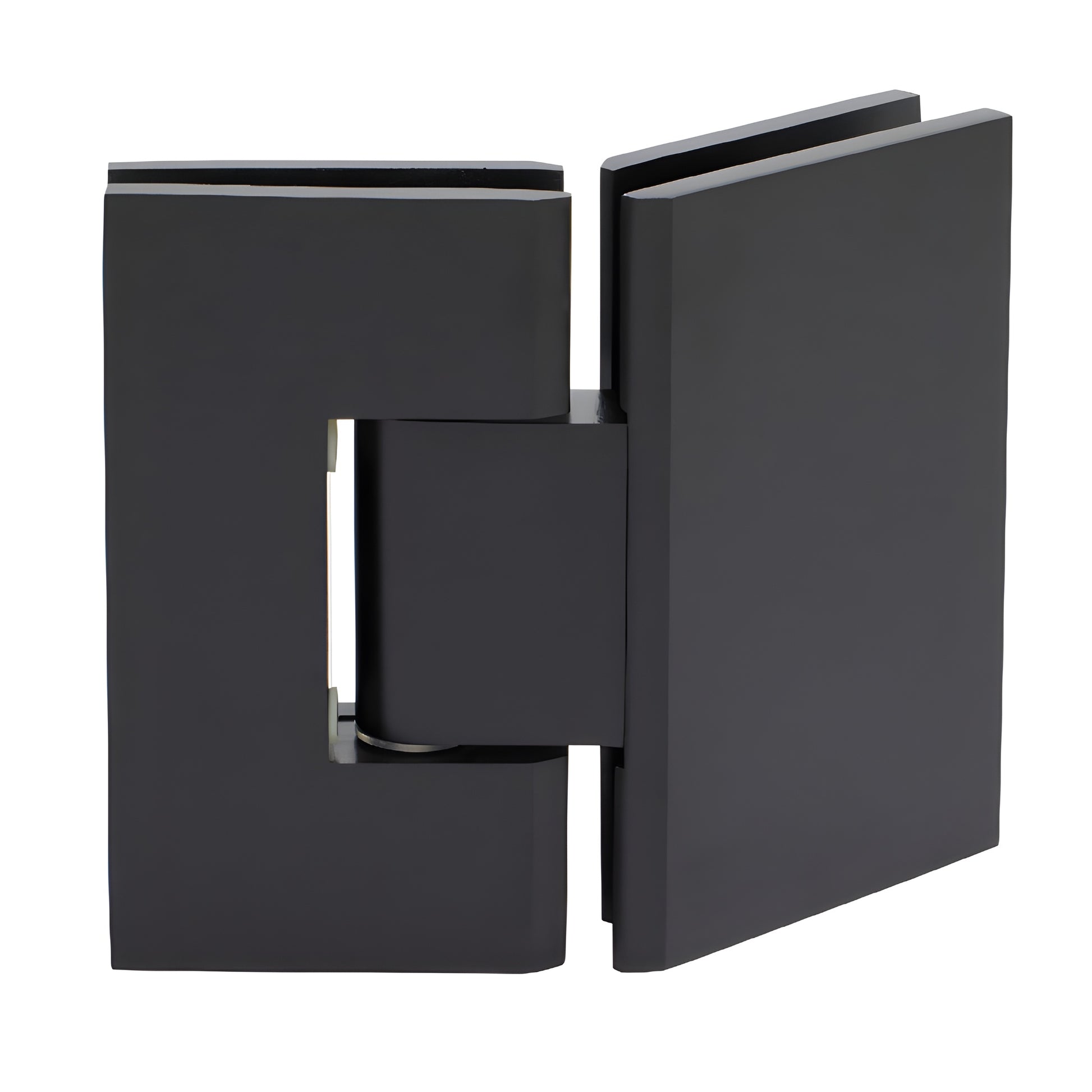

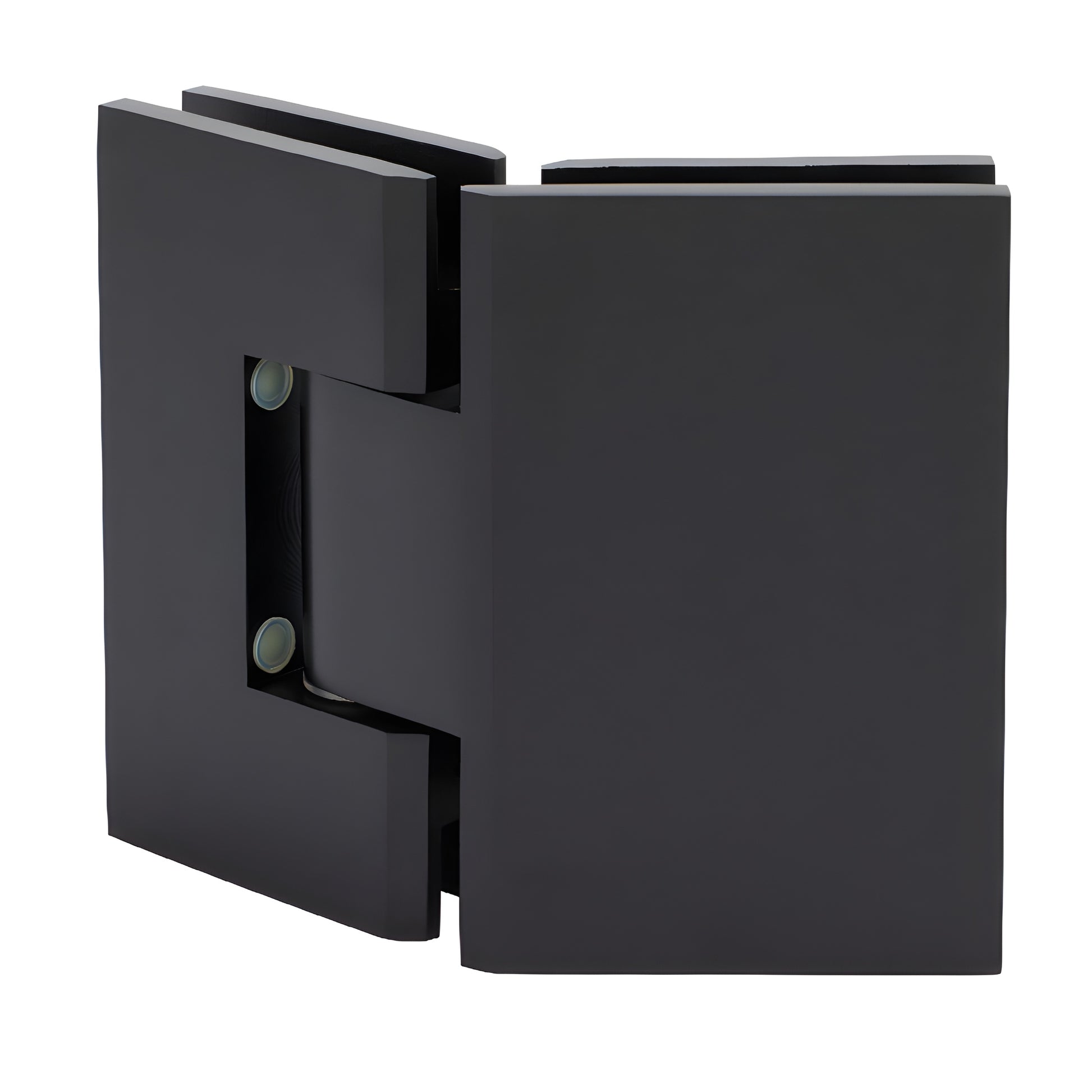

CRL Vienna 045 135° Oil Rubbed Bronze Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 135° glass-to-glass hinge
• Use monolithic tempered safety glass

CRL Vienna Hinges provide heavy-duty support for wider, heavier shower doors where standard hinges fail. Designed for glass shower doors and frameless shower installations, the Vienna Hinge uses two internal steel pins for alternate glass cut-out templates: leave pins in for CRL "mouse-ears" cut-outs or remove them for CRL rectangular (square-corner) cut-outs. In many cases the hinge also fits competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°. Rotate the pin (do not flip) to engage the 85° side for a 5° tighter closure into the shower interior. Pre-set models come factory set to 85°.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when standard adjustment does not achieve the desired closing position.

Load Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg), max door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
SKU: V1E0450RB
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 (requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel
