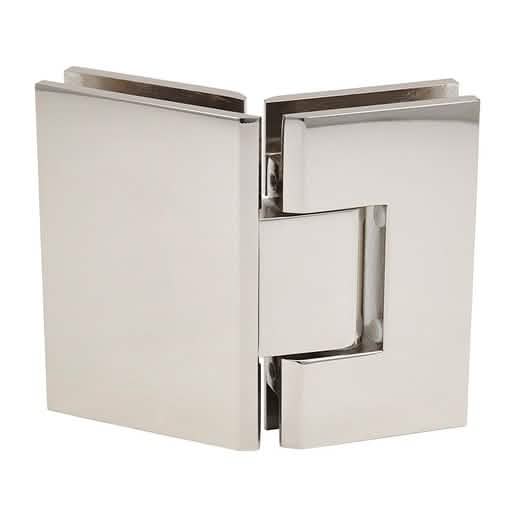

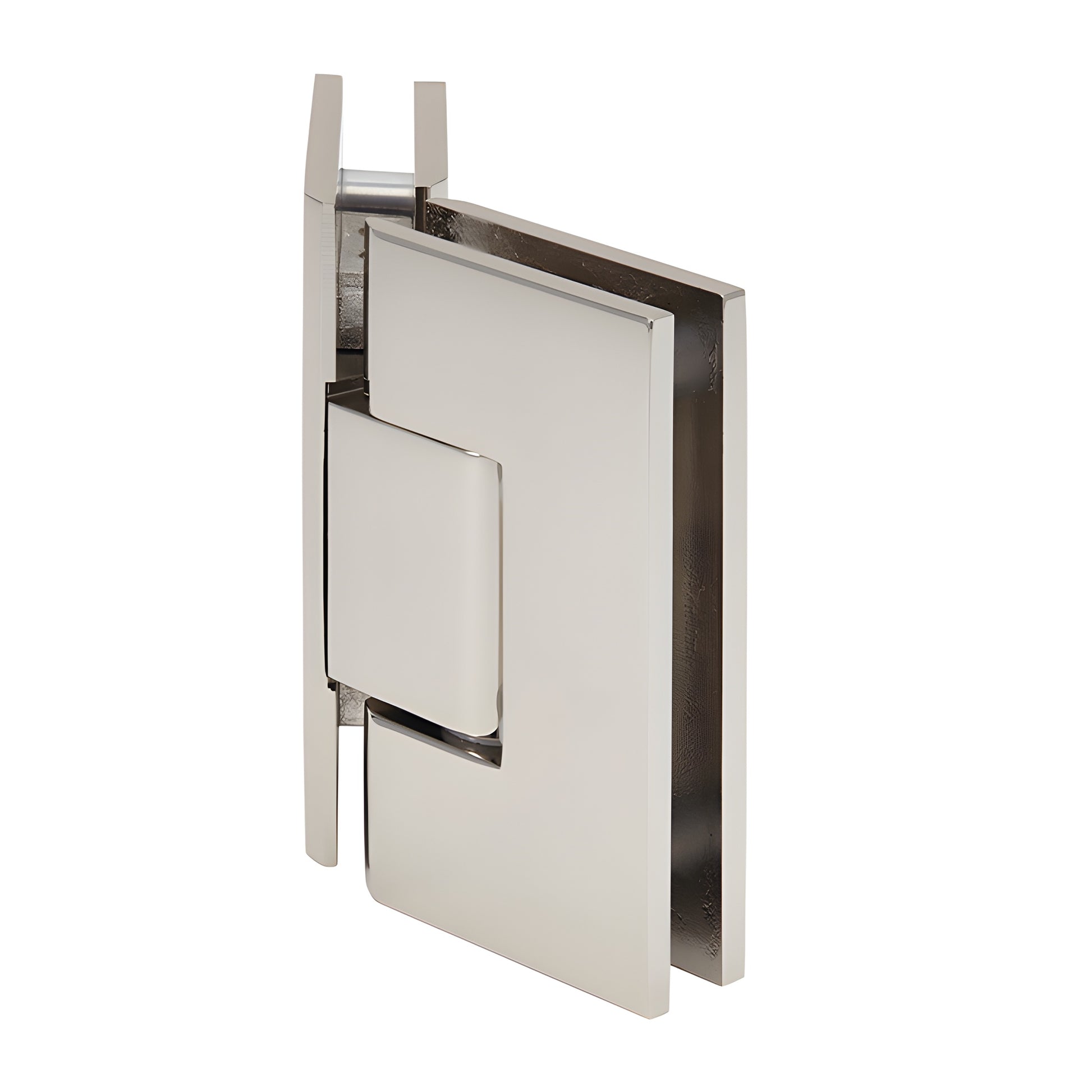

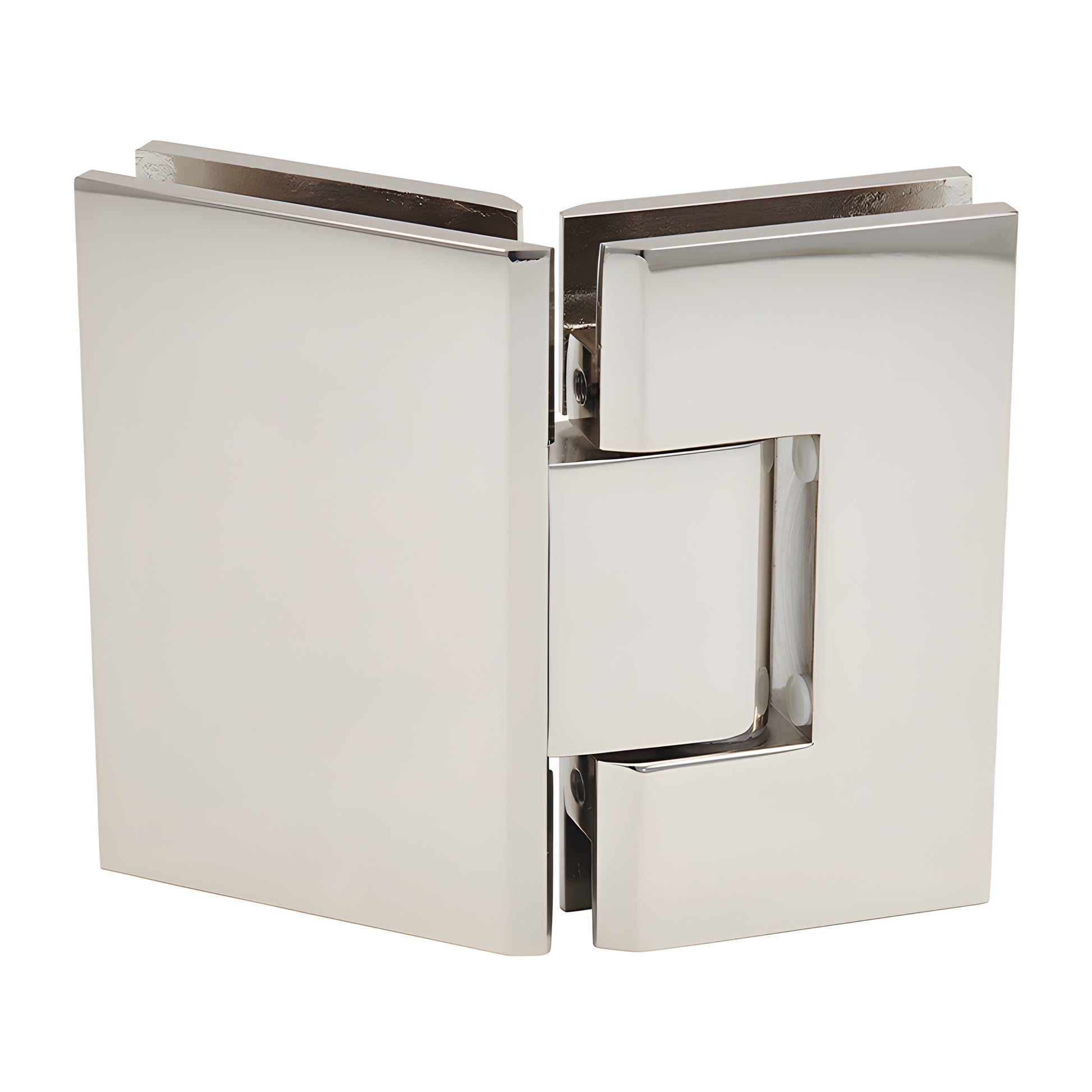

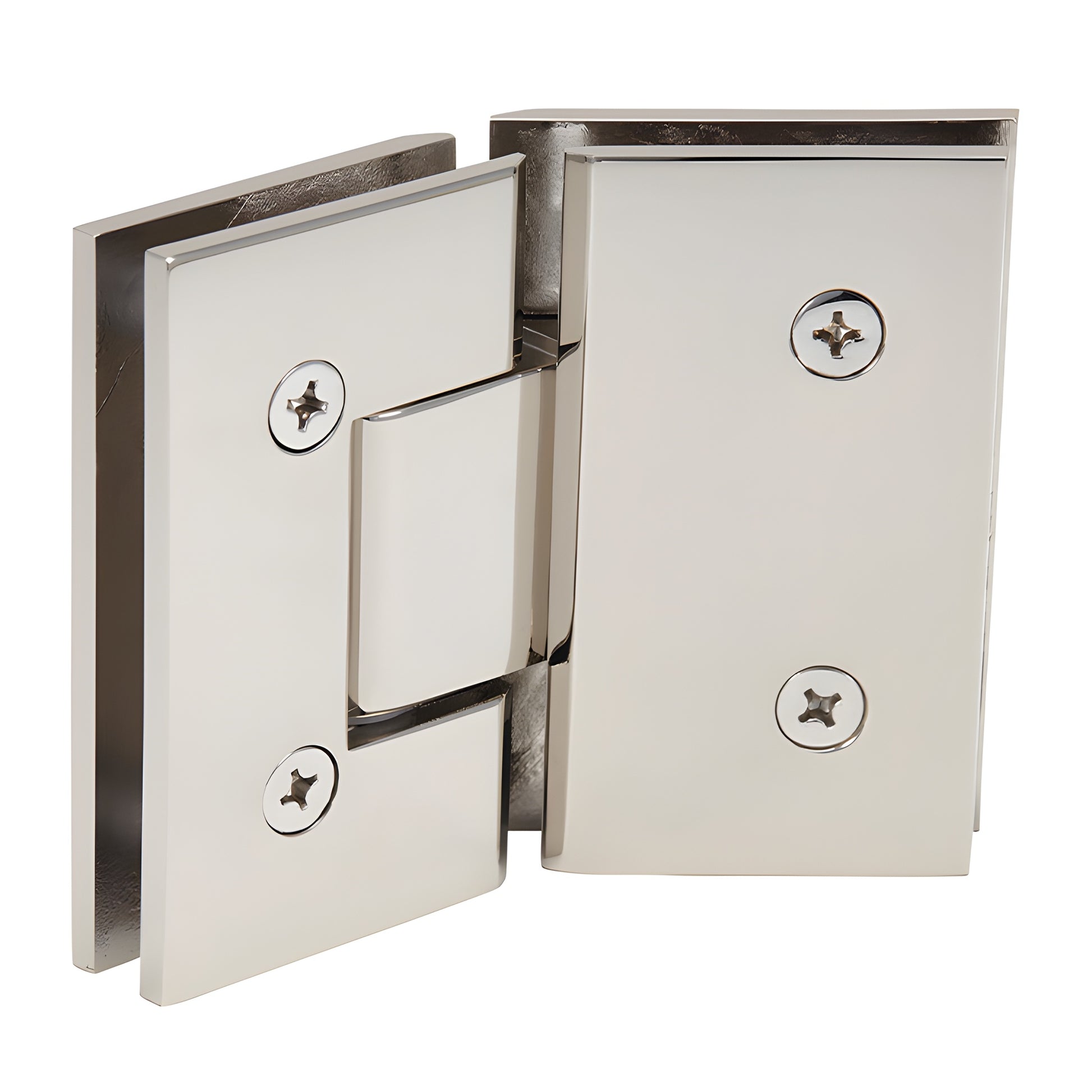

CRL Vienna 045 135° Polished Nickel Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 135° glass-to-glass hinge for frameless shower doors
• Use monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E045PN) are engineered for wider, heavier frameless shower doors when standard hinges are not strong enough. Internal dual steel pins provide two template options: leave pins in for compatibility with CRL "mouse-ears" cut-outs to protect small-radius corners, or remove the pins for greater adjustability and fit to rectangular, square-corner cut-outs (may fit some competitive cut-outs). Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship pre-set to 85° for a 5° tighter closure into the shower. Rotate the pin (do not flip) to change the active side. Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify angle up to 45°) when the standard 5° offset does not achieve the desired door closing position. Load Capacity:

• Two hinges with 3/8"–1/2" glass hold up to 110 lbs (50 kg), max door width 36" (914 mm)
• Three hinges with 3/8"–1/2" glass hold up to 140 lbs (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (dual swing)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Yes — except V1E092 (requires door cut-out plus two holes for fixed panel)

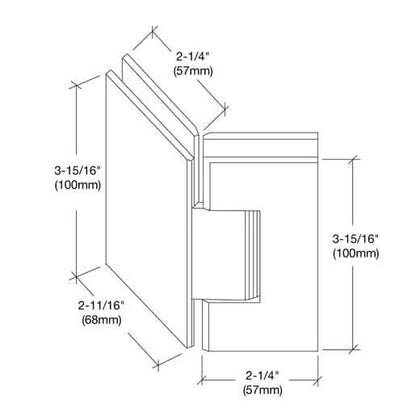

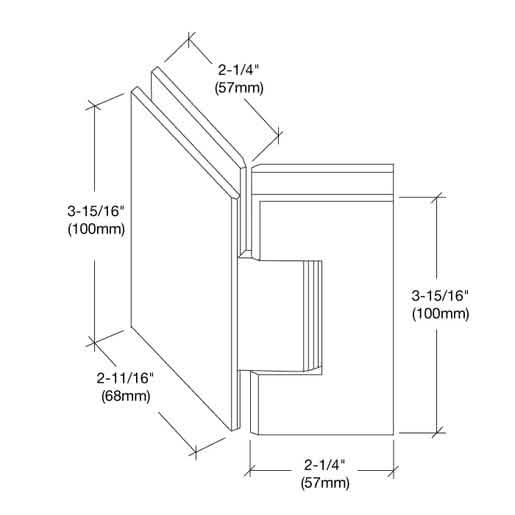

Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
Custom finishes are available on request. Contact CRL Technical Sales — Shower Door Department for custom finish or custom pivot pin inquiries. Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — CRL cut-out dimensions may not match other brands.
