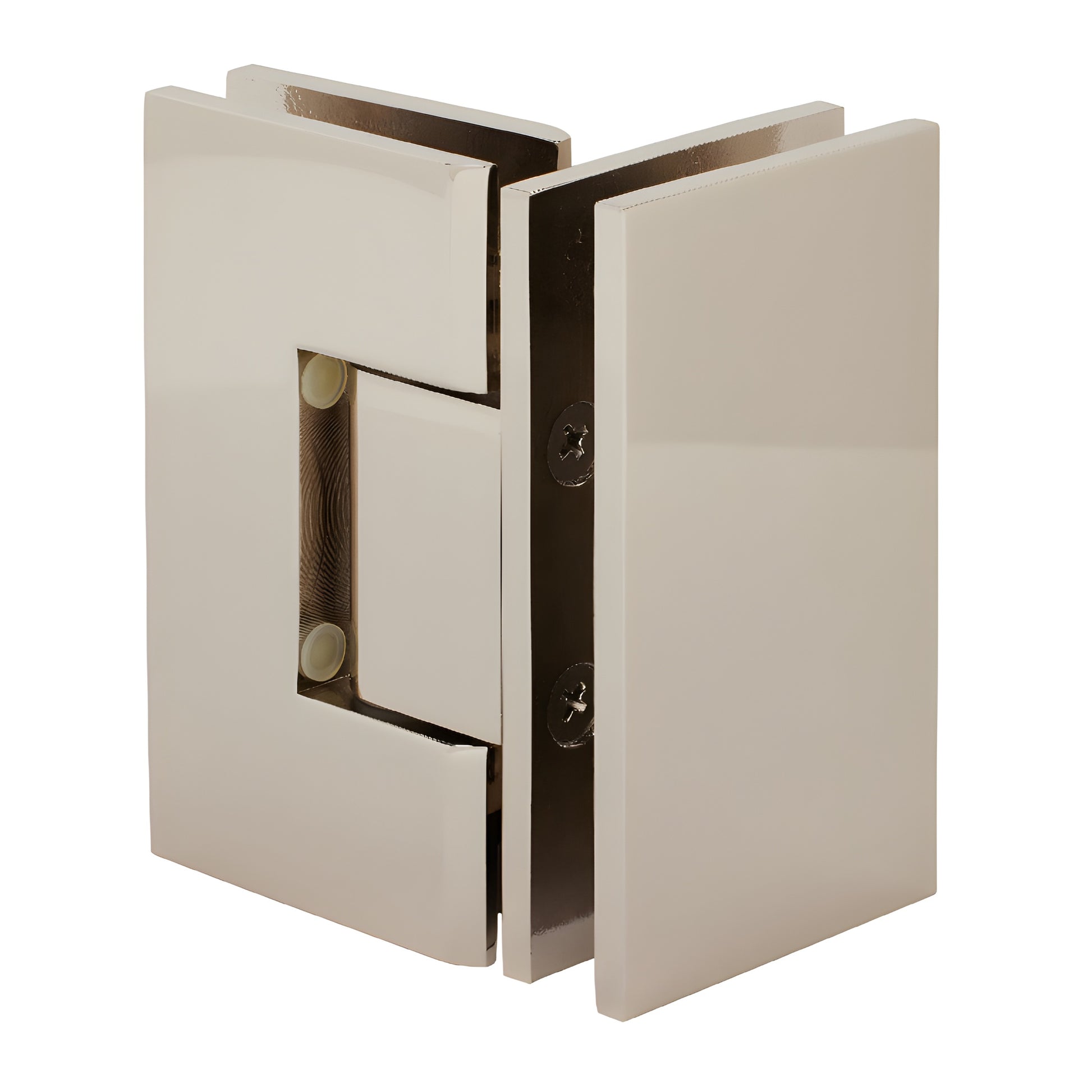

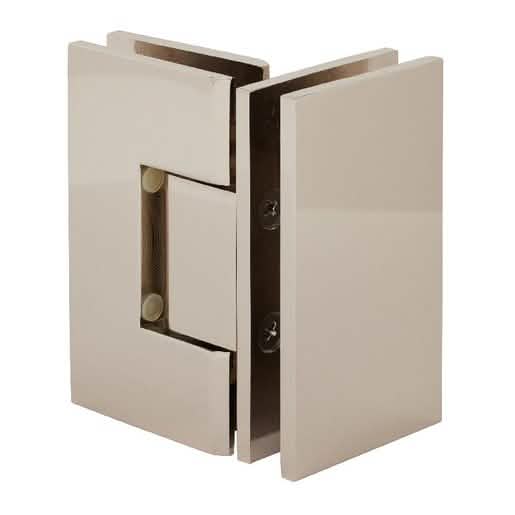

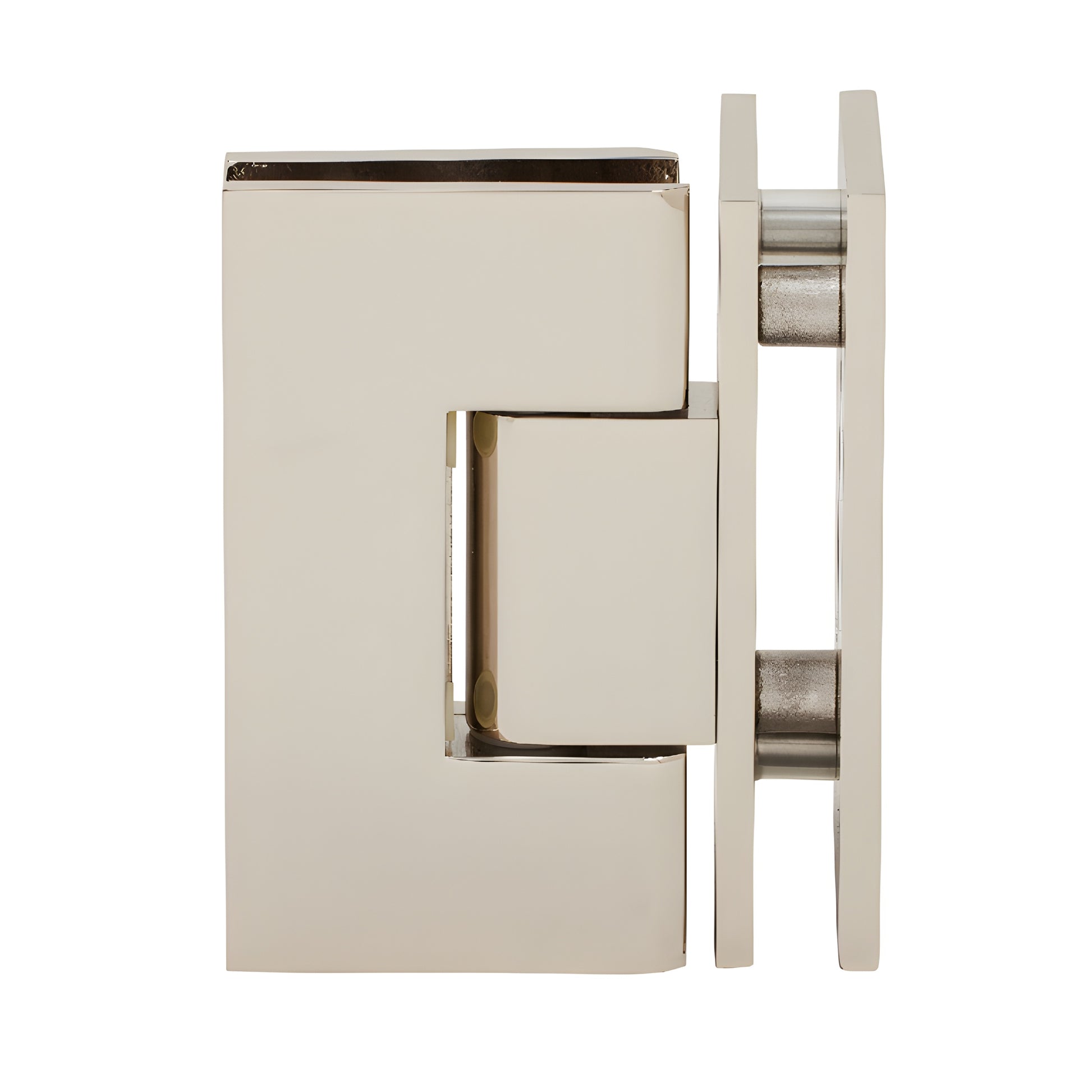

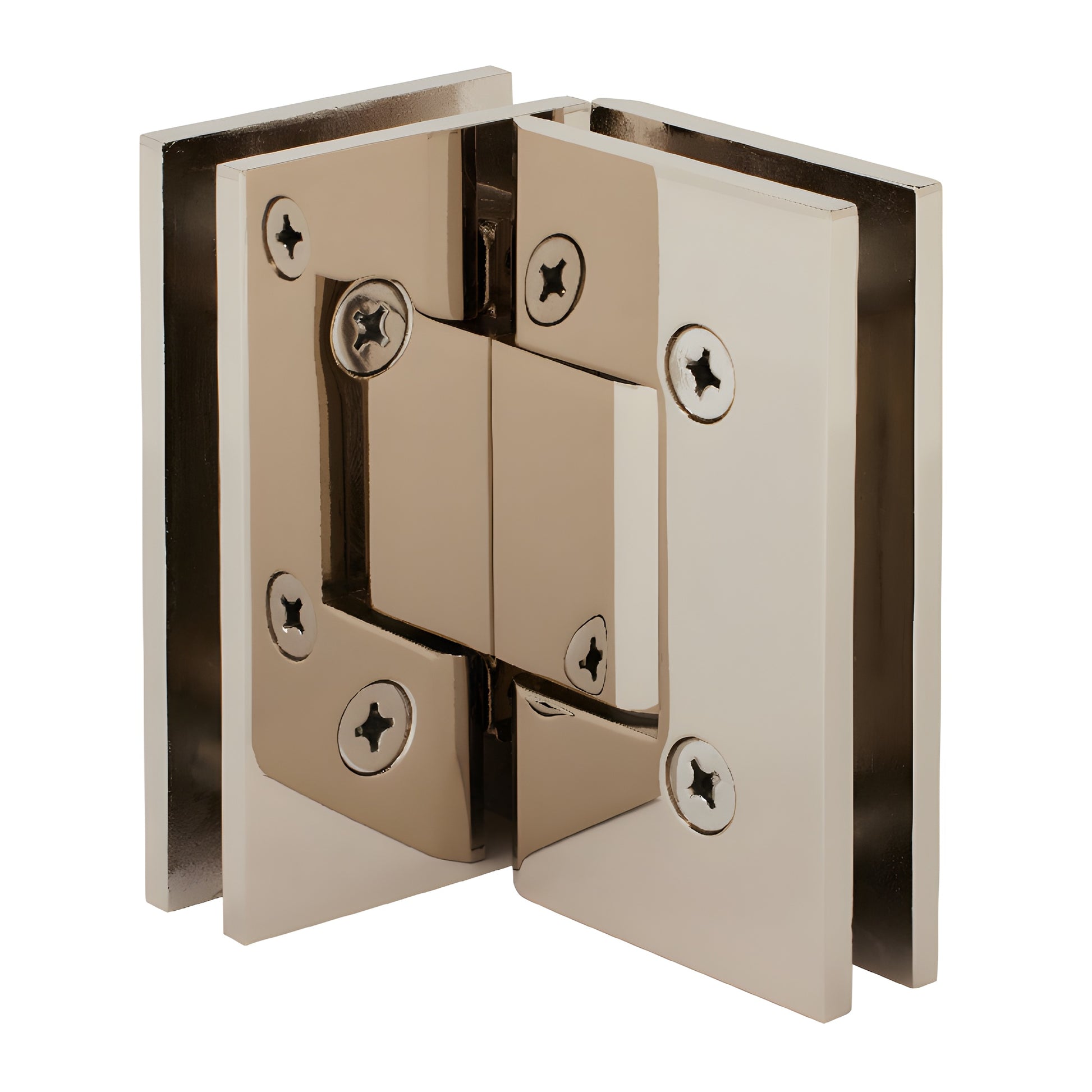

CRL Vienna 092 Polished Nickel 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• 90° glass-to-glass hinging for frameless shower doors
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E092PN) are engineered for wider, heavier frameless shower doors when conventional hinges lack strength. Two internal steel pins provide mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs (recommended for added safety), or remove them for increased adjustability to fit CRL rectangular, square-corner cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Available for off-angle installations (specify the needed angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY:

• Two hinges (3/8"–1/2" glass): holds up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): holds up to 140 lbs (63 kg); maximum door width 36" (914 mm)

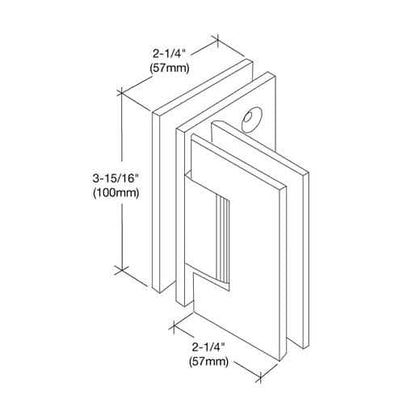

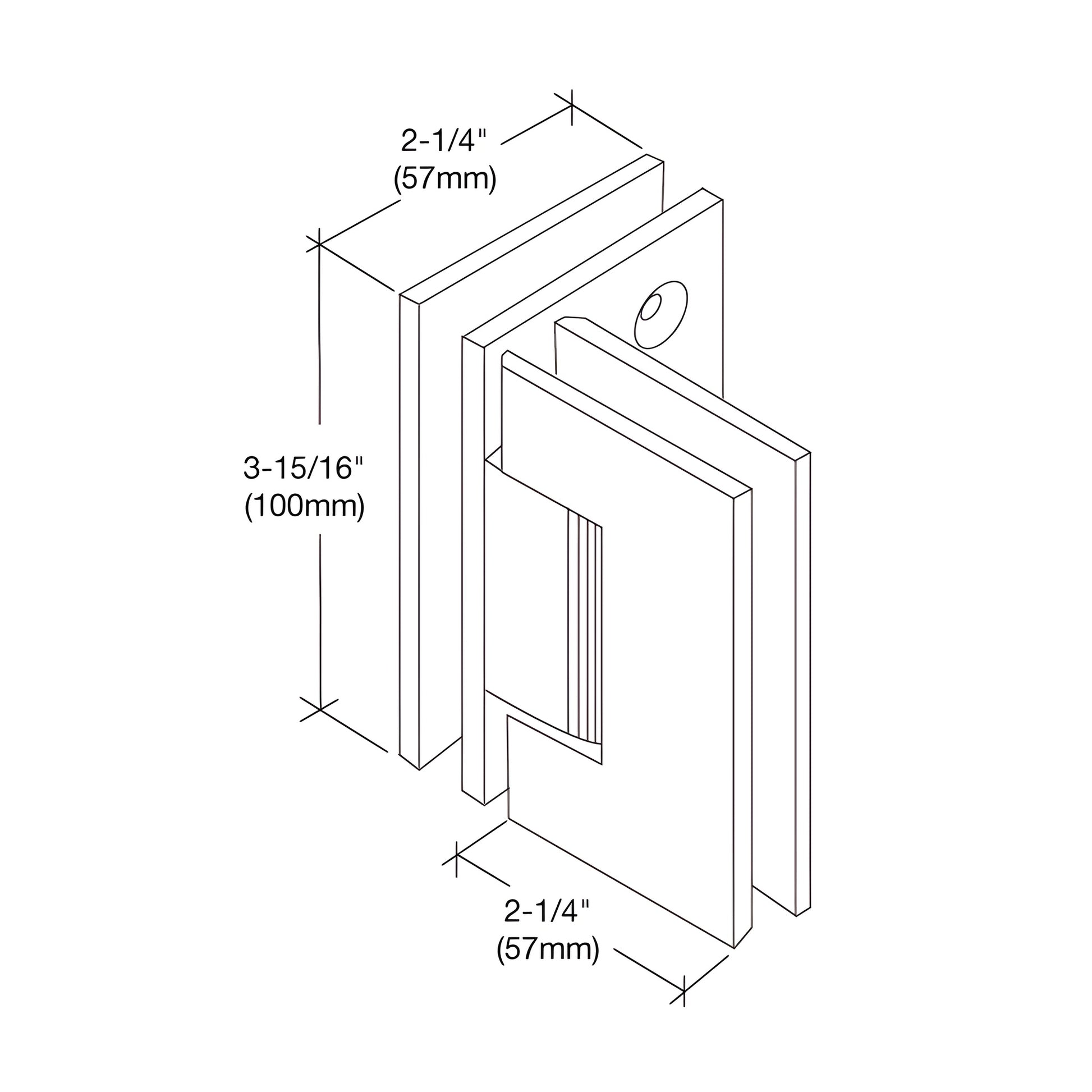

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (glass-to-glass)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical assistance are available from the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
