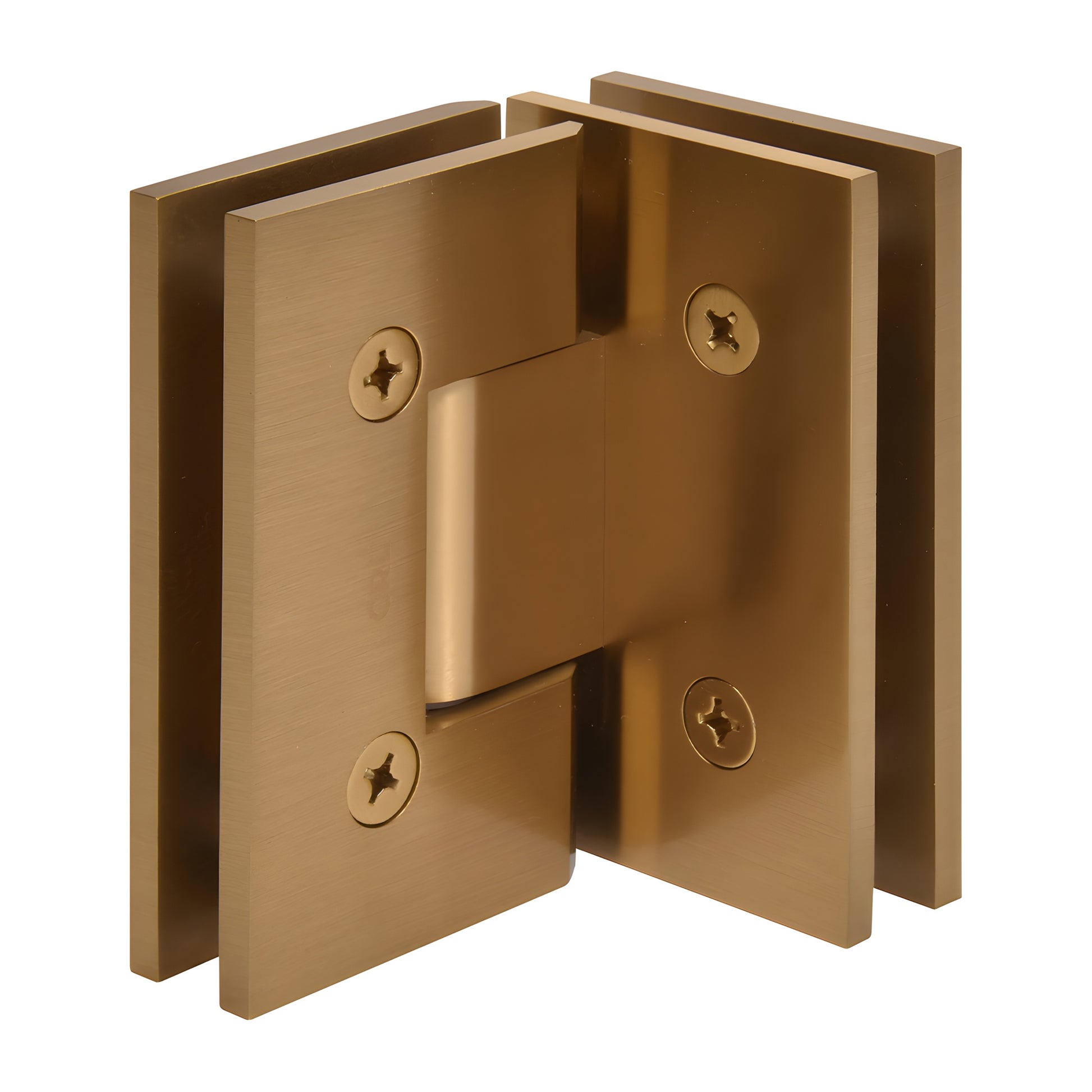

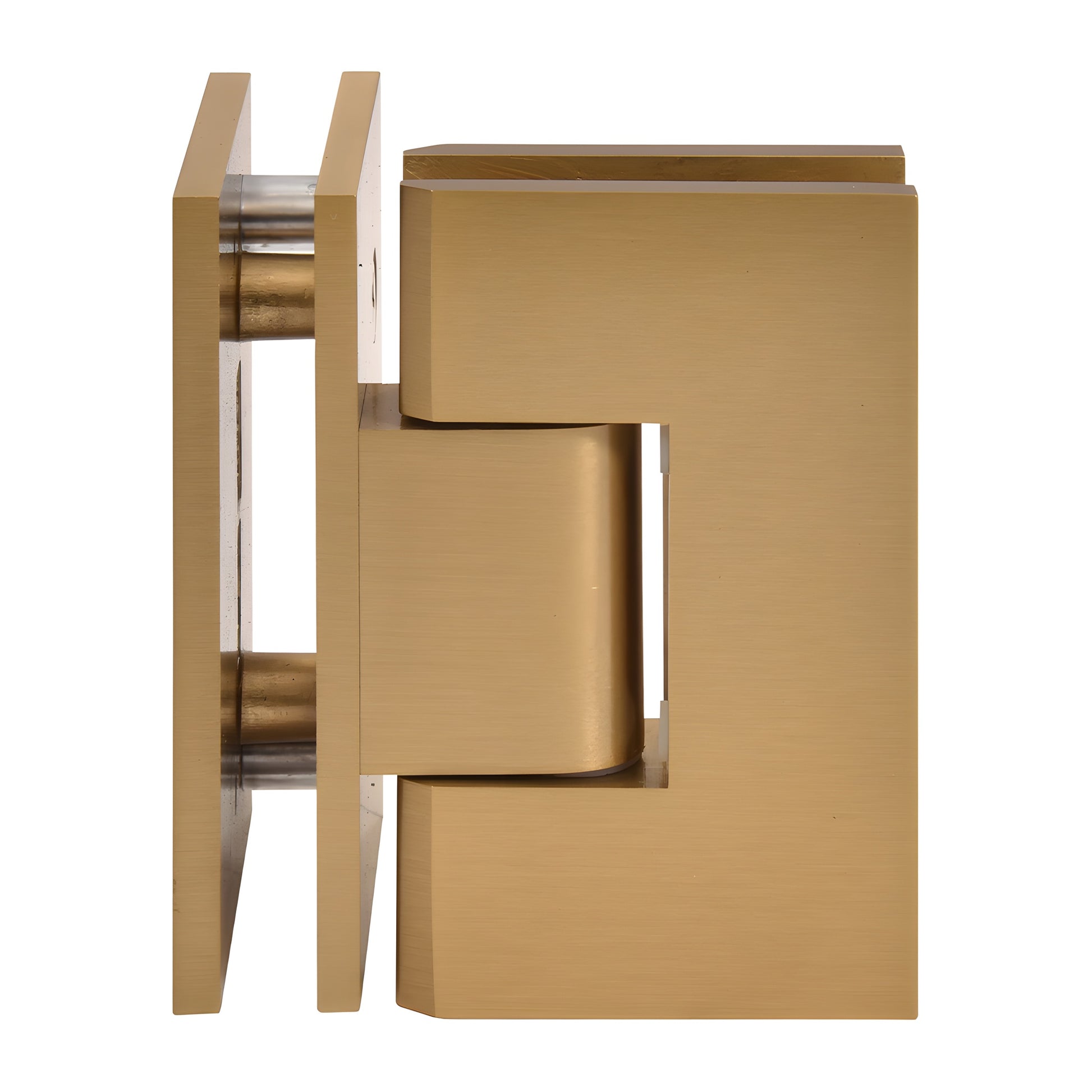

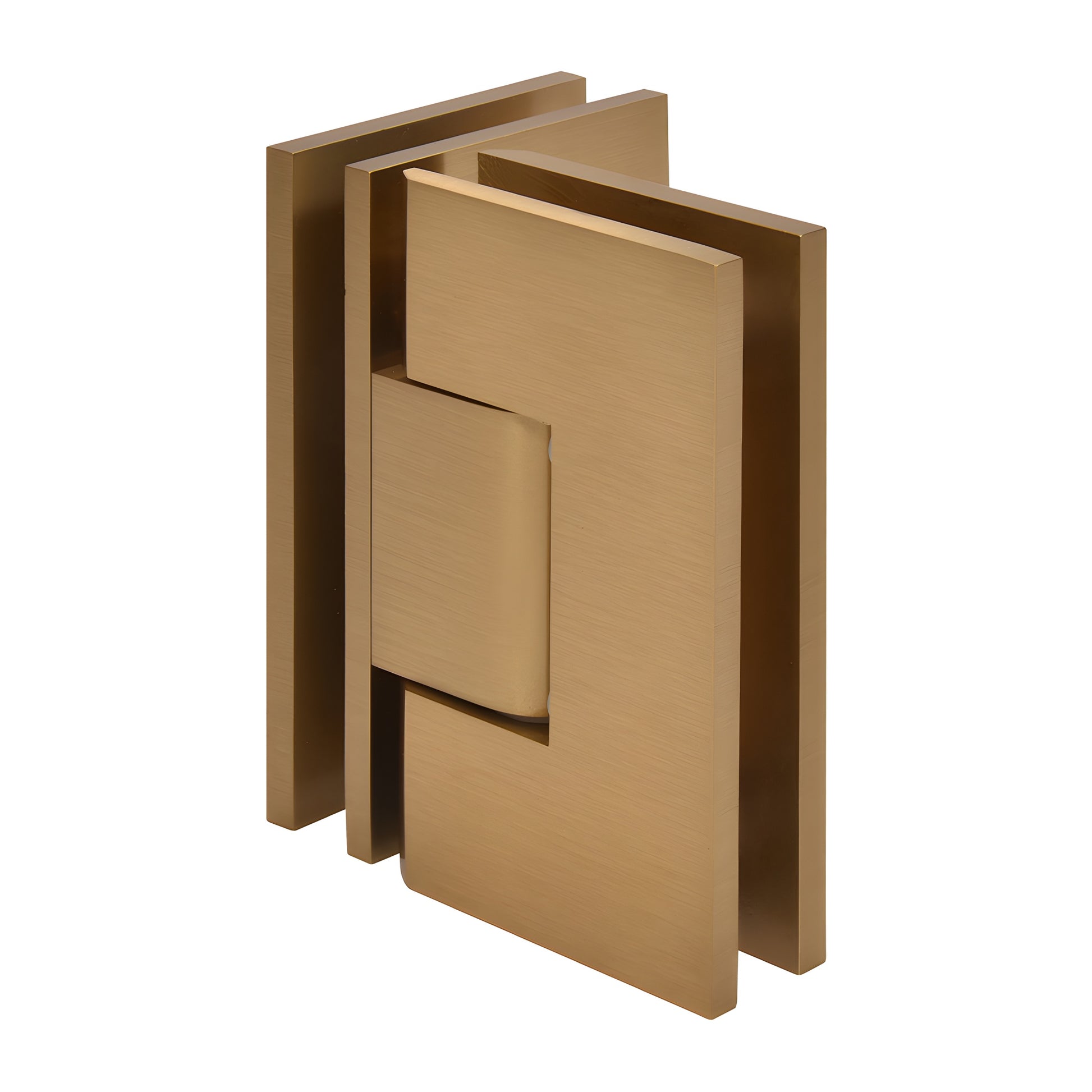

CRL Vienna 092 Gold 90° Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 3 year warranty
• 90° glass-to-glass shower hinge
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E092MG)—heavy-duty shower door hinges designed for wider, heavier glass doors where standard hinges fail. Solid brass construction with concealed dual steel pins provides two template options: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and to fit rectangular, square-corner cut-outs (including some competitive patterns).

Key features & differentiators:

• Solid brass construction for corrosion resistance and long life — ideal as a brass glass shower hinge for coastal or high-humidity bathrooms
• Reversible pivot pin with 90° and 85° settings for standard or tighter closure
• Optional custom pivot pins available up to 45° for off-angle installations
• Includes gaskets, screws, and glass fabrication dimensions for accurate glass shower hinge installation

Load capacity

• Two-hinge installation (3/8"–1/2" glass): up to 110 lb (50 kg); max door width 36" (914 mm)
• Three-hinge installation (3/8"–1/2" glass): up to 140 lb (63 kg); max door width 36" (914 mm)

Specifications

• Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
• Construction: solid brass
• Hinge swings: 90° in and 90° out (glass-to-glass 90°)
• Closing type: self-centering within 15° of closed position
• Cut-out required — except V1E092 which requires cut-out for door and two holes for fixed panel
• Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales Shower Door Department for custom brass finishes or specific finish matches.

Installation & safety

• Use monolithic tempered glass only
• Use only the template included with this hinge; CRL cut-outs may differ from other brands
• Designed for residential or hotel shower use; for other applications, obtain approval from CRL Shower Door Technical Sales Department
