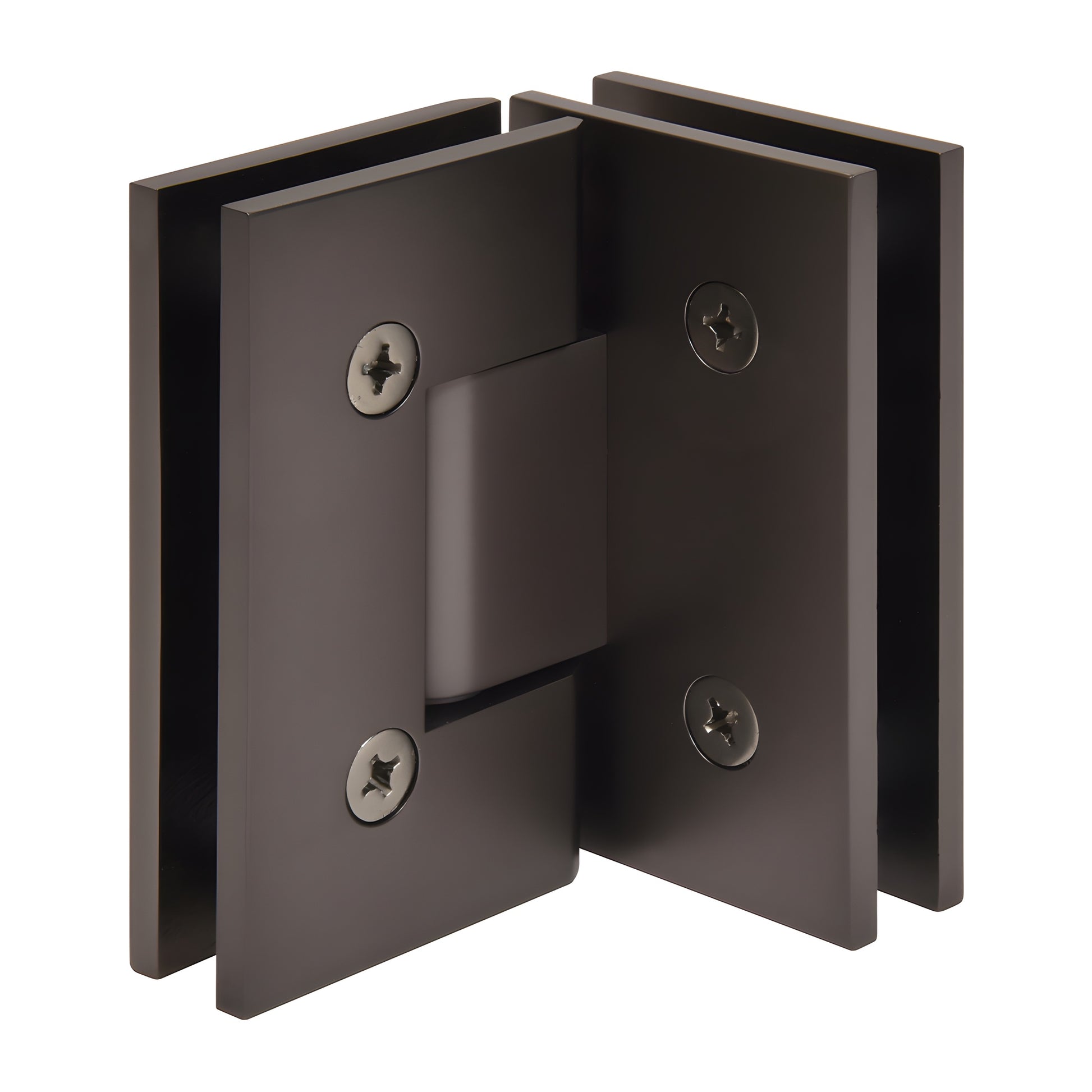

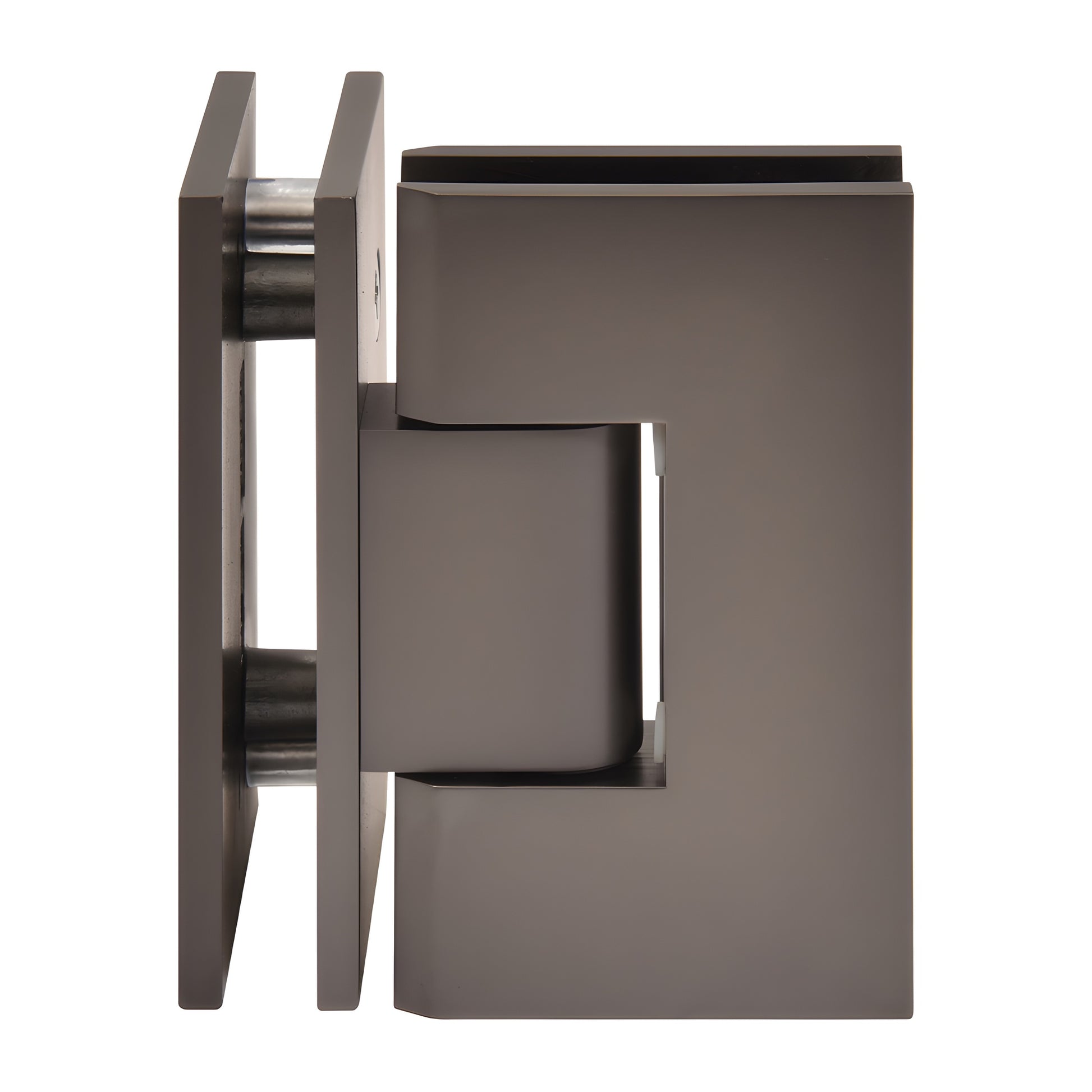

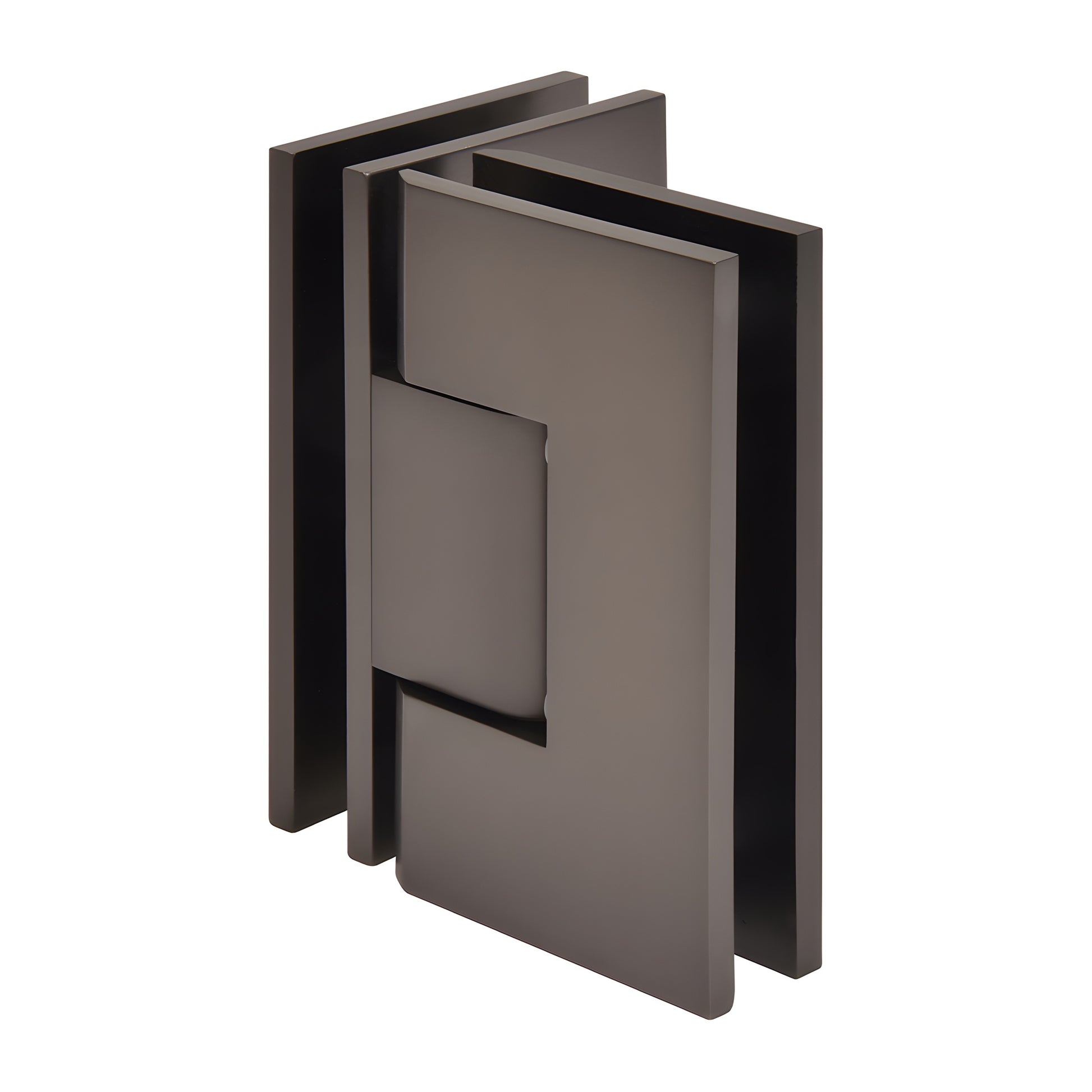

CRL Vienna 092 Matte Gun Metal 90 Degree Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 Year Warranty
• 90° glass-to-glass shower hinge for frameless doors
• Use with monolithic tempered glass

CRL Vienna Hinges are a heavy-duty brass shower door hinge engineered for wider, heavier frameless glass doors when traditional hinges aren’t strong enough. Two internal steel pins provide template options: leave both pins in place to use CRL “mouse-ears” cut-outs for added safety, or remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs — and in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin with 90° marked on one side and 85° on the other. Standard models ship with 90° activated. Pre-set models ship at 85° (5° tighter closure into the shower interior). Rotate the pin to change the setting.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment does not achieve desired door closure.

Load Capacity
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

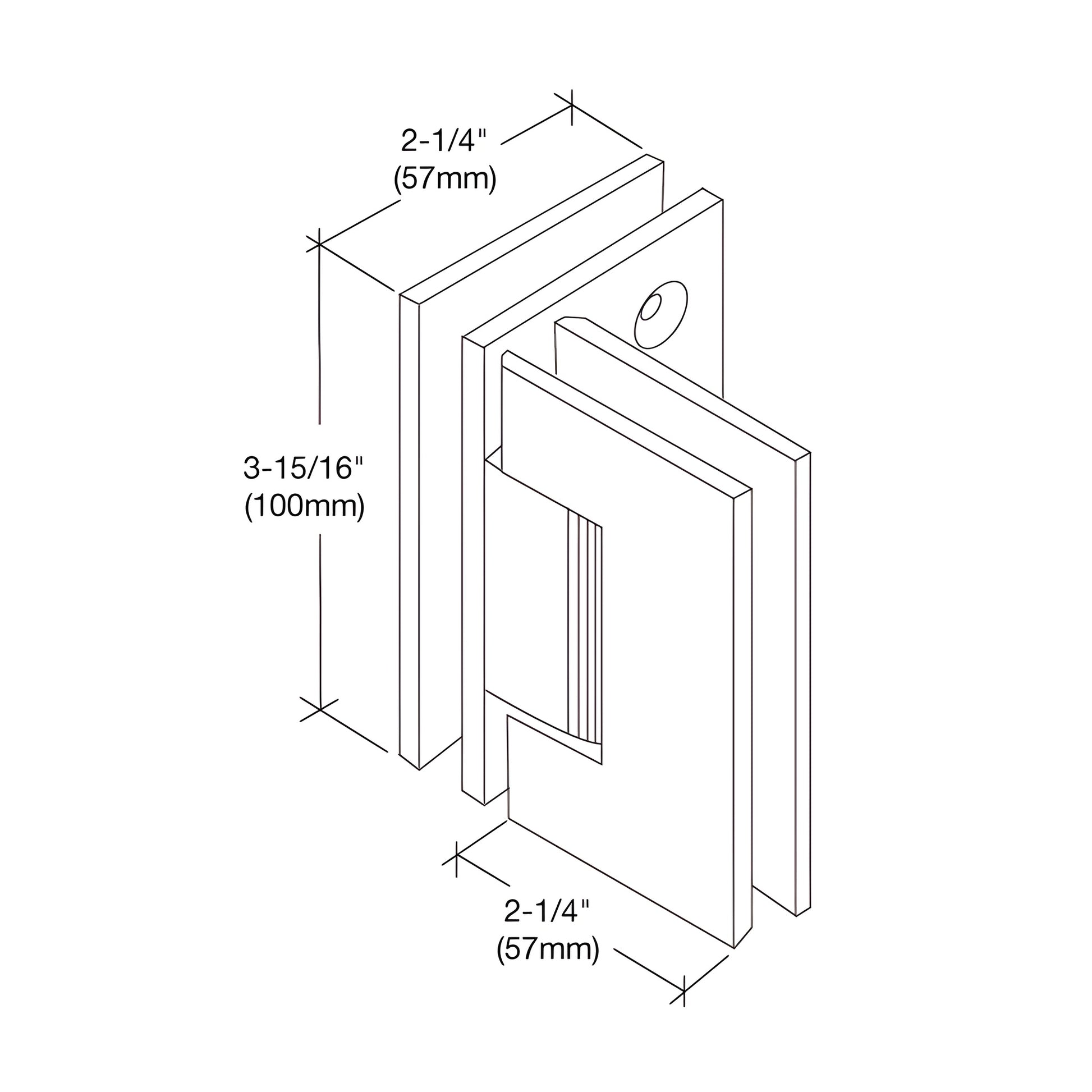

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass heavy-duty hinge body
Hinge Swings: 90° in and 90° out (glass-to-glass 90° applications)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 — which requires cut-out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from
