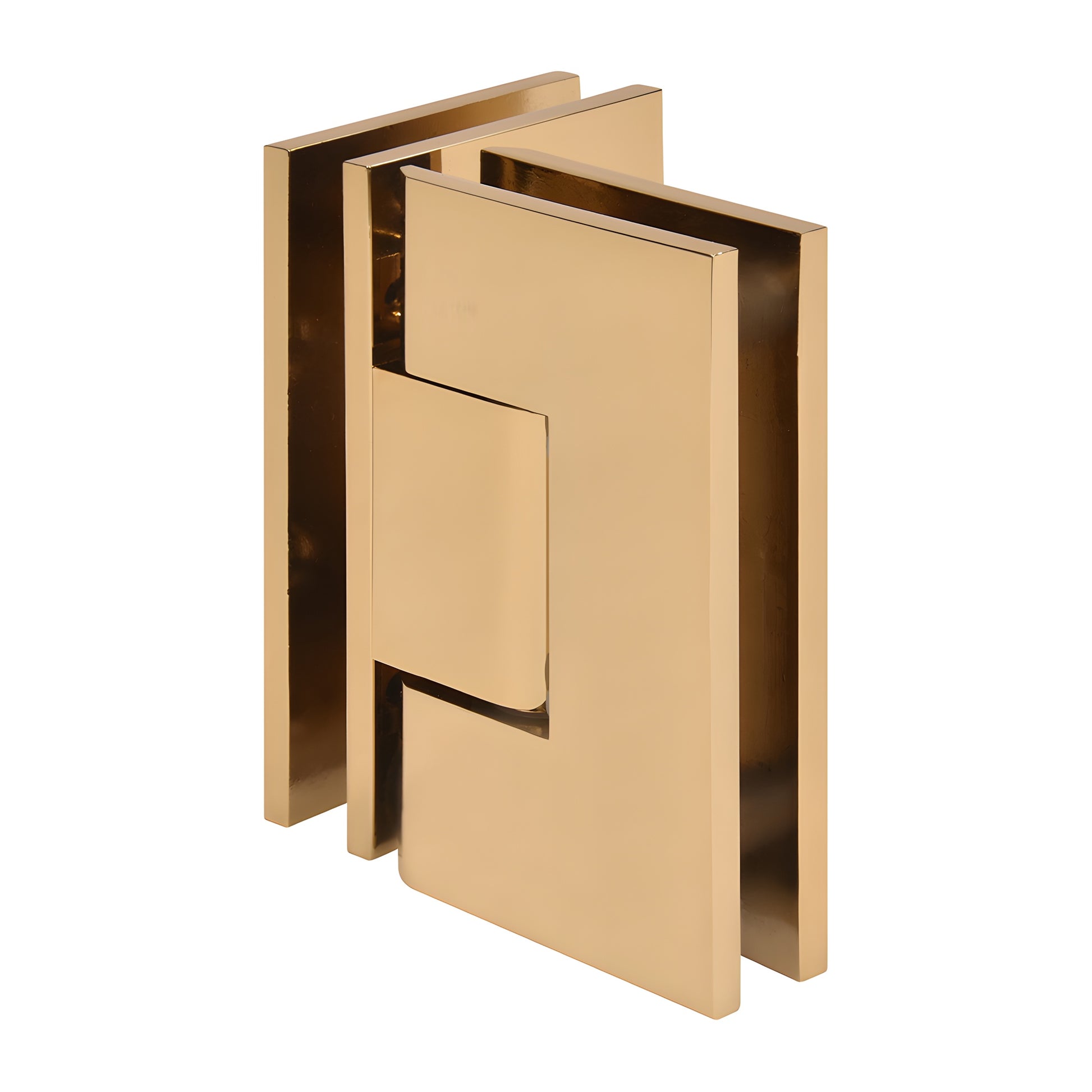

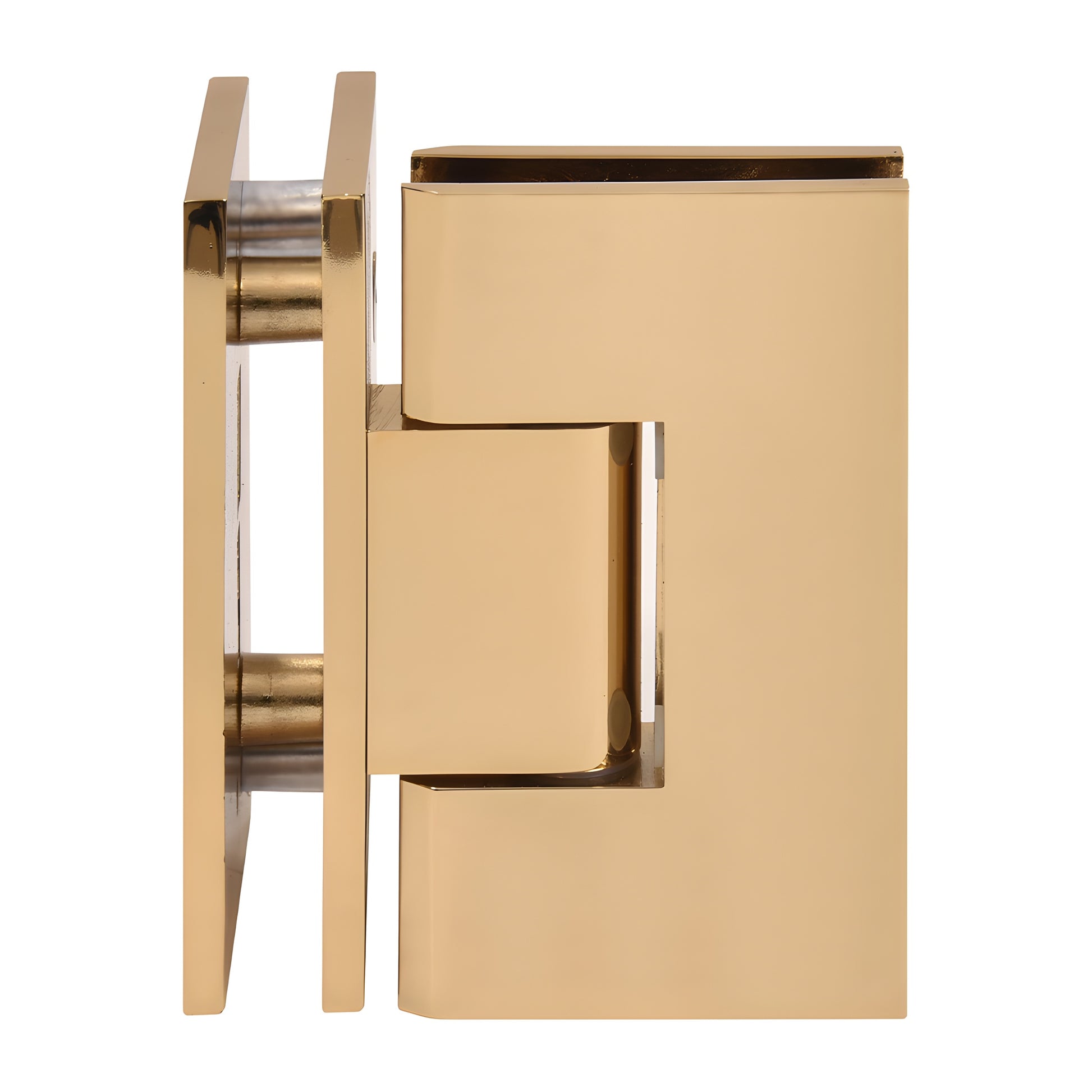

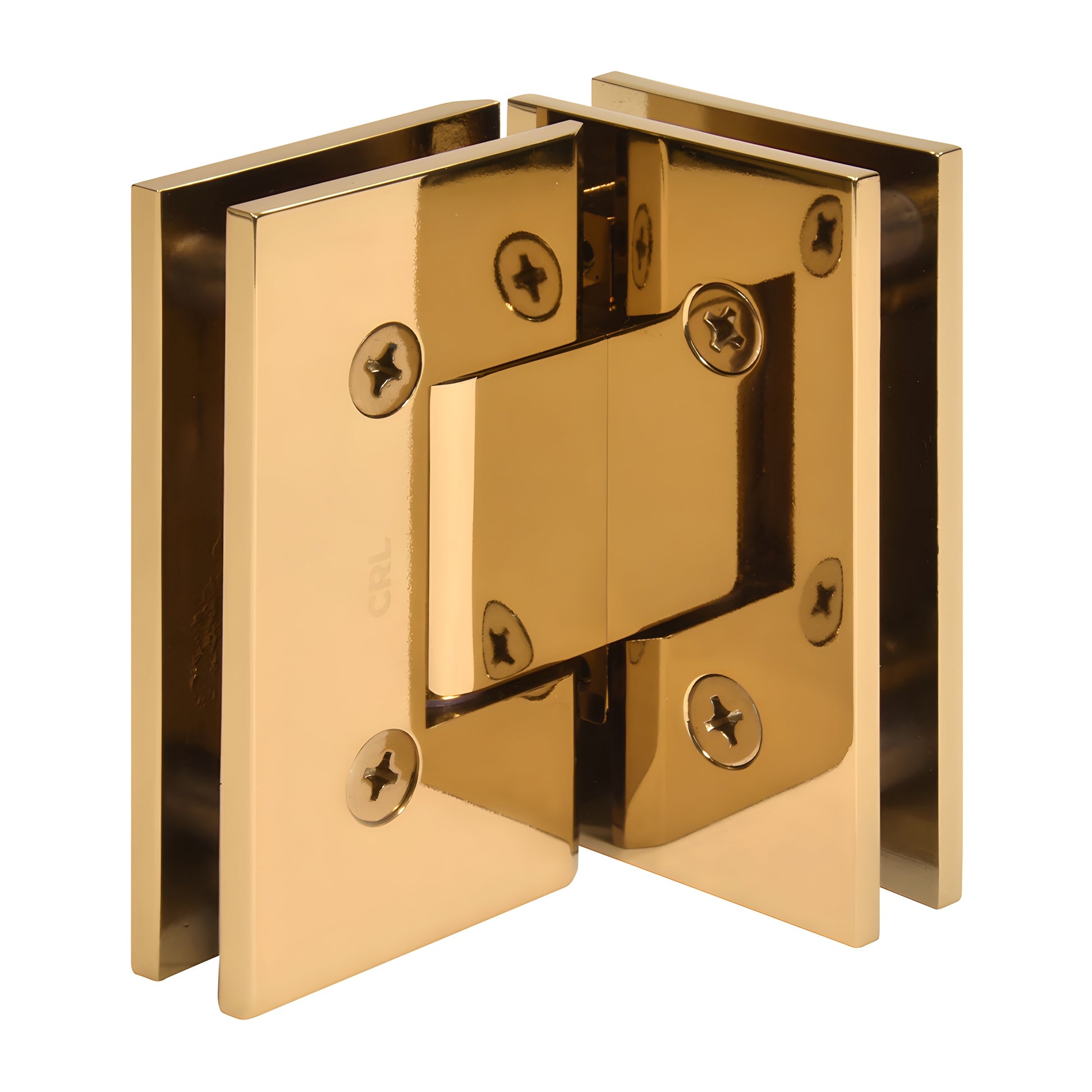

CRL Vienna 092 90° French Gold Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes (custom finishes on request)
• 3 year warranty
• 90° glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E092FG) are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors that standard hinges cannot support. Internal dual steel pins provide two template/mounting options: leave both pins in place to use CRL "mouse-ears" cut-outs for added safety, or remove the pins for increased adjustability and compatibility with CRL rectangular, square-cornered cut-outs (may fit some competitor cut-outs).

Standard reversible pivot pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; pre-set models ship at 85° (5° tighter closure into the shower). Rotate the pin (do not flip) to change the setting.

Custom pivot pin: Custom pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° does not achieve the desired closure.

Load capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass, supports up to 110 lb (50 kg) with a maximum door width of 36" (914 mm). Using three hinges, supports up to 140 lb (63 kg) with the same maximum width.

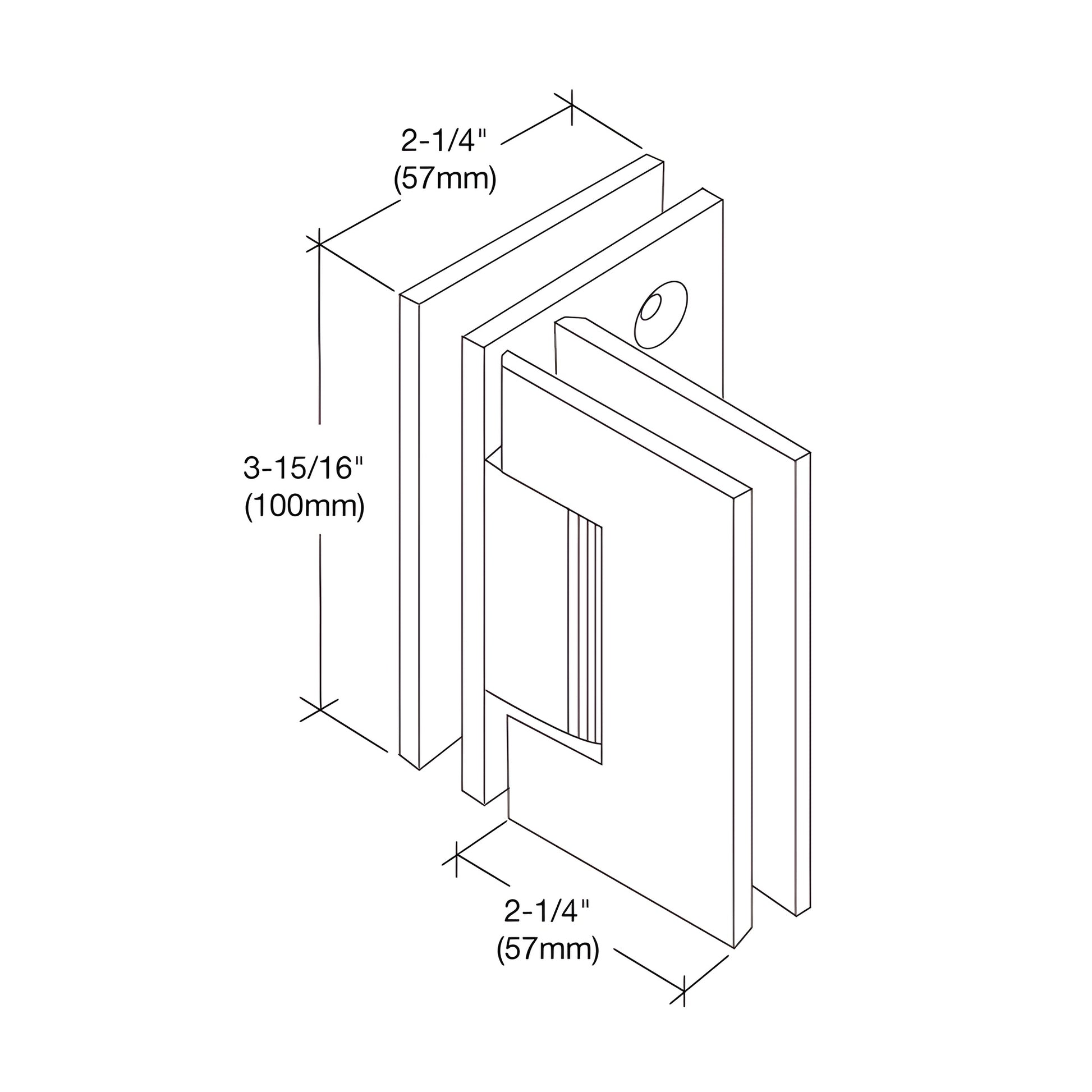

Specifications:
Glass thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable, corrosion-resistant hardware for shower doors)
Hinge swings: 90° in and 90° out (self-centering within 15° of closed)
Cut-out required: All models require panel cut-outs. Except V1E092 — requires cut-out for door plus two holes for fixed panel.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available — contact CRL Technical Sales, Shower Door Department.

Product warning:

CRL shower door hinges are designed for residential and hotel shower applications. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge — CRL cut-out dimensions may not match other brands.
