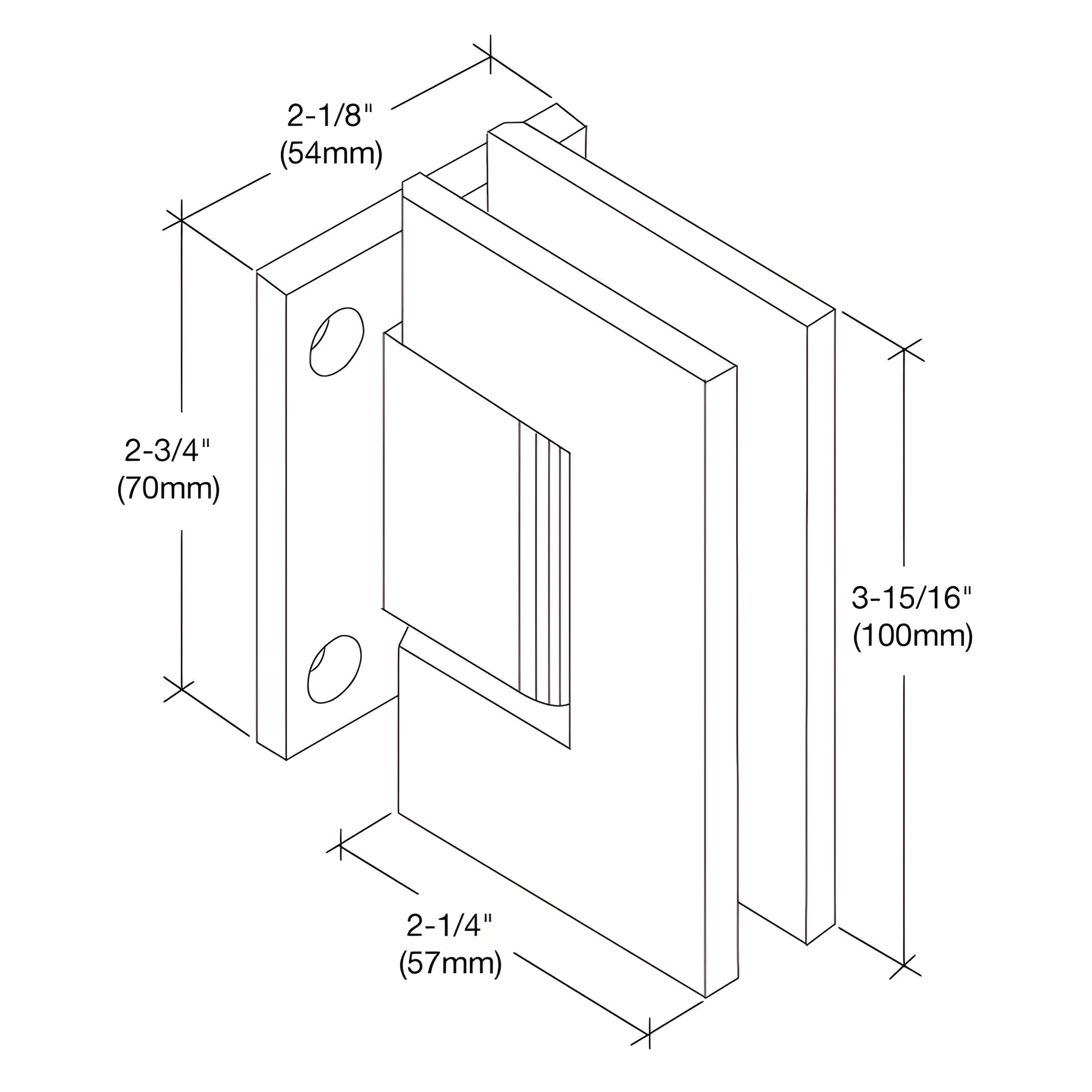

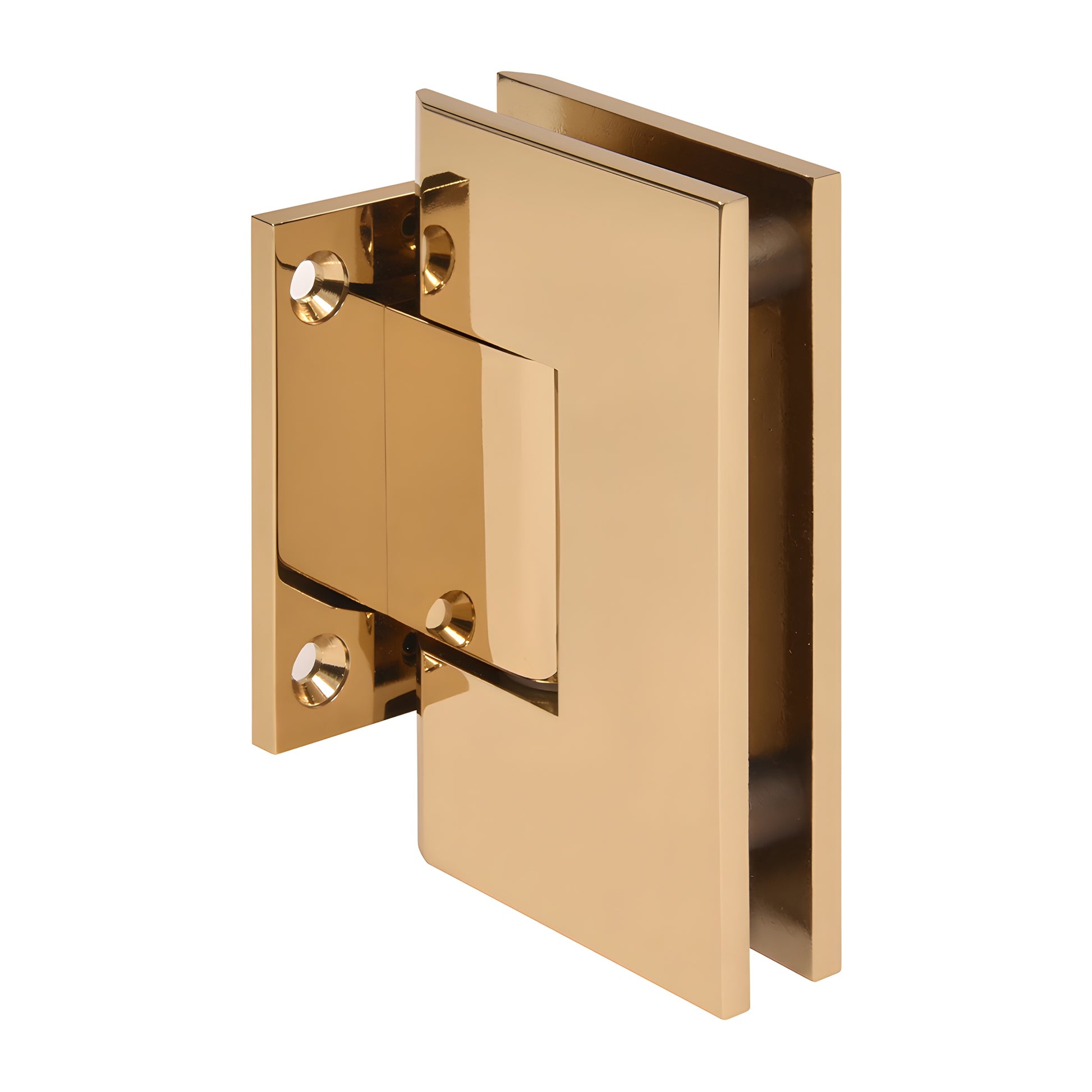

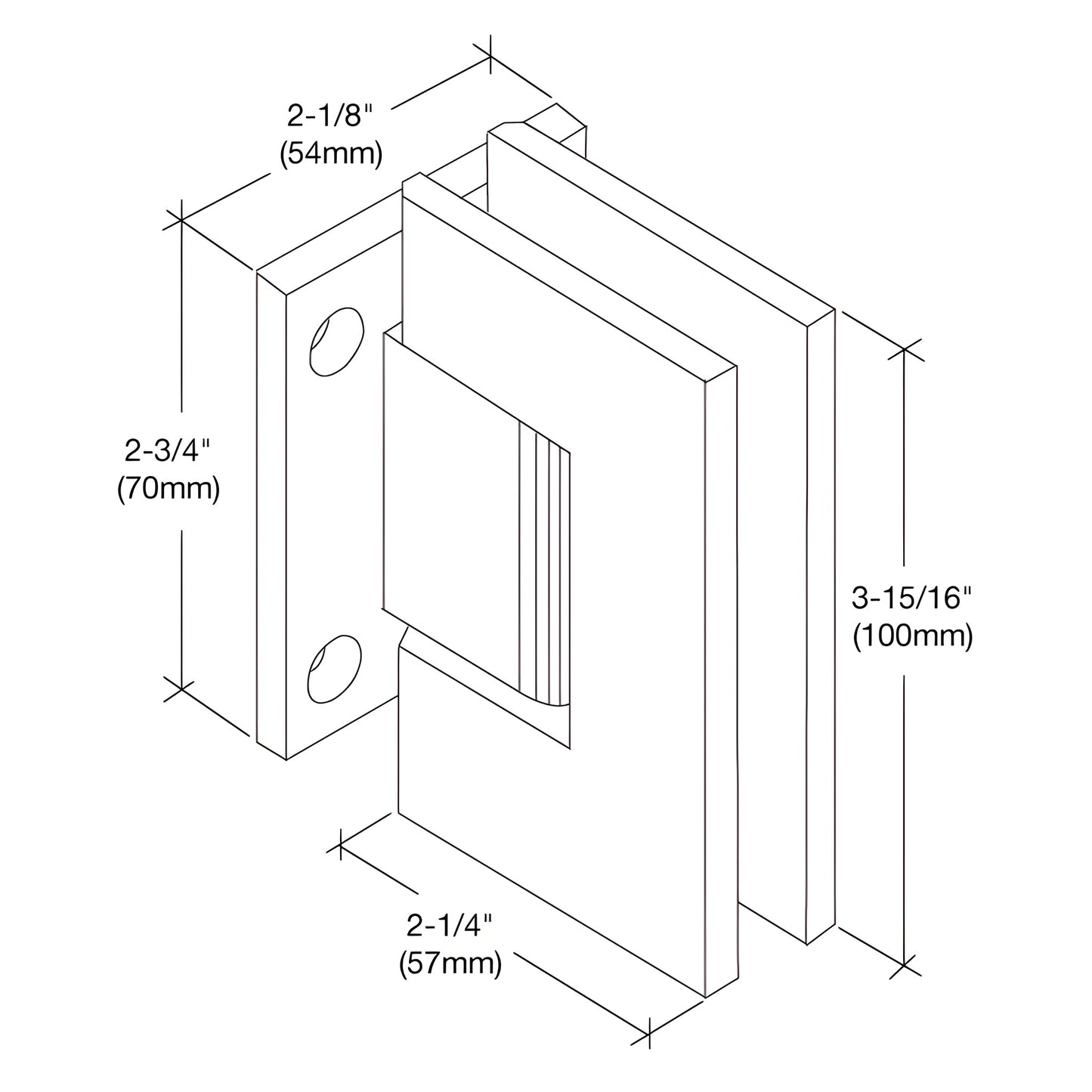

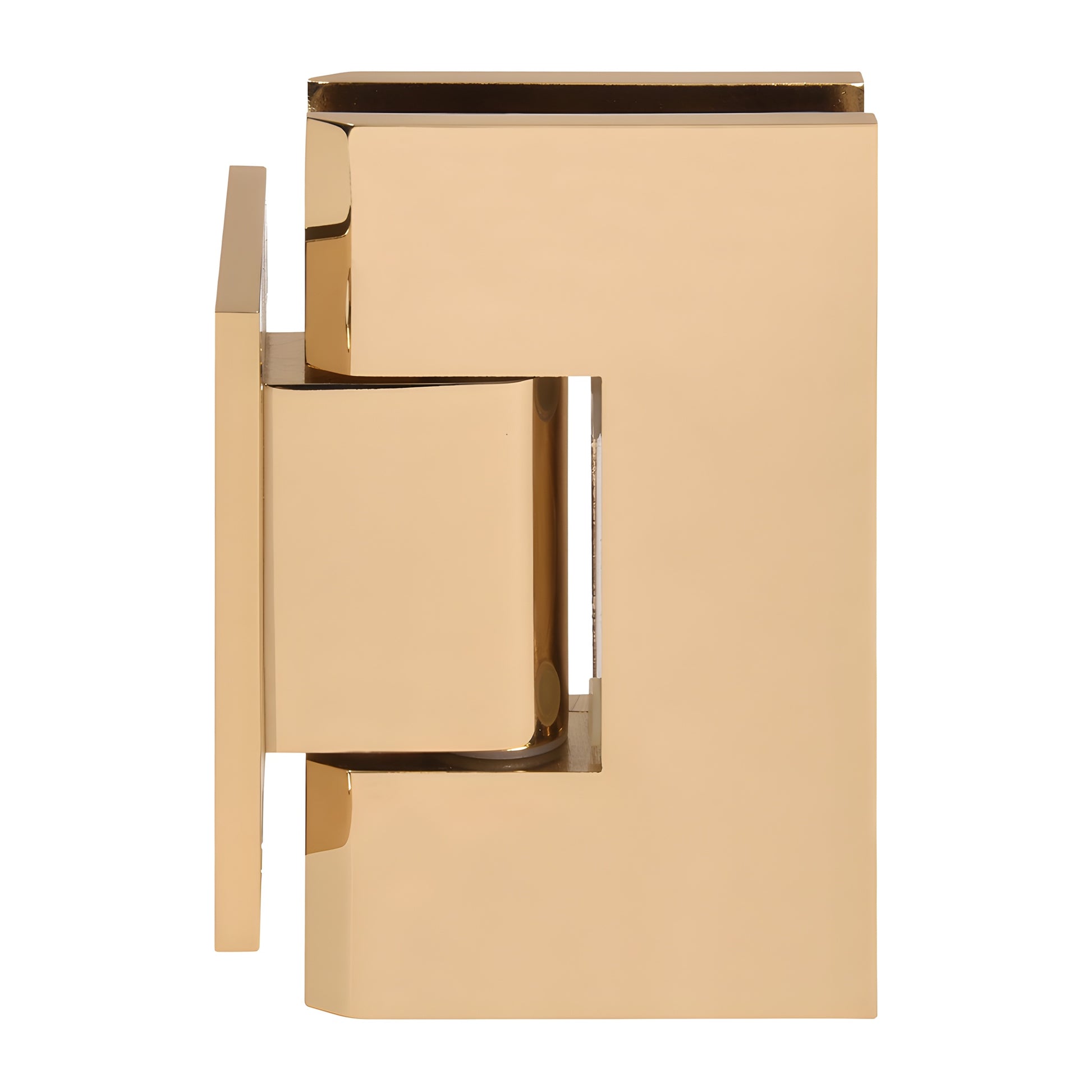

CRL Vienna 074 French Gold Wall-Mount Short Back Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable decorative finishes
• 3 Year Warranty

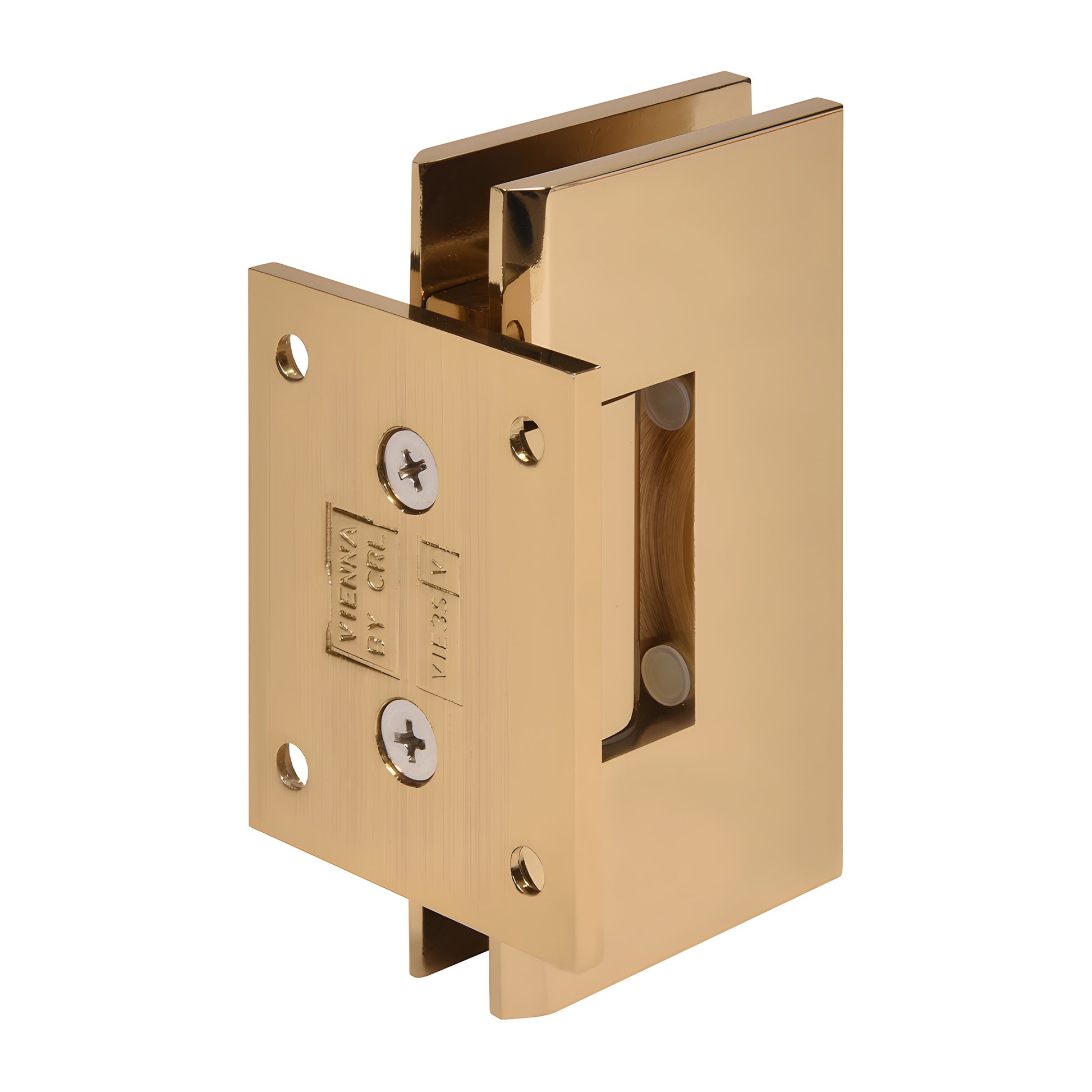

• Wall mount short back plate for streamlined installation
• Designed for monolithic tempered glass shower doors

CRL Vienna Hinges (SKU: V1E074FG) are heavy-duty brass shower door hinges engineered for wider, heavier frameless shower doors where standard hinges fail. Dual internal steel pins provide two mounting template options: leave both pins installed for compatibility with CRL “mouse-ears” cut-outs (increased safety around cut-outs), or remove the pins to increase adjustability and fit CRL rectangular, square-corner cut-outs—and in many cases compatible competitive cut-outs. Ideal long-tail keywords: brass shower door hinge for 3/8 to 1/2 inch glass, Vienna hinge for frameless shower doors, wall mount short back plate hinge.

Key Differentiators

• Solid brass construction for corrosion resistance and long service life
• Reversible pivot pin with 90° and 85° settings for adjustable closing torque
• Custom pivot pins available up to 45° for off-angle wall installations
• Includes gaskets, screws, and glass fabrication dimensions for accurate installation

Pivot Pin Options
Standard Reversible Pivot Pin: One side marked 90° (standard), opposite side 85° for a 5° tighter closure into the shower interior; pin may be rotated to change setting.
Custom Pivot Pin: Specify custom angle (up to 45°) to accommodate non-90° wall-to-door intersections.

Load Ratings & Maximum Door Widths
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

Specifications
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
