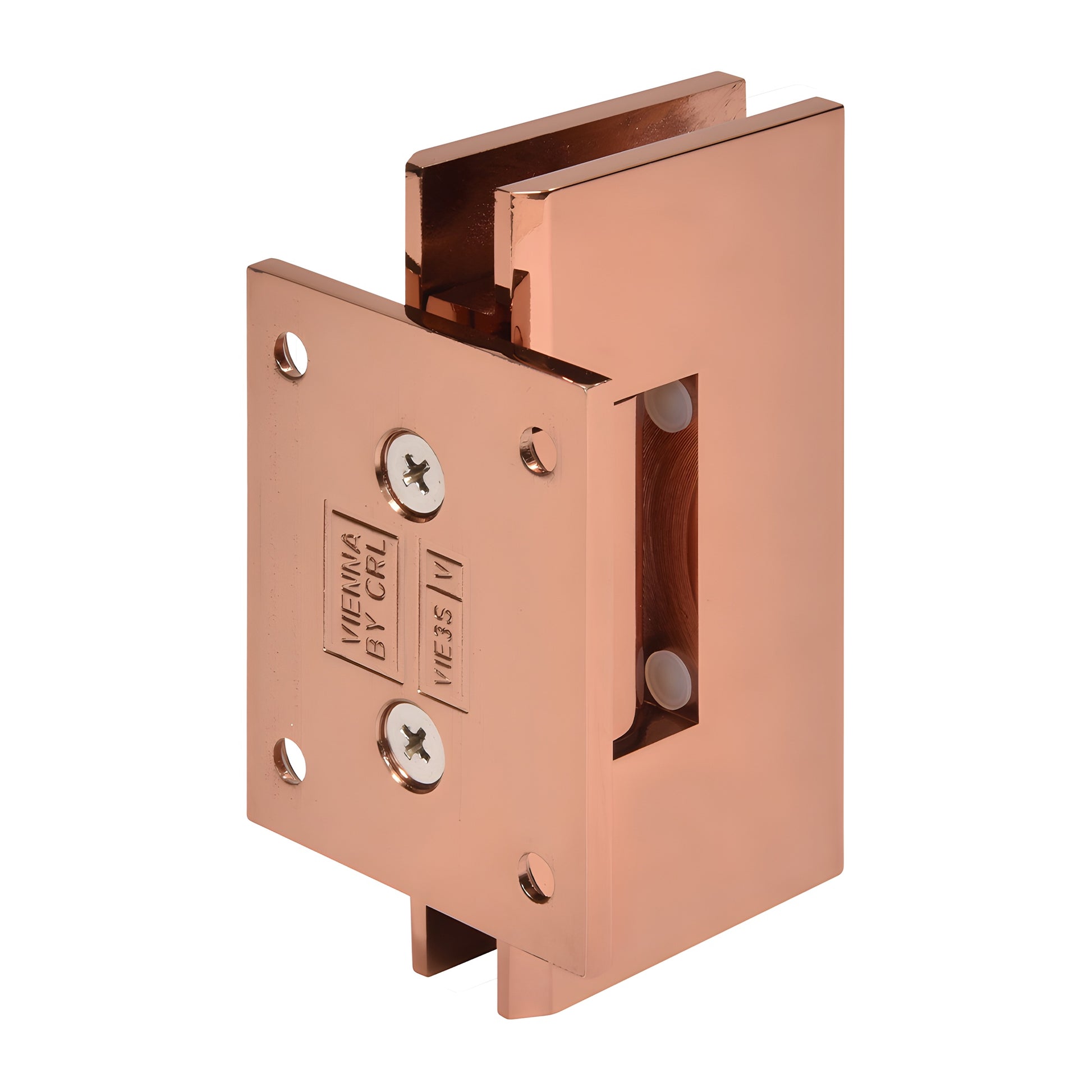

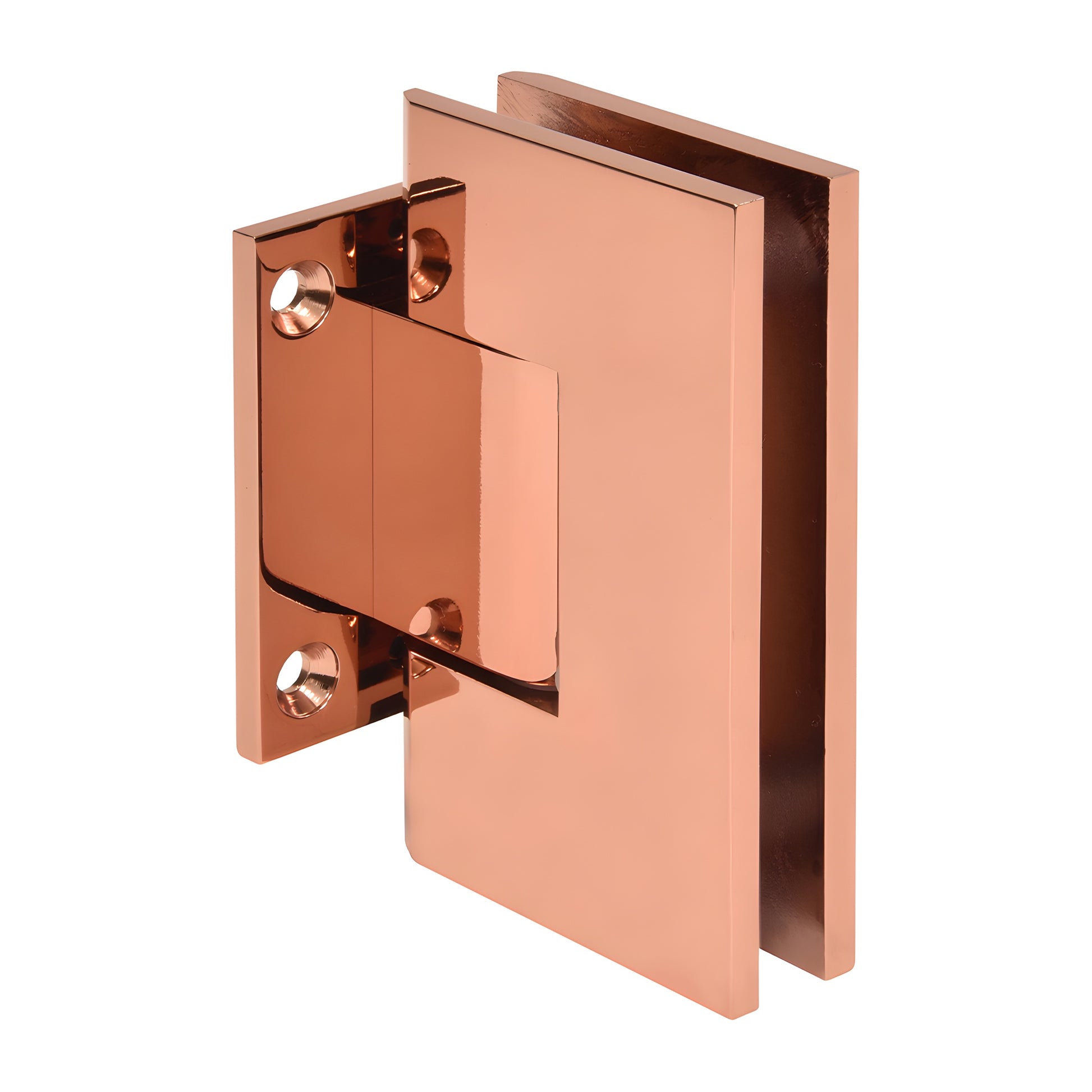

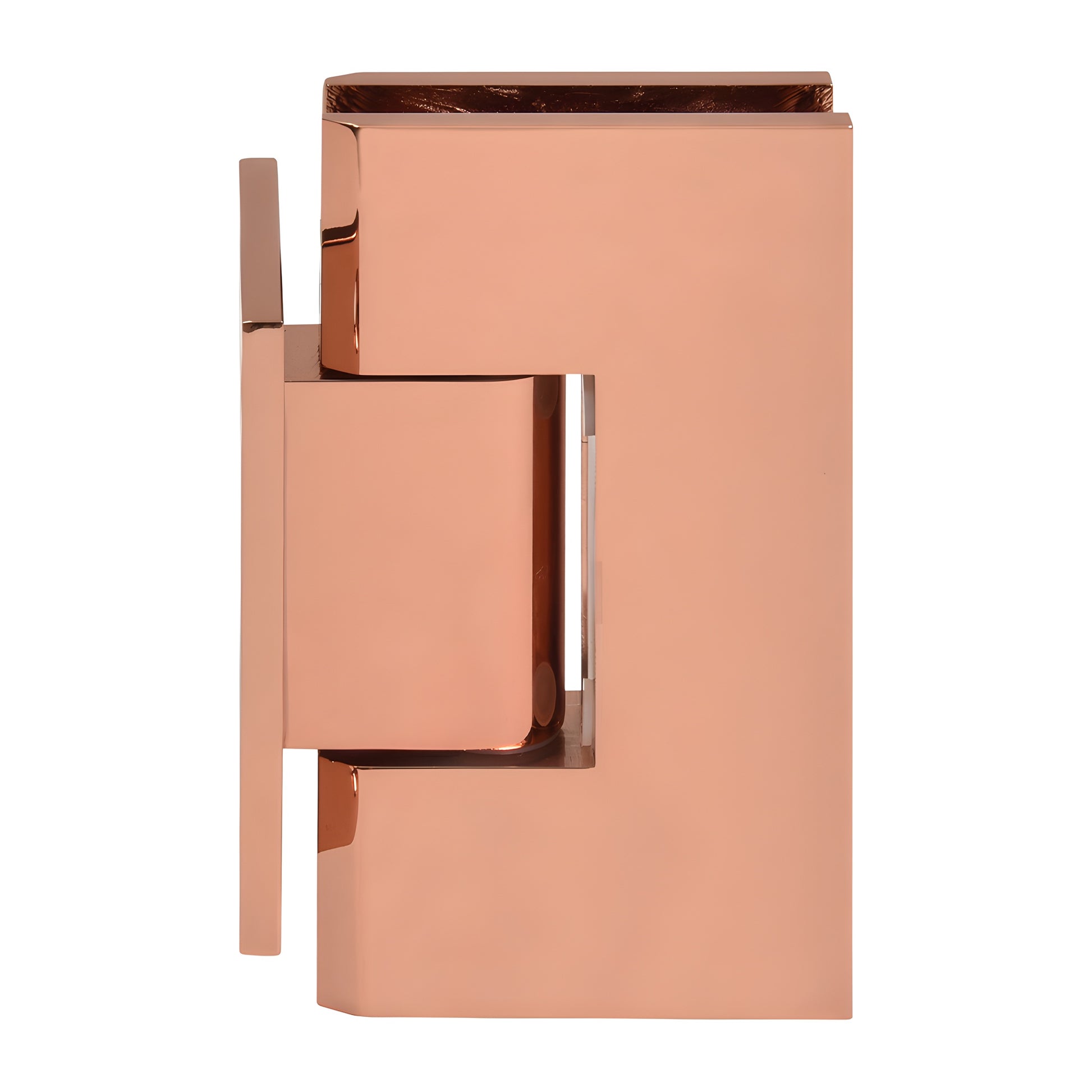

CRL Vienna 074 Rose Gold Wall-Mount Shower Hinge - Short Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (standard and custom finishes on request)
• 3 Year Warranty
• Wall mount short back plate
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E074RG) are heavy-duty shower door hinges engineered for wider, heavier glass doors where traditional hinges fail. Solid brass construction and dual internal steel pins provide two mounting template options: leave pins in for compatibility with CRL "mouse-ears" cut-outs for added safety, or remove pins for increased adjustability and compatibility with CRL rectangular square-corner cut-outs (and in some cases competitive rectangular cut-outs). Ideal as shower door hinges for frameless glass shower doors and custom glass enclosures.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin with a 90° side active on standard models and an 85° side available on pre-set models (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

Custom pivot pin: Available up to 45° to accommodate off-angle walls or non‑90° installations for precise closing on custom shower door installations.

Load capacities:

• Two hinges + 3/8" (10 mm) glass: holds up to 100 lb (45 kg); max door width 34" (864 mm)
• Two hinges + 1/2" (12 mm) glass: holds up to 100 lb (45 kg); max door width 32" (813 mm)
• Three hinges + 3/8" (10 mm) glass: holds up to 130 lb (59 kg); max door width 34" (864 mm)
• Three hinges + 1/2" (12 mm) glass: holds up to 130 lb (59 kg); max door width 32" (813 mm)

Specifications:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See product cut-out template (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot pins
