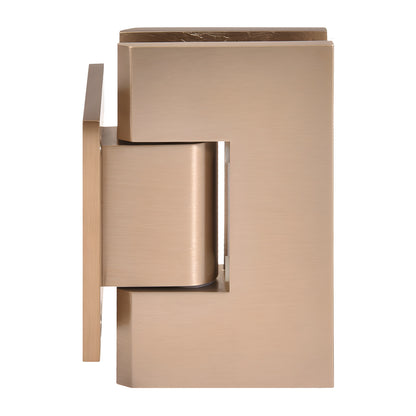

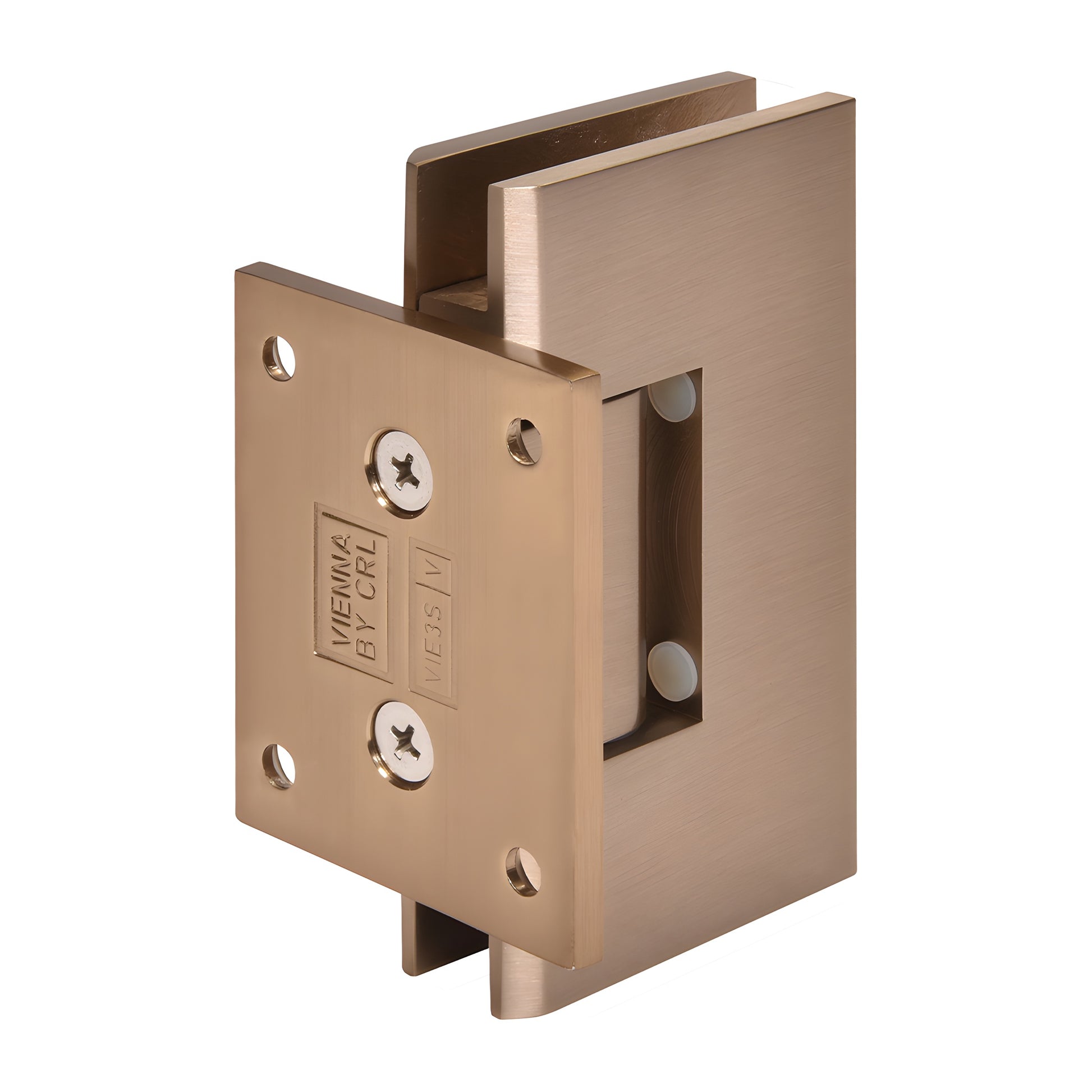

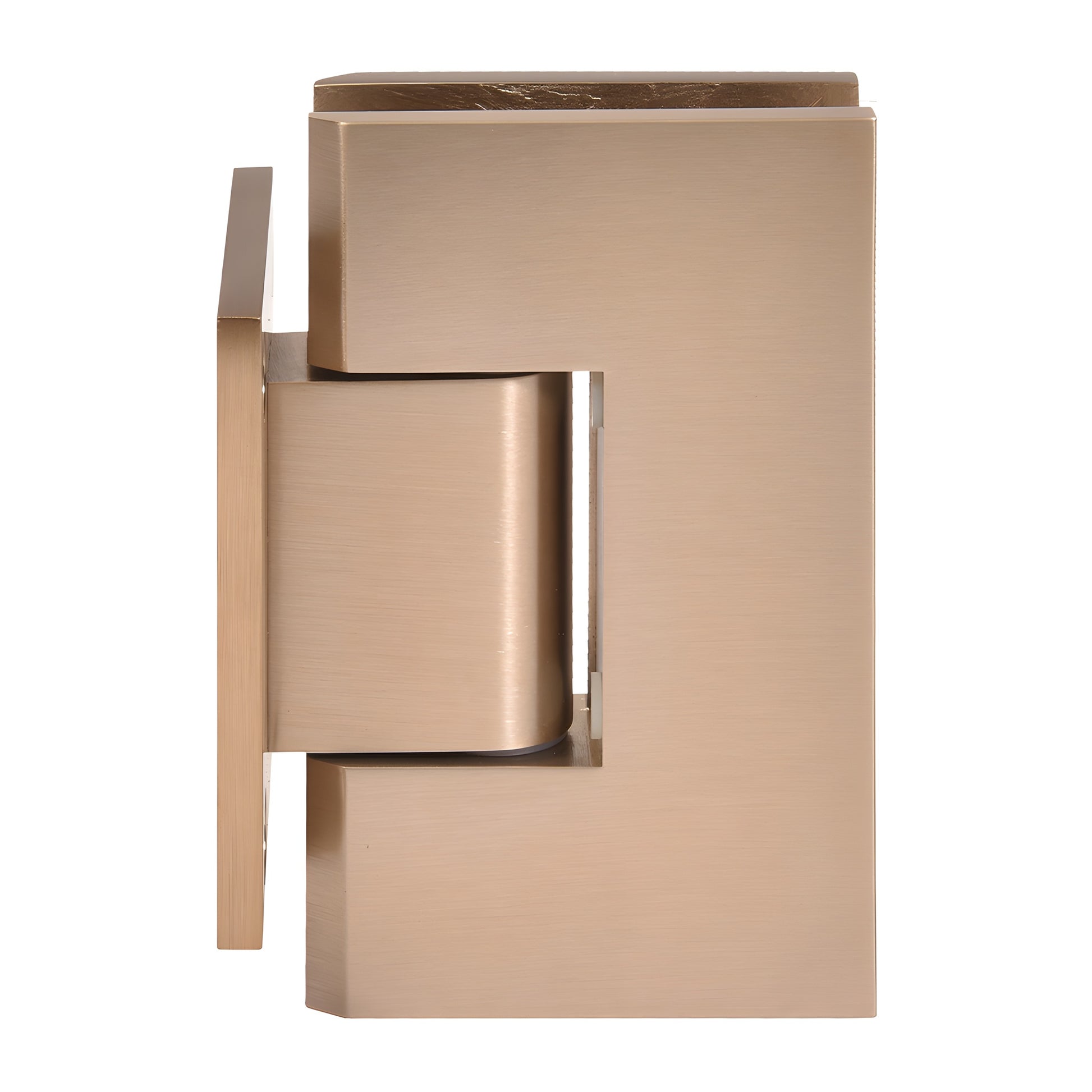

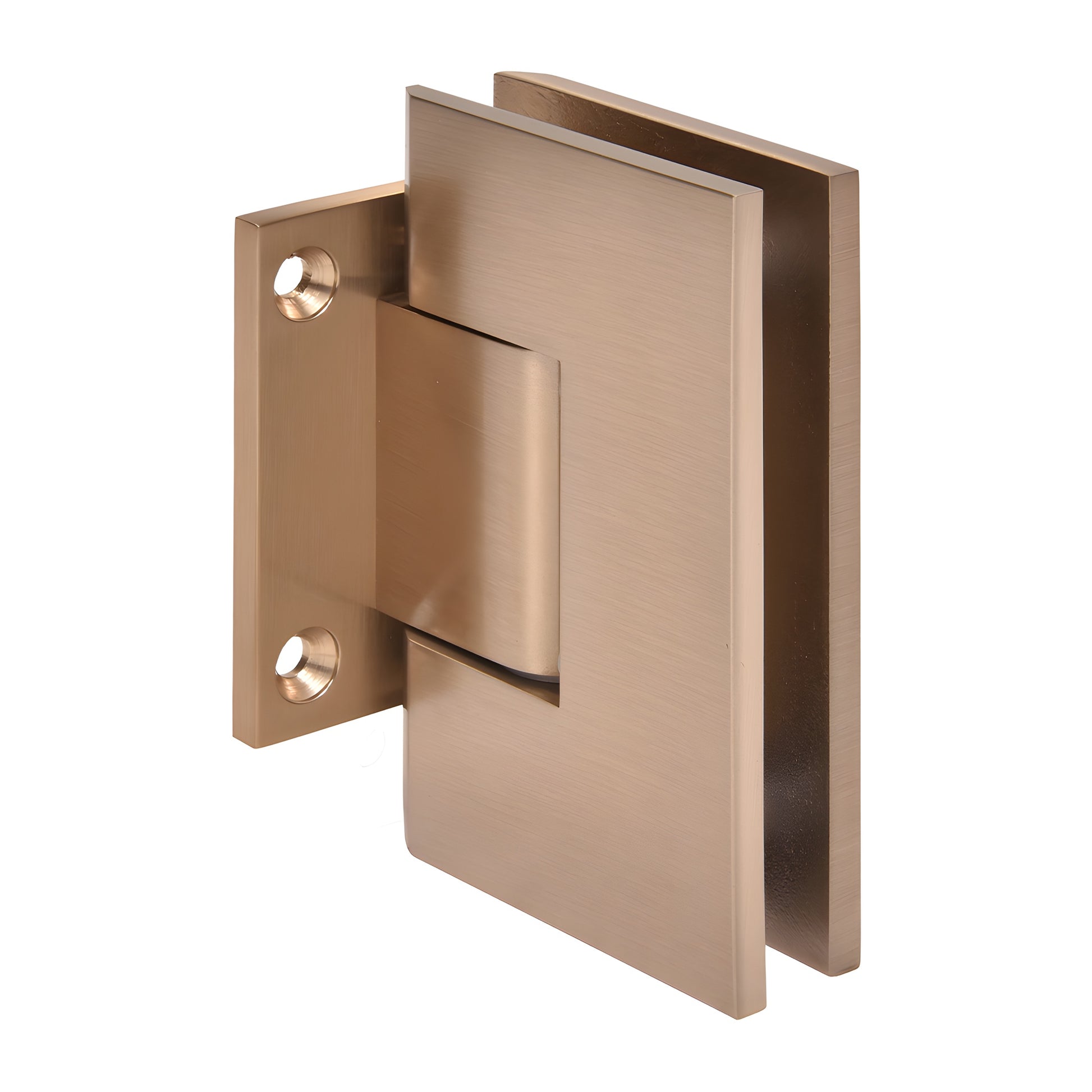

CRL Vienna 074 Wall Mount Door Hinge Short Backplate Brushed Bronze

• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
• Available in several beautiful finishes
• 3 Year Warranty
• Wall mount short back plate
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E074DBBZ) are engineered for wider, heavier frameless shower doors where standard hinges fail. Dual internal steel pins provide two template options: leave pins in place for CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs — and in some cases competitive rectangular cut-outs. Durable solid-brass construction and precision engineering make these hinges a reliable choice for frameless shower door hardware and commercial or residential glass door installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with 90° and 85° markings. Standard models ship with 90° activated; pre-set models ship with 85° for a slightly tighter closure. Rotate the pin (do not flip) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available for off-angle wall-to-door conditions when the standard 5° adjustment is insufficient.

Load Capacities & Door Width Limits
Two hinges, 3/8" glass (10 mm): up to 100 lbs (45 kg), max door width 34" (864 mm).
Two hinges, 1/2" glass (12 mm): up to 100 lbs (45 kg), max door width 32" (813 mm).
Three hinges, 3/8" glass (10 mm): up to 130 lbs (59 kg), max door width 34" (864 mm).
Three hinges, 1/2" glass (12 mm): up to 130 lbs (59 kg), max door width 32" (813 mm).

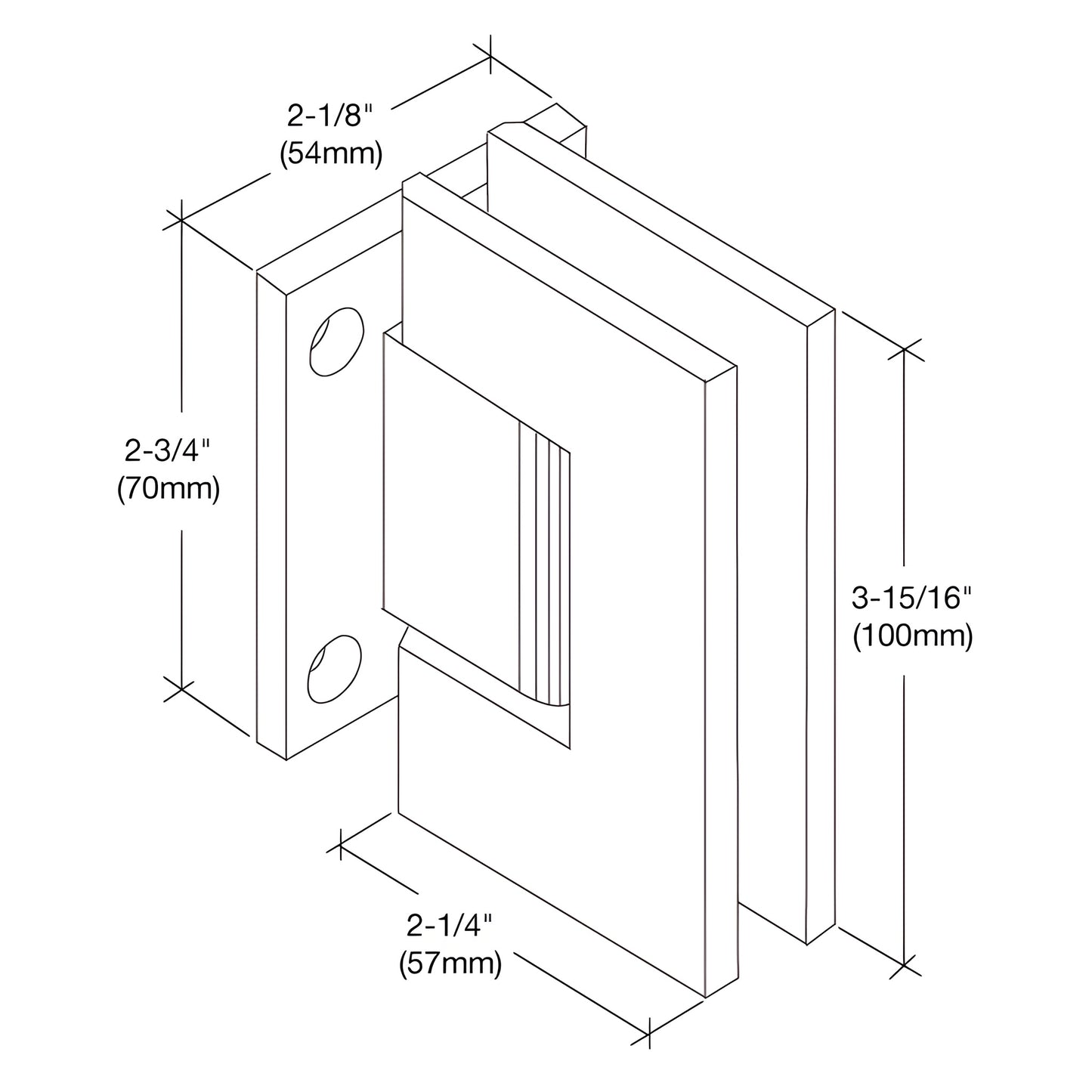

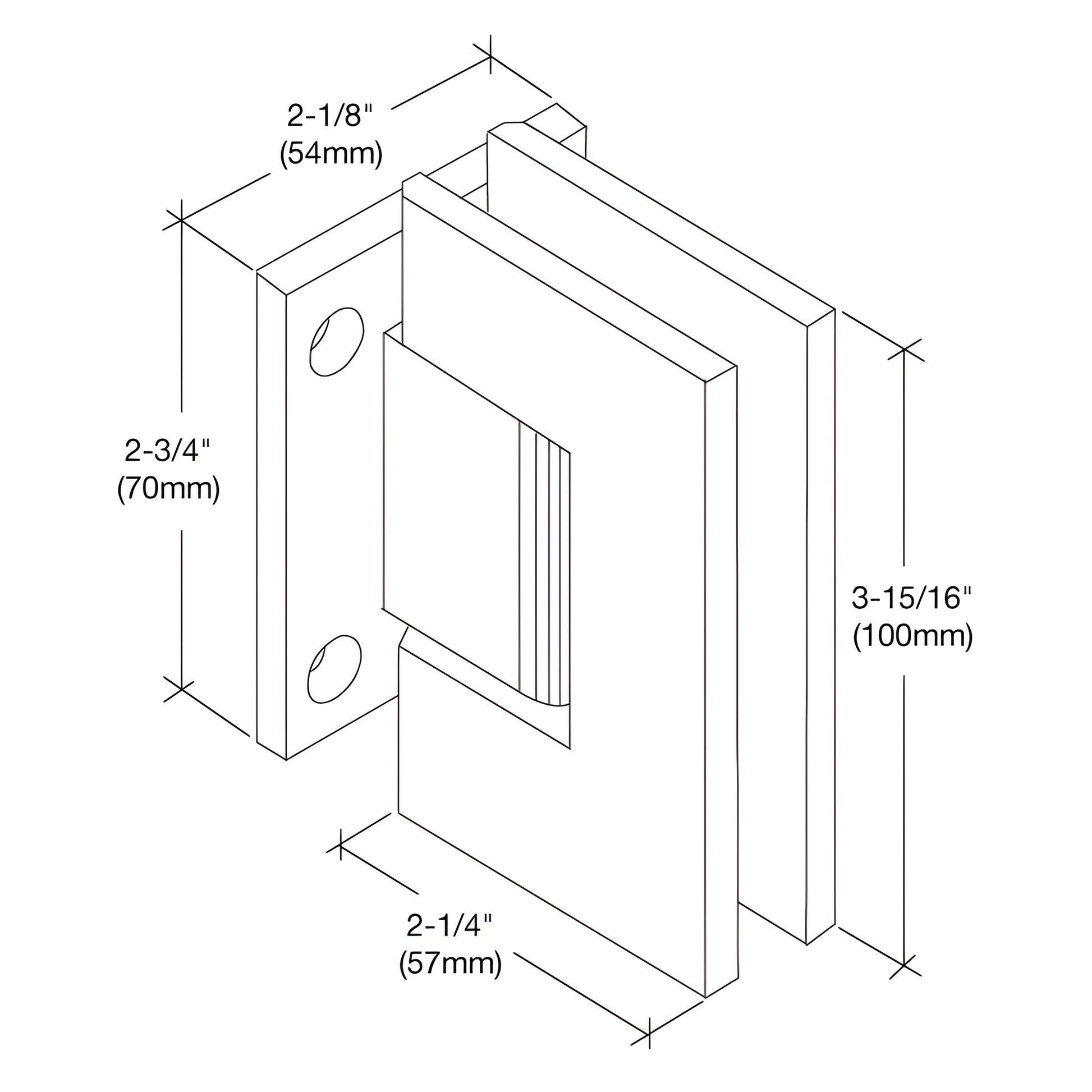

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.
