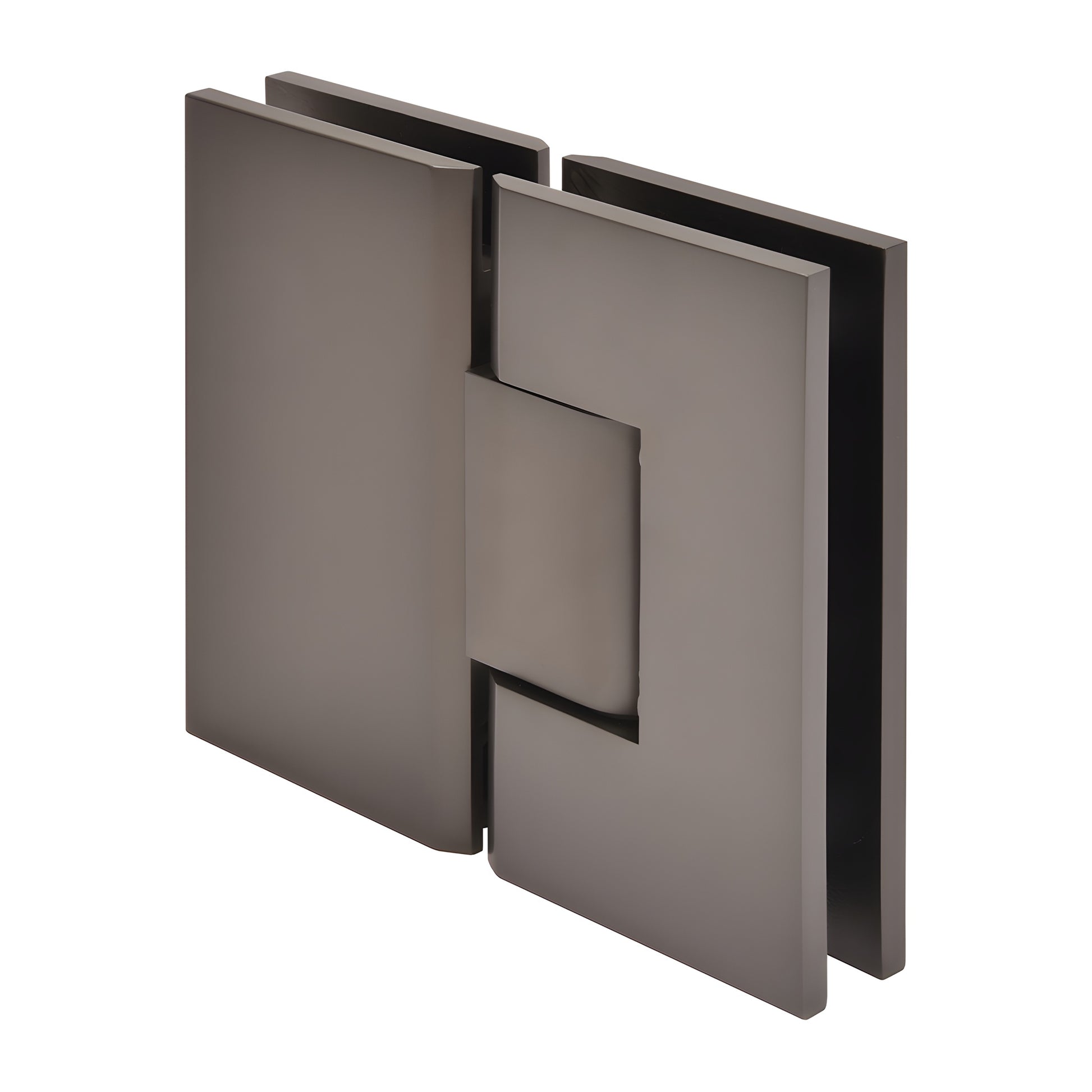

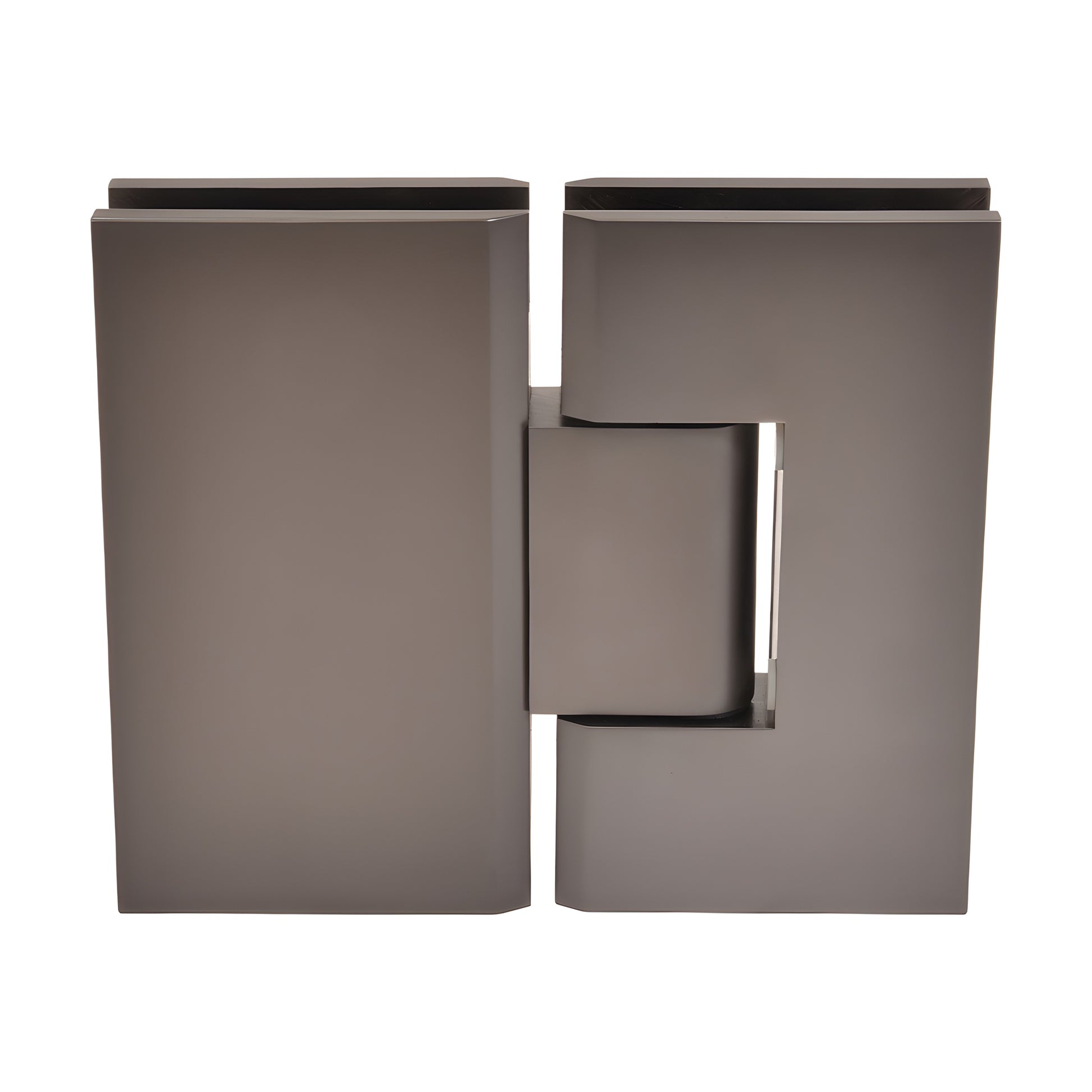

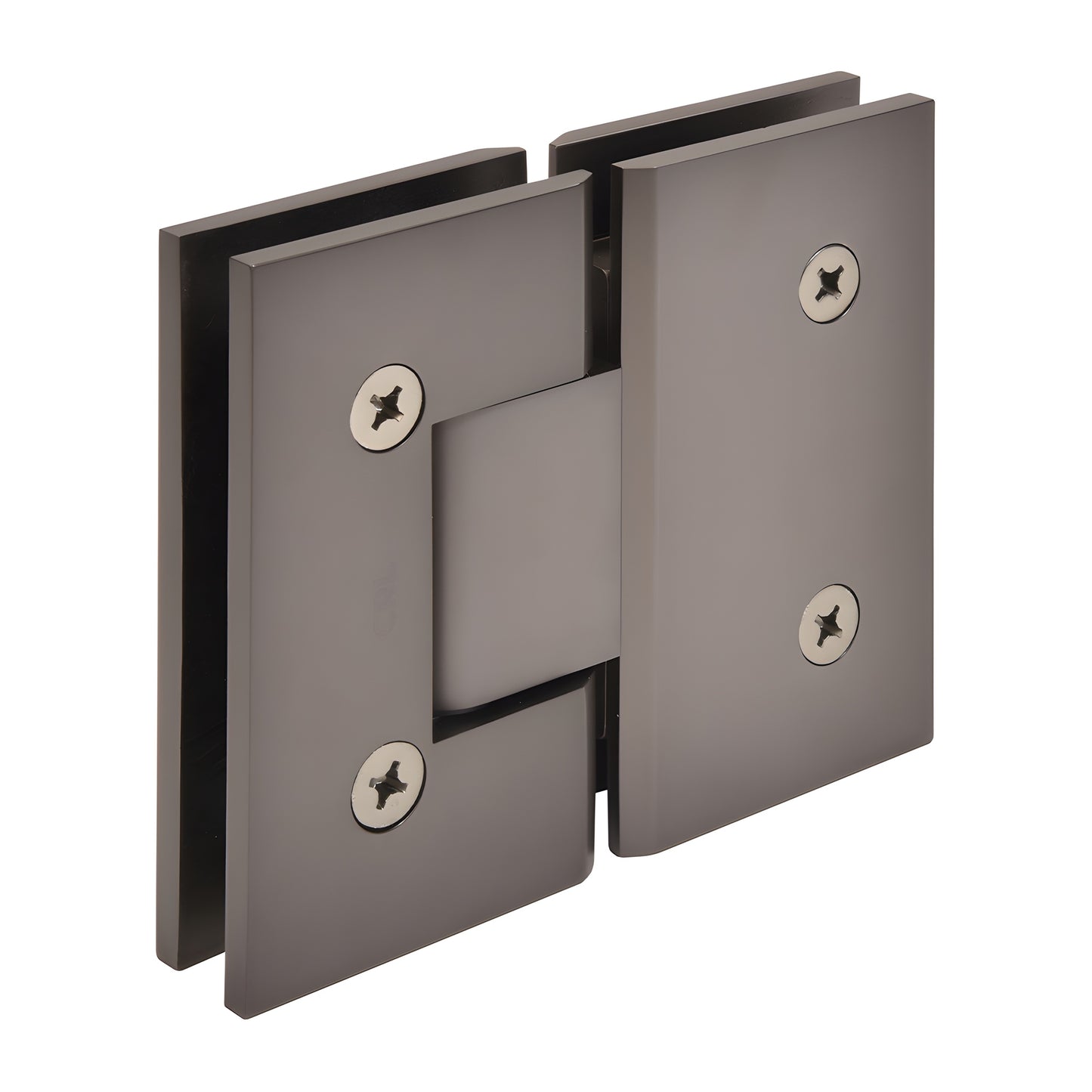

CRL Vienna 180° Matte Gunmetal Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable, decorative finishes
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges deliver a heavy-duty shower door hinge solution for wider, heavier glass doors where standard hinges fail. Two internal steel pins provide mounting flexibility: leave both pins installed for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and fitment with CRL rectangular square-corner cut-outs (and in some cases competitive rectangular cut-outs). These hinges are engineered for reliable performance on residential and hotel shower doors.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship set to 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° option does not achieve the desired door closing position.

Capacity (performance):
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

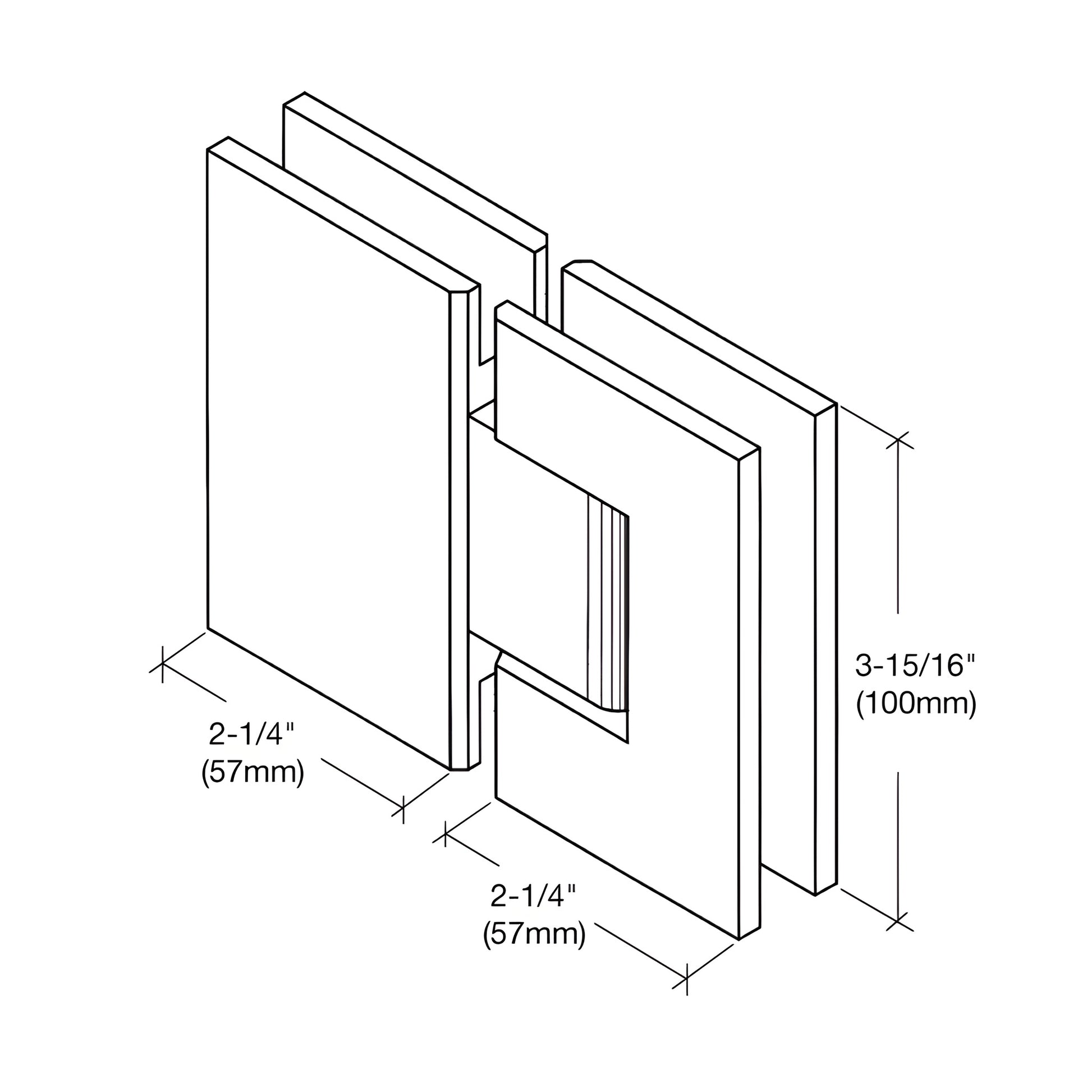

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except V1E092 (which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for finish and custom pivot pin options.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the
