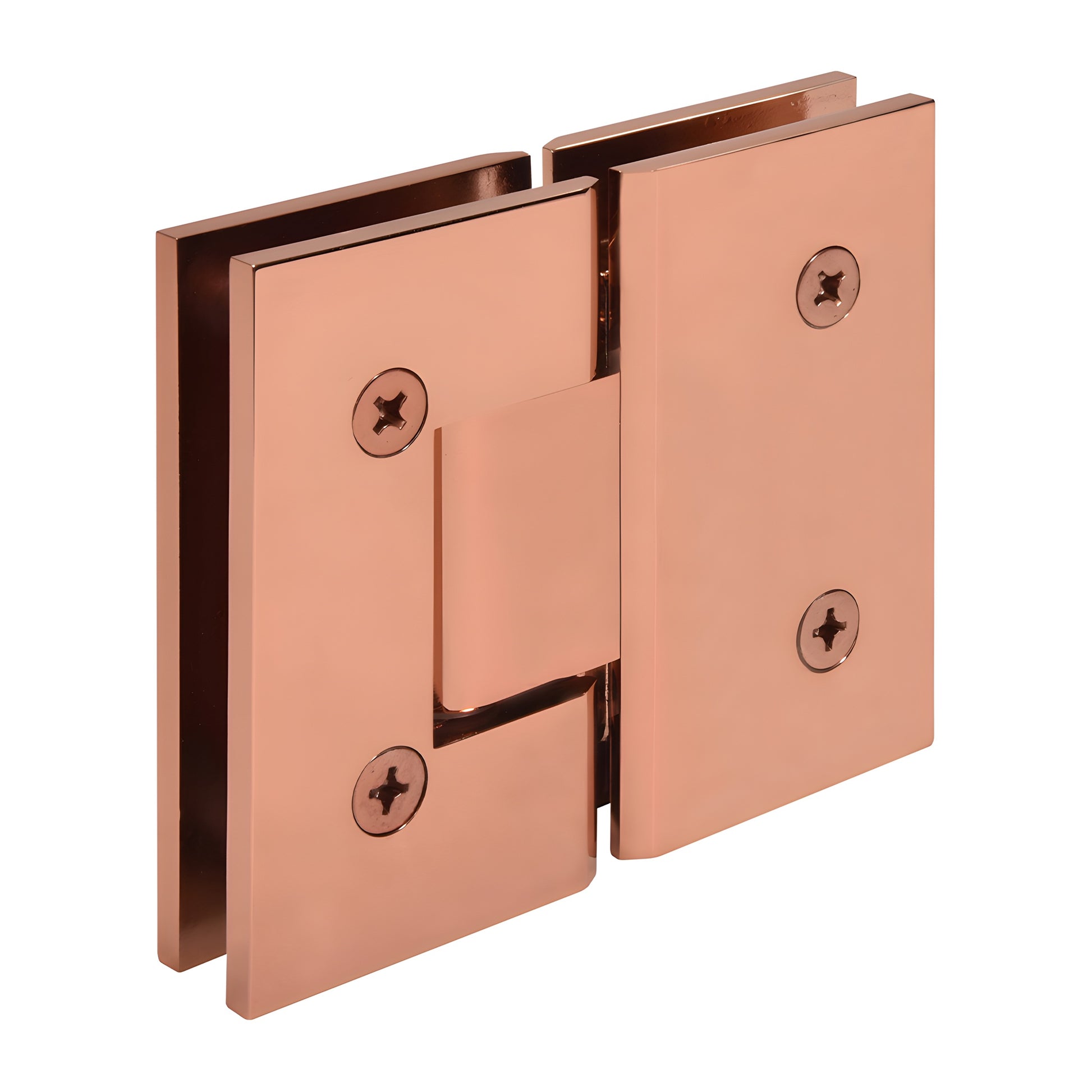

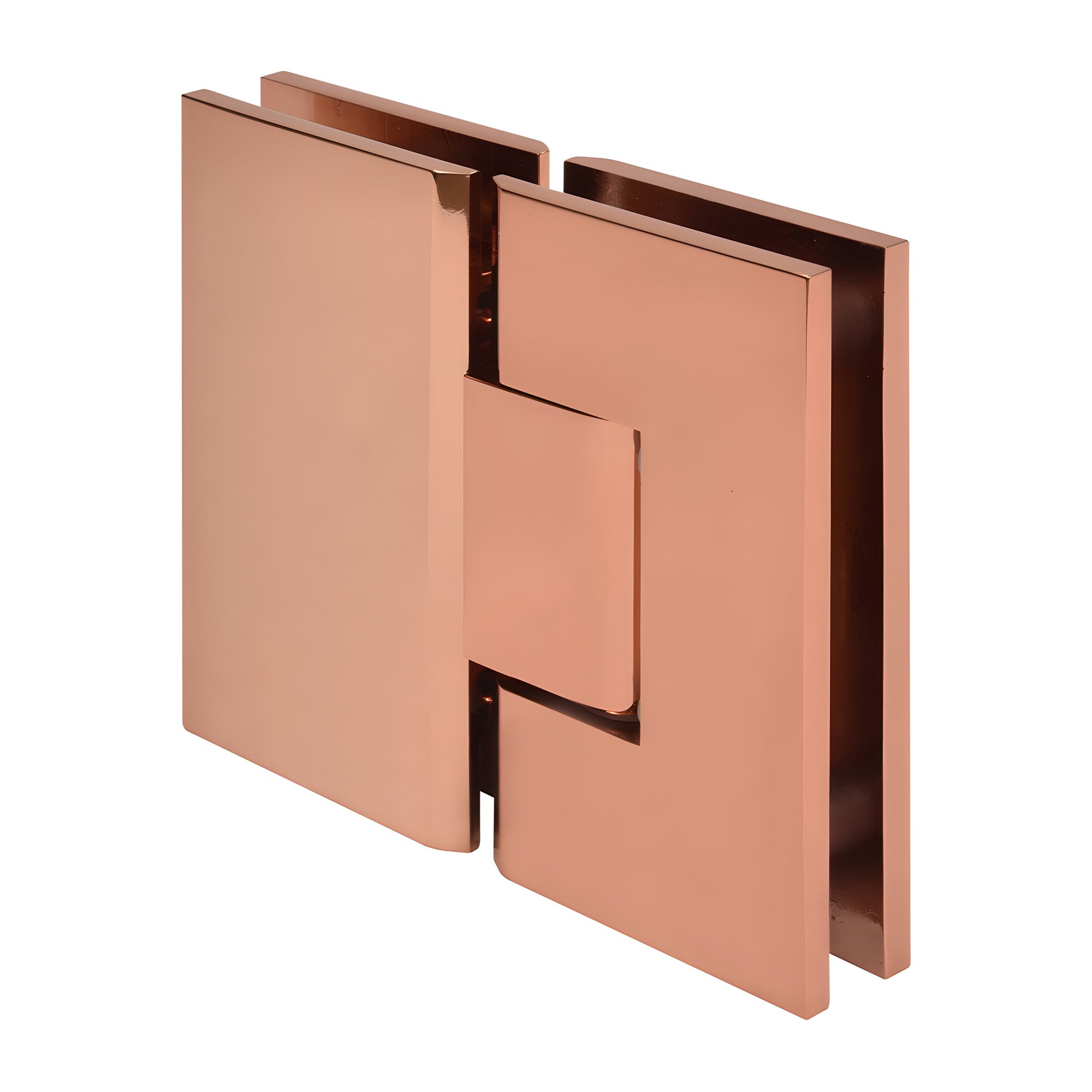

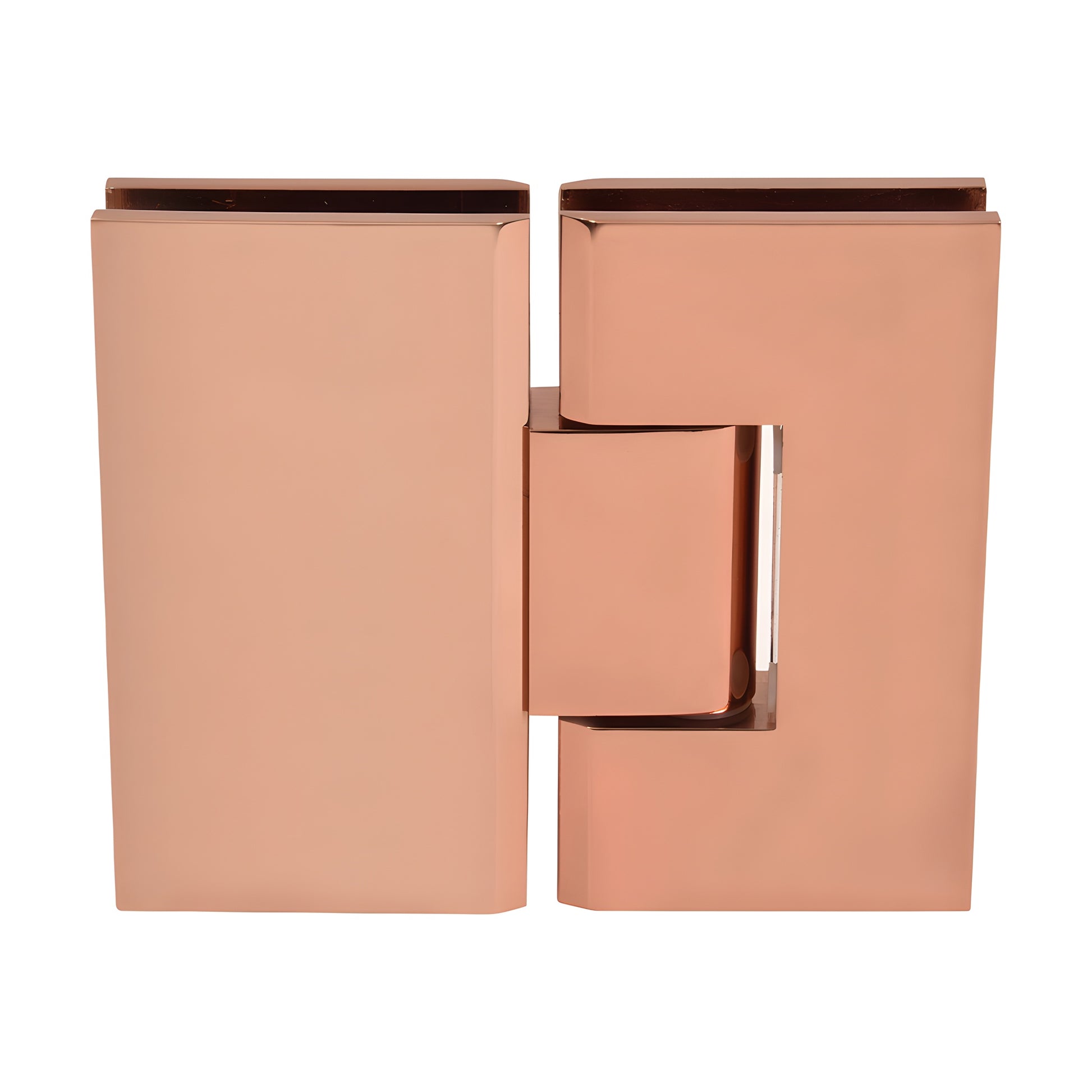

CRL Vienna 180° Rose Gold Frameless Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 year warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E180RG) are heavy-duty 180 degree glass-to-glass shower door hinges engineered for wider, heavier frameless shower doors that standard hinges cannot support. Solid brass construction and two strategically placed internal steel pins provide flexible template options: leave the pins in place for CRL "mouse-ears" cut-outs or remove them to increase adjustability and fit CRL or some competitive rectangular square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin with a 90° side (standard) and an 85° side (pre-set option) for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the activated angle.

CUSTOM PIVOT PIN: Custom pivot pins (up to 45°) are available to accommodate off-angle installations where walls do not meet the door at 90°.

CAPACITY & RECOMMENDATIONS:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lb (50 kg), max door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lb (63 kg), max door width 36" (914 mm)

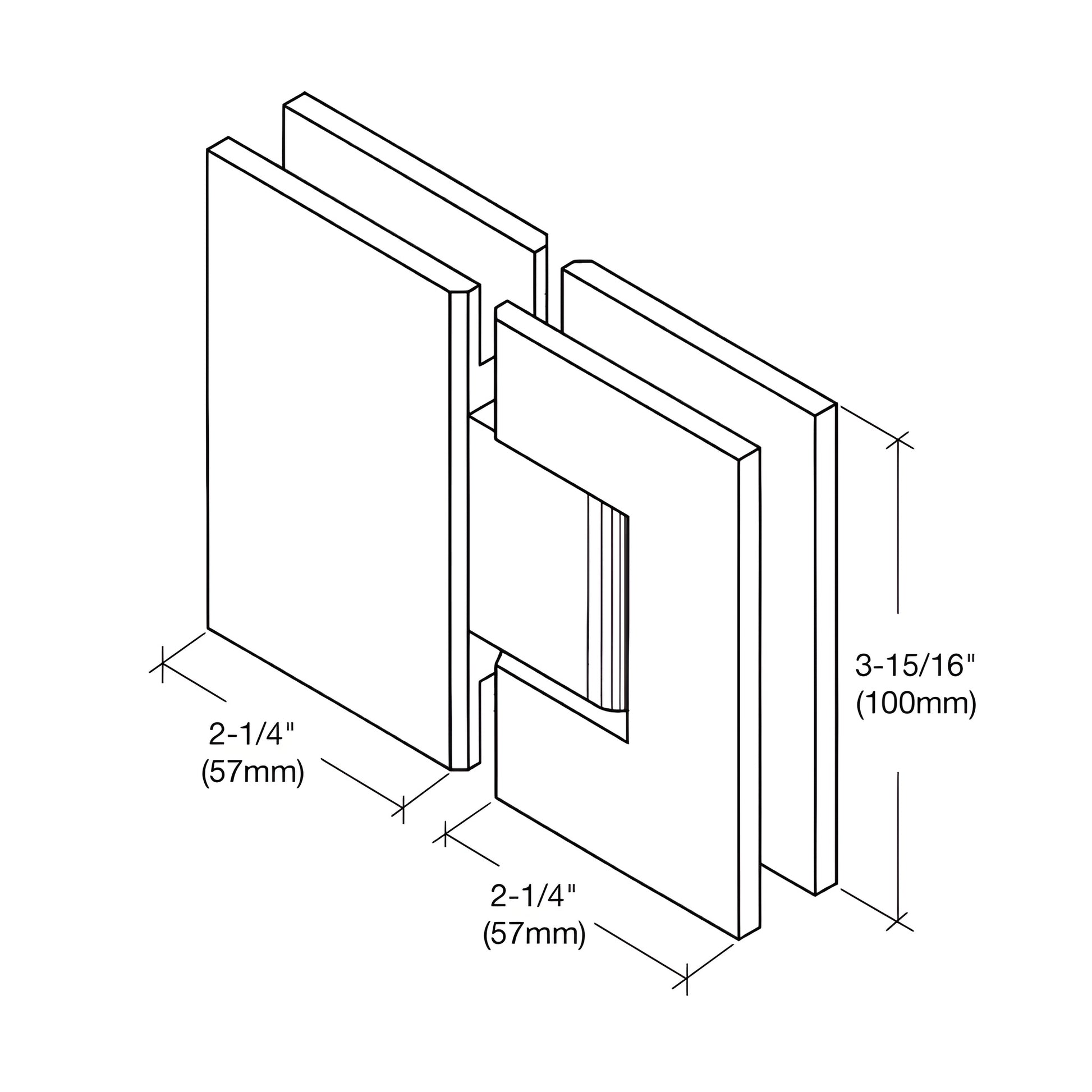

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (self-centering within 15° of closed position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required — except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes and angles available — contact CRL Technical Sales Shower Door Department for custom pivot pins or finish requests.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; CRL cut-out dimensions may not match
