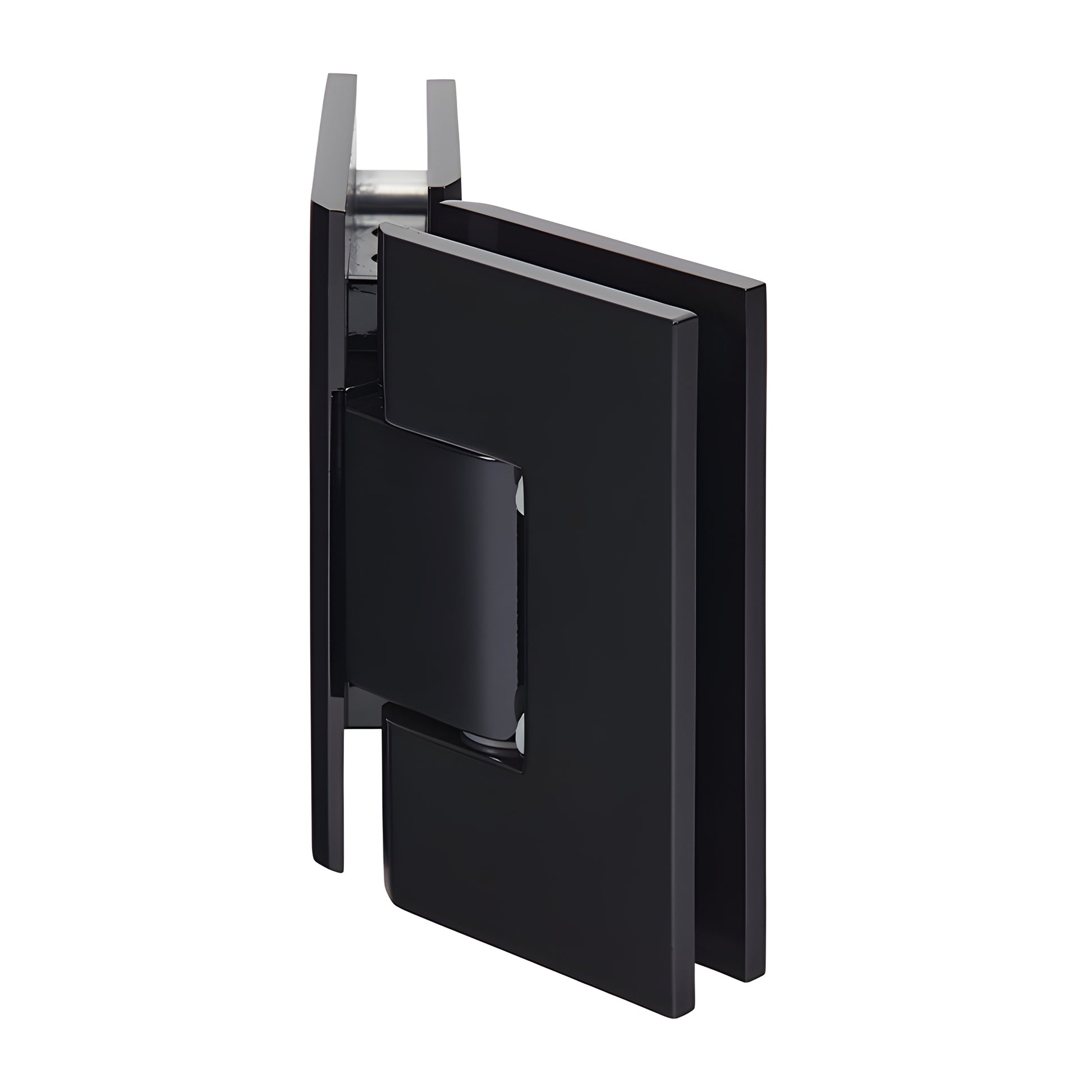

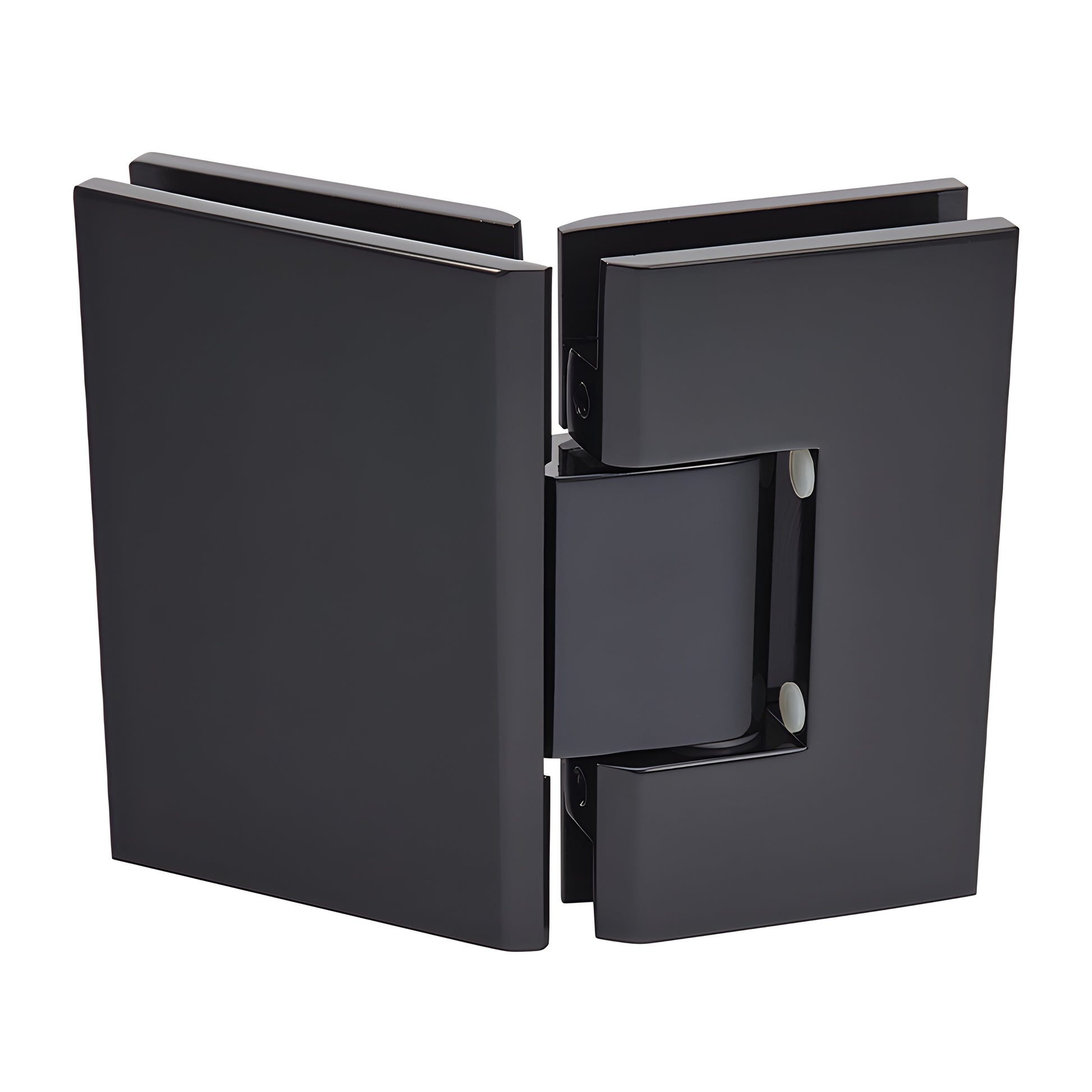

CRL Vienna 045 135° Black Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (including custom finishes on request)
• 3‑year warranty
• 135° glass-to-glass hinge for frameless shower doors
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045BL) are heavy-duty solid brass shower door hinges engineered for wider, heavier frameless glass doors where standard hinges fail. Two internal steel pins provide mounting flexibility: leave pins in for CRL "mouse-ears" cut-outs, or remove them for rectangular, square-corner cut-outs (may fit some competitive cut-outs). These hinges are ideal as brass shower door hinges for 3/8"–1/2" glass and offer durable corrosion resistance and reliable performance for residential and hotel shower installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship set to 85° for a tighter 5° closure into the shower interior. Rotate the pin (do not flip) to change the active angle.

Custom Pivot Pin: Custom pivot pins are available for off‑angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

Load Capacity:

• Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs (50 kg), max door width 36" (914 mm).
• Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs (63 kg), max door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel). Use only the template supplied with this hinge—CRL cut-outs may differ from other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical support are available—contact CRL Technical Sales, Shower Door Department for details.
