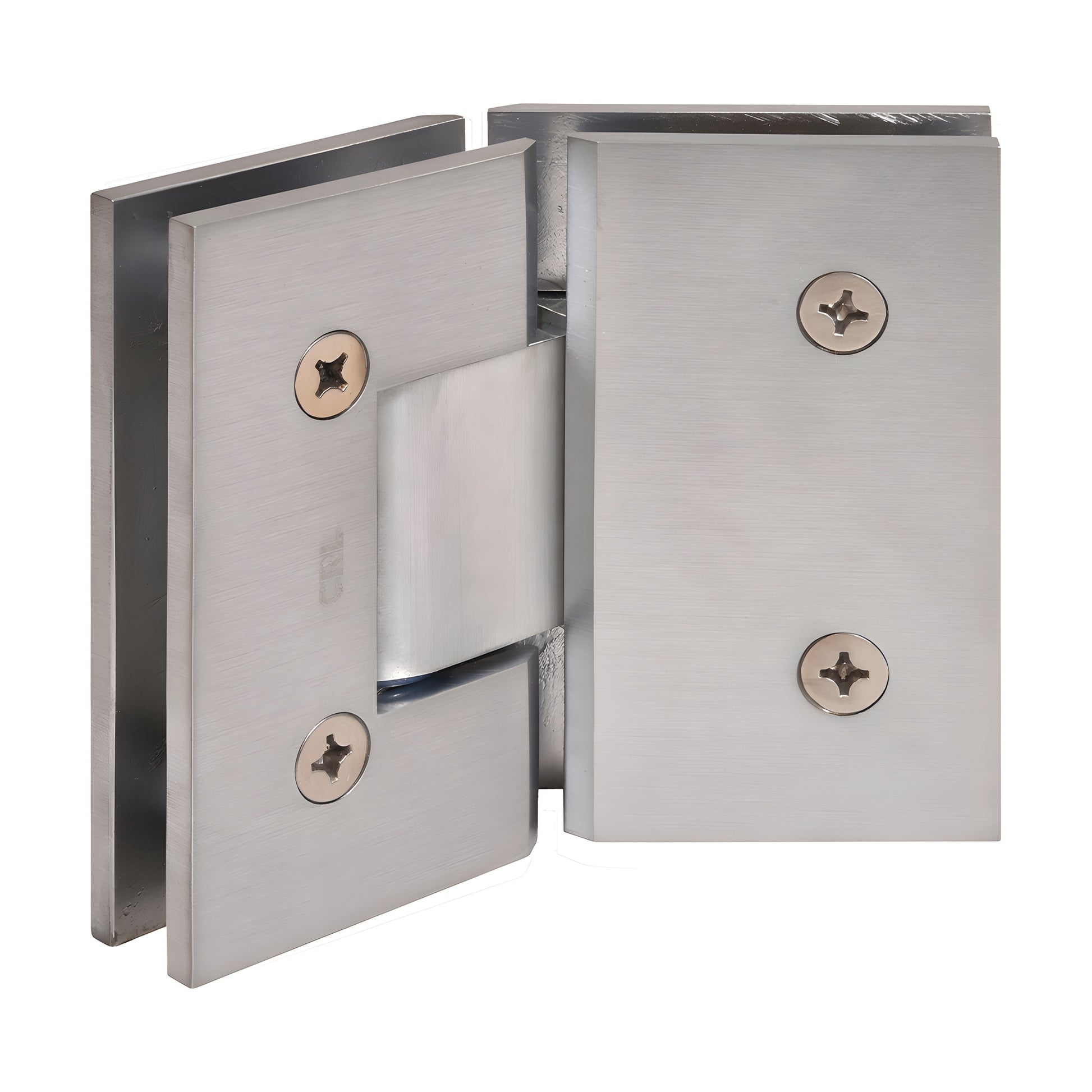

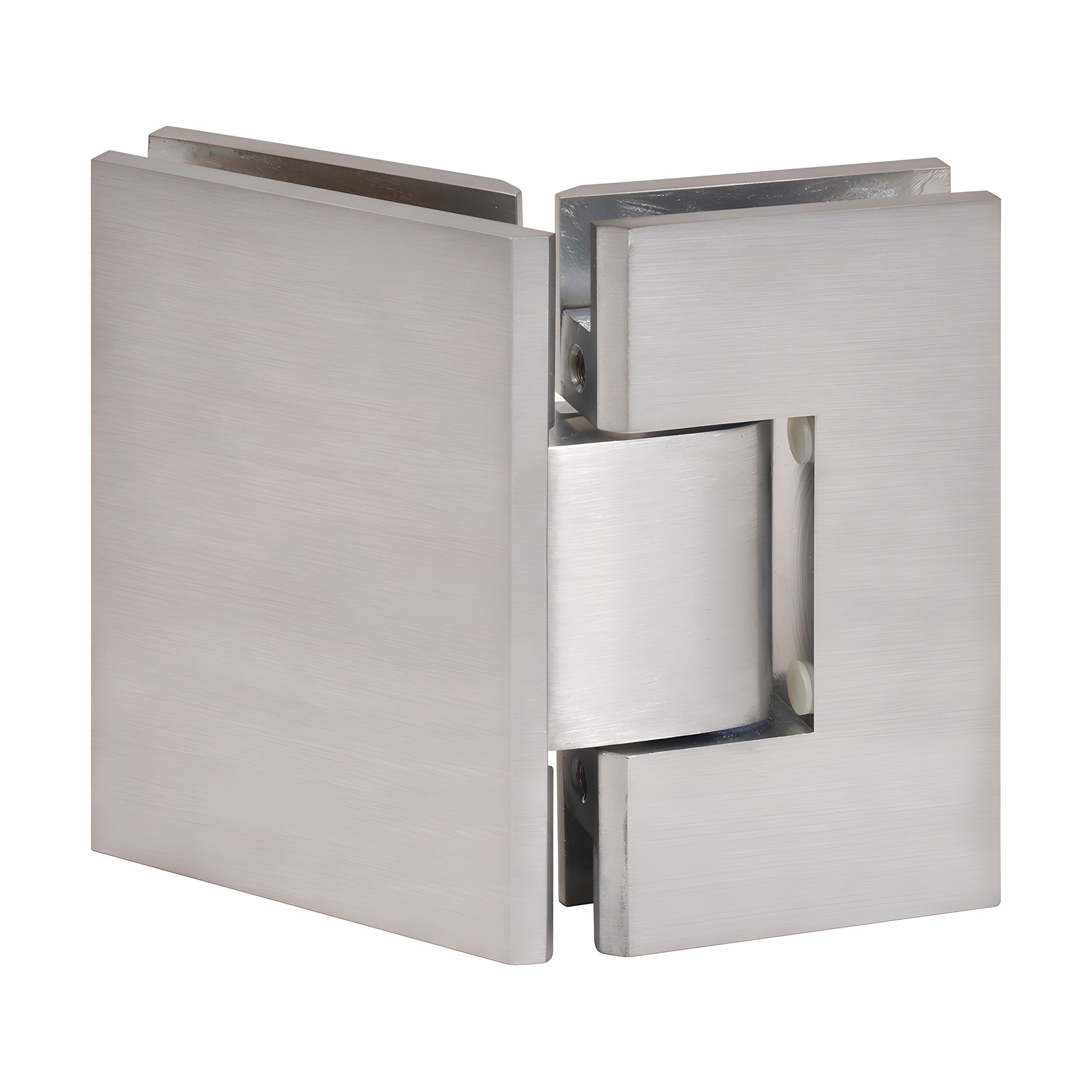

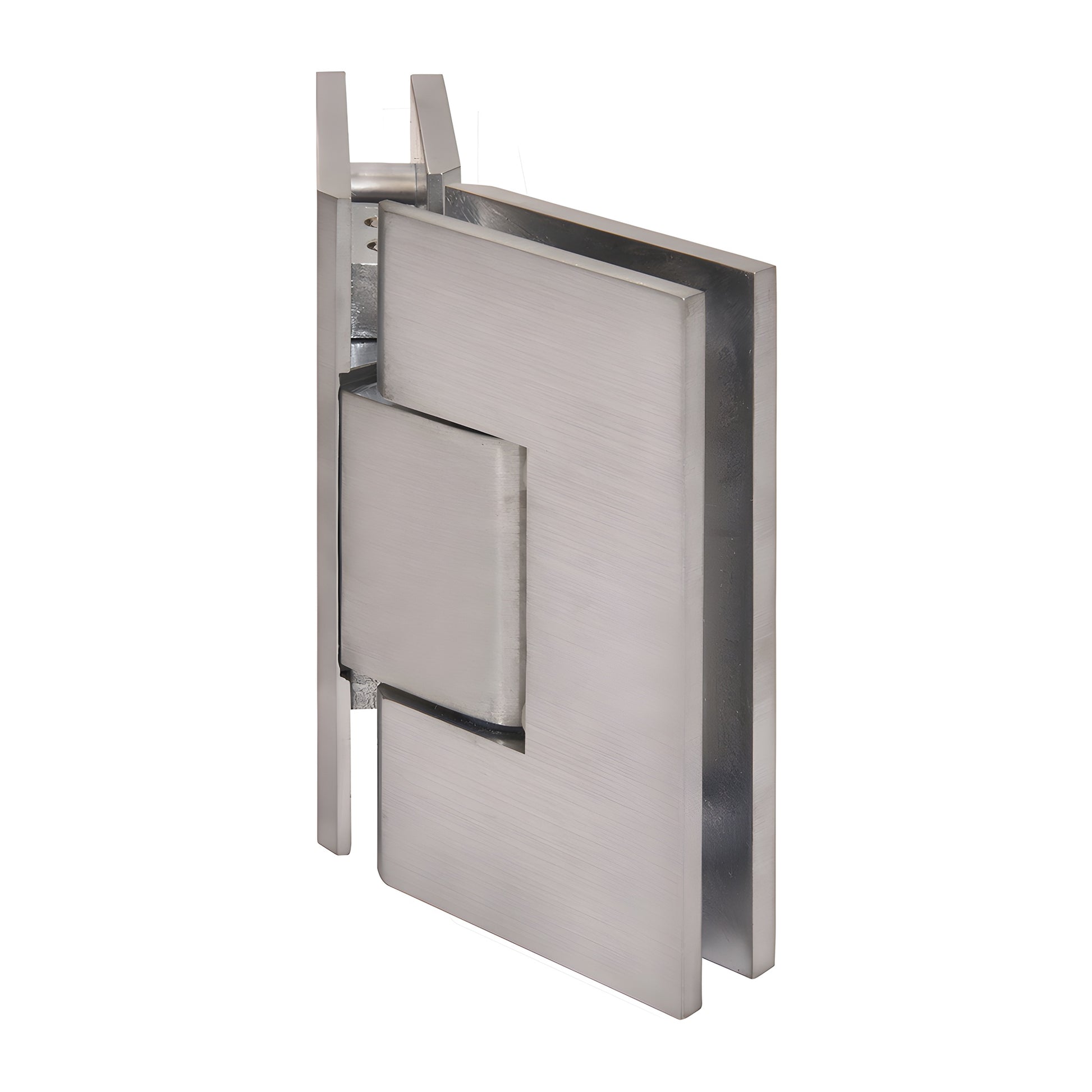

CRL Vienna 045 135° Brushed Chrome Frameless Shower Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 year warranty
• 135° glass-to-glass hinge for frameless shower doors
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045BCH) solve support problems for wider, heavier frameless shower doors where traditional hinges fall short. Dual internal steel pins provide two mounting options: leave both pins in for "mouse-ears" cut-outs (uses CRL mouse-ears pattern), or remove the pins for increased adjustability and compatibility with CRL rectangular/square corner cut-outs (may fit some competitive rectangular cut-outs).

Standard reversible pivot pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active side.

Custom pivot pins: Custom pins available for off-angle installations (specify up to 45°) when the standard 5° adjustment does not achieve the desired closure.

Load capacity: Using two hinges with 3/8"–1/2" glass the system supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges supports up to 140 lbs (63 kg) with the same 36" maximum door width. Ideal for heavy frameless shower doors and brass shower door hinge applications.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-out Required: Template cut-out required (except V1E092 which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available—contact CRL Technical Sales Shower Door Department for options and pricing.

Product warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
