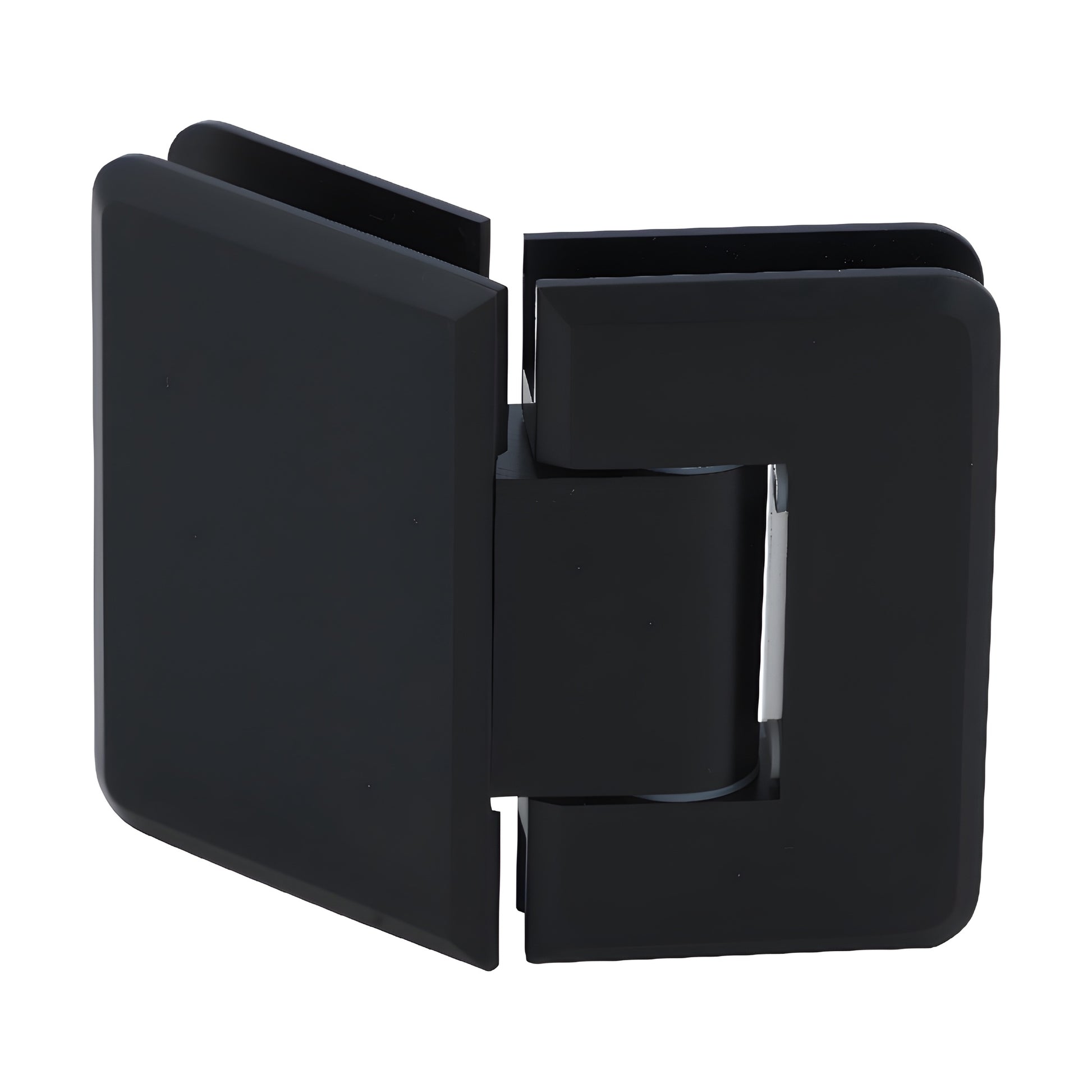

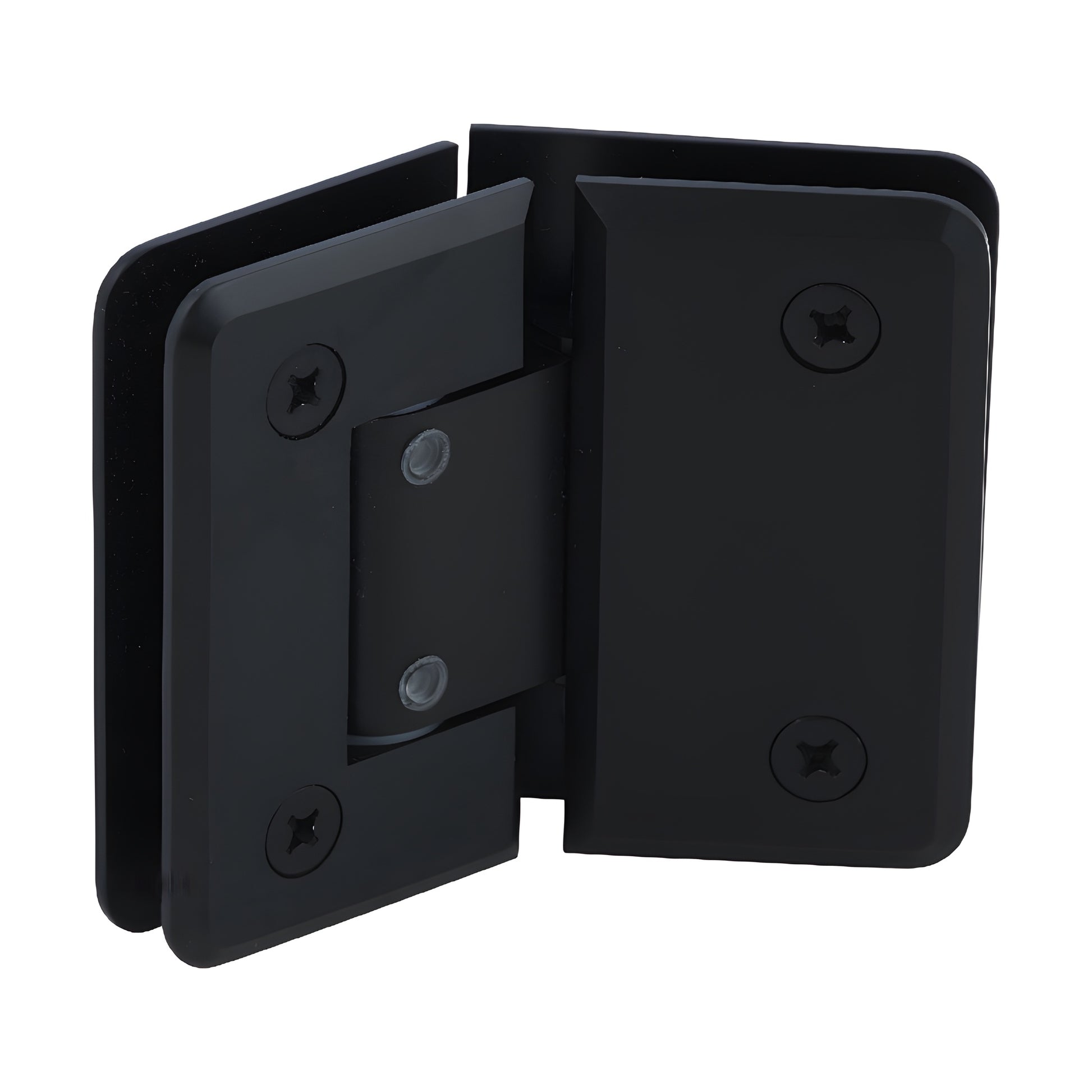

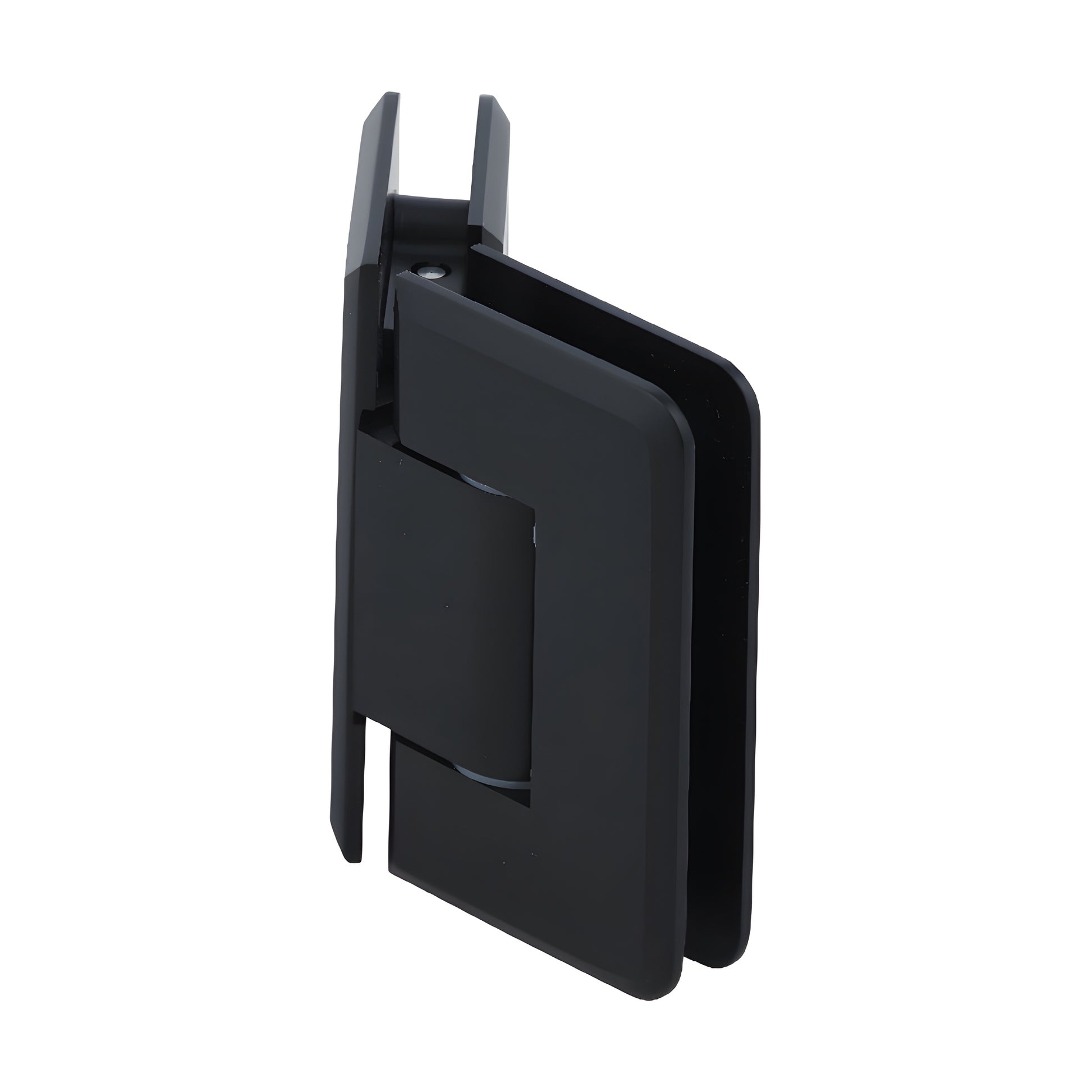

CRL Pinnacle 345 Oil-Rubbed Bronze 135° Glass-to-Glass Shower Hinge

• Adjustable to any angle up to 90° without removing door
• Available in several durable finishes
• Three year warranty
• Adjustable 135° glass-to-glass option
• For use with monolithic tempered glass

CRL Adjustable Pinnacle Series Hinges upgrade our popular Pinnacle hinge into a precision, field‑adjustable shower door hinge. Adjustment to the desired closed angle (up to 90°) is done after the door is installed: loosen the Allen set screws, rotate the door to the desired position and retighten. The hinge self-centers when the door is within 15° of closed. The door can swing 90° inward and 90° outward from the factory set position; adjusting the factory angle will reduce swing in that direction. For outward‑pull doors (clear jambs), you can set the hinge to close 5° inside the shower to achieve a snug jamb seal.

Load & door size

• Two hinges: supports up to 80 lb (36 kg) with door widths to 28" (711 mm)
• Three hinges: supports up to 120 lb (54 kg) with door widths to 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Field-adjustable to any angle up to 90° without removing the door
Construction: Solid brass for long-lasting corrosion resistance
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack sold separately for 5/16" (8 mm) glass.

Replacement Hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details. Custom finishes available on request.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For alternate uses, obtain approval from CRL Shower Door Technical Sales. Use only the template provided—cut-out dimensions may not match other brands.
