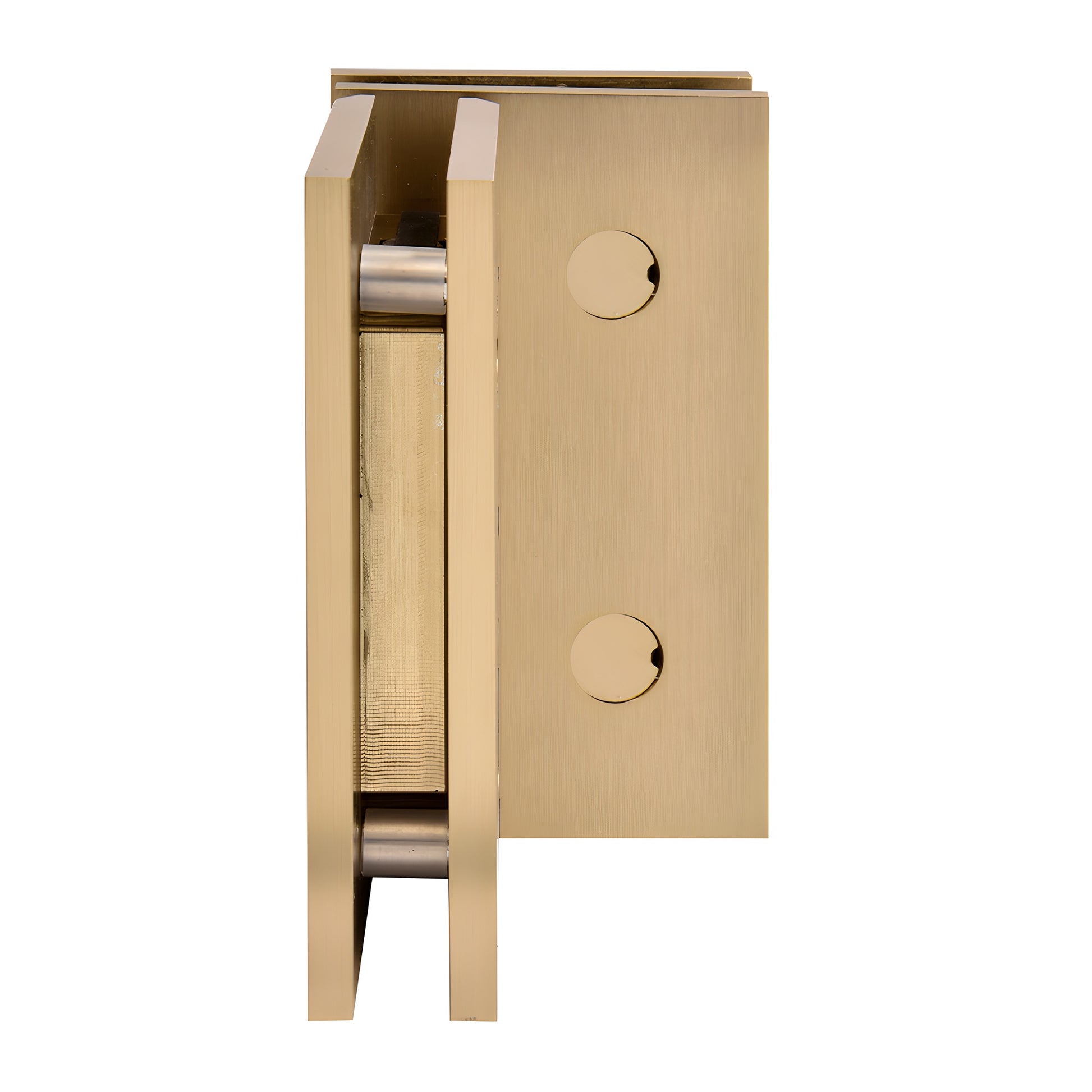

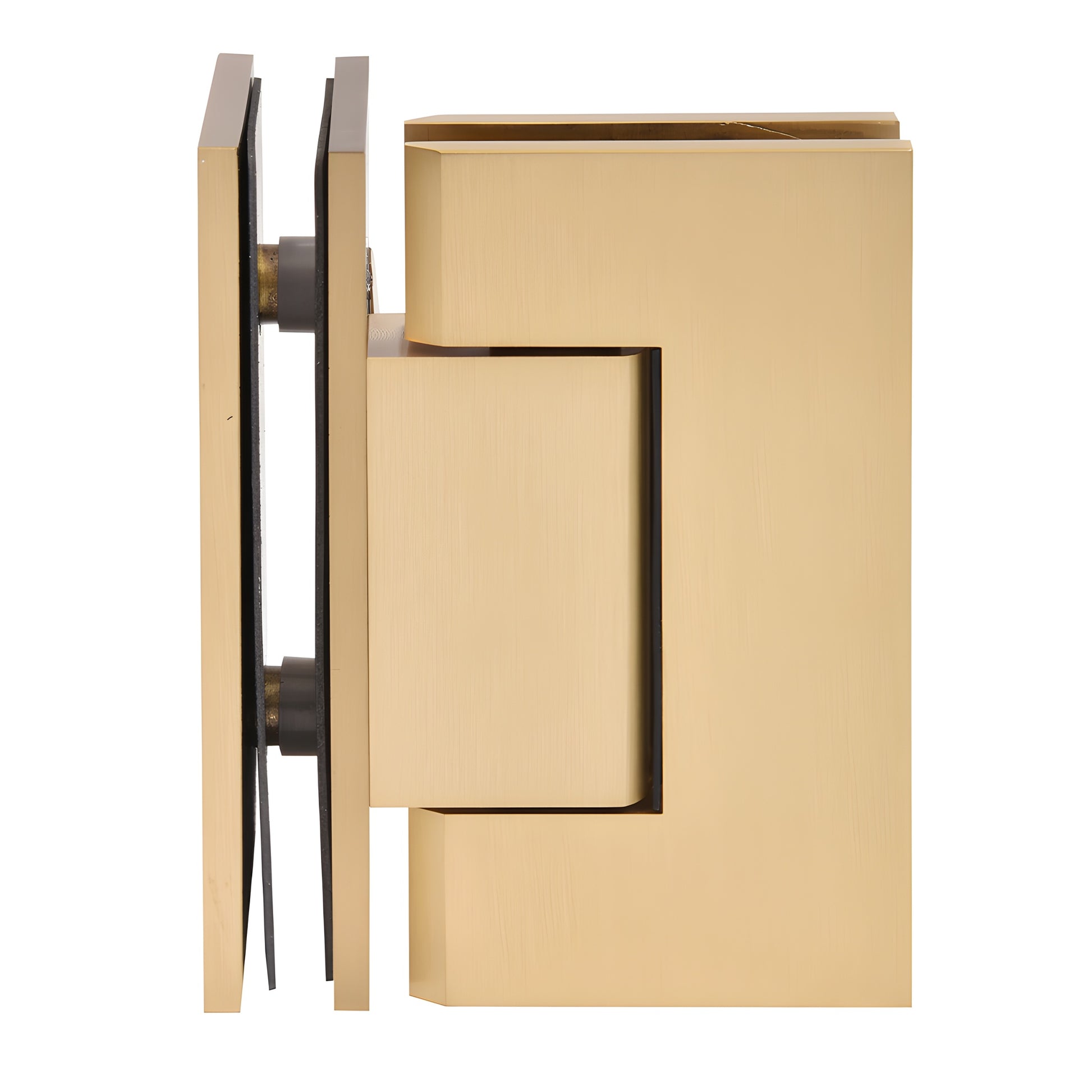

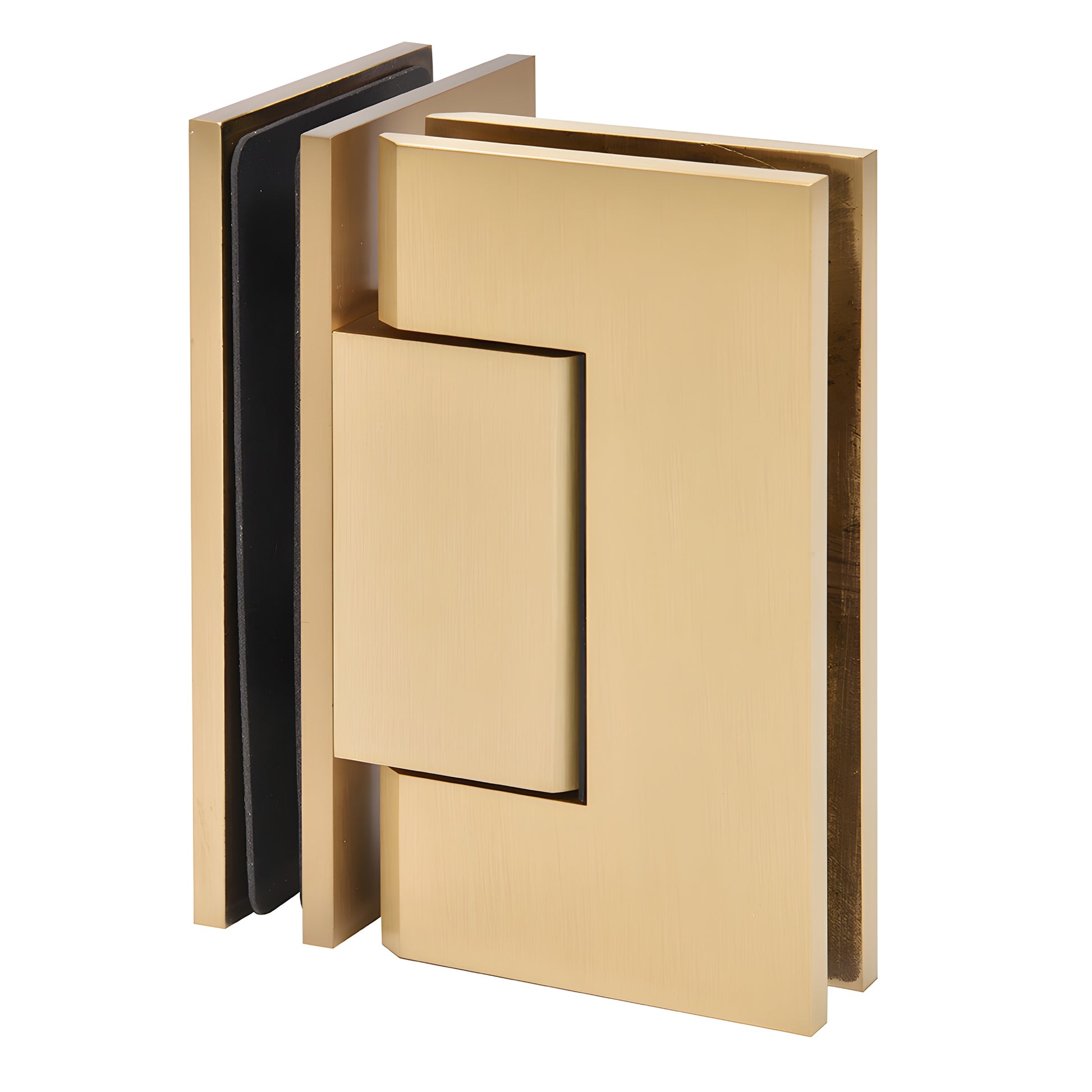

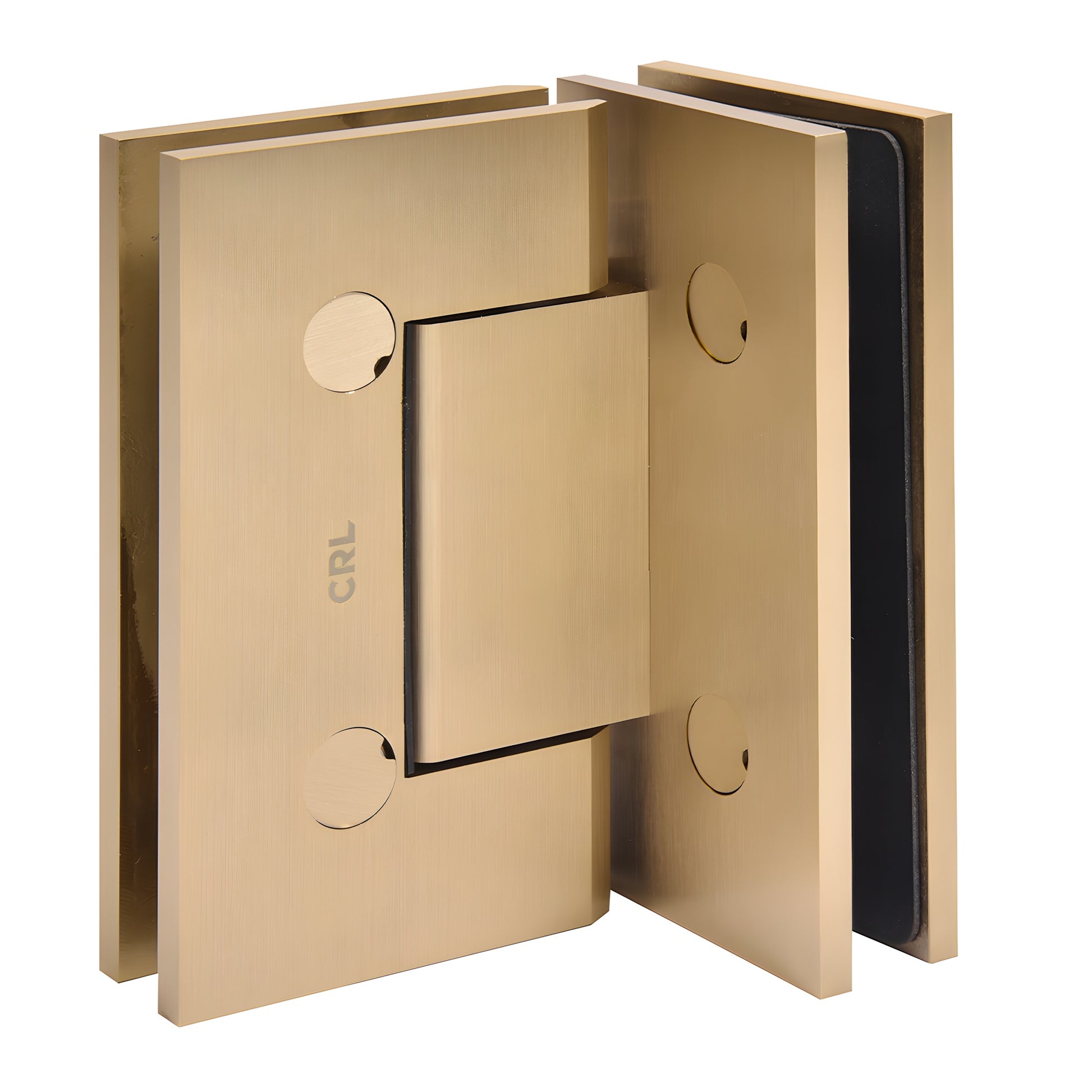

CRL Trento Satin Brass 90° Glass-to-Glass Shower Door Hinge

• Supports heavier glass shower doors—up to 140 lb (two hinges) or 175 lb (three hinges)
• Concealed mounting screws for a clean, modern look
• 90° glass-to-glass installation for frameless shower doors
• Single NAF gasket compatible with both 3/8” and 1/2” (10 & 12 mm) monolithic tempered glass
• Designed for monolithic tempered glass; use only recommended templates and cut-outs

CRL Trento Hinge (SKU: TNT092SB) is a heavy-duty hinge engineered for modern frameless shower doors. Its sleek rectangular body and narrow gap provide a refined, minimal appearance while fully concealed screws maintain a seamless aesthetic.

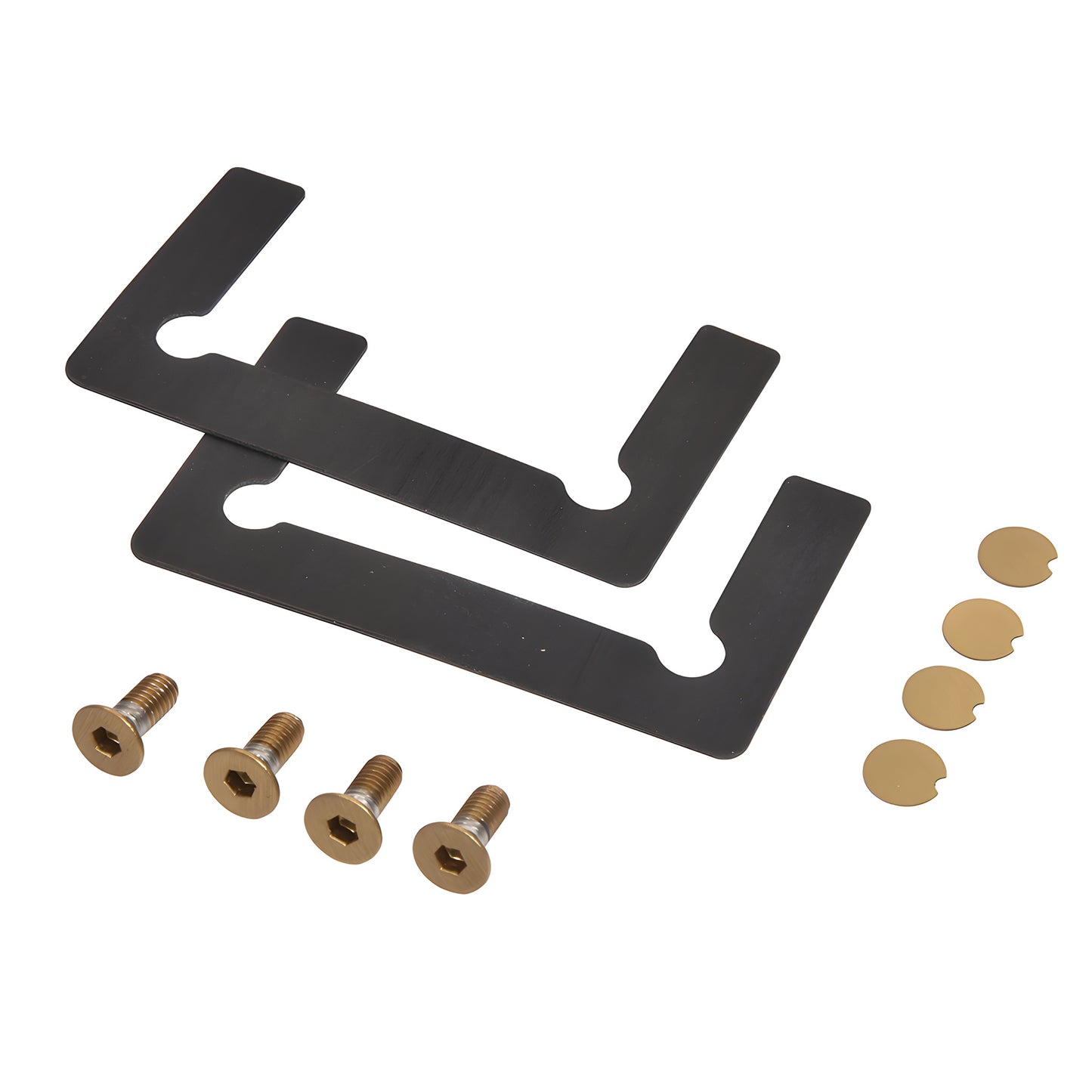

The Trento hinge uses durable NAF gaskets that compress to maintain a consistent grip on 3/8" and 1/2" monolithic tempered glass across varying surface conditions. This hinge is optimized as a heavy-duty frameless shower door hinge for residential and hotel applications.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position by rotating the pin to shift the self-centering angle by 5°—choose 95° or 85° to improve alignment, sealing, and smooth operation.

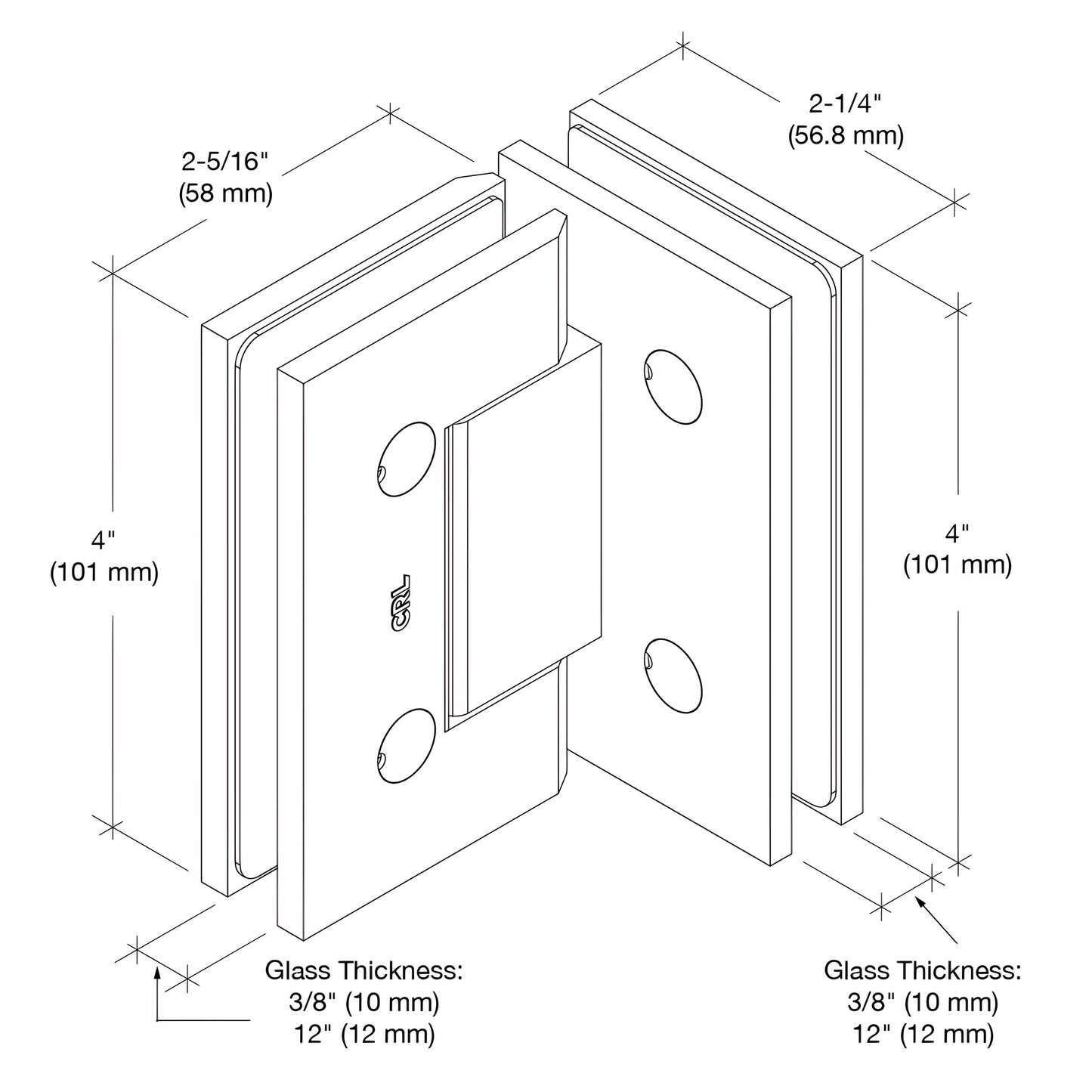

Load Capacity & Dimensions:

• Two-hinge installation: supports doors up to 140 lb (63 kg), maximum width 40" (1016 mm)
• Three-hinge installation: supports doors up to 175 lb (79 kg), maximum width 40" (1016 mm)

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Brass Finish Advisory:
