CRL Trento Matte Black 90 Degree Frameless Glass-to-Glass Hinge

• Supports heavier glass shower doors — up to 140 lb (two-hinge) or 175 lb (three-hinge)
• Concealed screws for a clean, modern look
• 90° glass-to-glass installation for frameless shower door designs

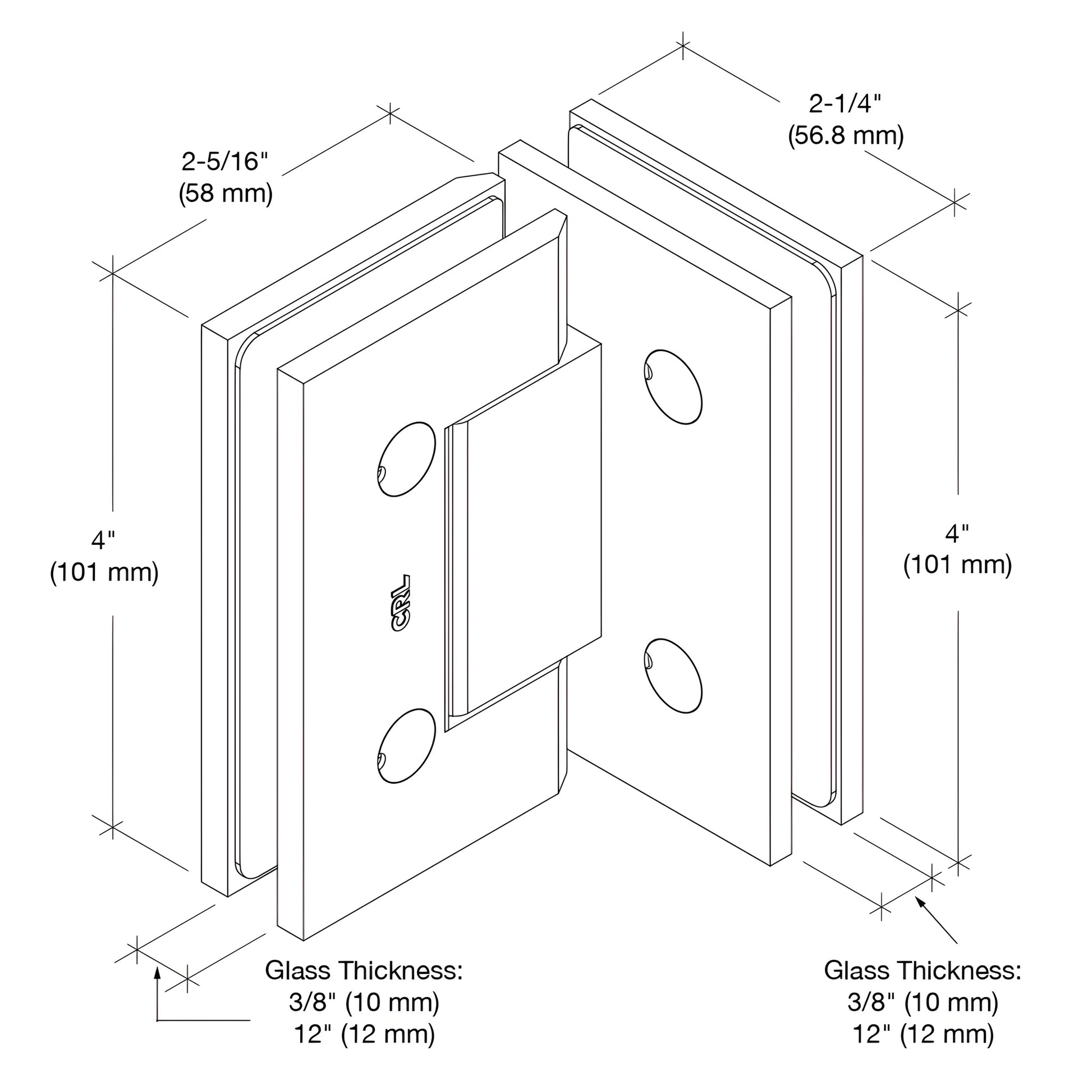

• Single NAF gasket compatible with both 3/8" and 1/2" (10 mm and 12 mm) monolithic tempered glass
• Use with monolithic tempered glass only

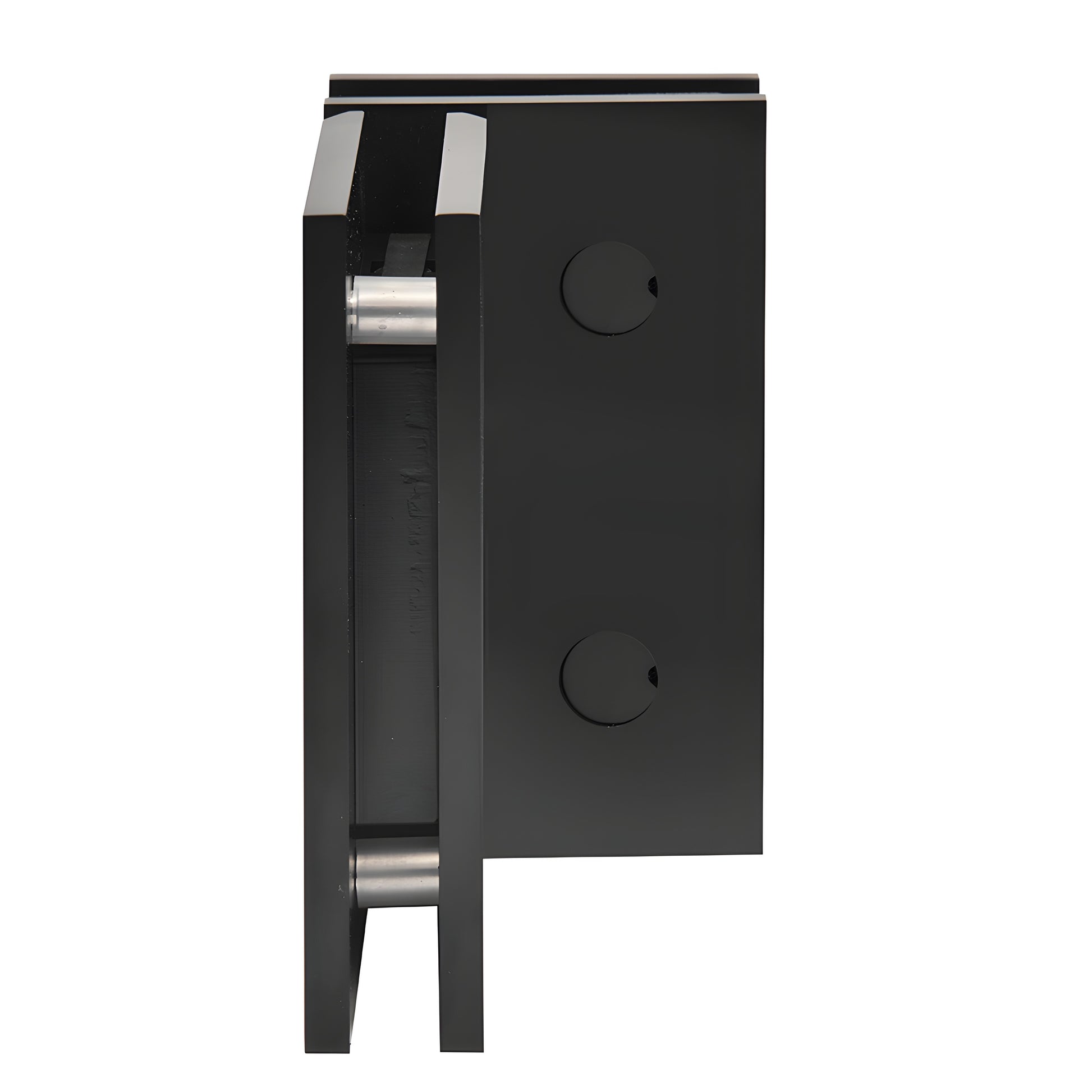

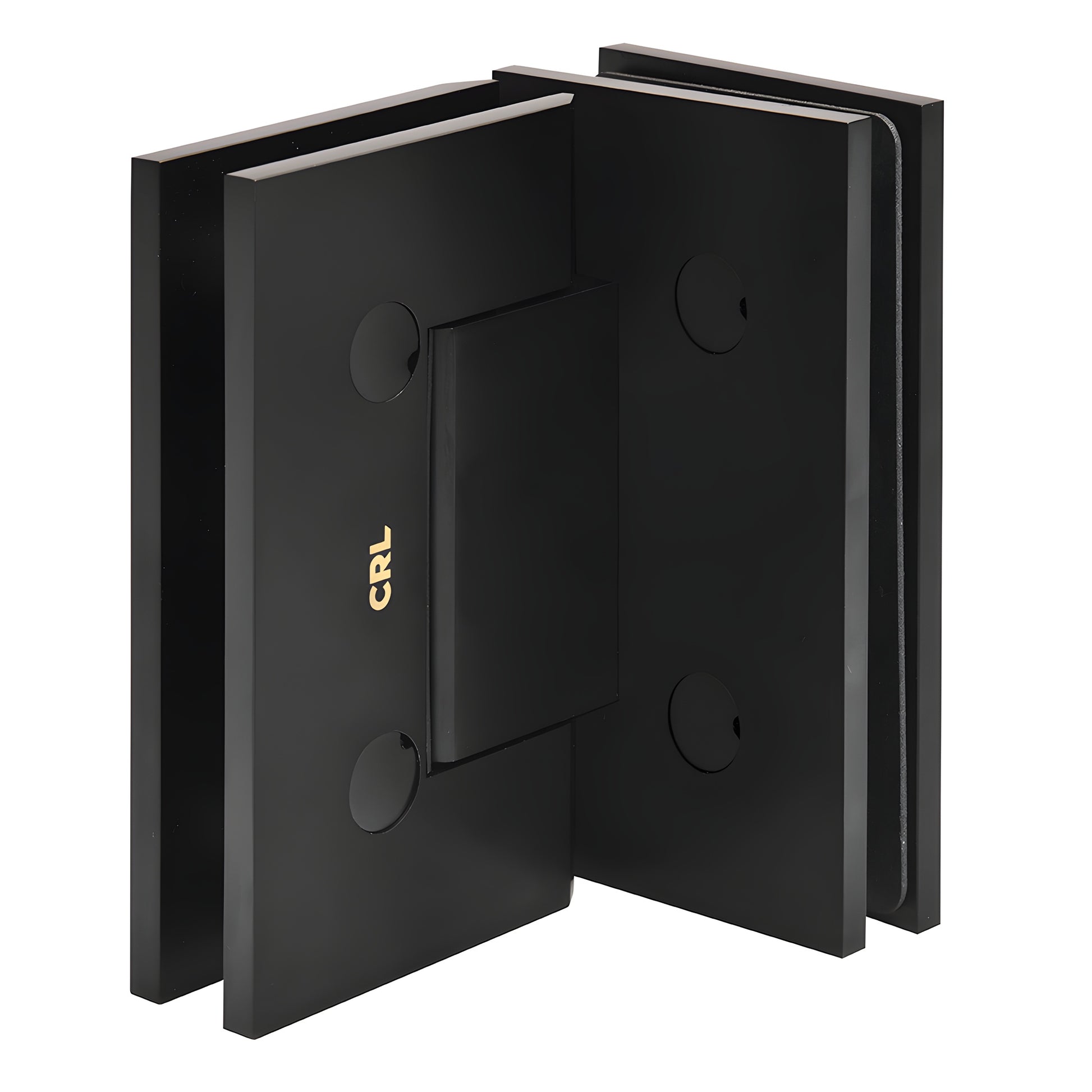

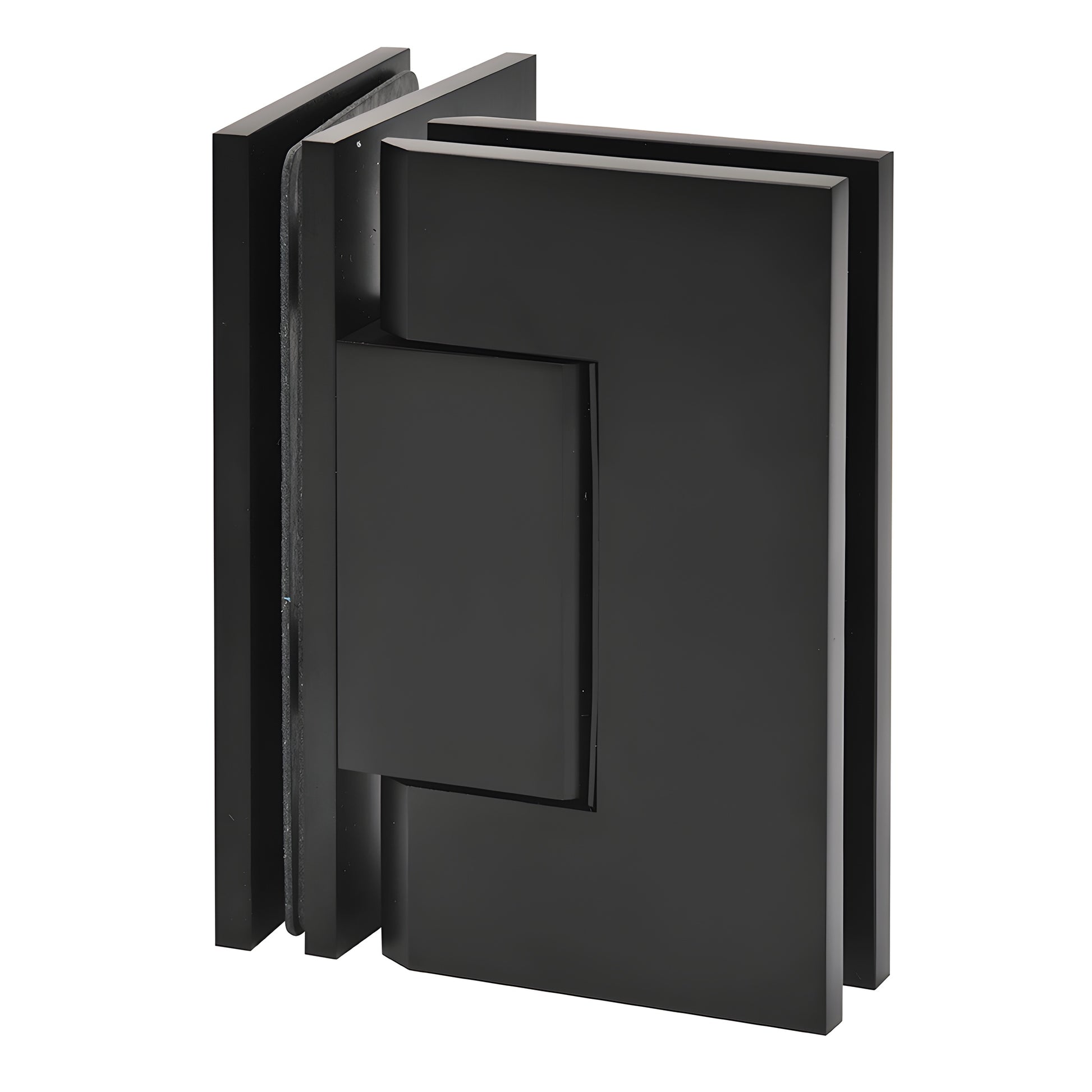

The CRL Trento Hinge (SKU: TNT092MBL) is a heavy-duty, rectangular-frame hinge engineered for frameless shower doors. Designed for modern bathrooms, it features a narrow gap profile and fully concealed mounting screws to maintain a refined appearance while providing robust support for heavy glass panels.

The Trento hinge uses compressible NAF gaskets that adapt to surface variations and maintain a consistent grip on both 3/8" and 1/2" monolithic tempered glass. Ideal for glass shower doors, this hinge supports smooth operation and long-lasting sealing performance.

STANDARD REVERSIBLE PIVOT PIN: Each Trento hinge includes a reversible pivot pin to fine-tune the door’s closed position. Rotate (do not flip) the pin to shift the self-centering angle by 5°—choose either 95° or 85°—to improve door alignment, ensure a tighter seal, and maintain smooth closing action.

Capacity:

• Two-hinge installation: supports doors up to 140 lb (63 kg) and up to 40" (1016 mm) wide
• Three-hinge installation: supports doors up to 175 lb (79 kg) and up to 40" (1016 mm) wide

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use only. Use for other purposes requires approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge—cut-out dimensions may differ from other brands.

Upgrade your frameless shower with the Trento heavy-duty hinge—select SKU TNT092MBL and add durable, concealed hardware to your project today.
