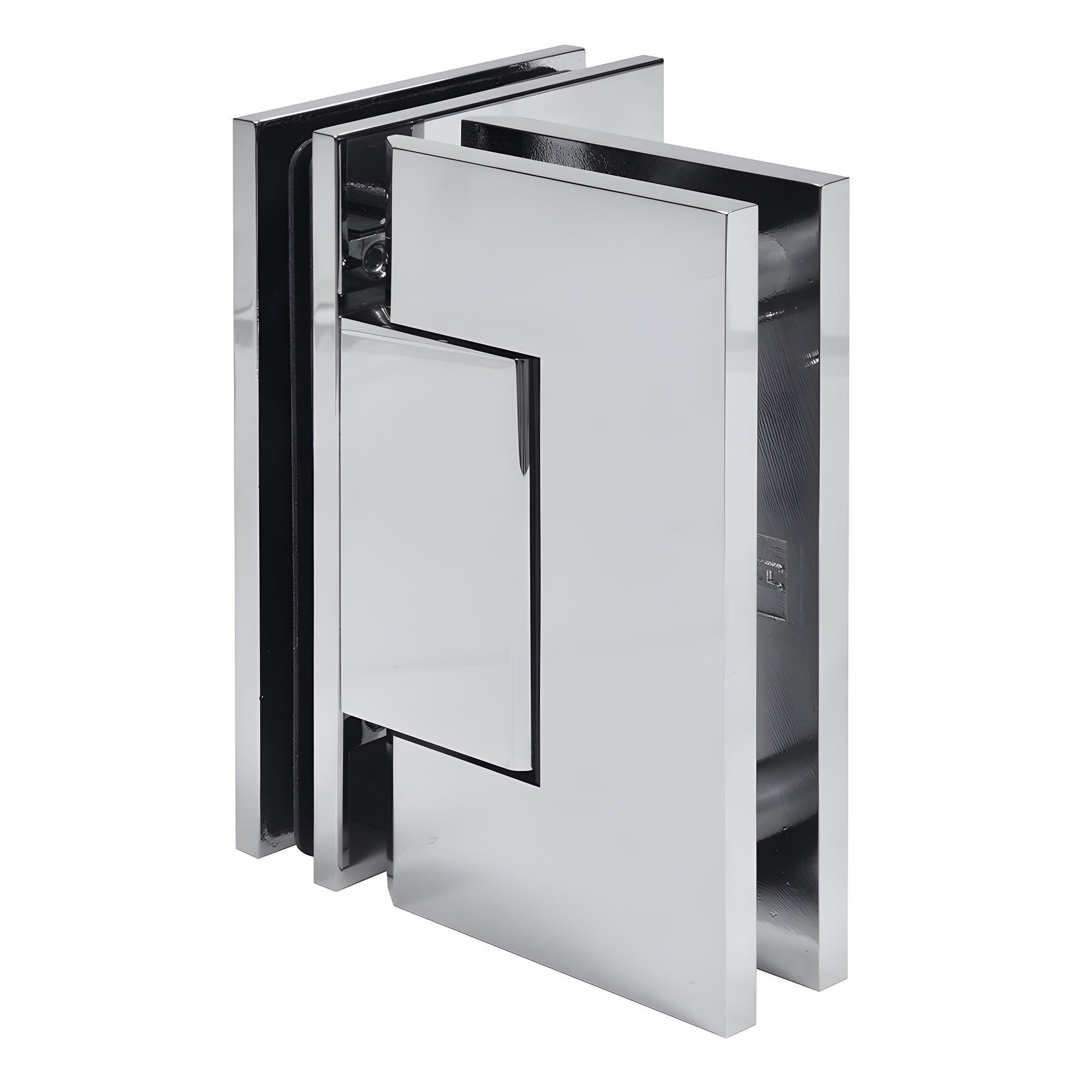

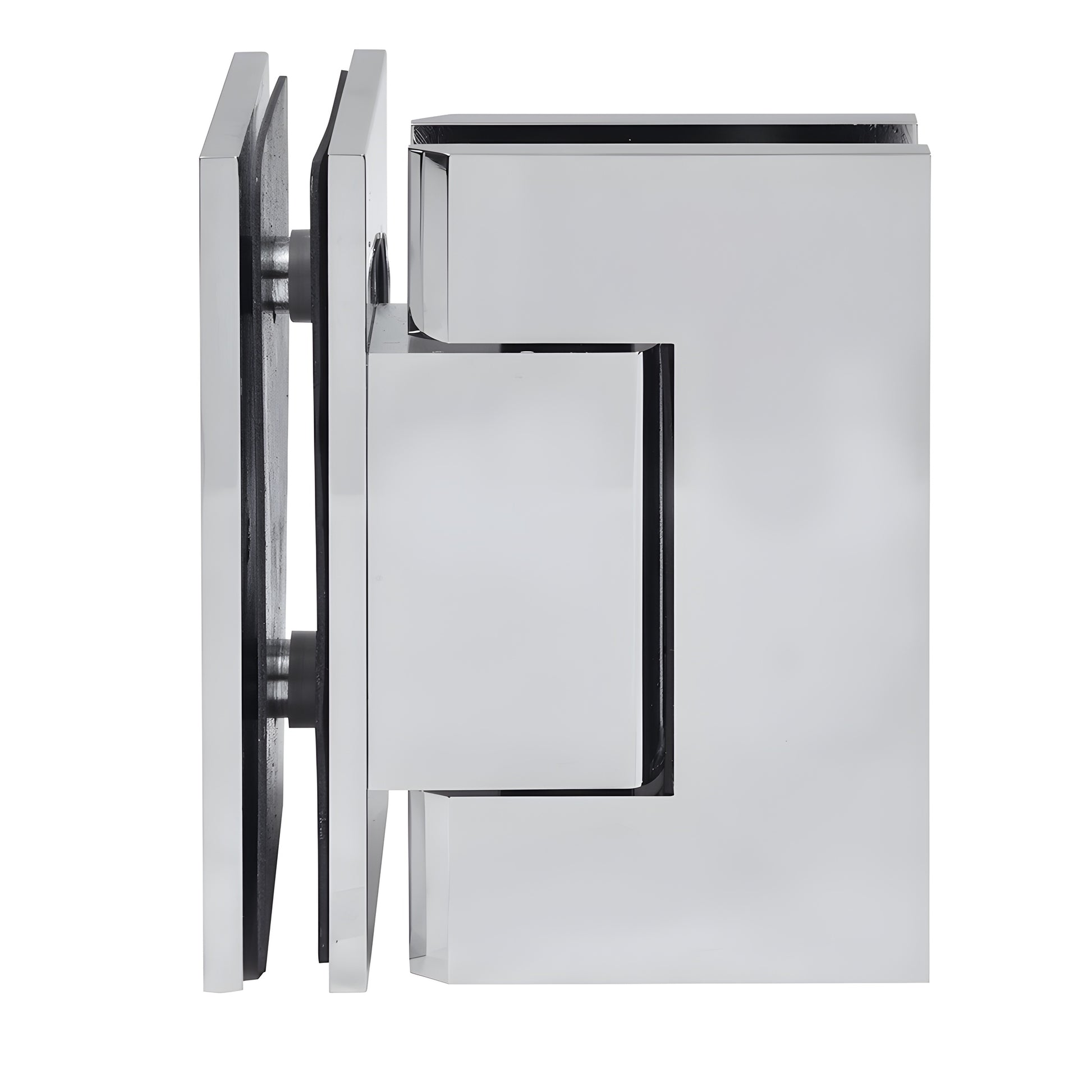

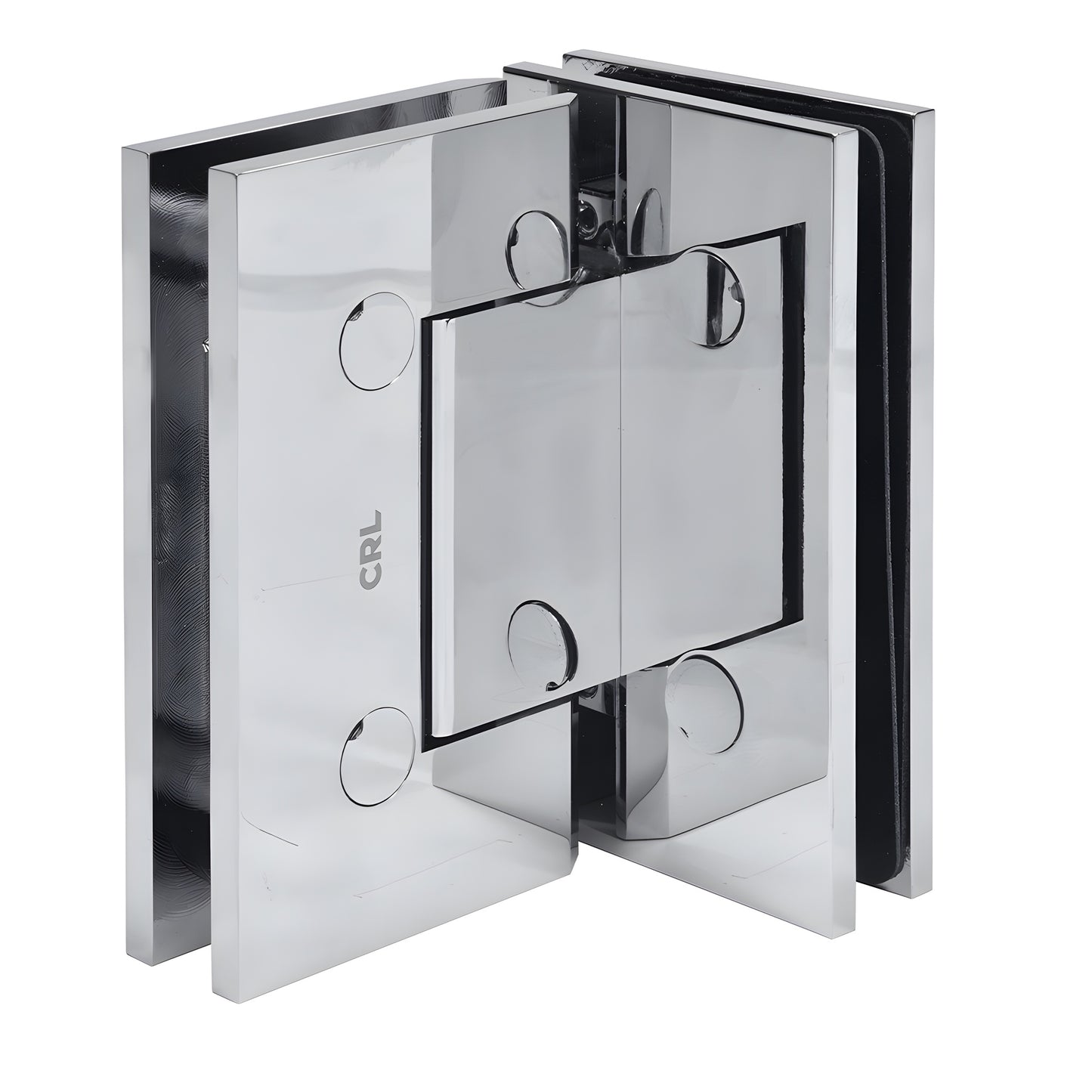

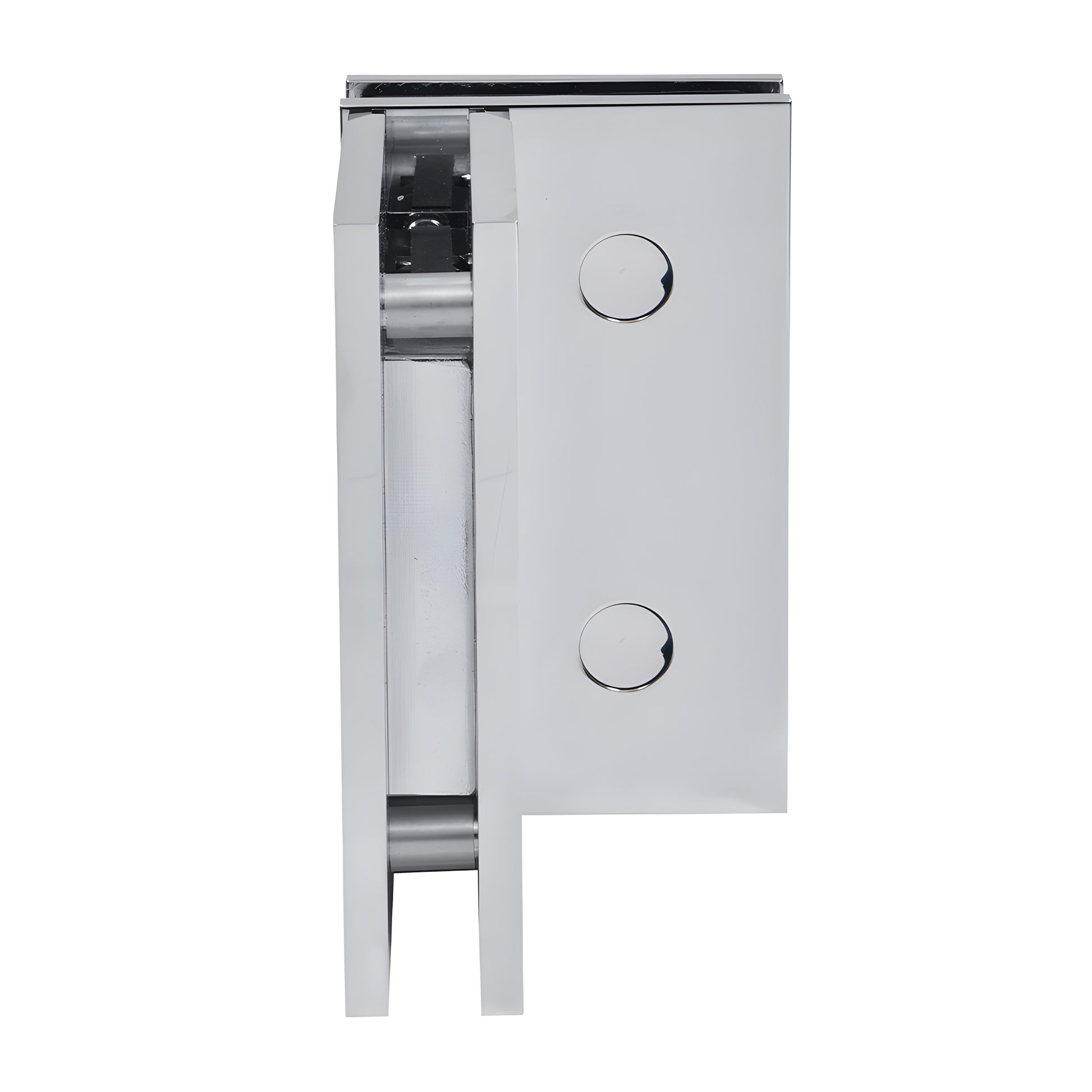

CRL Trento Polished Chrome 90° Frameless Glass-to-Glass Shower Hinge

• Supports heavier glass shower doors (up to 140 lb two-hinge, 175 lb three-hinge)
• Concealed mounting screws for a clean, modern look
• 90° glass-to-glass hinge for frameless shower doors

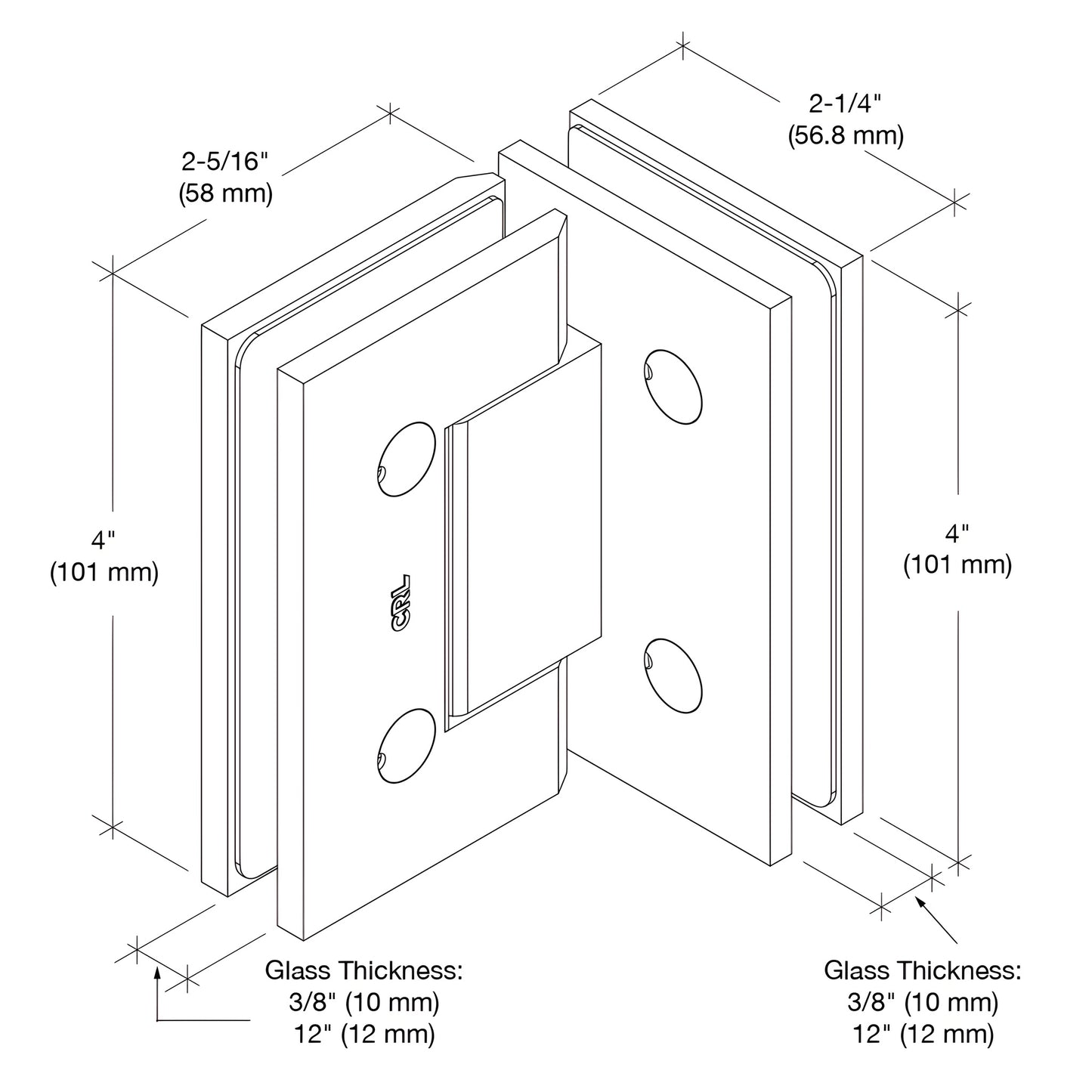

• Single NAF gasket compatible with 3/8" (10 mm) and 1/2" (12 mm) monolithic tempered glass
• Use with monolithic tempered glass only

The CRL Trento Hinge (SKU: TNT092CH) is a heavy-duty hinge engineered for modern frameless shower doors and heavy glass panels. Its slim rectangular body and concealed screws deliver a refined, minimalist appearance while providing robust support and reliable performance.

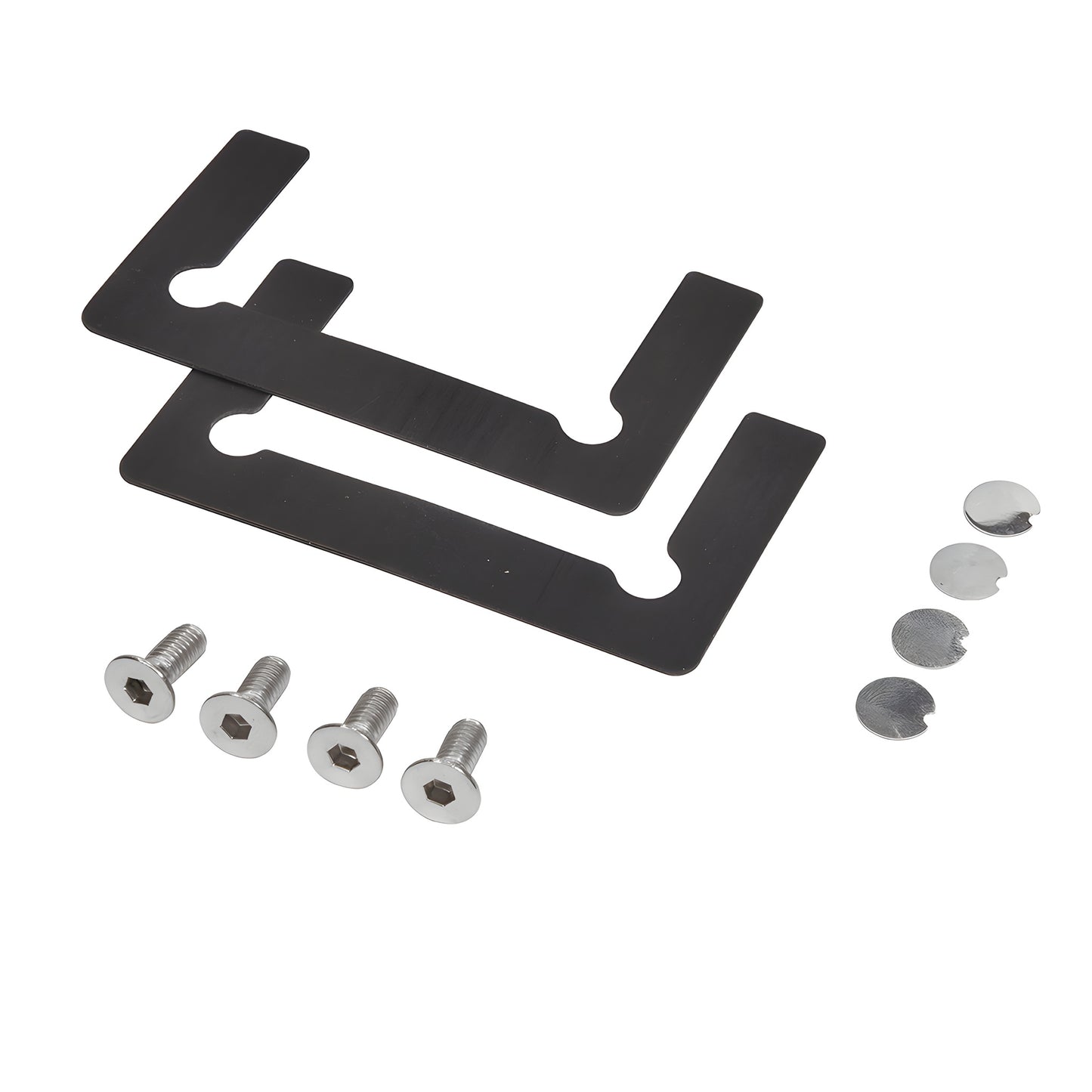

The Trento uses compressible NAF gaskets that adapt to varying glass surfaces, providing a consistent grip for both 3/8" and 1/2" monolithic tempered glass. Designed for smooth operation and a tight seal, the hinge is ideal for residential and hotel shower installations.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that lets you adjust the door’s closed position without flipping the pin. Rotate the pin to shift the self-centering angle by 5°—choose 95° or 85°—to improve alignment, sealing, and closing performance.

Load capacities:

• Two-hinge installation: supports doors up to 140 lb (63 kg), maximum width 40" (1016 mm)
• Three-hinge installation: supports doors up to 175 lb (79 kg), maximum width 40" (1016 mm)

Product warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Trento Hinge (TNT092CH) for a durable, low-profile hinge solution for 3/8" and 1/2" frameless glass shower doors.
