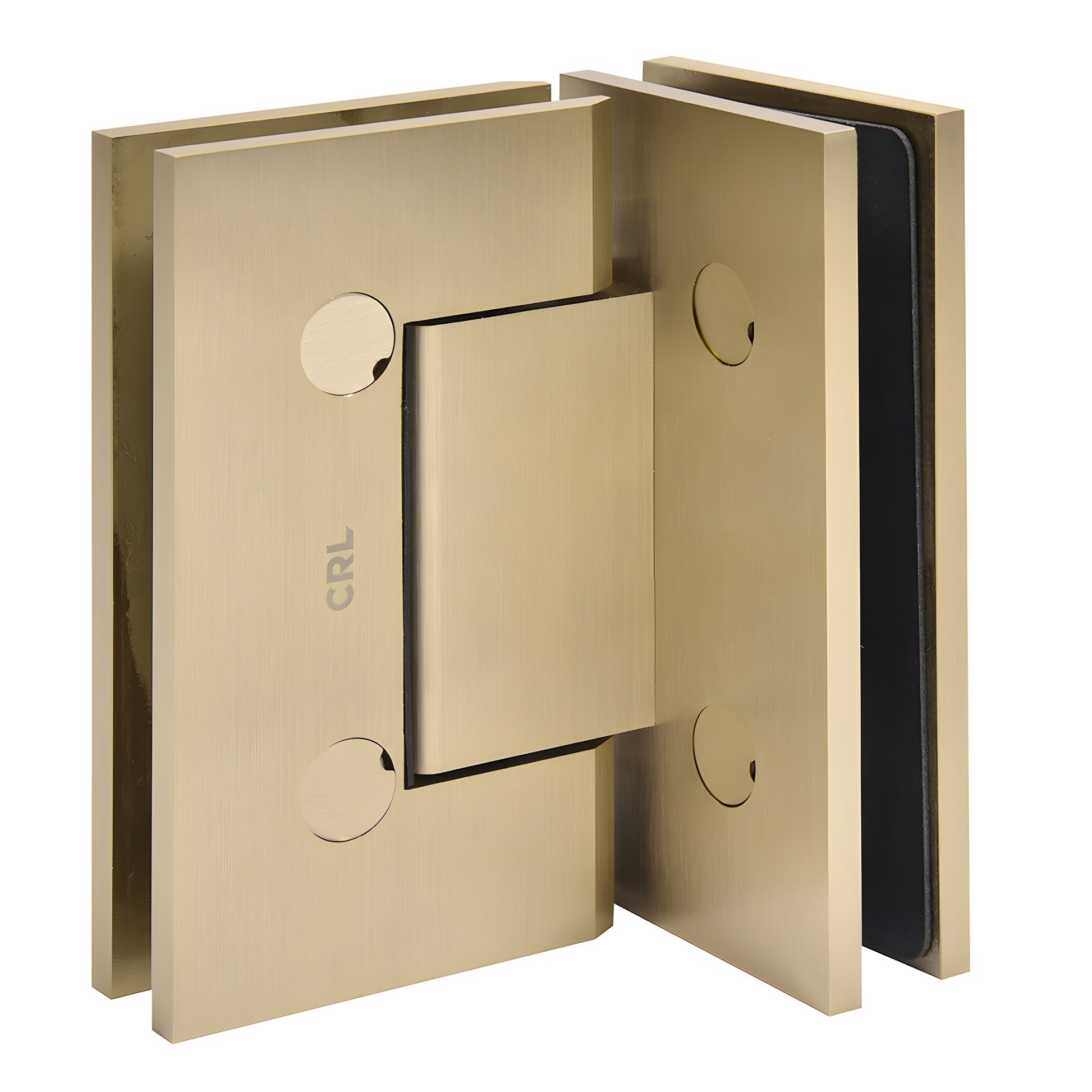

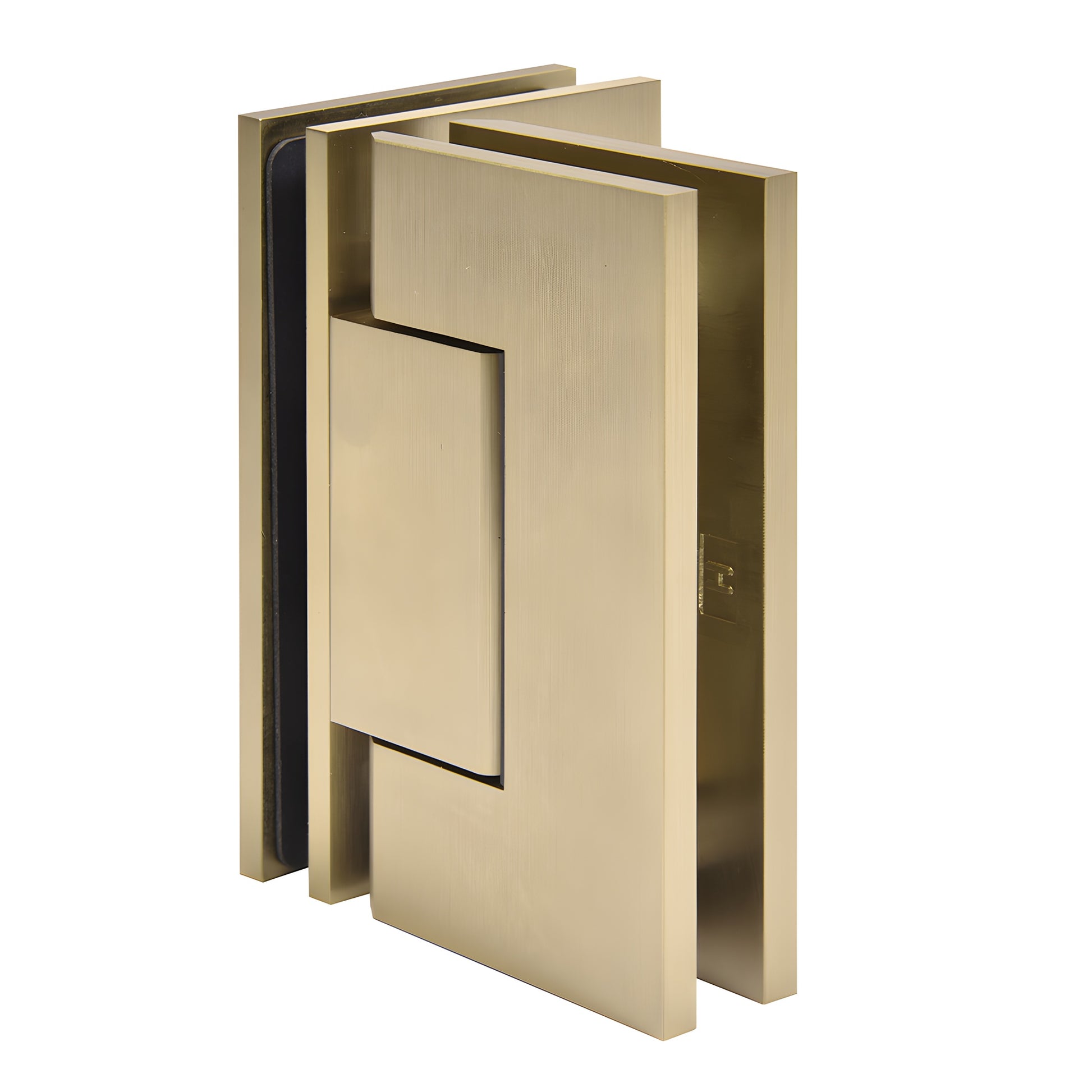

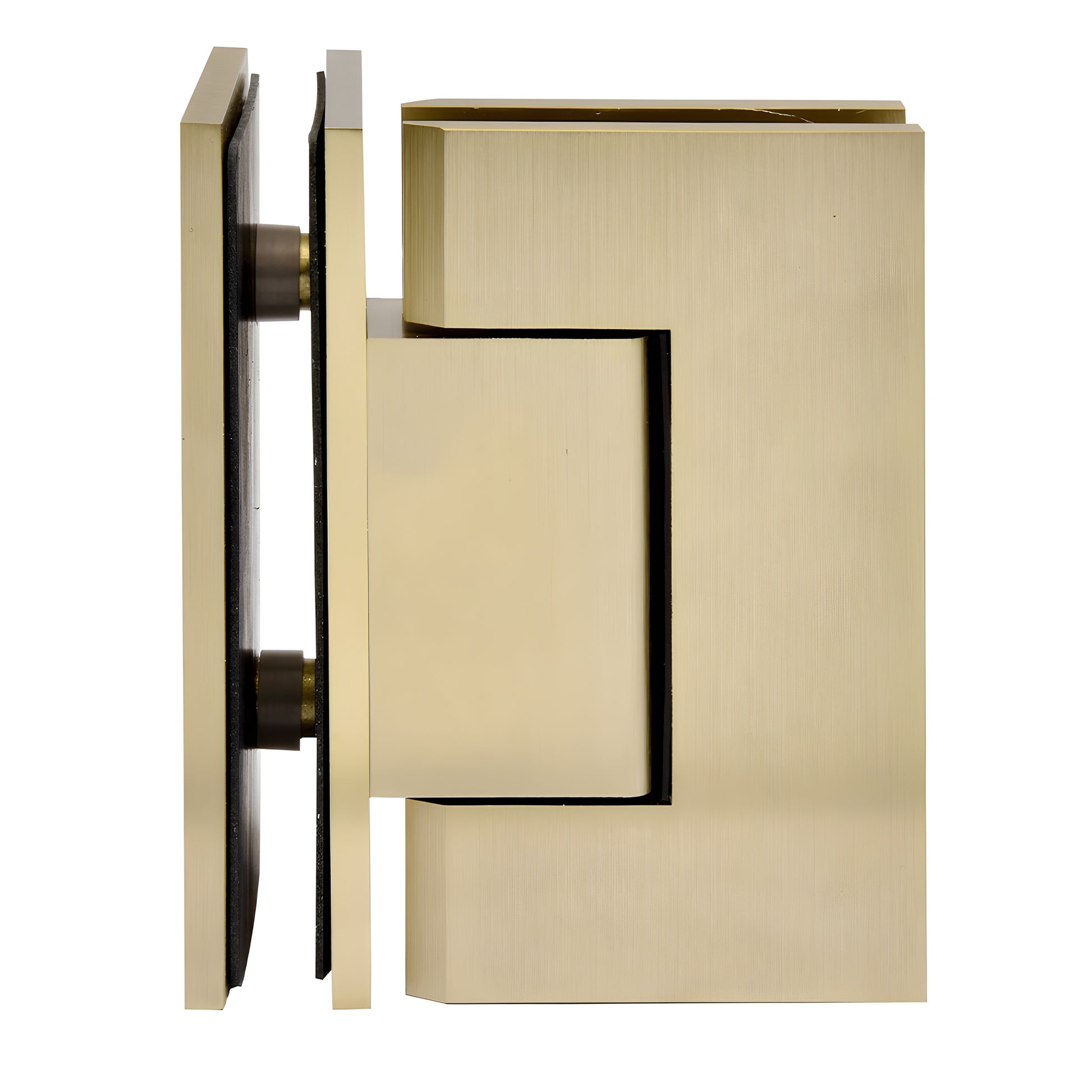

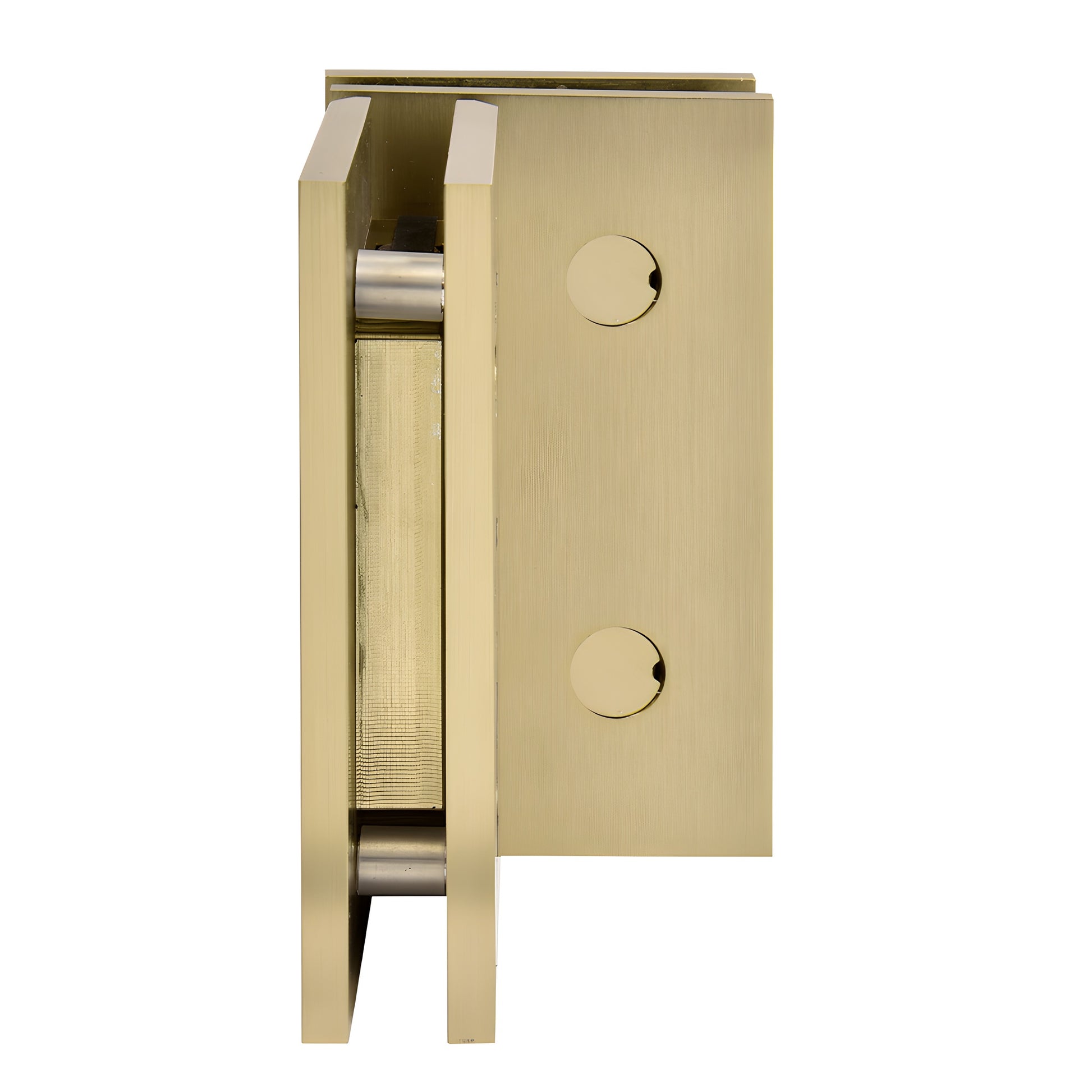

CRL Trento Brushed Bronze 90° Frameless Glass-to-Glass Shower Hinge

• Supports heavier frameless glass shower doors—up to 140 lb (two hinges) or 175 lb (three hinges)
• Concealed mounting screws for a clean, modern look
• 90° glass-to-glass hinge for frameless shower installations

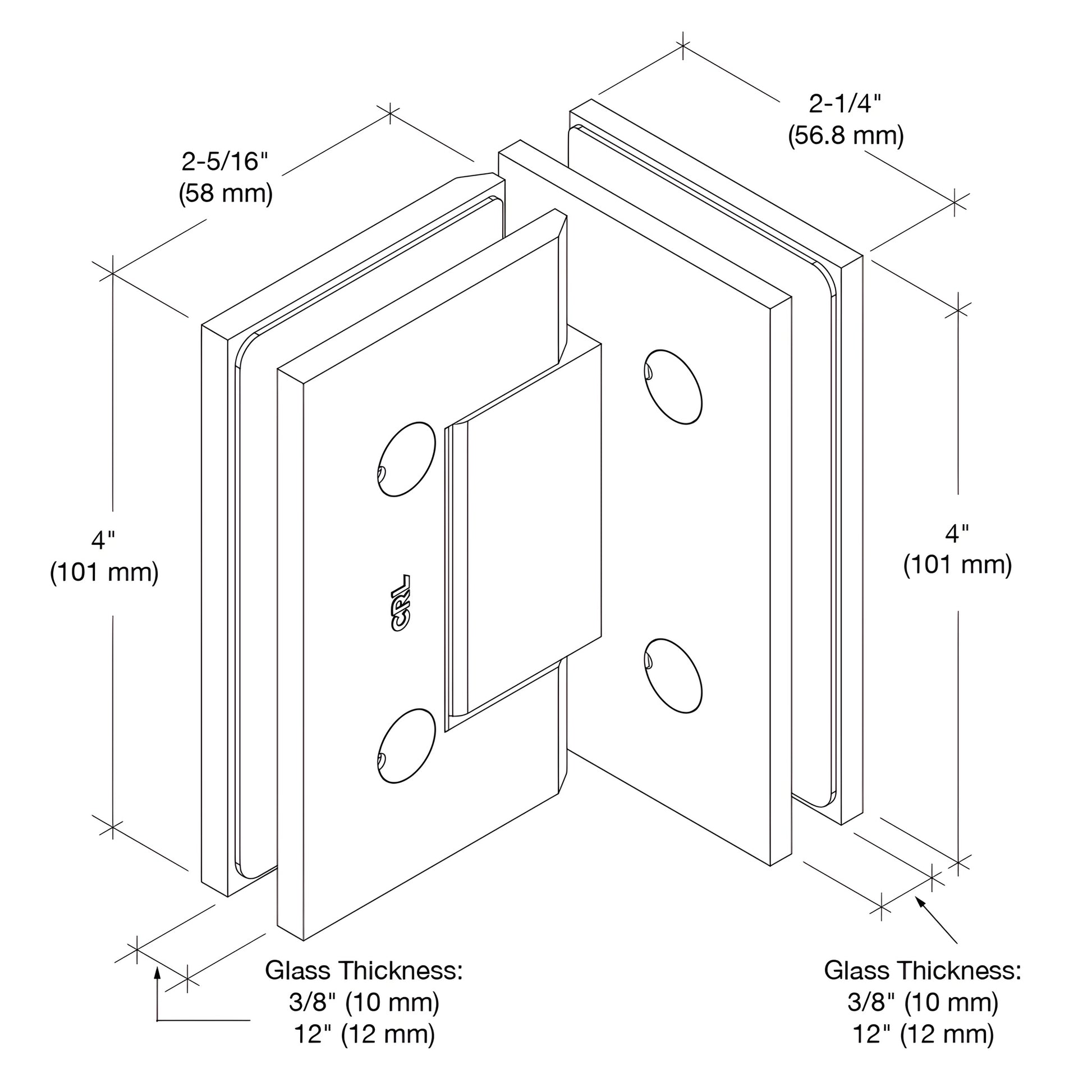

• Single NAF gasket compatible with 3/8" (10 mm) and 1/2" (12 mm) monolithic tempered glass
• Use with monolithic tempered glass only

The CRL Trento Hinge (SKU: TNT092BBRZ) is a heavy-duty frameless shower door hinge engineered for contemporary bathrooms. Its slim rectangular body and narrow gap deliver a refined aesthetic while fully concealed screws maintain a seamless appearance—ideal for designers and homeowners seeking a minimalist look.

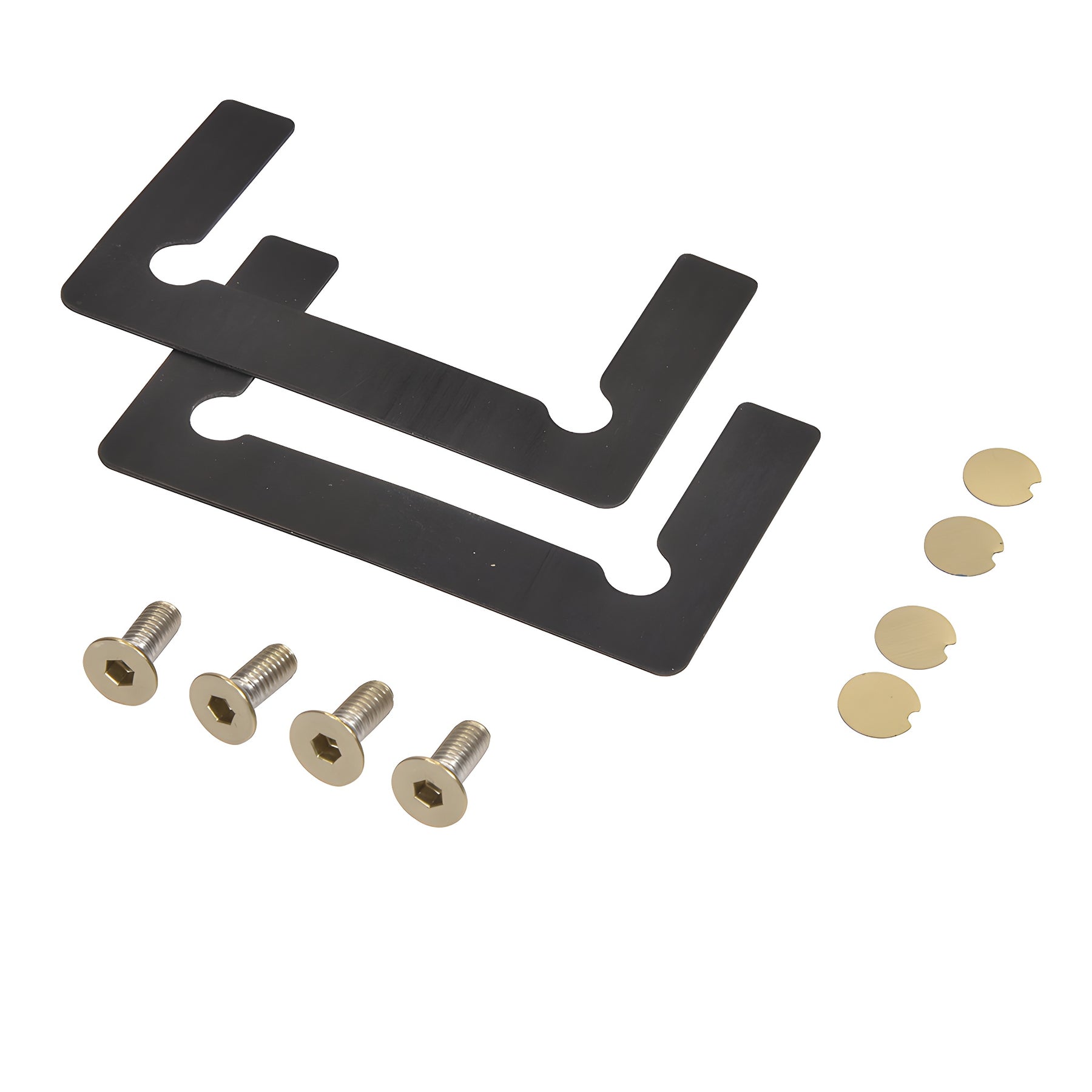

The Trento uses compressible NAF gaskets that fit both 3/8" and 1/2" glass, maintaining a consistent grip across varying glass surfaces. Designed for monolithic tempered glass, this hinge is optimized for durability and long-term performance in residential and hotel shower applications.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position. Rotate (do not flip) the pin to shift the self-centering angle by ±5° (choose 95° or 85°) to improve alignment, sealing, and smooth operation.

Load capacity:

• Two-hinge installation (3/8" or 1/2" glass): supports doors up to 140 lb (63 kg), maximum width 40" (1016 mm)
• Three-hinge installation (3/8" or 1/2" glass): supports doors up to 175 lb (79 kg), maximum width 40" (1016 mm)

Product warning: CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Trento hinge (TNT092BBRZ) for a durable, concealed-screw frameless shower hinge—shop now to update your shower hardware.
