CRL Brushed Bronze Trento 135° Glass-to-Glass Shower Door Hinge
Item# TNT045BBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

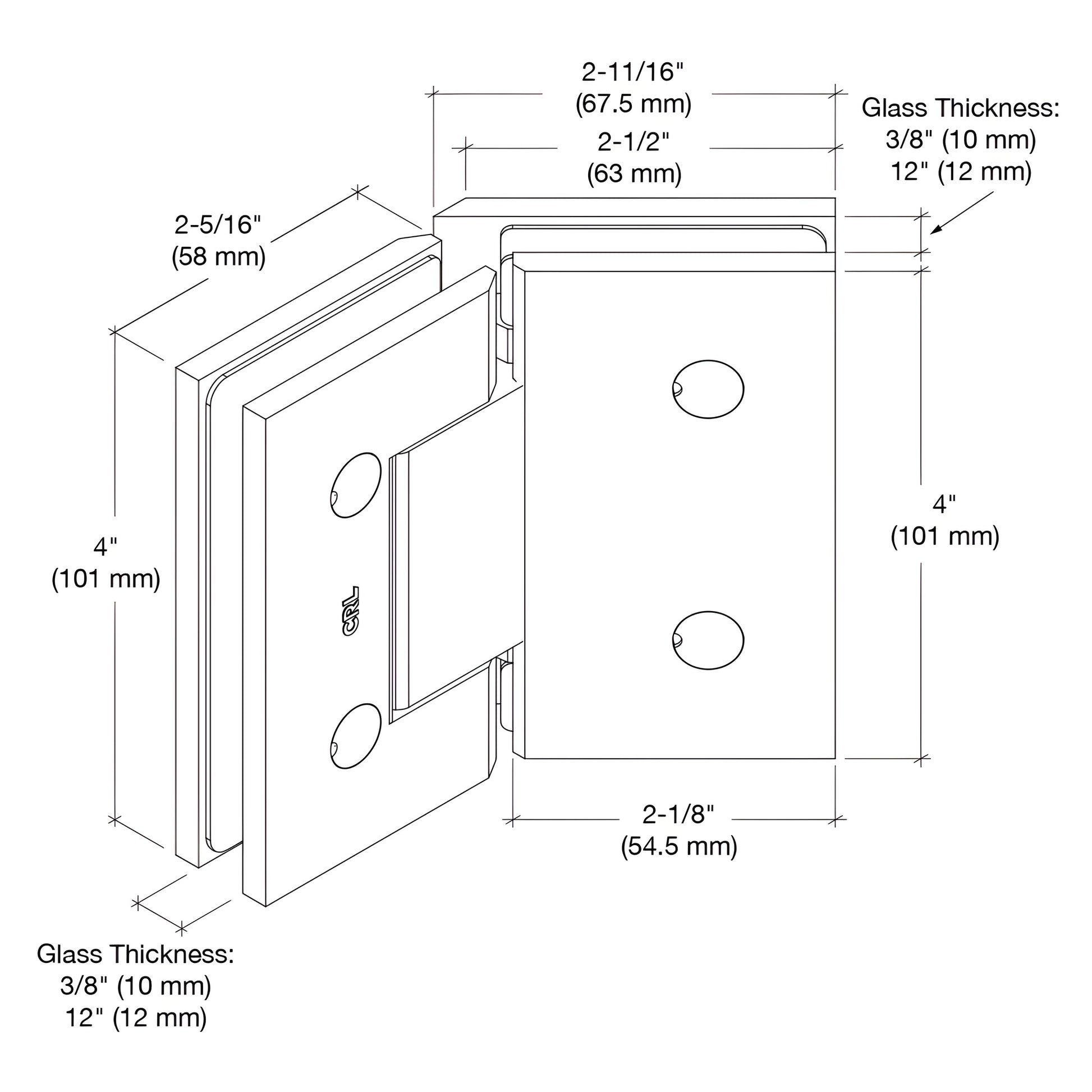

5 Degree Pre-Set
No
Adjustable
No
Finish/Color
Brushed Bronze
Glass To Glass Angle
135
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)
Height
4 in. (101 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
140 lbs. (63 kg)
Maximum Door Weight - 3 Hinges
175 lbs. (79 kg)
Maximum Door Width
40 in. (1016 mm)
Mounting Type
Glass To Glass
Positive Close
No
Self-Centering
Yes
Series
Trento
Width
2-5/16 in. (58 mm)
Width - Door Portion
2-1/8 in. (54mm)
- Supports heavier frameless glass shower doors—up to 140 lb (two hinges) or 175 lb (three hinges)
- Fully concealed mounting screws for a clean, modern look
- 135° glass-to-glass hinge for seamless frameless installations
- Single NAF gasket compatible with both 3/8” (10 mm) and 1/2” (12 mm) monolithic tempered glass

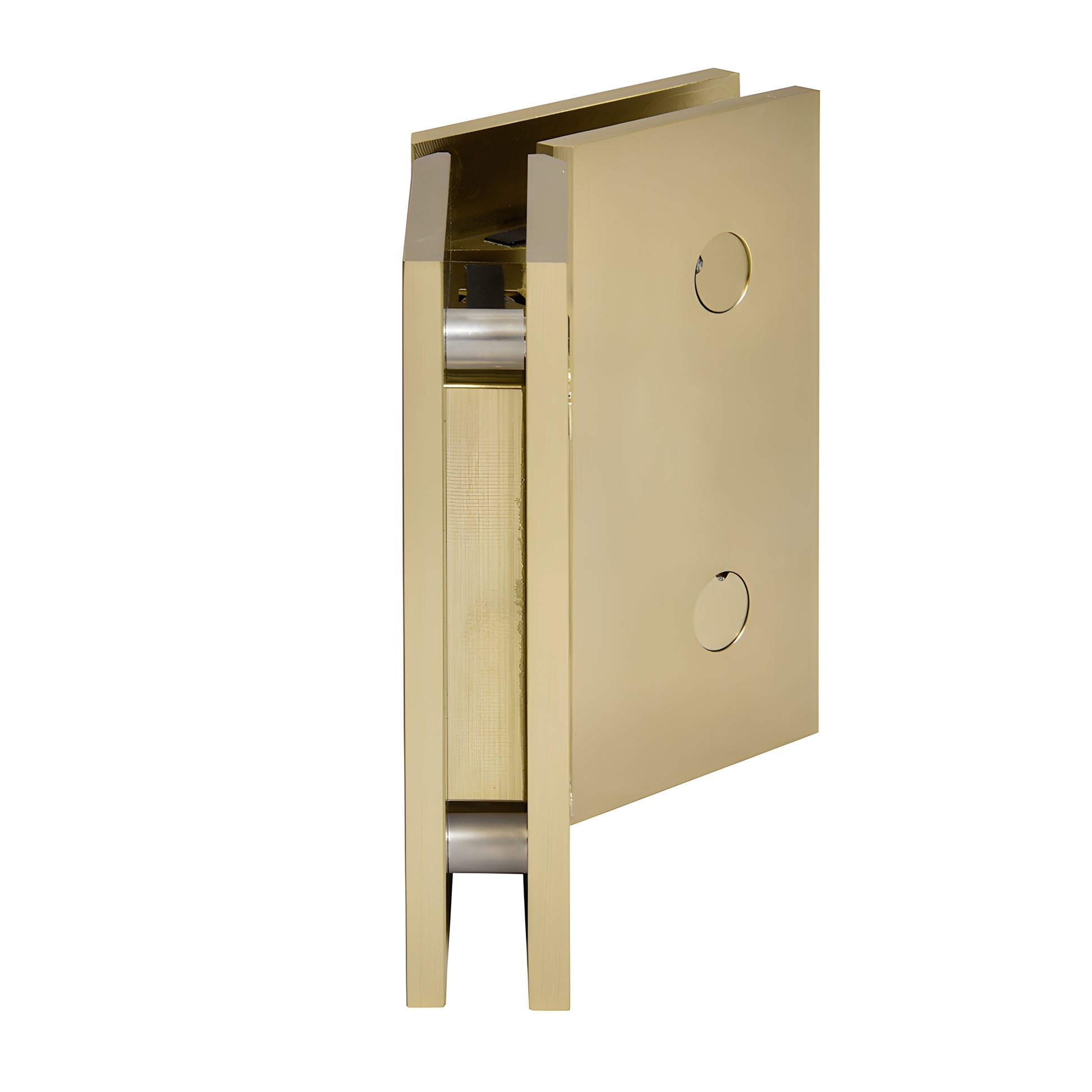

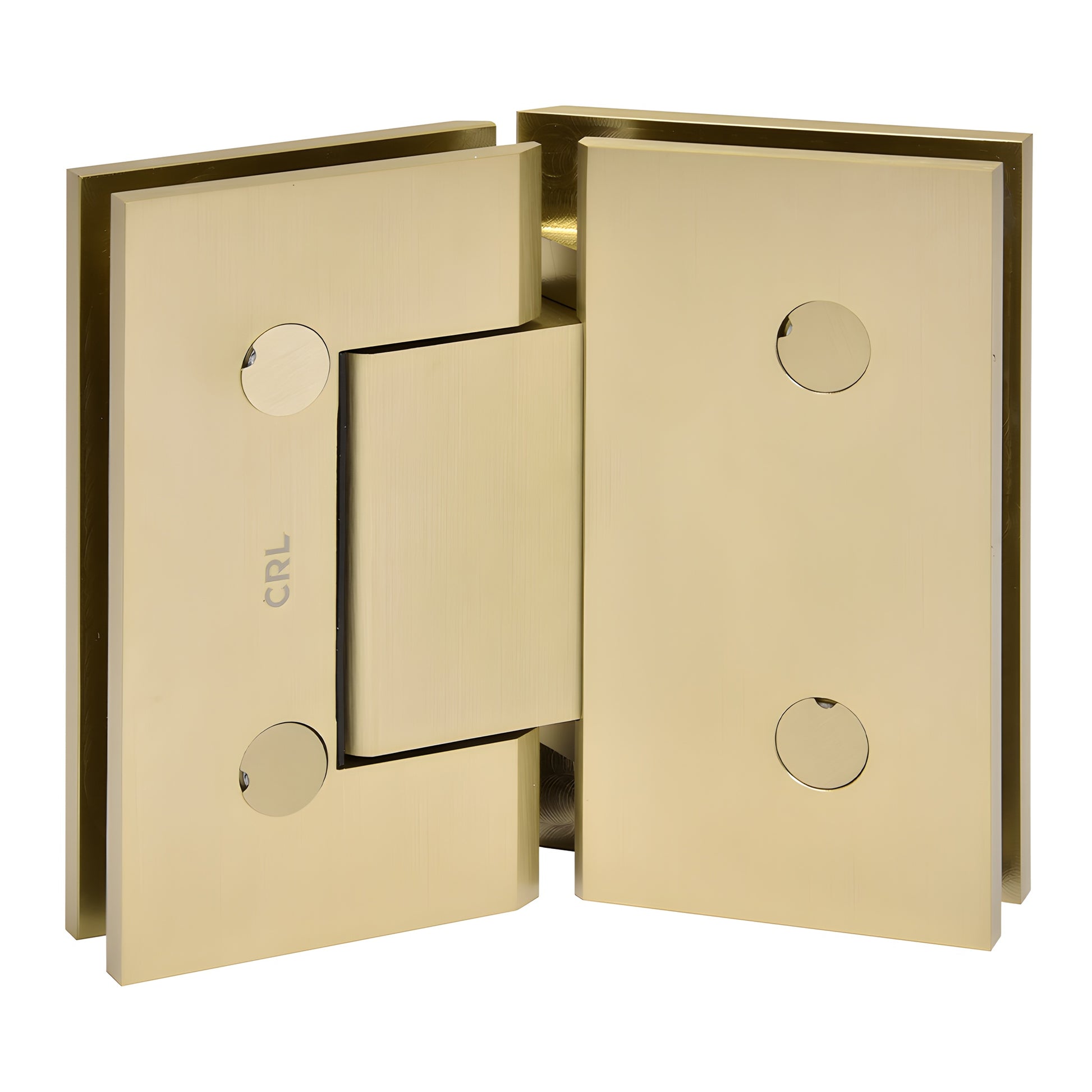

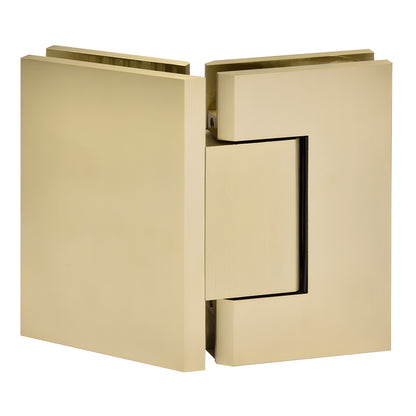

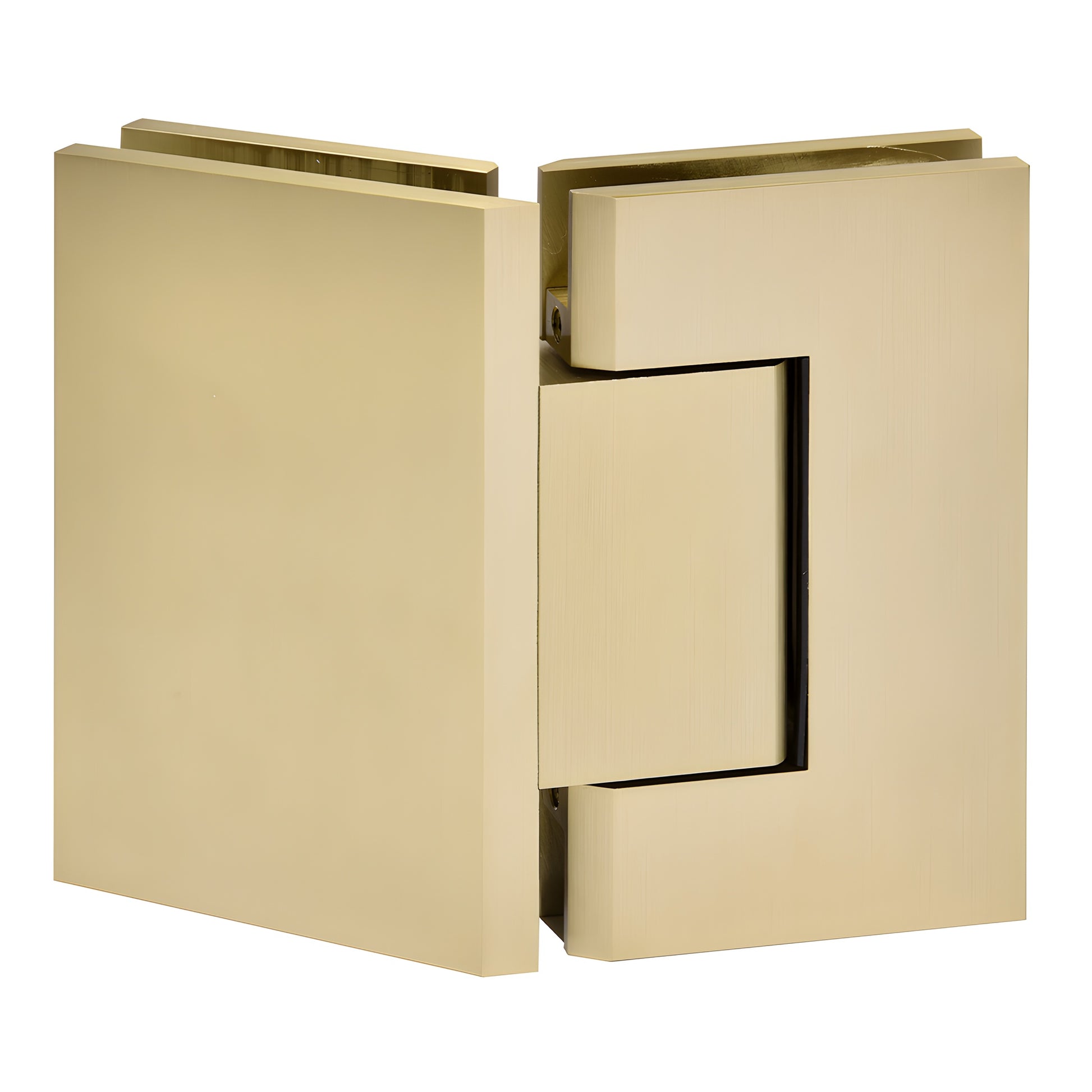

The CRL Trento Hinge (SKU: TNT045BBRZ) is a heavy-duty, rectangular-profile hinge engineered for frameless shower doors. Designed for modern bathrooms and hotel applications, it delivers a narrow gap aesthetic, durable operation, and fully concealed screws for a refined finish.

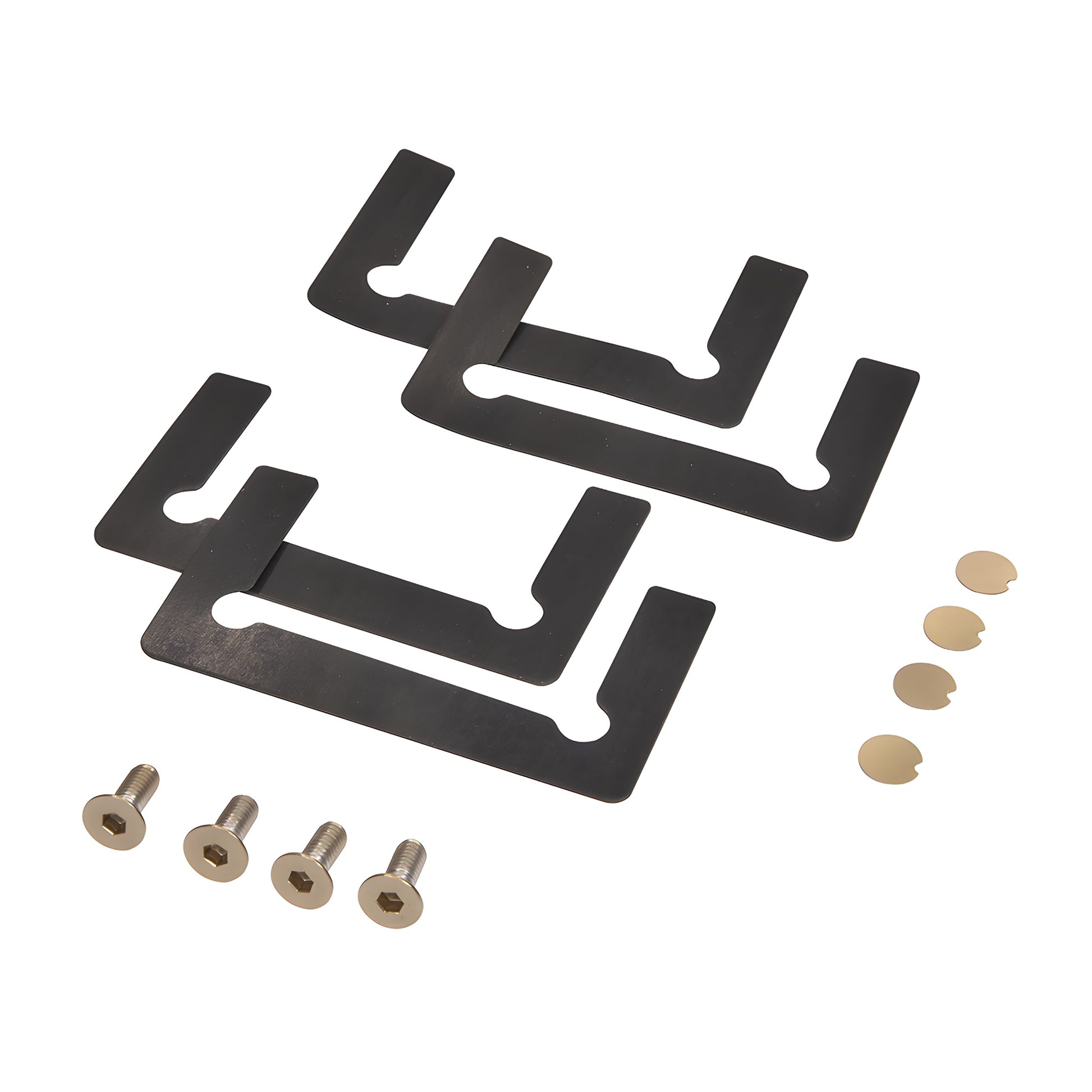

The Trento uses compressible NAF gaskets that adapt to surface variations, maintaining a consistent grip on 3/8" and 1/2" monolithic tempered glass. Use monolithic tempered glass only.
STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin that adjusts the door’s self-centering closed position by 5° (select 95° or 85° by rotating the pin). This allows fine alignment to improve seal performance and ensure smooth, reliable operation.
Load capacity:
- Two-hinge installation: supports doors up to 140 lb (63 kg), up to 40" (1016 mm) wide
- Three-hinge installation: supports doors up to 175 lb (79 kg), up to 40" (1016 mm) wide
Product Warning:
CRL Shower Door Hinges are intended for residential or hotel shower use only. For applications outside intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template supplied with this hinge—CRL cut-out dimensions may differ from other brands.
