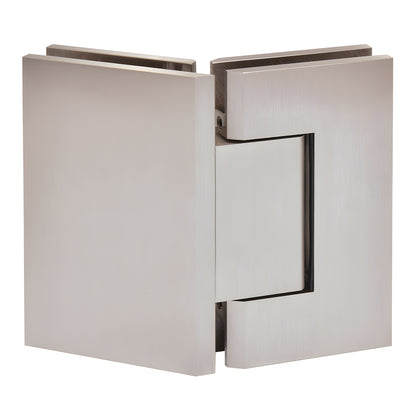

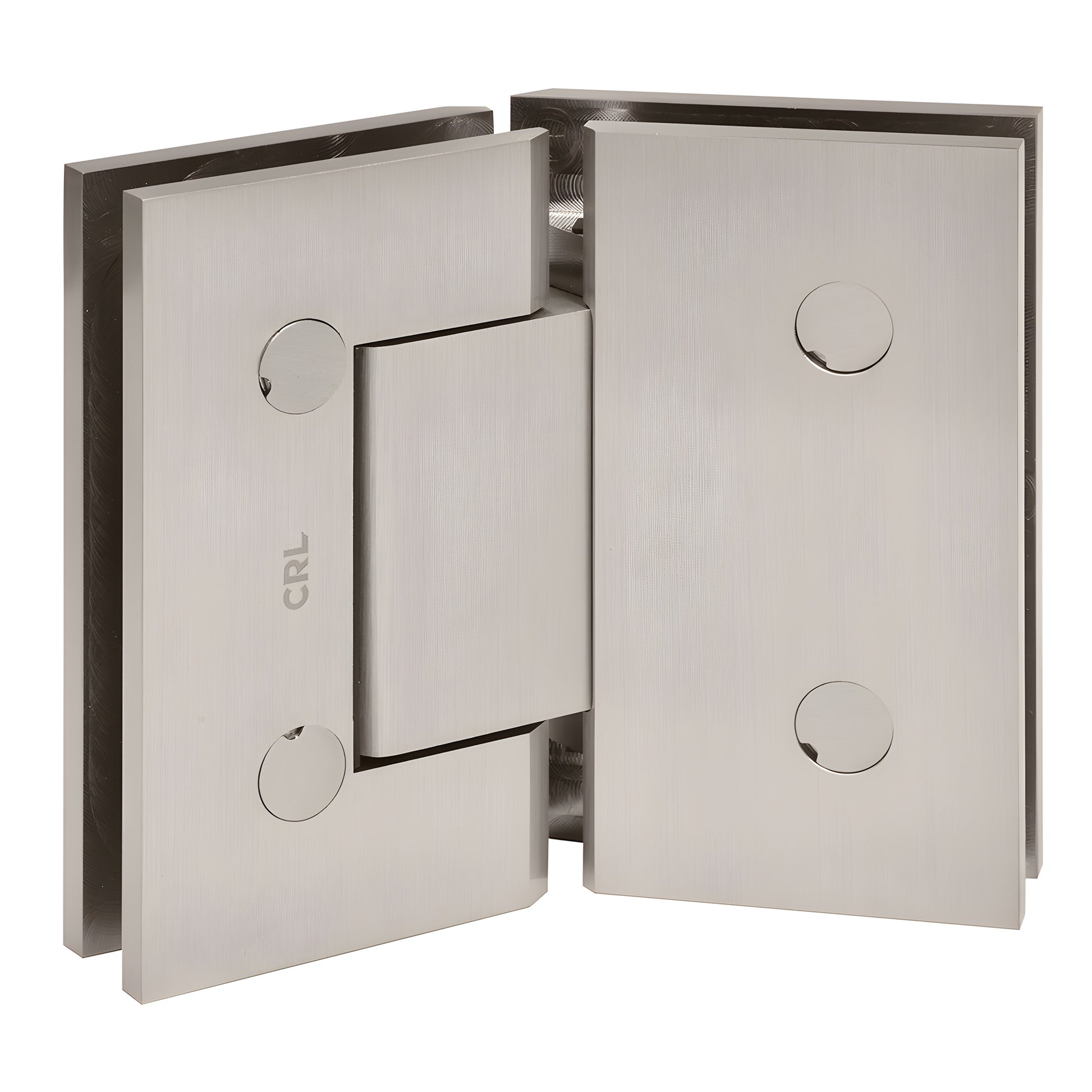

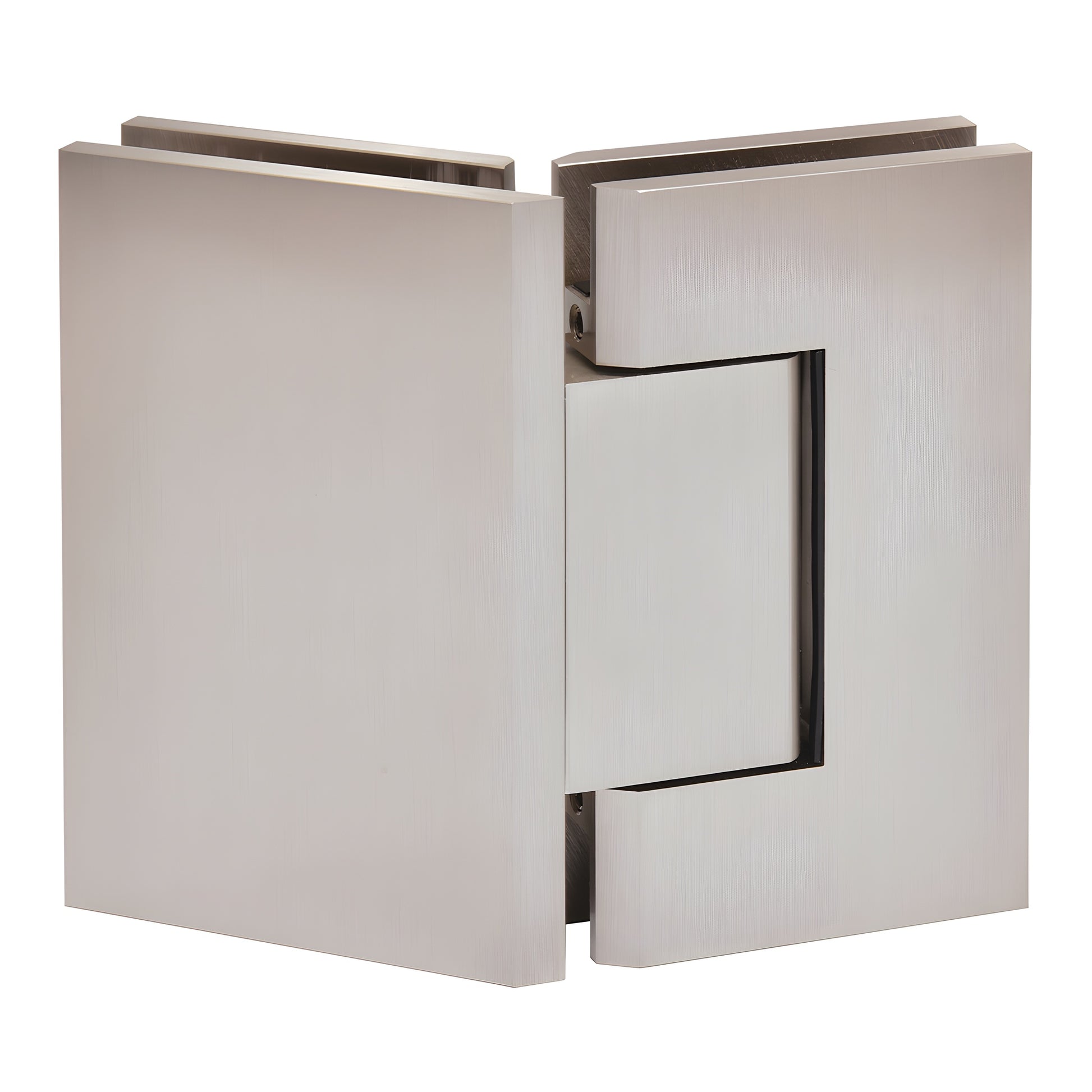

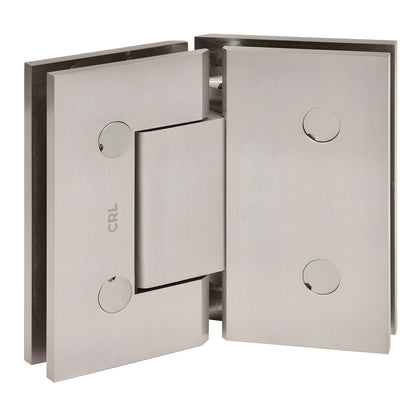

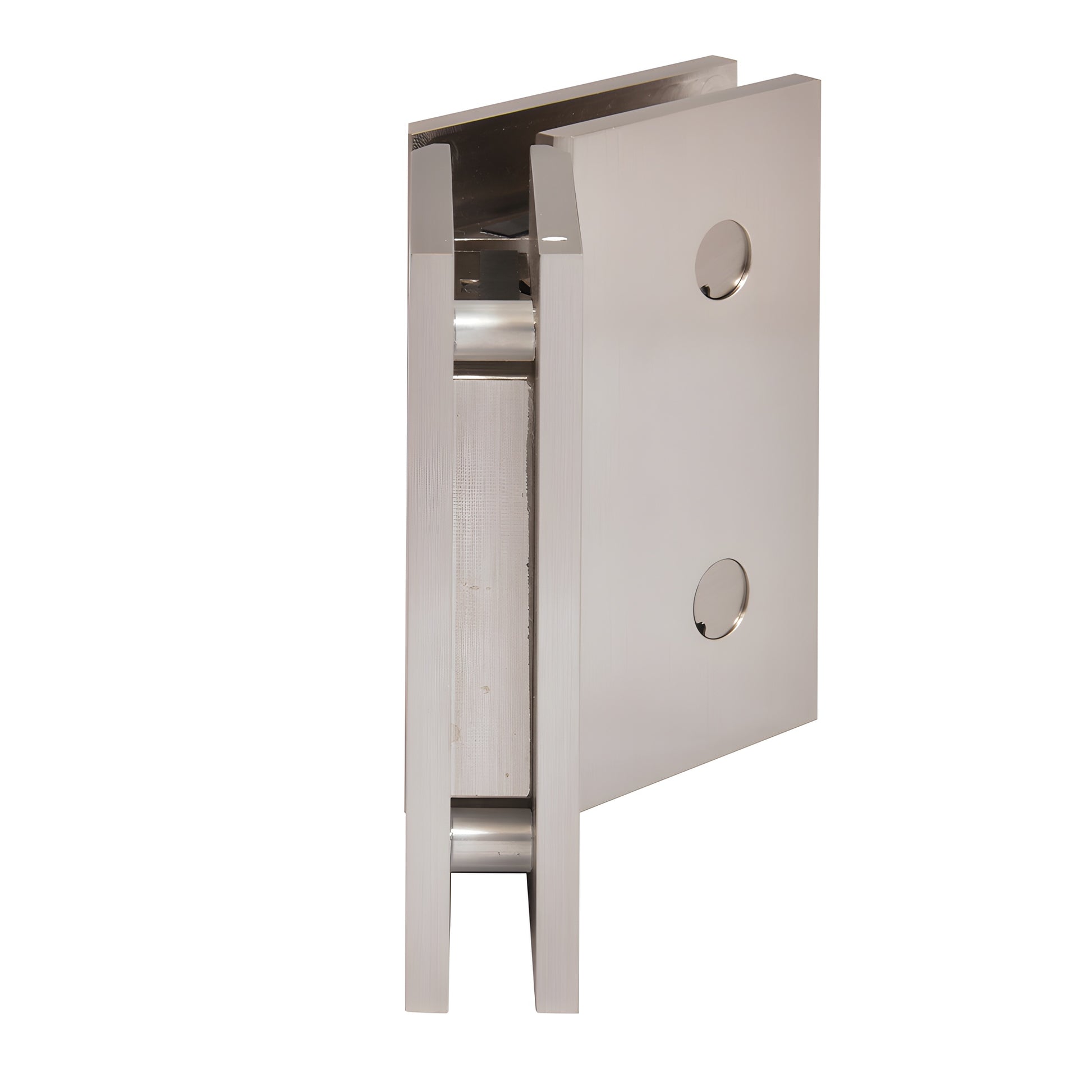

CRL Trento 135° Brushed Nickel Glass-to-Glass Shower Hinge

• Supports heavier frameless shower doors
• Concealed mounting screws for a clean, modern look
• 135° glass-to-glass configuration

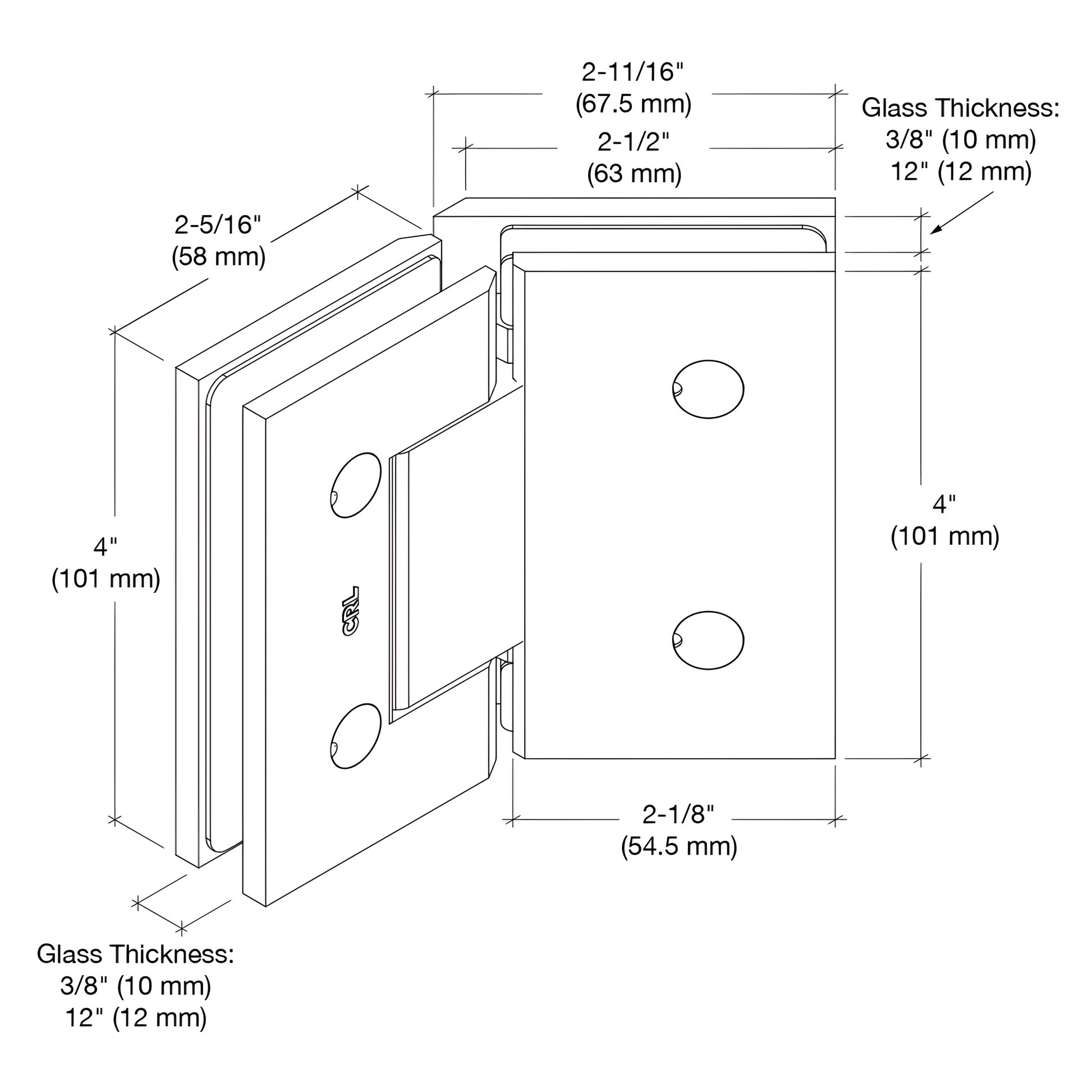

• Single NAF gasket — compatible with 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass

CRL Trento Hinge — a heavy-duty hinge engineered for frameless shower doors and modern glass enclosures. In a standard two-hinge installation the Trento supports panels up to 140 lbs (63 kg); with three hinges it supports up to 175 lbs (79 kg) for doors up to 40" (1016 mm) wide. Its rectangular body and narrow gap provide a refined appearance while fully concealed screws maintain a sleek aesthetic.

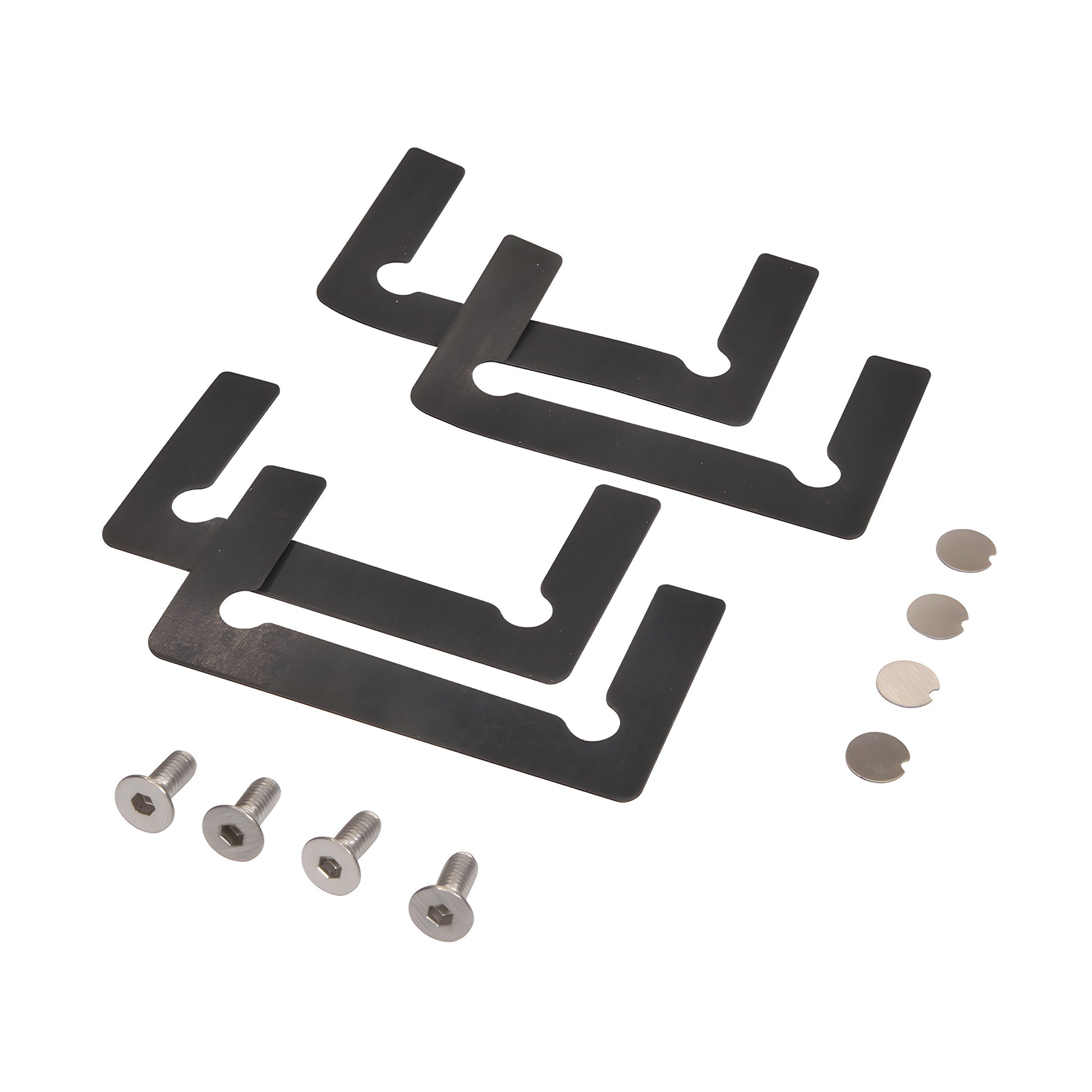

The Trento uses compressible NAF gaskets that adapt to surface variations to keep a consistent grip on 3/8" and 1/2" monolithic tempered glass. The hinge includes a standard reversible pivot pin that lets you rotate (not flip) the pin to shift the self-centering angle by 5°—select 95° or 85° to optimize door closing, alignment, and sealing against adjacent panels.

Key differentiators: heavy-duty capacity for frameless shower doors, fully concealed mounting hardware, reversible pivot pin for quick field adjustment, and compatibility with both 10 mm and 12 mm monolithic tempered glass.

Installation notes: Use only the template included with this hinge — cut-out dimensions may differ from other brands. Designed for residential and hotel shower applications; alternative uses require approval from the CRL Shower Door Technical Sales Department.

Product Warning: If exact shipping weight is required, contact CRL Customer Service prior to ordering. Product images are representative; colors may vary with monitor settings.

SKU: TNT045BN — Order now or contact CRL Customer Service for technical assistance.
