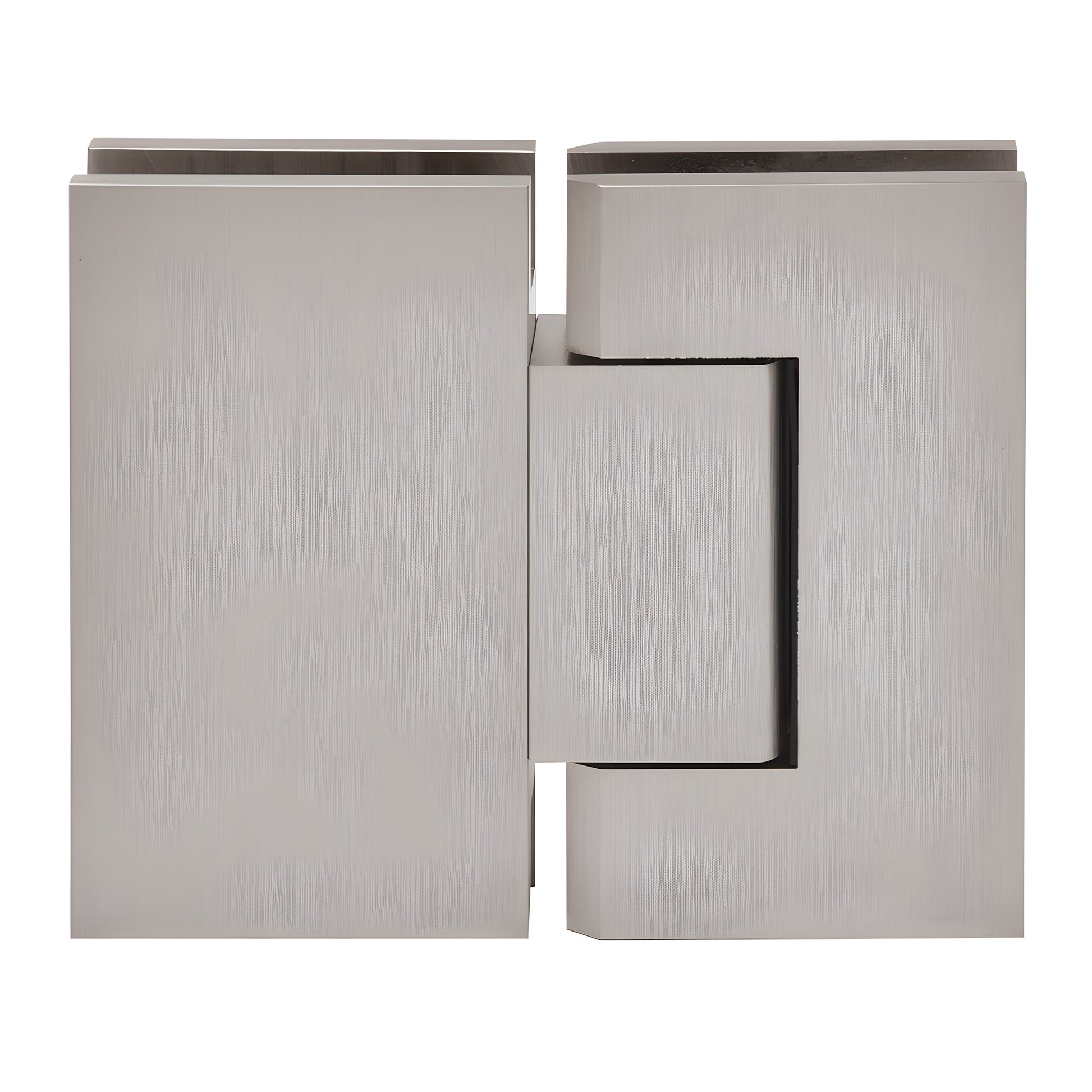

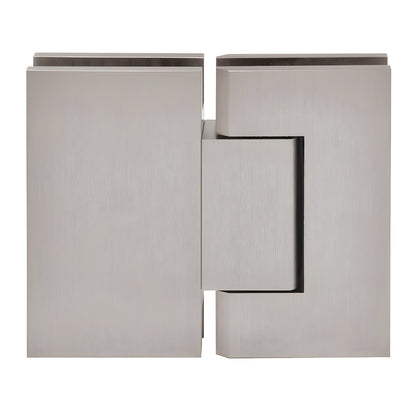

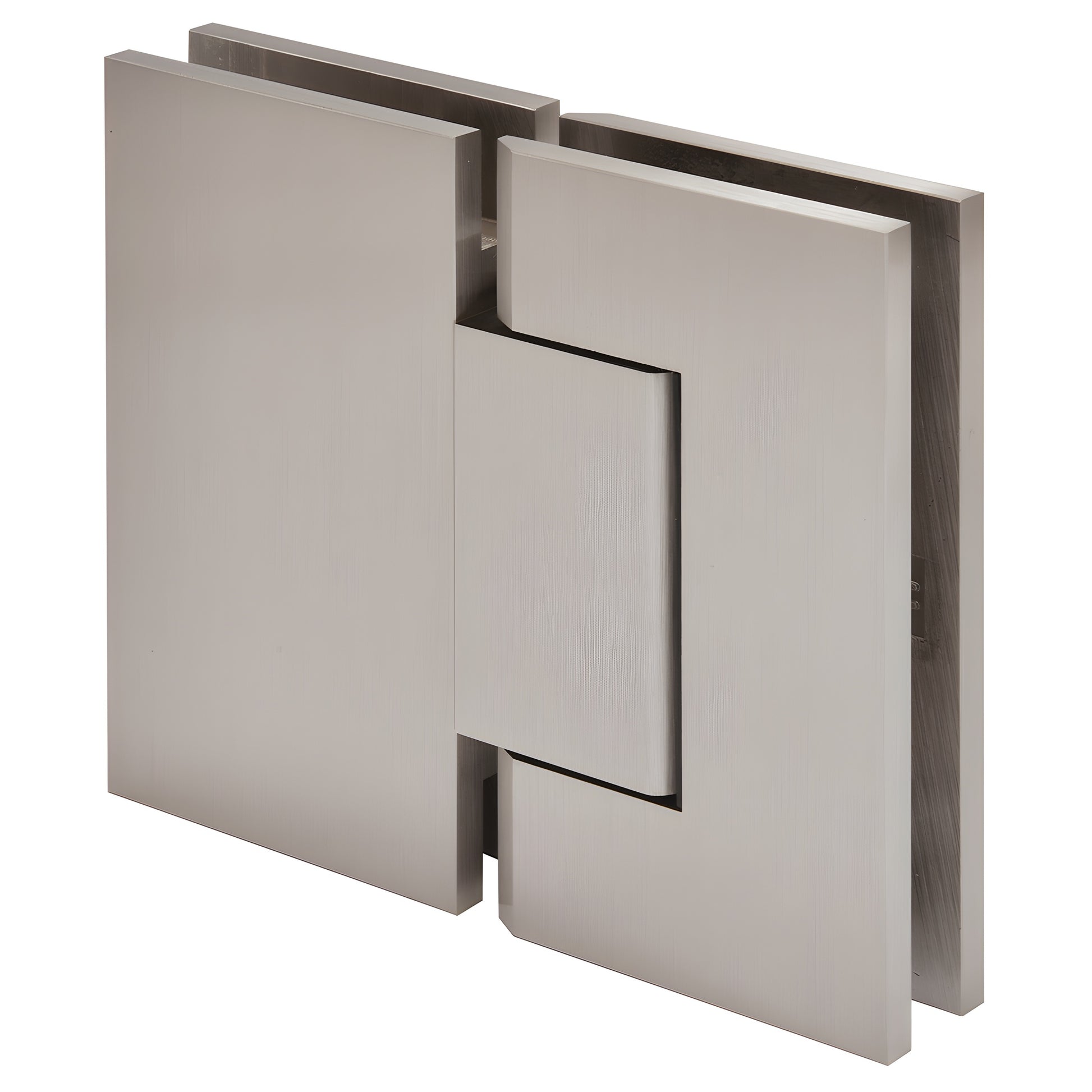

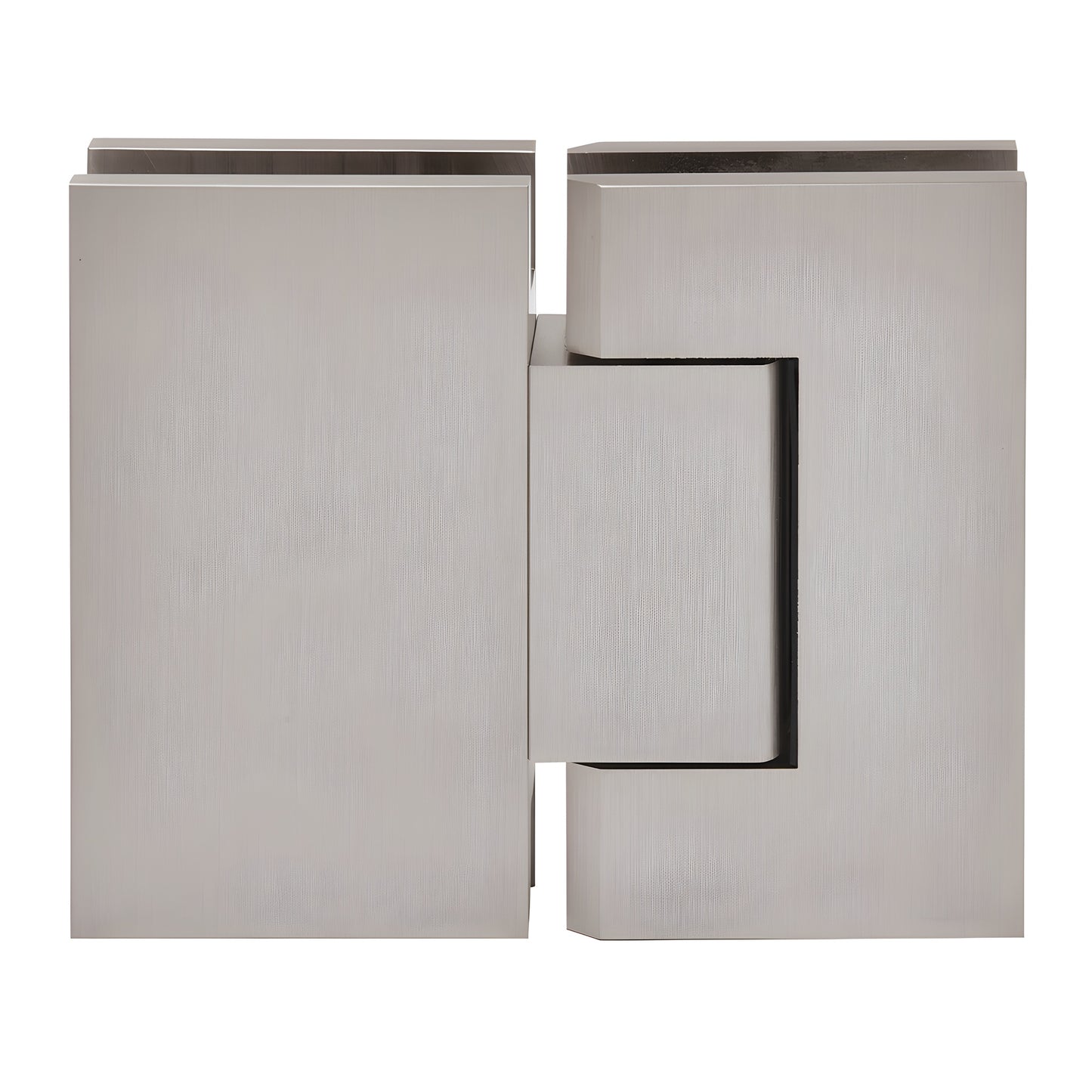

CRL Trento 180° Brushed Nickel Glass-to-Glass Shower Door Hinge

• Supports heavier glass shower doors — up to 140 lb (two hinges) or 175 lb (three hinges)
• Concealed screws for a clean, modern appearance
• 180° glass-to-glass standard model for frameless shower doors

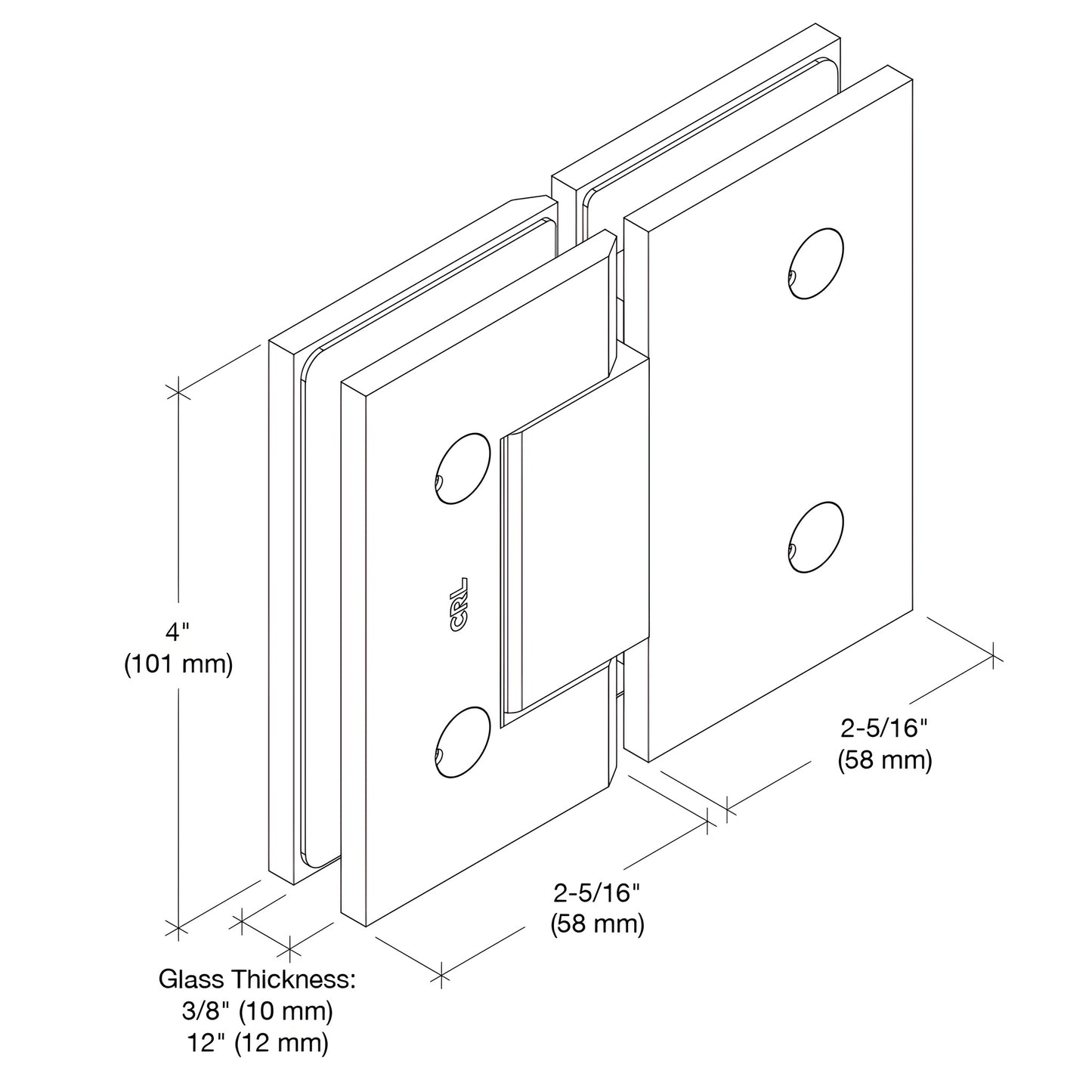

• Single NAF gasket compatible with both 3/8" (10 mm) and 1/2" (12 mm) monolithic tempered glass
• Designed for monolithic tempered glass — use only specified glass types

CRL Trento Hinge (SKU: TNT180BN) is a heavy-duty, rectangular-profile hinge engineered for frameless shower doors and 180-degree glass-to-glass installations. The narrow gap design and fully concealed mounting screws provide a refined look ideal for modern bathrooms. Long-tail keywords: frameless shower door hinge, 180-degree glass-to-glass hinge, heavy-duty shower door hinge for 3/8 and 1/2 inch glass.

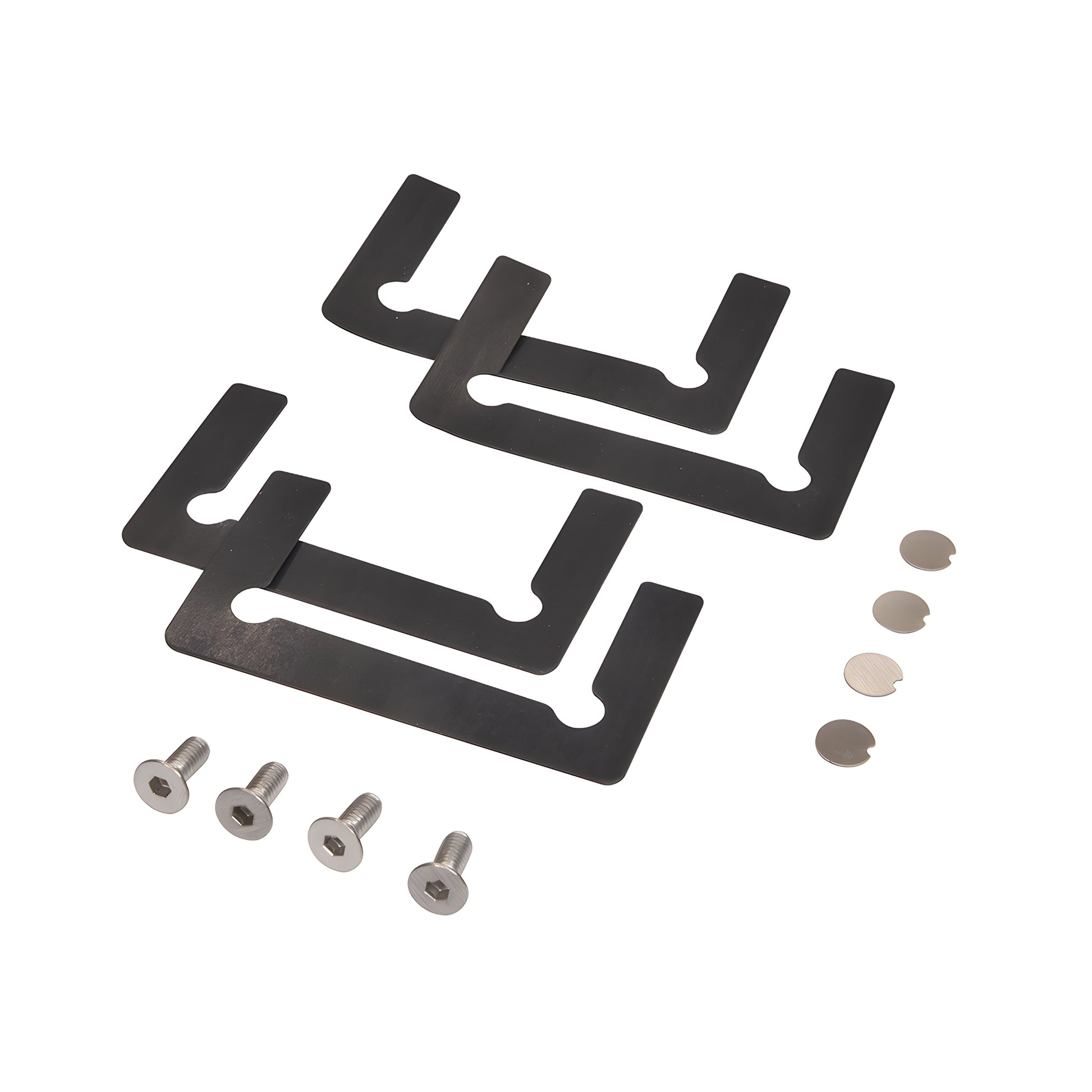

The Trento hinge uses compressible NAF gaskets that adapt to surface variations to maintain a consistent grip on 3/8" and 1/2" monolithic tempered glass. Use monolithic tempered glass only.

Standard reversible pivot pin: Each hinge contains a reversible pivot pin that lets you adjust the closed position by rotating the pin to shift the self-centering angle by 5° (choose either 95° or 85°). This maintains alignment, a tight seal, and smooth operation.

Load capacities:

• Two-hinge installation: supports doors up to 140 lb (63 kg) and up to 40" (1016 mm) wide
• Three-hinge installation: supports doors up to 175 lb (79 kg) and up to 40" (1016 mm) wide

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — cut-out dimensions may not match other brands.

Ready to upgrade your frameless shower? Add the CRL Trento Hinge (TNT180BN) to your cart or contact us for technical assistance.
