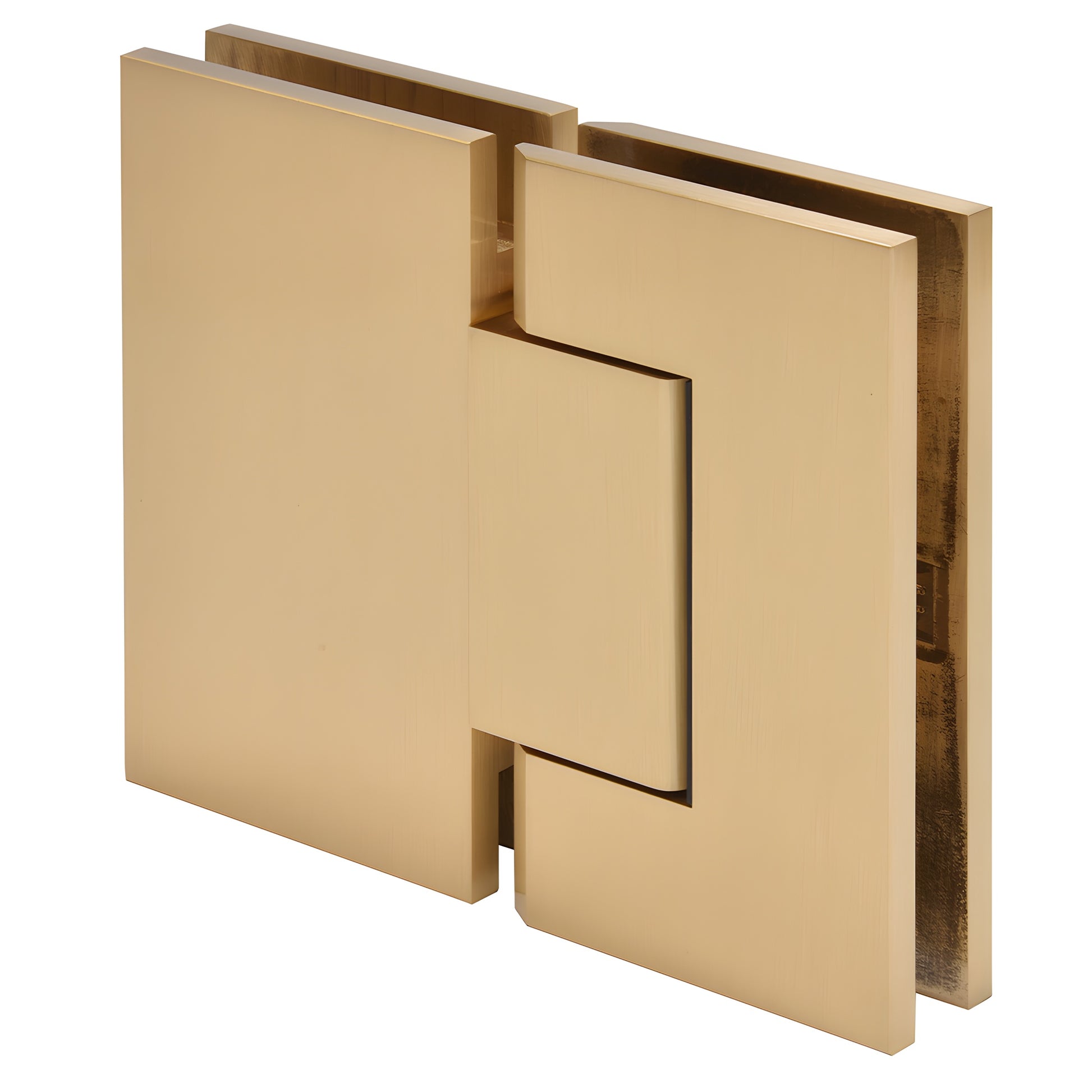

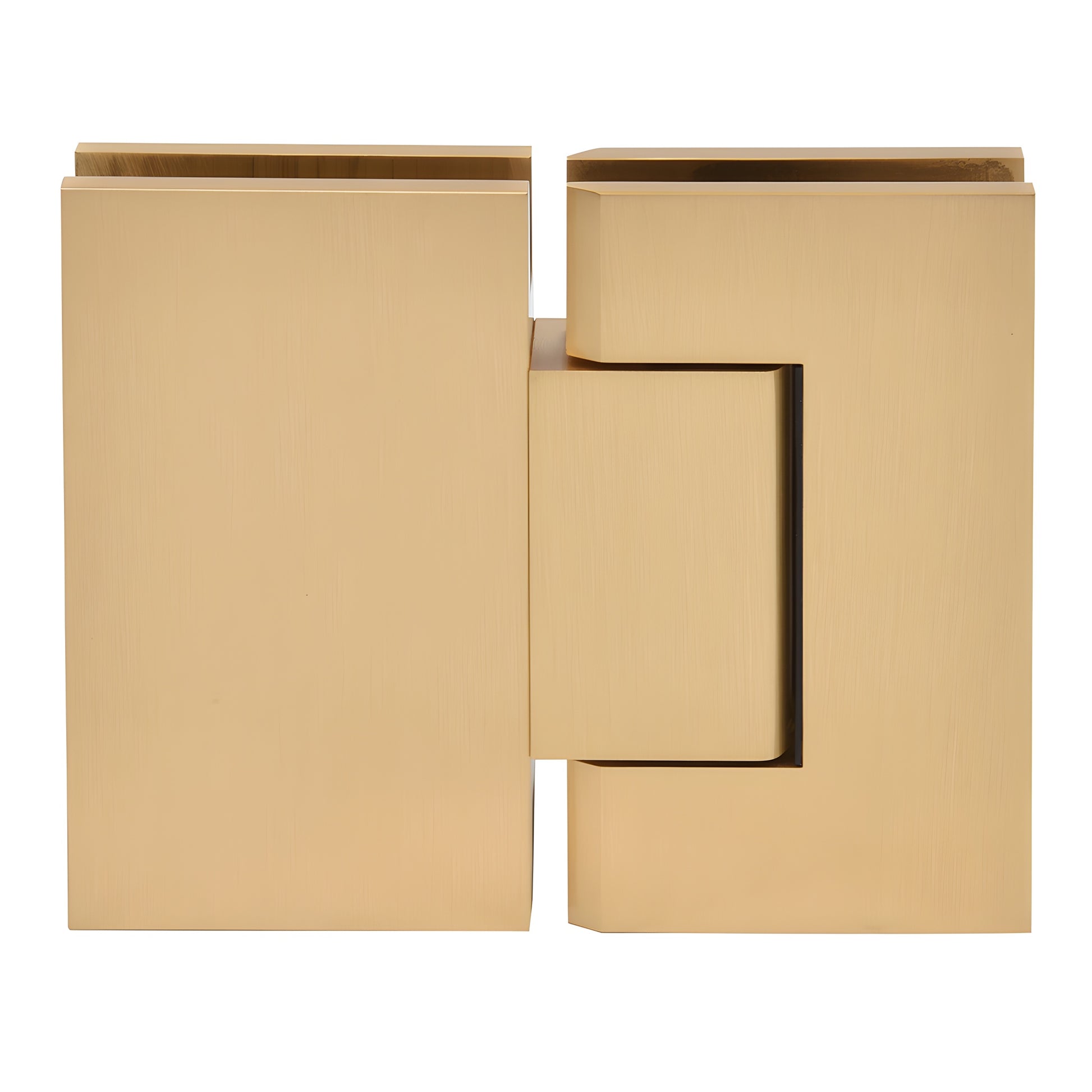

CRL Trento Satin Brass 180° Glass-to-Glass Shower Hinge

• Supports heavier glass shower doors

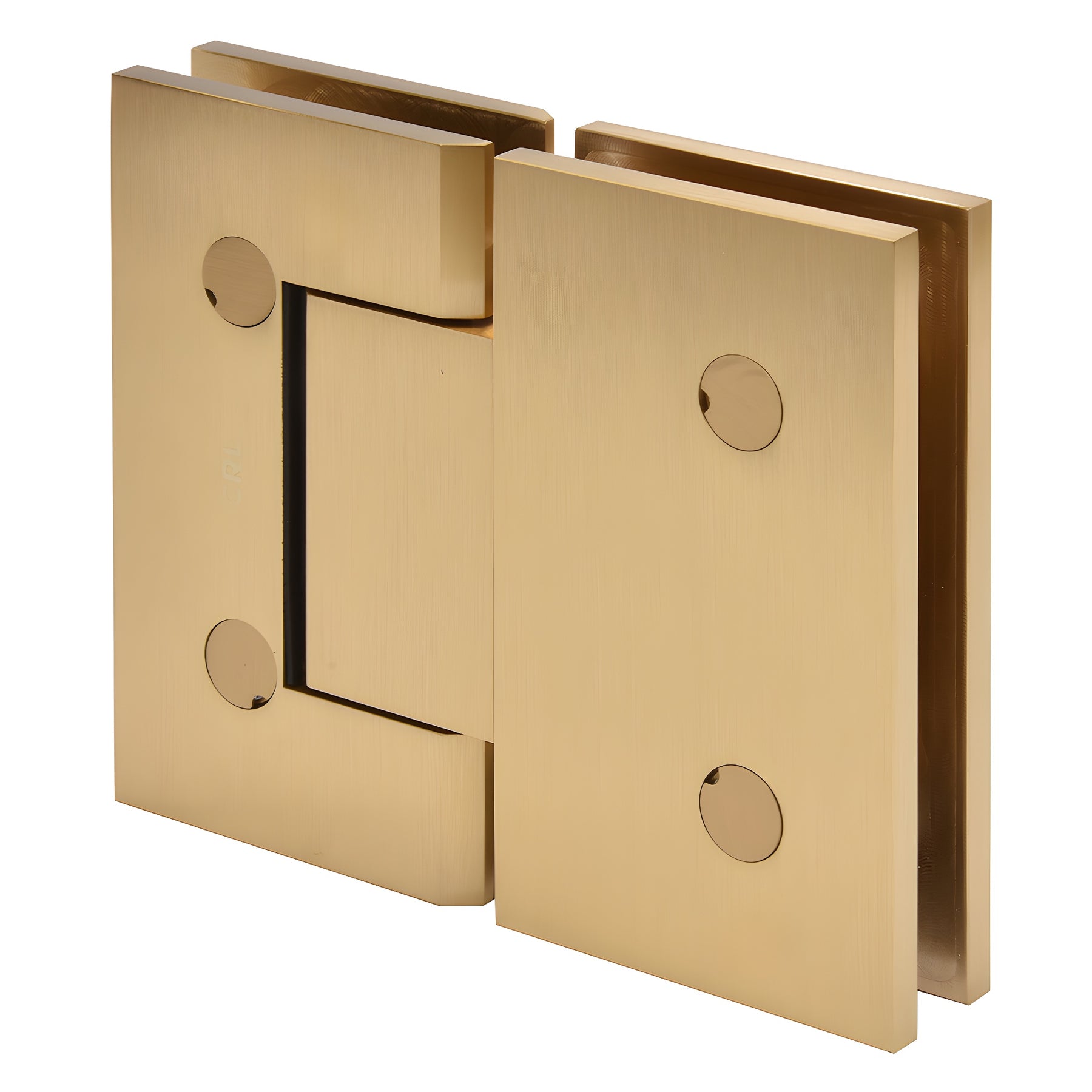

• Concealed screws for a clean, modern look
• 180° glass-to-glass hinge — standard model
• Single NAF gasket compatible with both 3/8” and 1/2” glass
• Designed for use with monolithic tempered glass

The CRL Trento Hinge (SKU: TNT180SB) is a heavy-duty, modern frameless shower door hinge engineered for 180-degree glass-to-glass installations. It supports panels up to 140 lbs. in a standard two-hinge configuration and provides a narrow-gap, rectangular profile with fully concealed mounting screws for a refined appearance.

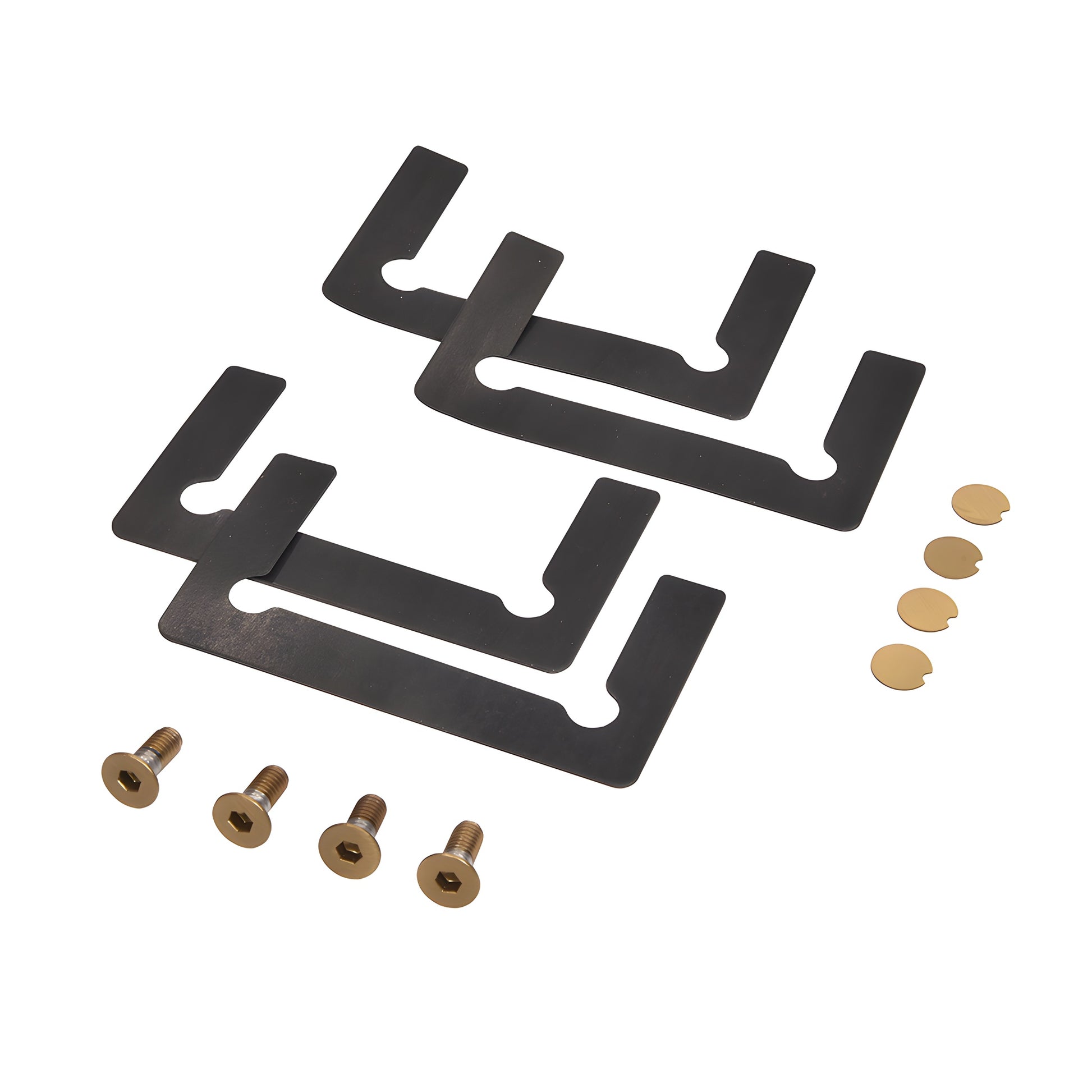

The Trento hinge uses durable NAF gaskets compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass. The compressible gasket material maintains consistent grip across varying glass surfaces to reduce movement and improve seal performance.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position. Rotate (do not flip) the pin to shift the self-centering angle by 5° — choose 95° or 85° — to ensure correct alignment, tight seals, and smooth operation.

Load capacity:

• Two-hinge installation (3/8" or 1/2" glass): supports doors up to 140 lbs. (63 kg) and 40" (1016 mm) wide
• Three-hinge installation (3/8" or 1/2" glass): supports doors up to 175 lbs. (79 kg) and 40" (1016 mm) wide

Product warning:

CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — cut-out dimensions may not match other brands.

Brass Finish Advisory:

Why choose the Trento hinge (TNT180SB)? Sleek concealed screws, reversible pivot adjustment, and compatibility with 10–12 mm monolithic tempered glass make this
